Double Row Angular Contact Slewing Bearings

Double Row Angular Contact Slewing Bearings

External-Toothed

Double Row Angular-ex1

Internal-Toothed

Double Row Angular -in

Toothless

Double Row Angular-un2

Double Row Angular Contact Slewing Bearings

External-Toothed

Double Row Angular-ex-a
Bearing part number Boundary dimensions
mm		 Mounting hole dimensions
mm		 Configuration dimensions
mm		 Gear parameters
mm		 Weight
kg
De D d H D1 D2 n φ D3 d1 H1 h n1 M m Z b x
HSW4500D 4867.2 4754 4256 200 4642 4358 84 39 4502 4498 190 10 7 36 24 200 180 0.5 5380
HSW3400D 3700 3605 3240 214 3530 3295 52 33 3436 3440 178 44 8 30 20 183 160 0 2770
HSW2738D 3004 2930 2559 208 2864 2625 36 33 2736 2740 199 9 12 30 16 185 128 0.5 2480
HSW2240D 2540.8 2455 2025 190 2389 2091 48 33 2278 2275 178 47 8 30 16 156 120 0.5 2017
HSW2000D 2300.8 2215 1785 190 2149 1851 48 33 2038 2035 178 47 8 30 16 141 120 0.5 1794
HSW1400D 1641.6 1576 1224 160 1524 1272 40 26 1440 1423 150 39 5 24 12 134 90 0.5 803
HSW1250D 1497.6 1426 1074 160 1374 1126 40 26 1286 1282 150 39 5 24 12 122 90 0.5 740
HSW800DM 988 942 658 124 898 702 30 22 829 823 114 29 6 20 10 96 80 0.5 307
HSW800D 982.4 942 658 124 898 702 30 22 829 823 114 29 6 20 8 120 80 0.5 305
HSW695D 920 867 545 133 805 611 35 30 697 693 123 10 3 20 10 90 90 0 310
Bearing part number D Weight
mm kg
HSW4500D 4754 5380
HSW3400D 3605 2770
HSW2738D 2930 2480
HSW2240D 2455 2017
HSW2000D 2215 1794
HSW1400D 1576 803
HSW1250D 1426 740
HSW800DM 942 307
HSW800D 942 305
HSW695D 867 310

Double Row Angular Contact Slewing Bearings

Internal-Toothed

Double Row Angular -in-a
Bearing part number Boundary dimensions
mm		 Mounting hole dimensions
mm		 Configuration dimensions
mm		 Gear parameters
mm		 Weight
kg
De D d H D1 D2 n φ D3 d1 H1 h n1 M m Z b x
HSN2500D 2203.2 2715 2285 190 2649 2351 56 33 2465 2462 178 47 8 30 18 123 120 0.5 2164
HSN2240D 1942.4 2455 2025 190 2389 2091 48 33 2206 2202 178 47 8 30 16 122 120 0.5 1956
HSN800DM 614 942 658 124 898 702 30 22 777 771 114 29 6 20 10 62 80 0.5 301
HSN800D 619.2 942 658 124 898 702 30 22 777 771 114 29 6 20 8 78 80 0.5 300
HSN762D 640 850 640 93 820 705 36 17.5 760 764 83 10 4 16 8 81 83 0.5 140
Bearing part number D Weight
mm kg
HSN2500D 2715 2164
HSN2240D 2455 1956
HSN800DM 942 301
HSN800D 942 300
HSN762D 850 140

Double Row Angular Contact Slewing Bearings

Toothless

Double Row Angular-un-a

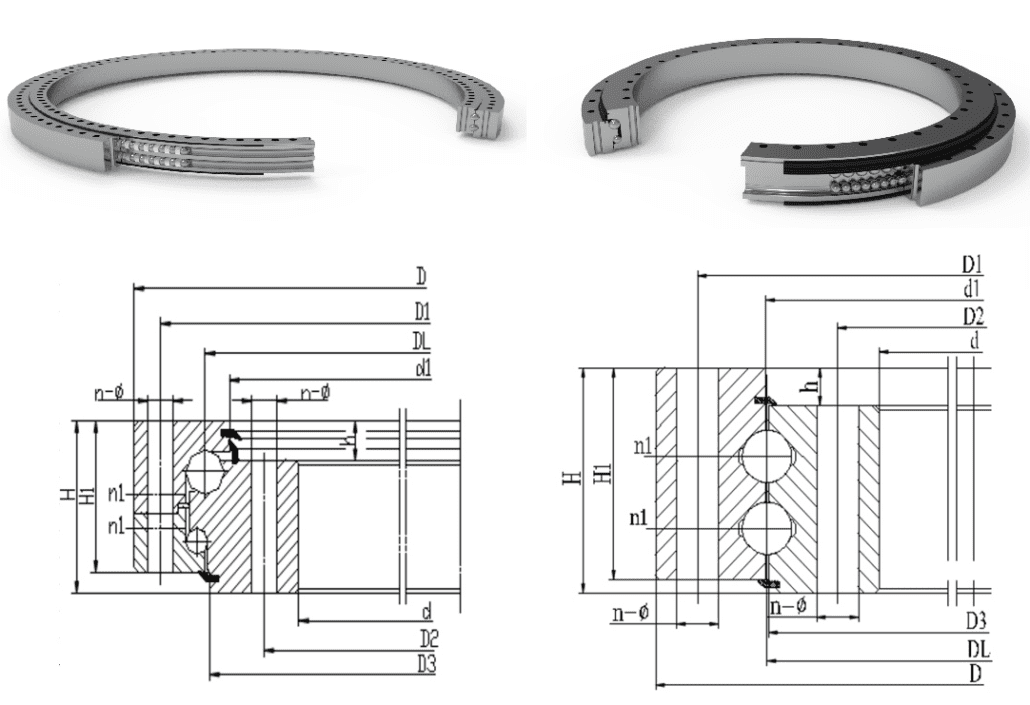

Bearing part number Boundary dimensions
mm		 Mounting hole dimensions
mm		 Configuration dimensions
mm		 Weight
kg
D d H D1 D2 n φ D3 d1 H1 h n1 M
HSB3150D 3428 2872 226 3338 2962 56 45 3104 3102 214 56 8 42 3762
HSB1783D 1959 1606 166 1893 1672 60 33 1781 1785 158 26 10 30 974
HSB1250D 1426 1074 160 1374 1126 40 26 1215 1214 150 39 5 24 709
HSB800D 942 658 124 898 702 30 22 777 771 114 29 6 20 284
HSB660D 750 580 90 720 610 20 18 660 660 88 2 3 10 87.3
Bearing part number D Weight
mm kg
HSB3150D 3428 3762
HSB1783D 1959 974
HSB1250D 1426 709
HSB800D 942 284
HSB660D 750 87.3
