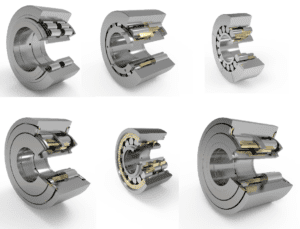

Sendzimir Bearings

Sendzimir Bearings

Single Row Cylindrical Roller Bearings

Single Row Cylindrical Roller Bearings

Single Row Full Complement Cylindrical Roller Bearings

Single Row full complement cylindrical Roller Bearings1-3

Split Cylindrical Roller Bearings

split cylindrical roller bearings

Cylindrical Roller Bearings

Double Row Cylindrical Roller Bearings

double Row Cylindrical Roller Bearings

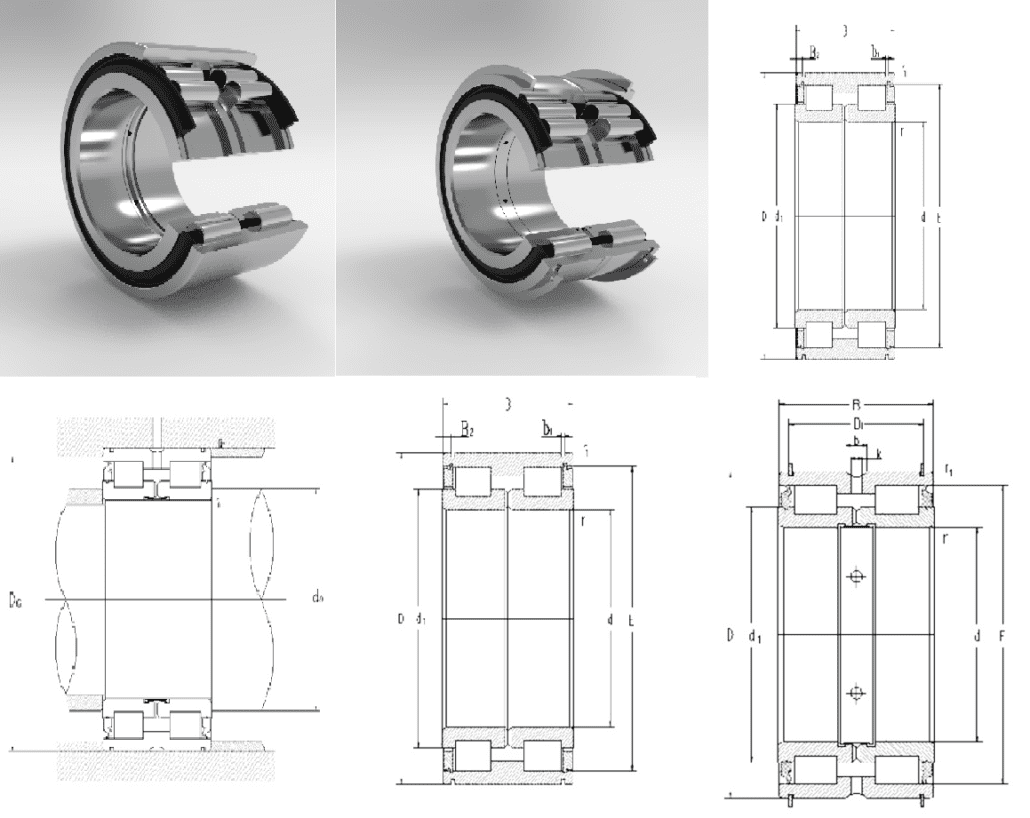

Bearing part number Basic dimensions
mm		 Basic load ratings kN Limit Rotational Speed rmin Other dimensions
mm		 Contact surface and chamfer dimensions mm Weight kg
d D B r E.F Cr Cor Grease lubrication Oil lubrication d1 D1 b k damin Damax ramax
NN3010K/YA8W33 50 80 23 1 72.5 60 84.5 10000 13000 61.3 4.5 3 55 75 1 0.415
NN3010/YA8 50 80 23 1 72.5 60 84.5 10000 13000 61.3 55 75 1 0.431
NN3010K/YA8 50 80 23 1 72.5 60 85 10000 13000 61.3 55 75 1 0.428
NN3012K 60 95 26 1.1 86.1 77 114 9000 10000 73.3 66 89 1 0.691
NN3014 70 110 30 1.1 100 104 161 8000 9000 85.6 80 103 1 1.06
NN3014K 70 110 30 1.1 100 98.5 151 8000 9000 85.6 80 103 1 1.06
NN3014KTN1/P491 70 110 30 1.1 100 98.5 151 8000 9000 85.6 80 103 1 1.04
NN3014K/W33 70 110 30 1.1 100 98.5 151 8000 9000 85.6 6.5 3 80 103 1 1.06
NN3014KTN1/P492 70 110 30 1.1 100 98.5 151 8000 9000 85.6 80 103 1 1.04
NN3015K/W33 75 115 30 1.1 105 106 168 6700 8000 90.6 6.5 4 81.5 108.5 1 1.13
NN3015KTN1 75 115 30 1.1 105 106 165 6700 8000 90.6 81.5 108.5 1 1.07
NN3015K/YA8 75 115 30 1.1 105 106 165 6700 8000 90.6 81.5 108.5 1 1.14
NN3016KTN1/P492 80 125 34 1.1 113 130 207 6300 7500 97 87 118 1 1.49
NN3016KTN1/P491 80 125 34 1.1 113 130 207 6300 7500 97 87 118 1 1.49
NN3016KTN1/P492W33 80 125 34 1.1 113 130 207 6300 7500 97 6 2.5 87 118 1 1.48
NN3016KTN1/P592W33 80 125 34 1.1 113 130 207 6300 7500 97 6 2.5 87 118 1 1.49
NN3016K/C9W33 80 125 34 1.1 113 128 207 6300 7500 97 6 2.5 87 118 1 1.5
NN3016K/W33YA8 80 125 34 1.1 113 130 207 6300 7500 97 6 2.5 87 118 1 1.5
NN3016K/YA8 80 125 34 1.1 113 130 207 6300 7500 97 87 118 1 1.5
NN3016K 80 125 34 1.1 113 130 207 4500 5600 97 87 118 1 1.5
NN3016K/C9 80 125 34 1.1 113 130 207 4500 5600 97 87 118 1 1.5
NN3017K/W33 85 130 34 1.1 118 135 224 4300 5300 102 6.5 3 91.5 123.5 1 1.62
NN3017K/C9 85 130 34 1.1 118 135 224 4300 5300 102 91.5 123.5 1 1.64
NN3017K/YA8 85 130 34 1.1 118 135 224 4300 5300 102 91.5 123.5 1 1.63
NN3018KTYN/P493W33 90 140 37 1.5 127 147 260 5600 6700 109.4 6.5 4 98 132 1.5 1.84
NN3018K/P493W33 90 140 37 1.5 127 147 260 5600 6700 109.4 6.5 4 98 132 1.5 1.92
NN3018K/SPC91W33 90 140 37 1.5 127 147 260 5600 6700 109.4 6.5 4 98 132 1.5 1.92
NN3018K/C91W33 90 140 37 1.5 127 147 260 5600 6700 109.4 6.5 4 98 132 1.5 1.92
NN3018KTN1/P493 90 140 37 1.5 127 154 251 5600 6700 109.4 98 132 1.5 1.82
NN3018KTN1/P491W33 90 140 37 1.5 127 154 251 5600 6700 109.4 6.5 4 98 132 1.5 1.82
NN3018KTN1/P493W33 90 140 37 1.5 127 147 260 5600 6700 109.4 6.5 4 98 132 1.5 1.82
NN3018KTN1/P593W33 90 140 37 1.5 127 147 260 5600 6700 109.4 6.5 4 98 132 1.5 1.41
NN3018K/YA8W33 90 140 37 1.5 127 147 260 5600 6700 109.4 6.5 4 98 132 1.5 1.92
NN3018K/C9 90 140 37 1.5 127 147 260 5600 6700 109.4 98 132 1 2
NN3018K/YA8 90 140 37 1.5 127 147 260 5600 6700 109.4 98 132 1.5 1.95
NN3018/YA8 90 140 37 1.5 127 147 260 4000 5000 109.4 98 132 1.5 1.98
NN3019K/P4W33 95 145 37 1.5 132 150 246 3800 4300 114.4 6.5 3 103 137 1.5 2.24
NN3019KTN1/P491 95 145 37 1.5 132 150 246 3800 4300 114.4 103 137 1.5 2.17
NN3019K 95 145 37 1.5 132 150 246 3800 4300 114.4 103 137 1.5 2.26
NNU4020/YA8 100 150 50 1.5 115 220 410 3600 4500 133 108 142 1.5 3.11
NN3020KTYN/P493W33YA8 100 150 37 1.5 137 168 292 3600 4500 119.4 6 2.5 108 142 1.5 2.08
NN3020KTN1/P493YA8W33 100 150 37 1.5 137 168 270 5300 6300 119.4 6 4 108 142 1.5 2.05
NN3020K/UPC1W33 100 150 37 1.5 137 168 292 5300 6300 120 6 4 108 142 1.5 2.17
NN3020K/C9W33 100 150 37 1.5 137 168 292 5300 6300 120 6 4 108 142 1.5 2.17
NN3020K/C1LW33 100 150 37 1.5 137 168 292 5300 6300 119.4 6 2.5 108 142 1.5 2.17
NN3020K/C91 100 150 37 1.5 137 168 292 3600 4500 119.4 108 142 1.5 2.2
NN3020K/C91W33 100 150 37 1.5 137 168 292 3600 4500 119.4 6 2.5 108 142 1.5 2.17
NN3020K/YA8W33 100 150 37 1.5 137 168 292 3600 4500 119.4 6 2.5 108 142 1.5 2.17
NN3020K/C9YA8 100 150 37 1.5 137 168 292 3600 4500 119.4 108 142 1.5 2.18
NN3020K/W33 100 150 37 1.5 137 168 292 3600 4500 119.4 6 2.5 108 142 1.5 2.17
NN3020 100 150 37 1.5 137 168 292 3600 4500 119.4 108 142 1.5 2.25
NN3020KTN1 100 150 37 1.5 137 168 292 5300 6300 119.4 108 142 1.5 2.09
NN3020K/YA8 100 150 37 1.5 137 168 292 5300 6300 119.4 108 142 1.5 2.2
NNU4920K/W33 100 140 40 1.1 113 133 267 5200 6200 126 5.5 3 108 132 1.5
NNU4920/W33 100 140 40 1.1 113 133 267 5200 6200 126 5.5 3 108 132 1.5 1.95
NN3021K/W33 105 160 41 2 146 211 350 4000 4800 125.2 12 4 116.6 154 1 2.93
NN3021K/C9 105 160 41 2 146 211 350 4000 4800 125.2 116.6 154 1 2.93
NN3021K 105 160 41 2 146 211 350 4000 4800 125.2 116.5 154 1 2.93
NN3021 105 160 41 2 146 211 350 4000 4800 125.2 116.5 154 1 2.94
NNU4921/P49 105 145 40 1.1 118 141 292 4000 4800 130.8 112 138 1 2.01
NNU622Q1/HCYA7 110 225 150/140 3.5 138 950 1460 3200 4000 186 120 215 3.5 28
NN3022KTN1/P49 110 170 45 2 155 220 405 3200 4000 132.6 116.5 163 1 3.54
NN3022KTN1/P491 110 170 45 2 155 220 405 3200 4000 132.6 116.5 163 1 3.54
NN3022 110 170 45 2 155 220 405 3200 4000 132.6 116.5 163 1 3.74
NN3022K/SPC91W33 110 170 45 2 155 220 405 3200 4000 132.6 12 4 116.5 163 1 3.71
NN3022K/P49W33 110 170 45 2 155 220 405 3200 4000 132.6 12 4 116.5 163 1 3.71
NN3022KL/P49W33 110 170 45 2 155 220 405 3200 4000 132.6 12 4 116.5 163 1 3.54
NN3022/YA8 110 170 45 2 155 220 405 3200 4000 132.6 116.5 163 1 3.74
NN3022K 110 170 45 2 155 220 405 5000 6000 132.6 116.5 163 1 3.73
NNU4922K/C91W33YA8 110 150 40 1.1 123 137 284 5000 6000 135.2 8 3 116.5 143 1 2.11
NNU6/177X4M/W33X 117.61 288.925 134 2.1 208 1240 2390 252.8 11.1 6 188 277 2 35.1
NN3024KTN1/P493W33YA5 120 180 46 2 165 253 438 3000 3800 143 7.5 4 130 171 2 3.89
NN3024KTN1/P491W33YA5 120 180 46 2 165 253 438 3000 3800 143 7.5 4 130 171 2 3.89
NN3024KTN1/P492W33YA5 120 180 46 2 165 253 438 3000 3800 143 7.5 4 130 171 2 3.89
NN3024 120 180 46 2 165 243 445 3000 3800 142.6 130 171 2 3.86
NN3024K/C91W33 120 180 46 2 165 243 445 3000 3800 142.6 7.5 4 130 171 2 3.65
NN3024K/C1LW33 120 180 46 2 165 243 445 3000 3800 142.6 7.5 4 130 171 2 3.65
NN3024K/C9 120 180 46 2 165 243 445 3000 3800 142.6 130 171 2 3.85
NN3024K/W33 120 180 46 2 165 243 445 4300 5000 142.6 7.5 4 130 171 2 3.65
NN3024K 120 180 46 2 165 243 445 4300 5000 142.6 130 171 2 3.85
NNFP3326X3 130 300 172.644 3 159.5 1360 2870 1900 2400 175 9 139 291 2 74.7
NN3026K/P492W33 130 200 52 2 182 305 530 2800 3600 156.4 9.6 3 139 191 2 5.35
NN3026K/P492 130 200 52 2 182 305 530 2800 3600 156.4 139 191 2 5.34
NN3026KTN1/P49W33 130 200 52 2 182 305 530 2800 3600 156.4 9.6 3 139 191 2 5.32
NN3026KTN1/P492 130 200 52 2 182 305 530 2800 3600 156.4 139 191 2 5.32
NN3026/W33 130 200 52 2 182 305 530 2800 3600 156.4 9.6 3 139 191 2 5.53
NN3026K/C92W33 130 200 52 2 182 305 530 2800 3600 152.6 9.6 5 139 191 2 5.35
NN3026K/W33 130 200 52 2 182 305 530 2800 3600 152.6 9.6 5 139 191 2 5.35
NN3026K/P494 130 200 52 2 182 305 530 2800 3600 152.6 139 191 2 5.34
NN3026K/C93 130 200 52 2 182 305 530 2800 3600 152.6 139 191 2 5.34
NN3026K 130 200 52 2 182 305 530 2800 3600 156.4 139 191 2 5.34
NN3026K/C91 130 200 52 2 182 305 530 2800 3600 156.4 139 191 2 5.34
NN3026K/C9W33 130 200 52 2 182 305 530 2800 3600 156.4 9.6 3 139 191 2 5.34
NN3026 130 200 52 2 182 305 530 2800 3600 156.4 139 191 2 5.54
NNU4926/W33 130 180 50 1.5 144 235 450 2900 3700 163 5.5 3 160 160 1.5 3.79
NNU4926/W33YAD 130 180 50 1.5 146 250 520 2900 3700 163.5 5.5 3 139 171 1.5 3.95
NNU6/139.7Q1/C9W33YA2 139.7 203.2 146.558 2 155.5 830 1900 1900 2400 182 8 4 150 200 2 16.4
NN3028K/SPC1W33 140 210 53 2 192 320 575 2600 3400 166.4 9.6 5 149 201 2 6
NN3028K/W33 140 210 53 2 192 320 575 2600 3400 166.4 9.6 5 149 201 2 6
NN3028K/C91W33 140 210 53 2 192 320 575 2600 3400 166.4 9.6 5 149 201 2 6
NN3028 140 210 53 2 192 320 575 2600 3400 166.4 149 201 2 6.05
NN3028KTN1 140 210 53 2 192 320 575 2600 3400 166.4 149 201 2 5.76
NN3028K/C9 140 210 53 2 192 320 575 2600 3400 166.4 149 201 2 6.05
NN3028K 140 210 53 2 192 320 575 3800 4500 166.4 149 201 2 6.05
NNU3028/C9W33 140 210 53 2 160 320 575 2600 3400 185.6 9.6 5 149 201 2 6.18
NNJ4928 140 190 50 1.5 156 199 405 2800 3400 160 172 149 182 1.5 4.19
NN3030/W33 150 225 56 2.1 206 363 650 2400 3200 178.8 8.5 4.5 161 214 2 7.75
NN3030K/W33 150 225 56 2.1 206 363 650 2400 3200 178.8 8.5 4.5 161 214 2 7.7
NN3030K/C91W33 150 225 56 2.1 206 363 650 2400 3200 178.8 8.5 4.5 161 214 2 7.7
NN3030/C9YA8 150 225 56 2.1 206 363 650 2400 3200 178.8 161 214 2 7.75
NN3030/C9 150 225 56 2.1 206 363 650 2400 3200 178.8 161 214 2 7.75
NN3030 150 225 56 2.1 206 363 650 2400 3200 178.8 161 214 2 7.75
NN3030/YA8 150 225 56 2.1 206 363 650 3400 4000 178.8 161 214 2 7.75
NN3030K 150 225 56 2.1 206 363 650 3400 4000 178.8 161 214 2 7.7
NNJD6/157X4 157.175 250 195 3 180 950 1750 2300 3100 191 222.4 13 8 171 240 2 28.3
NNU6/158X4Q1/W33X 158.75 231.775 161.925 2.1 176.5 1020 2390 2200 3000 205.5 8.3 4 170 220 2 23.9
NNU4132X3/HCYA7W33X 160 265 120 3 190 1060 1990 1800 2200 242 6.5 3.2 171 232 2 29
NN3032 160 240 60 2.1 219 380 675 2200 3000 190.2 171 229 2 8.38
NN3032K/C9W33YB2 160 240 60 2.1 219 380 675 2200 3000 190.2 8.5 4.5 171 229 2 8.38
NN3032K/YB2 160 240 60 2.1 219 380 675 2200 3000 190.2 171 229 2 8.39
NN3032K/SPC1W33 160 240 60 2.1 219 380 675 2200 3000 190.2 8.5 4.5 171 229 2 8.38
NN3032K/W33 160 240 60 2.1 219 380 675 2200 3000 190.2 8.5 4.5 171 229 2 8.38
NN3032KTN1 160 240 60 2.1 219 380 335 3200 3800 190.2 171 229 2 7.86
NN3032K/P494 160 240 60 2.1 219 380 675 3200 3800 190.2 171 229 2 8.39
NN3032K 160 240 60 2.1 219 380 675 3200 3800 190.2 171 229 2 8.39
NN3032K/C91W33 160 240 60 2.1 219 375 675 3200 3800 190.2 8.5 4.5 171 229 2 8.38
NNU4932K/C9W33 160 220 60 2 178.5 345 790 3200 3800 197.7 6.5 3 171 210 1 6.73
NNU4934/W33 170 230 60 2 188.5 355 830 2200 3000 207.7 15 4 177 223 2 7.45
NNU4934/HCW33YAD-DHBB 170 230 97.5 2 188.5 535 1410 2200 3000 207.7 15 4 177 223 2 12.1
1-2029 170 306 278 276 1650 2690 1700 2200 215 181 287 67.2
NN3034K/W33 170 260 67 2.1 236 470 860 2200 3000 204 9.6 5 181 249 2 12.9
NN3034K/C9 170 260 67 2.1 236 470 860 2200 3000 204 181 249 2 12.9
NN3034/YA8 170 260 67 2.1 236 470 860 2200 3000 204 181 249 2 13.3
NN3034K 170 260 67 2.1 236 470 860 2200 3000 204 181 249 2 12.9
NNU6/177X4Q1/C9-1-NJB 177.8 257.175 196.85 2 197.5 1250 3050 1800 2500 230.5 15.88 9.5 188 247 2 33.9
NNU3036 180 280 74 2.1 209 605 1090 2800 3400 245.8 190 260 2.1 17
NNJ5236X2 180 320 204 6 215 1660 2880 2000 2800 229.5 279 26 167 193 6 63.8
NNU6036X2/C91-LS 180 280 219 3.5 205 1580 3490 2000 2800 247.5 15 8 191 269 3.5 51.4
NN3036 180 280 74 2.1 255 605 1090 2000 2800 218.2 2 16.9
NN3036K/W33 180 280 74 2.1 255 605 1090 2800 3400 218.2 12.2 6 191 269 2 16.9
NN3036K 180 280 74 2.1 255 605 1090 2800 3400 218.2 191 269 2 16.9
NND5936X3/C4YB4 180 260 88 2 198 525 1045 2000 2600 234.8 191 250 2 14.8
NNU4936K 180 250 69 2.3 201 370 700 2000 2800 228 191 239 2 9.8
NN2138X2/C9W33A 190 320 75 3 283 660 1240 1900 2600 244 12 5 201 310 3 25.8
NNU6038 190 290 180 2.1 219 1390 3200 1900 2600 236 201 279 2 43.6
NN3038 190 290 75 2.1 265 622 1140 1900 2600 228.2 201 279 2 18
NN3038K/W33 190 290 75 2.1 265 622 1140 1900 2600 228.2 15 6 201 279 2 17.1
NN3038K 190 290 75 2.1 265 622 1140 2600 3200 228.2 201 279 2 17.9
NNU4938K/P491 190 260 69 2 212 420 905 1900 2600 236 201 249 2 10.4
NNU4938K/W33 190 260 69 2 212 420 905 1900 2600 236 9.5 5 201 249 2 10.4
NNU4938/W33A 190 260 69 2 212 500 1100 1900 2600 237.6 9.5 6 201 249 2 11
NNU4938/C4YA4 190 260 69 2 212 420 905 1900 2600 236 201 249 2 11
NNU4938B-W33 190 260 69 2 212 420 905 1900 2600 236 9.5 5 201 249 2 11
NNU4040/C9W33X 200 310 109 2.1 227 1030 1920 1900 2400 272 11.1 6 211 299 2 29.9
NN3040K/W33 200 310 82 2.1 282 740 1340 1900 2400 242 12.2 5 211 299 2 21
NN3040K/C9 200 310 82 2.1 282 740 1340 1900 2400 242 211 299 2 21.2
NN3040 200 310 82 2.1 282 740 1340 1900 2400 242 211 299 2 22.1
NN3040K 200 310 82 2.1 282 740 1340 2400 3000 242 211 299 2 21.2
NNU4940K/P49W33 200 280 80 2.1 225 484 1040 2500 3200 253 12.2 6 211 269 2 14.8
NNU4940K/W33 200 280 80 2.1 225 484 1040 2500 3200 253 12.2 6 211 269 2 14.8
NNU6/206X4M/C9 206.375 285.75 222.25 4 226 1460 4500 1800 2200 259 12.7 8 218 273 3 43.9
NNU4144/W33 220 370 150 4 258 1660 3030 1800 2200 321 13.9 6 236 354 3 64.3
NN3044/C1W33 220 340 90 3 310 875 1610 1800 2200 265.2 15 6 233 327 2.5 30.9
NN3044 220 340 90 3 310 875 1610 1800 2200 265.2 233 327 2.5 31
NN3044K/W33 220 340 90 3 310 875 1610 1800 2200 265.2 15 6 233 327 2.5 30
NN3044K 220 340 90 3 310 875 1610 1800 2200 265.2 233 327 2.5 30.1
NN3044X3/C9W33T 220 310 110 2.1 288.3 820 1790 1800 2200 254.7 12 6 231 309 2 25.7
NNU4944WB/W33 220 300 95/80 2.1 245 535 1200 1800 2200 273 12.2 6 231 289 2 17.7
NN4944K/W33 220 300 80 2.1 279 530 1200 1700 2000 251 12.2 6 231 289 2 16
NNU4944K 220 300 80 2.1 245 530 1200 1800 2200 273 231 289 2 16
NNU4944K/SPC1W33 220 300 80 2.1 245 530 1200 1800 2200 273 12.2 6 231 289 2 16.6
NNU4944/P53W33 220 300 80 2.1 245 530 1200 1800 2200 273 12.2 6 231 289 2 16.6
NNU3148M/YAB 240 400 128 3 282 1500 2700 1700 2000 342 253 347 2.5 66.7
NNU3148M/HCC9YAB 240 400 128 3 282 1770 2700 1700 2000 342 253 347 2.5 66.7
NN3048K/SPC1W33 240 360 92 3 330 885 1690 1700 2000 285.2 15 6 253 347 2.5 32.6
NN3048K/P51W33 240 360 92 3 330 885 1690 1700 2000 285.2 15 6 253 347 2.5 32.6
NN3048 240 360 92 3 330 885 1690 1700 2000 285.2 253 347 2.5 31.6
NN3048K 240 360 92 3 330 885 1690 2000 2600 285.2 253 347 2.5 32.7
NN4948/W33 240 320 80 2.1 301 630 1470 1700 2000 271.4 12.2 6 251 309 2 18
NN4948K/W33 240 320 80 2.1 265 630 1470 1700 2000 271.4 12.2 6 251 309 2 17.2
NNU4948K/SPC1W33 240 320 80 2.1 265 625 1470 1700 2000 295 12.2 6 251 309 2 17.7
NNU4948/C3W33 240 320 80 2.1 265 625 1470 1700 2000 295 12.2 6 251 309 2 17.8
NNU4948/P53W33 240 320 80 2.1 265 625 1470 1700 2000 295 12.2 6 251 309 2 17.8
NNU4948/P63W33 240 320 80 2.1 265 625 1470 1700 2000 295 12.2 6 251 309 2 17.8
NNU4152 260 440 180 4 306 2460 4500 1000 1300 387 276 424 3 111
NNU4052/W33 260 400 140 4 295 1660 3240 1150 1500 354 13.9 6 276 384 3 63.4
NN3052WCK/W33XYA8 260 400 110/104 4 364 1110 2120 1900 2600 312.8 18 10 276 384 2 49.6
NN3052K 260 400 104 4 364 1110 2120 1900 2600 312.8 276 384 3 49.3
NN3052K/P51W33 260 400 104 4 364 1110 2120 1900 2600 312.8 15 6 276 384 3 49.2
NN3052 260 400 104 4 364 1140 2200 1900 2600 312.8 276 384 2 49.8
NN3052K/P49W33YB5 260 400 104 4 364 1010 2120 1900 2600 312.8 15 6 276 384 2 49.2
NN3052K/SPW33 260 400 104 4 364 1010 2120 1900 2600 312.8 15 6 276 384 2 49.2
NN3052/SPW33 260 400 104 4 364 1010 2120 1900 2600 312.8 15 6 276 384 2 49.2
NNU4952K/W33 260 360 100 2.1 292 760 2030 1400 1700 326 15 6 273 347 2.7 30.4
NNU4952K/SPC1W33 260 360 100 2.1 292 835 2030 1400 1700 325 15 6 273 347 2 30.4
NNU4952K/P4 260 360 100 2.1 292 835 2030 1400 1700 325 273 347 2 30.4
NNU4952K/P4-HS 260 360 100 2.1 292 790 1850 1400 1700 324 273 347 2 30.8
NNU4952/W33 260 360 100 2.1 292 760 2030 1400 1700 325 15 6 273 347 2.7 31.7
NNU4952/W33YA4 260 360 100 2.1 292 760 2030 1400 1700 325 15 6 273 347 2.6 31.7
NNU4952X2/C9W33 260 360 80 2.1 292 665 1500 1600 1900 325 9.5 5 273 347 2.5 28.2
NNU4156 280 460 180 5 326 2500 4700 900 1200 407 300 440 4 118
NN3056K/SPW33 280 420 106 4 384 1170 2290 1400 1700 332.8 15 6 296 404 3 49.7
NN3056K/P52W33 280 420 106 4 384 1170 2290 1400 1700 332.8 15 6 296 404 3 49.6
NN3056 280 420 106 4 384 1170 2290 1400 1700 332.8 296 404 3 52.3
NN3056K 280 420 106 4 384 1170 2290 1800 2200 332.8 296 404 3 49.7
NNU4956K/P4-HS 280 380 100 2.1 312 810 1980 1300 1600 344 291 369 2 32.8
NNU4956 280 380 100 2.1 309 870 2200 1300 1600 347 291 369 2 29
NNU4956K/P52W33YA8 280 380 100 2.1 309 960 2200 1300 1600 347 15 6 291 369 2 27.5
NNP657/HCRYAD 285 415 102 3 317 1350 2780 900 1200 368 300 406 2.5 47.9
NNU658/HCW33 290 420 128 3 323 1520 3230 1000 1300 375 17.7 6 301 409 3 58
NNU3160 300 500 160 5 358 1900 3700 1200 1500 427 316 444 5 132
NNU4060X2/HC 300 460 180 4 339 2700 5680 1200 1500 407 314 444 4 113
NN3060K/P51W33YA8 300 460 118 4 418 1420 2790 1200 1500 360.4 379 17.7 9 316 444 3 75.8
NN3060/YA8 300 460 118 4 418 1420 2790 1200 1500 360.4 316 444 3 77.9
NN3060K/YA8 300 460 118 4 418 1420 2790 1200 1500 360.4 316 444 3 76.2
NN3060K 300 460 118 4 418 1420 2790 1200 1500 360.4 316 444 3 75.9
NNU4960K/SPC1W33 300 420 118 3 339 1150 2800 1200 1500 379 17.7 9 314 406 2.5 49.3
NNU4960K/W33 300 420 118 3 339 1150 2800 1200 1500 379 17.7 9 314 406 2.5 49.3
NN4960/W33 300 420 118 3 387 1150 2800 1200 1500 347 17.7 9 314 406 2.5 52
NNU4960/C9 300 420 118 3 339 1050 2800 1200 1500 379 314 406 2.5 52.2
NNU4960/C3W33 300 420 118 3 339 1050 2800 1200 1500 379 17.7 9 314 406 2.5 51.6
NNP5064X2NC/HCW33-RF 320 480 220 4 360 2600 5700 900 1100 12 6 333 475 4 139
NNU3164/HCW33 320 540 176 5 384 2500 4900 900 1100 463 16.7 8 340 520 5 169
NNU4064M/W33 320 480 160 4 360 2130 4400 1100 1300 426 16.7 9 336 464 4 102
NNU4064X2/C9W33 320 480 145 3.7 364 1820 3870 1100 1300 424 18 8 336 464 3 93.3
NN3064K/SPW33 320 480 121 4 438 1500 2910 1100 1400 377 17.7 8 336 464 3 75.3
NN3064K/P4W33 320 480 121 4 438 1500 2910 1100 1400 377 17.7 8 336 464 3 75.3
NN3064K/P52W33 320 480 121 4 438 1500 2910 1100 1400 377 17.7 8 336 464 3 72.8
NN3064/W33 320 480 121 4 438 1500 2910 1100 1400 377 17.7 8 336 464 3 76.3
NU3064X3ZW/HAP55S2YA3 320 460 120 4 363.65 1460 3510 1100 1400 411 336 444 3 71.4
NNU4964/W33 320 440 118 3 359 1200 3040 1100 1400 399 17.7 9 334 426 2.5 54.9
NNU4168 340 580 243 5 402 4000 7550 780 940 510 360 560 4 267
NNU4068/W33X 340 520 180 5 385 2490 4800 860 1000 460 12 6 360 500 4 136
NN3068K/P4W33 340 520 133 5 473 1900 3780 900 1050 406 16.7 9 360 500 4 99.5
NN3068K/SPW33 340 520 133 5 473 1900 3780 900 1050 406 16.7 9 360 500 4 99.5
NN3068K/W33 340 520 133 5 473 1900 3780 900 1050 406 16.7 9 360 500 4 99.5
NNU5072X2/HCRC9W33TYB2 360 540 266 5 402 4150 9250 900 1100 485.5 25 15 376 524 5 212
NNU4172/HC 360 600 243 5 4750 7950 800 1000 522 376 584 5 279
NN3072K/P52W33 360 540 134 5 493 1940 3900 900 1100 426 17.7 12 380 497 4 105
NNU3276/HCYA3 380 680 240 6 460 4700 9100 700 850 579 400 640 4 400
NNU4176/C9W33 380 620 243 5 442 4100 8350 700 850 538 16.7 9 400 580 4 287
NNU4176 380 620 243 5 442 4100 8350 700 850 538 400 580 4 288
NNU4176/C9 380 620 243 5 442 4100 8350 700 850 538 400 580 4 288
NN3076K/P52W33 380 560 135 5 515 1800 4100 1300 1500 448 17.7 12 400 517 4 110
NNU3076 380 560 135 5 431 1860 3800 1300 1500 498 400 517 4 114
NNU4976K/W33 380 520 140 4 426 1640 4280 1300 1500 471 16.7 9 396 504 4 86.7
NNU4976K/SPC1W33 380 520 140 4 426 1640 4280 1300 1500 471 16.7 9 396 504 4 86.7
NNU4180/HFYA3-JD 400 650 250 6 463 4700 9550 1000 1250 568 426 624 6 326
NNU4180/HG2W33 400 650 250 6 463 4700 9550 1000 1250 568 22.3 12 426 624 5 326
NNU4180/W33 400 650 250 6 463 4700 9550 1000 1250 568 22.3 12 426 624 5 326
NNU4180 400 650 250 6 463 4700 9550 1000 1250 568 426 624 5 328
NNU3080X2/HC 400 600 170 5 450 2900 6000 800 950 532 22 10 426 580 4 172
NN3080K 400 600 148 5 549 2360 4750 1150 1300 472 426 580 4 141
NN4980K/SPW33 400 540 140 4 502 1700 4500 950 1000 457 16.7 8 416 524 3 90.4
NNU4980K/W33 400 540 140 4 446 1700 4500 950 1000 491 16.7 8 416 524 3 90.6
NNU4184/W33 420 700 280 6 491 5380 10700 750 900 609 16.7 9 440 680 6 436
NNU3284/HF-DS 420 760 280 7.5 507 5610 10400 750 900 645 450 730 7.5 559
NNU3184X3/HC 420 730 230 6 500 4950 9470 750 900 622 450 628 6 423
NNU4084X3/HCEW33X 420 620 220 5 470 3250 7810 750 900 536 12 6 440 600 4 205
NNU4084/W33 420 620 200 5 469 3450 7500 750 900 556 16.7 9 440 600 4 204
NNU3084 420 620 150 5 469 2750 5570 1000 1250 556 574 600 4 152
NN3084K/W33 420 620 150 5 569 2100 4500 1000 1250 492 16.7 9 574 600 4 135
NU684ZWF1/C9YA3 420 580 130 4 468 1790 4660 860 1100 522 563 465 4 110
NU684ZWF1/YA3 420 580 130 4 468 1790 4660 860 1100 522 563 465 4 110
NNU4984K/SPW33 420 560 140 4 466 1810 4750 850 1000 515 17.7 9 436 539 4 93.3
NNU4984/SPW33 420 560 140 4 466 1810 4750 850 1000 515 17.7 9 436 539 4 94.3
NNU4984K/P52W33YA8 420 560 140 4 466 1650 4750 850 1000 515 17.7 9 436 539 4 93.3
NNU4988/P51W33 440 600 160 4 490 2080 5820 700 850 538 17.7 9 466 587 4 139
NNU4188/HC 440 720 280 6 511 5700 11600 600 700 638 466 694 5 451
NNU4088/C9W33 440 650 212 6 487 3850 8250 700 850 582 22.3 12 466 624 5 214
NNU4188/W33 440 720 280 6 511 5650 11500 600 700 630 22.3 12 466 694 5 452
NNU4188K30M/W33 440 720 280 6 511 5650 11500 600 700 630 22.3 12 466 694 5 452
NNU4088K/W33 440 650 212 6 487 3850 8250 700 850 582 22.3 12 466 624 5 214
NNU4088/W33 440 650 212 6 487 3850 8250 700 850 582 22.3 12 466 624 5 214
NNU3088/W33 440 650 157 6 497 2670 5600 700 850 577 22.3 12 466 624 5 178
NN3088K/C9W33 440 650 157 6 597 2540 5250 700 850 517 22.3 12 466 624 5 172
NN3088K/W33 440 650 157 6 597 2540 5250 700 850 517 22.3 12 466 624 5 172
NNP4088X3/W33 440 640 230 6 482 4790 10400 700 850 584 16.7 7.5 466 614 5 258
NNU692/HC-DS 460 800 250 5 545 5460 10100 500 600 684 476 784 5 543
NNU692/HC 460 800 250 5 545 5460 10100 500 600 684 476 784 5 533
NNU4092X3/HCW33T 460 650 235 6 510 5300 11400 550 650 588 18 8 480 630 6 251
NNU4192 460 760 300 7.5 537 6100 12200 550 650 667 493 727 6 535
NNU4192K30 460 760 300 7.5 537 6100 12200 550 650 667 493 727 6 533
NNU4092/HCW33 460 680 218 6 513 3930 8860 650 780 602 22.3 12 486 654 5 281
NNU4092K/W33 460 680 218 6 513 4250 9300 650 780 600 22.3 12 486 654 5 235
NNU4092/W33 460 680 218 6 513 4250 9300 650 780 600 22.3 12 486 654 5 238
NN3092K/W33 460 680 163 6 624 2500 5500 950 1150 544 22.3 12 627 654 5 185
NNU4992K/W33 460 620 160 4 510 2000 5400 800 900 558 16.7 9 476 604 3 128
NNU4992/HCW33 460 620 160 4 510 2100 5900 800 900 558 17.7 9 476 604 4 145
NNU4992/W33 460 620 160 4 510 2000 5400 800 900 558 16.7 9 476 604 3 144
NNU4892/W33 460 580 118 3 497 1150 3250 840 950 537 16.7 9 474 566 2.5 75
NNU4892K/W33 460 580 118 3 497 1150 3250 840 950 537 16.7 9 474 566 2.5 75
NN3092/SPYB5W33 460 680 163 6 624 2600 6200 1000 1200 544 20.5 12 486 627 5 199
NN3092K/P52W33 460 680 163 6 624 2600 6200 1000 1200 544 20.5 12 486 627 5 198
NNU4196/HCW33YB2 480 790 308 7.5 557 6550 13400 500 600 691 27.5 12 513 757 6 613
NNU4196K/W33 480 790 308 7.5 557 6550 13400 500 600 691 27.5 12 513 757 6 585
NNU4196/W33 480 790 308 7.5 557 6550 13400 500 600 691 27.5 12 513 757 6 591
NNU4196X3/HCRW33FYA6 480 770 320 6.5 533 7200 16000 550 600 691 27.5 14 505 754 6.5 613
NNU4096/W33 480 700 218 6 533 4200 9600 620 720 626 27.5 12 506 674 5 275
NN3096K/W33 480 700 165 6 644 2500 5800 930 1000 564 22.3 12 648 674 5 192
NN3096/W33 480 700 165 6 644 2500 5800 930 1000 564 22.3 12 648 674 5 198
NNU4996K/SPC1W33 480 650 170 5 534 2270 6100 720 880 588 22.3 12 500 630 4 161
NNU4996K/W33 480 650 170 5 534 2300 6150 720 880 592 22.3 12 500 630 4 148
NNU4996/W33 480 650 170 5 534 2300 6150 720 880 592 22.3 12 500 630 4 150
NNU4996 480 650 170 5 534 2300 6150 720 880 592 500 630 4 162
NNU49/500X2F3/YA34 500 670 160 5 554 2450 6800 750 1000 612 520 650 4 174
NNU49/500X2F3/W33YA34 500 670 160 5 554 2450 6800 750 1000 612 520 650 4 174
NNU49/500X2F1/W33YA34 500 670 160 5 554 2450 6800 750 1000 612 520 650 4 174
NNU41/500/W33YB2 500 830 325 7.5 583 8400 14500 580 700 725 23.7 12 533 797 6 698
NNP6/500/HCP63W33YB5 500 730 305 6 676 6200 15100 600 700 556 658 22.3 12 526 704 5 435
NNU50/500X2/HCP59W33T 500 720 270 6 559 5580 14300 580 700 648 32.3 20 520 697 5 383
NNU40/500/HCW33 500 720 218 6 554 4900 9300 580 700 647 22.3 12 520 697 5 288
NNU41/500/HCEW33 500 830 325 7.5 583 8400 14500 580 700 725 23.7 12 533 797 5 696
NNU41/500/W33 500 830 325 7.5 583 7400 14500 580 700 725 22.3 12 533 797 6 696
NNU40/500K/W33 500 720 218 6 554 4450 10500 620 740 654 22.3 12 526 694 5 288
NNU40/500/W33 500 720 218 6 554 4450 10500 620 740 654 22.3 12 526 694 5 288
NN30/500K/P51W33 500 720 167 6 664 2650 5800 950 1100 585 22.3 12 668 694 5 221
NN30/500K/SPC1W33 500 720 167 6 664 2650 5800 950 1100 585 22.3 12 668 694 5 221
NNU49/500K/W33X 500 670 170 5 554 2330 6100 750 1000 612 22.3 12 520 650 4 170
NNU49/500F1/W33X 500 670 170 5 554 2330 6100 750 1000 612 22.3 12 520 650 4 178
NNU49/500X2F1/YA34 500 670 160 5 554 2450 6800 750 1000 612 520 650 4 174
NNU40/530X2WB/HC 530 780 475 6 590 7260 17900 460 550 698 560 760 6 562
NNU41/530HC/W33 530 870 335 7.5 612 7750 15500 460 550 760 17.7 12 563 837 6 783
NNU41/530K30/W33 530 870 335 7.5 612 7750 15500 460 550 760 17.7 12 563 837 6 770
NNU40/530K/W33 530 780 250 6 591 5400 12100 550 650 706 22.3 12 556 754 5 384
NNU40/530/W33YA8 530 780 250 6 591 5400 12100 550 650 701 22.3 12 556 754 5 401
NN30/530/P5W33 530 780 185 6 715 3110 6800 880 950 626 22.3 12 720 754 5 311
NN30/530K/P51W33 530 780 185 6 715 3110 6800 880 950 625 720 754 5 302
NNP40/530X3/HCW33 530 760 260 5 587 5800 14100 880 950 684 22.3 12 550 751 4 394
NNU49/530/HCW33 530 710 180 5 588 2930 7450 700 950 649 17.7 6 550 690 4 203
NNU6/550/HCW33T 550 550 810 350 605 9550 18900 650 800 725 32 15 570 790 6 610
NNU49/560/SPW33 560 750 190 5 623 3150 8750 630 750 689 22.3 12 580 730 4 245
NNU41/560/HCW33 560 920 355 7.5 653 8550 18200 500 600 804 22.3 12 590 900 7.5 944
NNU41/560/HCRW33 560 920 355 7.5 653 8550 18200 500 600 804 22.3 12 590 900 7.5 944
NNU40/560/P63W33YB5 560 820 258 6 626 5900 14000 530 630 732 22.3 12 590 790 6 468
NN40/560/W33 560 820 258 6 756 5900 14000 530 630 650 22.3 12 590 790 6 465
NNU41/560/HC 560 920 355 7.5 653 8550 18200 500 600 804 590 900 7.5 944
NN30/560KF3/W33 560 820 195 6 755 3800 8050 600 850 658.4 22.3 12 590 790 6 336
NN30/560K/P51W33 560 820 195 6 755 3720 8150 600 850 658.4 22.3 12 590 790 6 336
NN30/560KF3 560 820 195 6 755 3800 8050 600 850 658.4 590 790 6 337
NN40/560/HCW33 560 820 258 6 756 5900 14000 600 850 650 22.3 12 590 790 6 465
NN30/560K/P5W33 560 820 195 6 755 3720 8150 600 850 658.4 22.3 12 590 790 6 336
NN30/560K 560 820 195 6 755 3720 8170 600 850 658.4 590 790 6 337
NN49/560K/P51W33 560 750 190 5 693 2690 7900 630 750 632 23.5 12 580 730 4 233
NNU49/560K/W33X 560 750 190 5 623 3210 8950 630 750 689 22.3 12 580 730 4 235
NNU49/560K/W33 560 750 190 5 623 3210 8950 630 750 689 22.3 12 580 730 4 235
NN49/560/P49W33XYB5 560 750 190 5 703 3190 8800 630 750 637 22.3 12 580 730 4 240
NN49/560K/P41W33 560 750 190 5 693 2690 7900 630 750 632 23.5 12 580 730 4 233
NNU49/560/W33 560 750 190 5 623 3210 8950 630 750 689 22.3 12 580 730 4 245
NNU41/600/HCCNHW33YA3 600 980 375 7.5 699 9800 21000 380 450 864 22.3 12 634 946 6 1123
NNU41/600/HCW33 600 980 375 7.5 699 9800 21000 380 450 864 22.3 12 634 946 6 1123
NN30/600F1/YA8 600 870 200 6 805 4460 9850 600 800 701 15 8 630 840 6 403
NN30/600F3/YA8 600 870 200 6 805 4650 10500 600 800 701 15 8 630 840 6 403
NN30/600KF1/YA8 600 870 200 6 805 4460 9850 600 800 701 630 840 6 384
NN40/600X3K/P49W33YB5 600 860 300 6 802 7000 17000 580 700 690 22.3 12 624 836 5 535
NNU49/600/P63W33YB5 600 800 200 5 666 3700 11400 560 670 737 22.3 12 620 780 4 282
NNU49/630/W33X 630 850 218 6 704 3660 11000 500 600 771 22.3 12 660 830 6 372
NN30/630F1/YA8 630 920 212 7.5 850 4350 10600 550 750 738 15 8 660 890 6 460
NN30/630KF1/YA8 630 920 212 7.5 850 4350 10600 550 750 738 660 890 6 438
NN48/630K/P51W33 630 780 150 4 738 2270 6900 500 600 686.8 20.5 8 650 760 4 161
NNU31/670/HCW33 670 1090 336 7.5 774 10900 18500 600 700 957 22.3 12 704 907 6 66.7
NN30/670K/P49W33 670 980 230 7.5 900 4980 11300 670 750 788 22.3 12 704 907 6 593
NNU30/670 670 980 230 7.5 760 4980 11300 670 750 872 704 907 6 594
NNU49/670/W33T-JG 670 900 230 6 738 4750 13300 500 600 822 18 10 696 870 5 424
NNU49/670/C3 670 900 230 6 738 4900 12500 500 600 822 696 870 5 424
NNU6/690/HCEC9W33YB2 690 980 365 7.5 759 9950 26100 560 670 881 30 15 724 940 6 912
NNU49/710K/P51W33 710 950 243 6 782 5250 15000 450 530 868 22.3 12 736 896 5 476
NNU40/710/HCW33 710 1030 315 7.5 784 9000 21500 380 450 937 22.3 12 744 996 6 858
NNU41/710/W33 710 1150 438 9.5 820 12800 28000 310 370 1024 22.3 12 750 1110 8 1800
NNU40/710/W33 710 1030 315 7.5 784 9450 19500 380 450 925 22.3 12 744 996 6 868
NN30/710/W33 710 1030 236 7.5 951 5500 12500 580 650 831 22.3 12 744 957 6 595
NNU49/710K/SPC1W33 710 950 243 6 782 5250 15000 450 530 868 22.3 12 736 896 5 469
NNP49/710/C9YA7 710 950 243 6 782 5730 16500 450 530 878 35 18 736 896 5 512
NNP49/710/C9YA57 710 950 243 6 770 5730 15200 450 530 890 18 736 896 5 493
NN48/710X2K 710 870 180 4 823 2600 8500 480 550 771.8 736 850 4 223
NNU49/750K/W33 750 1000 250 6 831 5050 16000 420 480 906 22.3 12 776 974 5 545
NNU41/750/W33 750 1220 475 9.5 871 16000 35600 280 350 1083 22.3 12 790 1180 8 2240
NNU40/750/W33 750 1090 335 7.5 830 10000 23500 350 420 991 22.3 12 784 1000 6 924
NN30/750/P63W33YB5 750 1090 250 7.5 1007 7050 16000 550 620 868 22.3 12 6 767
NN30/750/W33 750 1090 250 7.5 1013 6800 15000 550 600 877 22.3 12 784 1011 6 700
NNU49/750 750 1000 250 6 831 5400 15800 420 480 906 776 974 5 570
NN48/750K30/W33 750 920 170 5 879 3550 10000 460 530 811 22.3 12 770 887 4 235
NNU41/800/W33 800 1280 475 9.5 921 15500 36000 270 325 1125 22.3 12 840 1240 8 2310
NNU40/800/W33 800 1150 345 7.5 885 10500 26500 330 380 1046 22.3 12 833 1117 6 1150
NN30/800/W33 800 1150 258 7.5 1065 7500 17500 510 580 929 22.3 12 833 1071 6 785
NN30/800K/W33 800 1150 258 7.5 1065 7500 17500 510 580 929 22.3 12 833 1071 6 750
NNU49/800/W33X 800 1060 258 6 884 5800 16500 360 440 972 22.3 12 826 1034 5 614
NNU41/850/W33 850 1360 500 12 976 19000 44500 230 285 1213 22.3 12 897 1334 10 2890
NNU40/850/W33 850 1220 365 7.5 940 11000 28000 290 350 1110 22.3 12 883 1187 6 1350
NN30/850K/W33 850 1220 272 7.5 1130 7800 18000 470 520 986 22.3 12 883 1187 6 930
NN30/850/W33 850 1220 272 7.5 1130 7800 18000 470 520 986 22.3 12 883 1187 6 935
NNU49/850/W33X 850 1120 272 6 939 5650 17500 350 420 1029 22.3 12 876 1094 5 715
NNU41/900K/W33 900 1420 515 12 1032 20500 47000 210 270 1032 22.3 12 947 1394 10 3160
NNU41/900/W33 900 1420 515 12 1032 20500 47000 210 270 1032 22.3 12 947 1394 10 3160
NNU40/900/W33 900 1280 375 7.5 990 12500 31000 275 330 990 22.3 12 933 1257 6 1510
NN30/900/W33 900 1280 280 7.5 1185 7920 19000 310 370 1185 22.3 12 933 1191 6 1050
NNU49/900/W33X 900 1180 280 6 986 6300 19000 330 380 1082 22.3 12 926 1154 5 843
NNU41/950/W33 950 1500 545 12 1092 24500 56500 195 250 1338 22.3 12 997 1474 10 3850
NNU40/950/W33 950 1360 412 7.5 1050 13500 35000 250 315 1237 22.3 12 983 1327 6 1890
NN30/950K/W33 950 1360 300 7.5 1255 8750 22500 390 440 1103 22.3 12 983 1263 6 1374
NN30/950/W33 950 1360 300 7.5 1255 8750 22500 390 440 1103 22.3 12 983 1263 6 1418
NNU49/950/W33X 950 1250 300 7.5 1046 7050 22300 410 460 1149 22.3 12 983 1217 6 958
NNU41/1000K30/W33 1000 1580 580 12 1154 27200 62500 190 250 1408 22.3 12 1047 1474 10 4250
NNU40/1000/W33 1000 1420 412 7.5 1101 15000 38000 230 290 1296 22.3 12 1033 1387 6 1985
NN30/1000/W33 1000 1420 308 7.5 1316 10000 24600 370 420 1156 22.3 12 1324 1387 6 1385
NNU49/1000/W33X 1000 1320 315 7.5 1103 8500 26000 380 440 1212 22.3 12 1033 1287 6 1250
NN49/1000 1000 1320 315 7.5 1238 8500 26000 380 440 1124 22.3 12 1249 1287 6 1210
NNU41/1060K/W33 1060 1660 600 15 1214 29000 69400 175 210 1485 22.3 12 1116 1627 12 5075
NNU41/1060/W33 1060 1660 600 15 1214 29000 69400 175 210 1485 22.3 12 1116 1627 12 5075
NN30/1060K/W33 1060 1500 325 9.5 1391 10500 37500 350 380 1223 22.3 12 1100 1399 8 1650
NN30/1060/W33 1060 1500 325 9.5 1391 10500 37500 350 380 1223 22.3 12 1100 1399 8 1650
NNU49/1060K/W33 1060 1400 335 7.5 1160 10000 30600 350 380 1288 22.3 12 1093 1367 6 1360
NNU49/1060/W33 1060 1400 335 7.5 1160 10000 30600 350 380 1288 22.3 12 1093 1367 6 1360
NNU41/1120K30/W33 1120 1750 630 15 1279 33500 76600 165 190 1567 22.3 12 1176 1717 12 5570
NNU41/1120/W33 1120 1750 630 15 1279 33500 76600 165 190 1567 22.3 12 1176 1717 12 5570
NNU49/1120K/W33 1120 1460 335 7.5 1220 10000 31500 330 370 1348 22.3 12 1153 1427 6 1440
NNU49/1120/W33 1120 1460 335 7.5 1220 10000 31500 330 370 1348 22.3 12 1153 1427 6 1440
NNU41/1180K/W33 1180 1850 670 15 1350 35500 83500 150 185 1655 22.3 12 1227 1817 6 7200
NNU41/1180/W33 1180 1850 670 15 1350 35500 83500 150 185 1655 22.3 12 1227 1817 6 7200
NNU49/1180K30/W33 1180 1540 355 7.5 1285 11500 35500 310 350 1421 22.3 12 1213 1507 6 1660
NNU49/1180/W33 1180 1540 355 7.5 1285 11500 35500 310 350 1421 22.3 12 1213 1507 6 1660
NNU41/1250K30/W33 1250 1950 710 15 1426 41500 98500 120 160 1748 22.3 12 1297 1917 12 8000
NNU41/1250/W33 1250 1950 710 15 1426 41500 98500 120 160 1748 22.3 12 1297 1917 12 8000
NNU41/1320K/W33 1320 2060 750 15 1507 45600 106000 130 150 1846 22.3 12 1367 2027 6 9450
NNU41/1320/W33 1320 2060 750 15 1507 45600 106000 130 150 1846 22.3 12 1367 2027 6 9450
NNU49/1320K/W33 1320 1720 400 7.5 1442 13500 42500 260 300 1592 22.3 12 1353 1687 6 3100
NNU49/1320/W33 1320 1720 400 7.5 1442 13500 42500 260 300 1592 22.3 12 1353 1687 6 3100
NN49/1320K/W33 1320 1720 400 7.5 1620 13200 42500 260 300 1468 22.3 12 1353 1640 6 3040
NN49/1320/W33 1320 1720 400 7.5 1620 13200 42500 260 300 1468 22.3 12 1353 1640 6 3040
NNU41/1400K30/W33 1400 2180 775 19 1598 49500 117000 90 120 1954 22.3 12 1470 2140 8 10700
NNU41/1400/W33 1400 2180 775 19 1598 49500 117000 90 120 1954 22.3 12 1470 2140 8 10700
NNU41/1500/W33 1500 2300 800 19 1709 52500 132000 85 110 2065 22.3 12 1570 2260 8 12300
NNU6/206X4Q1/C9-NJB 285.75 222.25 5 226 1460 4500 1800 2200 259 15.88 9.5 218 273 4 43.9
Bearing part number D Weight
kg
NN3010K/YA8W33 80 0.415
NN3010/YA8 80 0.431
NN3010K/YA8 80 0.428
NN3012K 95 0.691
NN3014 110 1.06
NN3014K 110 1.06
NN3014KTN1/P491 110 1.04
NN3014K/W33 110 1.06
NN3014KTN1/P492 110 1.04
NN3015K/W33 115 1.13
NN3015KTN1 115 1.07
NN3015K/YA8 115 1.14
NN3016KTN1/P492 125 1.49
NN3016KTN1/P491 125 1.49
NN3016KTN1/P492W33 125 1.48
NN3016KTN1/P592W33 125 1.49
NN3016K/C9W33 125 1.5
NN3016K/W33YA8 125 1.5
NN3016K/YA8 125 1.5
NN3016K 125 1.5
NN3016K/C9 125 1.5
NN3017K/W33 130 1.62
NN3017K/C9 130 1.64
NN3017K/YA8 130 1.63
NN3018KTYN/P493W33 140 1.84
NN3018K/P493W33 140 1.92
NN3018K/SPC91W33 140 1.92
NN3018K/C91W33 140 1.92
NN3018KTN1/P493 140 1.82
NN3018KTN1/P491W33 140 1.82
NN3018KTN1/P493W33 140 1.82
NN3018KTN1/P593W33 140 1.41
NN3018K/YA8W33 140 1.92
NN3018K/C9 140 2
NN3018K/YA8 140 1.95
NN3018/YA8 140 1.98
NN3019K/P4W33 145 2.24
NN3019KTN1/P491 145 2.17
NN3019K 145 2.26
NNU4020/YA8 150 3.11
NN3020KTYN/P493W33YA8 150 2.08
NN3020KTN1/P493YA8W33 150 2.05
NN3020K/UPC1W33 150 2.17
NN3020K/C9W33 150 2.17
NN3020K/C1LW33 150 2.17
NN3020K/C91 150 2.2
NN3020K/C91W33 150 2.17
NN3020K/YA8W33 150 2.17
NN3020K/C9YA8 150 2.18
NN3020K/W33 150 2.17
NN3020 150 2.25
NN3020KTN1 150 2.09
NN3020K/YA8 150 2.2
NNU4920K/W33 140
NNU4920/W33 140 1.95
NN3021K/W33 160 2.93
NN3021K/C9 160 2.93
NN3021K 160 2.93
NN3021 160 2.94
NNU4921/P49 145 2.01
NNU622Q1/HCYA7 225 28
NN3022KTN1/P49 170 3.54
NN3022KTN1/P491 170 3.54
NN3022 170 3.74
NN3022K/SPC91W33 170 3.71
NN3022K/P49W33 170 3.71
NN3022KL/P49W33 170 3.54
NN3022/YA8 170 3.74
NN3022K 170 3.73
NNU4922K/C91W33YA8 150 2.11
NNU6/177X4M/W33X 288.925 35.1
NN3024KTN1/P493W33YA5 180 3.89
NN3024KTN1/P491W33YA5 180 3.89
NN3024KTN1/P492W33YA5 180 3.89
NN3024 180 3.86
NN3024K/C91W33 180 3.65
NN3024K/C1LW33 180 3.65
NN3024K/C9 180 3.85
NN3024K/W33 180 3.65
NN3024K 180 3.85
NNFP3326X3 300 74.7
NN3026K/P492W33 200 5.35
NN3026K/P492 200 5.34
NN3026KTN1/P49W33 200 5.32
NN3026KTN1/P492 200 5.32
NN3026/W33 200 5.53
NN3026K/C92W33 200 5.35
NN3026K/W33 200 5.35
NN3026K/P494 200 5.34
NN3026K/C93 200 5.34
NN3026K 200 5.34
NN3026K/C91 200 5.34
NN3026K/C9W33 200 5.34
NN3026 200 5.54
NNU4926/W33 180 3.79
NNU4926/W33YAD 180 3.95
NNU6/139.7Q1/C9W33YA2 203.2 16.4
NN3028K/SPC1W33 210 6
NN3028K/W33 210 6
NN3028K/C91W33 210 6
NN3028 210 6.05
NN3028KTN1 210 5.76
NN3028K/C9 210 6.05
NN3028K 210 6.05
NNU3028/C9W33 210 6.18
NNJ4928 190 4.19
NN3030/W33 225 7.75
NN3030K/W33 225 7.7
NN3030K/C91W33 225 7.7
NN3030/C9YA8 225 7.75
NN3030/C9 225 7.75
NN3030 225 7.75
NN3030/YA8 225 7.75
NN3030K 225 7.7
NNJD6/157X4 250 28.3
NNU6/158X4Q1/W33X 231.775 23.9
NNU4132X3/HCYA7W33X 265 29
NN3032 240 8.38
NN3032K/C9W33YB2 240 8.38
NN3032K/YB2 240 8.39
NN3032K/SPC1W33 240 8.38
NN3032K/W33 240 8.38
NN3032KTN1 240 7.86
NN3032K/P494 240 8.39
NN3032K 240 8.39
NN3032K/C91W33 240 8.38
NNU4932K/C9W33 220 6.73
NNU4934/W33 230 7.45
NNU4934/HCW33YAD-DHBB 230 12.1
1-2029 306 67.2
NN3034K/W33 260 12.9
NN3034K/C9 260 12.9
NN3034/YA8 260 13.3
NN3034K 260 12.9
NNU6/177X4Q1/C9-1-NJB 257.175 33.9
NNU3036 280 17
NNJ5236X2 320 63.8
NNU6036X2/C91-LS 280 51.4
NN3036 280 16.9
NN3036K/W33 280 16.9
NN3036K 280 16.9
NND5936X3/C4YB4 260 14.8
NNU4936K 250 9.8
NN2138X2/C9W33A 320 25.8
NNU6038 290 43.6
NN3038 290 18
NN3038K/W33 290 17.1
NN3038K 290 17.9
NNU4938K/P491 260 10.4
NNU4938K/W33 260 10.4
NNU4938/W33A 260 11
NNU4938/C4YA4 260 11
NNU4938B-W33 260 11
NNU4040/C9W33X 310 29.9
NN3040K/W33 310 21
NN3040K/C9 310 21.2
NN3040 310 22.1
NN3040K 310 21.2
NNU4940K/P49W33 280 14.8
NNU4940K/W33 280 14.8
NNU6/206X4M/C9 285.75 43.9
NNU4144/W33 370 64.3
NN3044/C1W33 340 30.9
NN3044 340 31
NN3044K/W33 340 30
NN3044K 340 30.1
NN3044X3/C9W33T 310 25.7
NNU4944WB/W33 300 17.7
NN4944K/W33 300 16
NNU4944K 300 16
NNU4944K/SPC1W33 300 16.6
NNU4944/P53W33 300 16.6
NNU3148M/YAB 400 66.7
NNU3148M/HCC9YAB 400 66.7
NN3048K/SPC1W33 360 32.6
NN3048K/P51W33 360 32.6
NN3048 360 31.6
NN3048K 360 32.7
NN4948/W33 320 18
NN4948K/W33 320 17.2
NNU4948K/SPC1W33 320 17.7
NNU4948/C3W33 320 17.8
NNU4948/P53W33 320 17.8
NNU4948/P63W33 320 17.8
NNU4152 440 111
NNU4052/W33 400 63.4
NN3052WCK/W33XYA8 400 49.6
NN3052K 400 49.3
NN3052K/P51W33 400 49.2
NN3052 400 49.8
NN3052K/P49W33YB5 400 49.2
NN3052K/SPW33 400 49.2
NN3052/SPW33 400 49.2
NNU4952K/W33 360 30.4
NNU4952K/SPC1W33 360 30.4
NNU4952K/P4 360 30.4
NNU4952K/P4-HS 360 30.8
NNU4952/W33 360 31.7
NNU4952/W33YA4 360 31.7
NNU4952X2/C9W33 360 28.2
NNU4156 460 118
NN3056K/SPW33 420 49.7
NN3056K/P52W33 420 49.6
NN3056 420 52.3
NN3056K 420 49.7
NNU4956K/P4-HS 380 32.8
NNU4956 380 29
NNU4956K/P52W33YA8 380 27.5
NNP657/HCRYAD 415 47.9
NNU658/HCW33 420 58
NNU3160 500 132
NNU4060X2/HC 460 113
NN3060K/P51W33YA8 460 75.8
NN3060/YA8 460 77.9
NN3060K/YA8 460 76.2
NN3060K 460 75.9
NNU4960K/SPC1W33 420 49.3
NNU4960K/W33 420 49.3
NN4960/W33 420 52
NNU4960/C9 420 52.2
NNU4960/C3W33 420 51.6
NNP5064X2NC/HCW33-RF 480 139
NNU3164/HCW33 540 169
NNU4064M/W33 480 102
NNU4064X2/C9W33 480 93.3
NN3064K/SPW33 480 75.3
NN3064K/P4W33 480 75.3
NN3064K/P52W33 480 72.8
NN3064/W33 480 76.3
NU3064X3ZW/HAP55S2YA3 460 71.4
NNU4964/W33 440 54.9
NNU4168 580 267
NNU4068/W33X 520 136
NN3068K/P4W33 520 99.5
NN3068K/SPW33 520 99.5
NN3068K/W33 520 99.5
NNU5072X2/HCRC9W33TYB2 540 212
NNU4172/HC 600 279
NN3072K/P52W33 540 105
NNU3276/HCYA3 680 400
NNU4176/C9W33 620 287
NNU4176 620 288
NNU4176/C9 620 288
NN3076K/P52W33 560 110
NNU3076 560 114
NNU4976K/W33 520 86.7
NNU4976K/SPC1W33 520 86.7
NNU4180/HFYA3-JD 650 326
NNU4180/HG2W33 650 326
NNU4180/W33 650 326
NNU4180 650 328
NNU3080X2/HC 600 172
NN3080K 600 141
NN4980K/SPW33 540 90.4
NNU4980K/W33 540 90.6
NNU4184/W33 700 436
NNU3284/HF-DS 760 559
NNU3184X3/HC 730 423
NNU4084X3/HCEW33X 620 205
NNU4084/W33 620 204
NNU3084 620 152
NN3084K/W33 620 135
NU684ZWF1/C9YA3 580 110
NU684ZWF1/YA3 580 110
NNU4984K/SPW33 560 93.3
NNU4984/SPW33 560 94.3
NNU4984K/P52W33YA8 560 93.3
NNU4988/P51W33 600 139
NNU4188/HC 720 451
NNU4088/C9W33 650 214
NNU4188/W33 720 452
NNU4188K30M/W33 720 452
NNU4088K/W33 650 214
NNU4088/W33 650 214
NNU3088/W33 650 178
NN3088K/C9W33 650 172
NN3088K/W33 650 172
NNP4088X3/W33 640 258
NNU692/HC-DS 800 543
NNU692/HC 800 533
NNU4092X3/HCW33T 650 251
NNU4192 760 535
NNU4192K30 760 533
NNU4092/HCW33 680 281
NNU4092K/W33 680 235
NNU4092/W33 680 238
NN3092K/W33 680 185
NNU4992K/W33 620 128
NNU4992/HCW33 620 145
NNU4992/W33 620 144
NNU4892/W33 580 75
NNU4892K/W33 580 75
NN3092/SPYB5W33 680 199
NN3092K/P52W33 680 198
NNU4196/HCW33YB2 790 613
NNU4196K/W33 790 585
NNU4196/W33 790 591
NNU4196X3/HCRW33FYA6 770 613
NNU4096/W33 700 275
NN3096K/W33 700 192
NN3096/W33 700 198
NNU4996K/SPC1W33 650 161
NNU4996K/W33 650 148
NNU4996/W33 650 150
NNU4996 650 162
NNU49/500X2F3/YA34 670 174
NNU49/500X2F3/W33YA34 670 174
NNU49/500X2F1/W33YA34 670 174
NNU41/500/W33YB2 830 698
NNP6/500/HCP63W33YB5 730 435
NNU50/500X2/HCP59W33T 720 383
NNU40/500/HCW33 720 288
NNU41/500/HCEW33 830 696
NNU41/500/W33 830 696
NNU40/500K/W33 720 288
NNU40/500/W33 720 288
NN30/500K/P51W33 720 221
NN30/500K/SPC1W33 720 221
NNU49/500K/W33X 670 170
NNU49/500F1/W33X 670 178
NNU49/500X2F1/YA34 670 174
NNU40/530X2WB/HC 780 562
NNU41/530HC/W33 870 783
NNU41/530K30/W33 870 770
NNU40/530K/W33 780 384
NNU40/530/W33YA8 780 401
NN30/530/P5W33 780 311
NN30/530K/P51W33 780 302
NNP40/530X3/HCW33 760 394
NNU49/530/HCW33 710 203
NNU6/550/HCW33T 550 610
NNU49/560/SPW33 750 245
NNU41/560/HCW33 920 944
NNU41/560/HCRW33 920 944
NNU40/560/P63W33YB5 820 468
NN40/560/W33 820 465
NNU41/560/HC 920 944
NN30/560KF3/W33 820 336
NN30/560K/P51W33 820 336
NN30/560KF3 820 337
NN40/560/HCW33 820 465
NN30/560K/P5W33 820 336
NN30/560K 820 337
NN49/560K/P51W33 750 233
NNU49/560K/W33X 750 235
NNU49/560K/W33 750 235
NN49/560/P49W33XYB5 750 240
NN49/560K/P41W33 750 233
NNU49/560/W33 750 245
NNU41/600/HCCNHW33YA3 980 1123
NNU41/600/HCW33 980 1123
NN30/600F1/YA8 870 403
NN30/600F3/YA8 870 403
NN30/600KF1/YA8 870 384
NN40/600X3K/P49W33YB5 860 535
NNU49/600/P63W33YB5 800 282
NNU49/630/W33X 850 372
NN30/630F1/YA8 920 460
NN30/630KF1/YA8 920 438
NN48/630K/P51W33 780 161
NNU31/670/HCW33 1090 66.7
NN30/670K/P49W33 980 593
NNU30/670 980 594
NNU49/670/W33T-JG 900 424
NNU49/670/C3 900 424
NNU6/690/HCEC9W33YB2 980 912
NNU49/710K/P51W33 950 476
NNU40/710/HCW33 1030 858
NNU41/710/W33 1150 1800
NNU40/710/W33 1030 868
NN30/710/W33 1030 595
NNU49/710K/SPC1W33 950 469
NNP49/710/C9YA7 950 512
NNP49/710/C9YA57 950 493
NN48/710X2K 870 223
NNU49/750K/W33 1000 545
NNU41/750/W33 1220 2240
NNU40/750/W33 1090 924
NN30/750/P63W33YB5 1090 767
NN30/750/W33 1090 700
NNU49/750 1000 570
NN48/750K30/W33 920 235
NNU41/800/W33 1280 2310
NNU40/800/W33 1150 1150
NN30/800/W33 1150 785
NN30/800K/W33 1150 750
NNU49/800/W33X 1060 614
NNU41/850/W33 1360 2890
NNU40/850/W33 1220 1350
NN30/850K/W33 1220 930
NN30/850/W33 1220 935
NNU49/850/W33X 1120 715
NNU41/900K/W33 1420 3160
NNU41/900/W33 1420 3160
NNU40/900/W33 1280 1510
NN30/900/W33 1280 1050
NNU49/900/W33X 1180 843
NNU41/950/W33 1500 3850
NNU40/950/W33 1360 1890
NN30/950K/W33 1360 1374
NN30/950/W33 1360 1418
NNU49/950/W33X 1250 958
NNU41/1000K30/W33 1580 4250
NNU40/1000/W33 1420 1985
NN30/1000/W33 1420 1385
NNU49/1000/W33X 1320 1250
NN49/1000 1320 1210
NNU41/1060K/W33 1660 5075
NNU41/1060/W33 1660 5075
NN30/1060K/W33 1500 1650
NN30/1060/W33 1500 1650
NNU49/1060K/W33 1400 1360
NNU49/1060/W33 1400 1360
NNU41/1120K30/W33 1750 5570
NNU41/1120/W33 1750 5570
NNU49/1120K/W33 1460 1440
NNU49/1120/W33 1460 1440
NNU41/1180K/W33 1850 7200
NNU41/1180/W33 1850 7200
NNU49/1180K30/W33 1540 1660
NNU49/1180/W33 1540 1660
NNU41/1250K30/W33 1950 8000
NNU41/1250/W33 1950 8000
NNU41/1320K/W33 2060 9450
NNU41/1320/W33 2060 9450
NNU49/1320K/W33 1720 3100
NNU49/1320/W33 1720 3100
NN49/1320K/W33 1720 3040
NN49/1320/W33 1720 3040
NNU41/1400K30/W33 2180 10700
NNU41/1400/W33 2180 10700
NNU41/1500/W33 2300 12300
NNU6/206X4Q1/C9-NJB 285.75 43.9

Cylindrical Roller Bearings

Double Row Full Complement Cylindrical Roller Bearings

Double Row Full Complement Cylindrical Roller Bearings
Bearing part number Basic dimensions
mm		 Basic load ratings
kN		 Limit Rotational Speed

rmin

 Other dimensions
mm		 Contact surface and chamfer dimensions

mm

 Weight

kg
d D B r1min rmin E Cr Cor Grease lubrication Oil lubrication d1 D1 b k damin Damax ramax
NNCF5008V/YB4 40 68 38 1 1 60.8 90 142 5840 7240 50.3 57.3 7 3 44 63 1 0.553
NNF5008CV 40 68 38 0.6 0.8×30° 60.8 102 135 5840 7240 50.4 4.5 3 44 63 0.6 0.552
NNCF5008V 40 68 38 1 0.8×30° 60.8 102 135 5840 7240 50.3 57.3 7 3 44 63 1 0.553
NNF5008V 40 68 38 0.6 0.8×30° 60.8 102 135 5840 7240 50.3 44 63 0.6 0.553
NNCF5016V 80 125 60 1.1 1.1 115.6 295 440 3000 3800 96.4 110.8 5 3.5 85 120 1 2.65
NNCF5017V/W33 85 130 60 1.1 1.1 121.4 308 455 3000 3700 99.5 115.2 4 2 91.5 123.5 1 2.73
NUCL6/89V/YA3DF 89 125 58 1.1 1.1 97.22 155 295 2900 3600 111.6 96.5 118.5 1 1.87
NNCF5018V 90 140 67 1.5 1.5 130 360 550 2700 3350 106.5 124 106.5 133.5 1 3.68
NUCL3918X2V/YA3DF 90 125 58 1.1 1.1 97.22 155 295 2900 3600 111.6 106.5 114 1 1.81
NNFPL2422X3V/HAP59 110 260 110 1 1 132 1010 1500 1580 1950 184 116.5 238 1 34
NNCF5022V 110 170 80 2 2 154.5 500 800 2200 2700 130 116.5 164 1 6.49
NNCD4924V 120 165 45 1.1 1.1 154.3 246 465 2140 2650 135.5 127 158 2.8
NNCL4924V/W33 120 165 45 1.1 1.1 154.3 245 465 2140 2650 135.5 6 3.5 127 158 2.72
NNCD4926V 130 180 50 1.5 1.5 169 305 640 1400 1800 151 6 3 135 175 1.5 3.86
NNCF5026V 130 200 95 2 2 185 735 1200 1800 2240 156.2 177.8 7 4 140 191 2 10.8
NNCF5028V 140 210 95 2 195.5 780 1320 1700 2100 164.5 188.9 147 205 2 11.3
NNCD4930V 150 210 60 2 2 195 470 940 1200 1500 170 7 4 157 203 2 6.14
NNCD4930V 150 210 60 2 2 195 470 940 1200 1500 170 7 4 157 203 2 6.45
NNCF4936V 180 250 69 2 2 231 570 1200 1300 1600 206 224 8.66 4 190 240 2 10.3
NNCF5038V 190 290 136 2.1 2.1 269.6 1420 2500 1130 1400 199 231 9.5 4 200 280 2 32.5
NNCF4944V/C3 220 300 80 2.1 2.1 276.8 710 1570 950 1180 248 269 9.3 4 231 319 2 16.8
NNC4948V/C3 240 320 80 2.1 2.1 299.8 765 1800 930 1150 273 292 8 4 251 309 2 18.3
FL-NNCF5052V/C3 260 400 190 4 4 366.2 2750 5000 740 920 304.6 351.8 9.4 5 276 384 3 85
NNCF5056V/YA2 280 420 190 4 4 391.5 2810 5600 690 850 323 375 9.4 5 296 403 3 89.4
NNCF5056V 280 420 190 4 4 391.5 2810 5600 690 850 323 375 9.4 5 296 403 3 89.4
NNCF4960V/C3 300 420 118 3 3 390.2 1445 3300 660 820 343 381 314 412 2.5 49.3
NNCL4860V 300 380 80 2.1 2.1 358.5 850 2200 720 890 327.5 351.5 12 5 312 369 2 21
NNF3068V/C91YB2 340 520 133 5 5 476.4 2380 4790 404 459 356 504 6 101
NNF3068V/C9 340 520 133 5 5 476.4 2380 4790 404 459 356 504 6 101
NNCL5076X3V/HCC9T 380 540 260 4 4 508 4150 9840 470 580 436 396 524 3 154
NNCL4884V/C9W33X 420 520 100 2.1 2.1 493 1675 4950 455 560 456 10 8 428 509 2 48.4
NNCL4988V/W33 440 600 160 4 4 563.5 2630 6400 503 10 5 453 587 4 128
NNCL4988V/HG2YB4W33D 440 600 160 4 4 563.5 2630 6400 503 10 5 453 587 4 128
NNCS4892V/W33 460 580 118 3 3 544 1740 5480 390 485 506 20.5 12 474 560 2.5 75.5
NNCF4996V 480 650 170 5 5 605 3100 8000 370 460 538 588 500 630 4 163
NNCS4896V/W33 480 600 118 3 3 567 2000 5750 370 460 529 20.5 12 500 588 2.5 78.4
NNCL50/560X2V/HCC9T 560 820 400 6 6 771 9810 23200 260 320 651 590 790 5 578
NNCL40/560V/W33 560 820 258 6 6 762 6850 15600 260 320 652 22.3 12 574 806 5 451
NNCL49/630V/W33 630 850 218 6 6 795 5000 13400 230 290 710 22.3 12 646 826 5 351
NNU41/670/HCW33 670 1090 412 7.5 7.5 774 13700 25300 175 220 948 23.5 12 700 1060 6 1530
Bearing part number D Weight
kg
NNCF5008V/YB4 68 0.553
NNF5008CV 68 0.552
NNCF5008V 68 0.553
NNF5008V 68 0.553
NNCF5016V 125 2.65
NNCF5017V/W33 130 2.73
NUCL6/89V/YA3DF 125 1.87
NNCF5018V 140 3.68
NUCL3918X2V/YA3DF 125 1.81
NNFPL2422X3V/HAP59 260 34
NNCF5022V 170 6.49
NNCD4924V 165 2.8
NNCL4924V/W33 165 2.72
NNCD4926V 180 3.86
NNCF5026V 200 10.8
NNCF5028V 210 11.3
NNCD4930V 210 6.14
NNCD4930V 210 6.45
NNCF4936V 250 10.3
NNCF5038V 290 32.5
NNCF4944V/C3 300 16.8
NNC4948V/C3 320 18.3
FL-NNCF5052V/C3 400 85
NNCF5056V/YA2 420 89.4
NNCF5056V 420 89.4
NNCF4960V/C3 420 49.3
NNCL4860V 380 21
NNF3068V/C91YB2 520 101
NNF3068V/C9 520 101
NNCL5076X3V/HCC9T 540 154
NNCL4884V/C9W33X 520 48.4
NNCL4988V/W33 600 128
NNCL4988V/HG2YB4W33D 600 128
NNCS4892V/W33 580 75.5
NNCF4996V 650 163
NNCS4896V/W33 600 78.4
NNCL50/560X2V/HCC9T 820 578
NNCL40/560V/W33 820 451
NNCL49/630V/W33 850 351
NNU41/670/HCW33 1090 1530

Cylindrical Roller Bearings

Double Row Sealed Full Complement Cylindrical Roller Bearings

Double Row Sealed Full Complement Cylindrical Roller Bearings
Bearing part number Basic dimensions
mm		 Basic load ratings
kN		 Limit Rotational Speed
rmin		 Other dimensions
mm		 Contact surface and chamfer dimensions
mm		 Snap Ring Dimensions
mm		 Weight
kg
d D B r1min rmin E.F Cr Cor Grease lubrication Oil lubrication d1 D1 b k damin Damax ramax rbmax B1 B2 b1 Ca
NNUP6206X1V-2RS 30 70 60/58 1.1 1.1 40.1 154 232 6000 7500 43 53.8 50 62 1 1 1.31
NNUP6206X1V-2RS/HCO 30 70 60/58 1.1 1.1 40.1 145 232 6000 7500 43 53.8 50 62 1 1 1.31
NNF4208R-2LS1V 40 95/80 40 0.5 1.5×30° 62 99 154 5600 7000 50.3 45 73 1.5 0.5 1.16
NNF5008-2LS1V 40 68 38 0.6 0.8×30° 60.8 81 118 5600 7000 50.3 44 63 0.8 0.5 0.583
NNF5008-2LS1V/W33 40 68 38 0.6 0.8×30° 60.8 81 118 5600 7000 50.3 4.5 3 44 63 0.8 0.5 0.583
NNF5008-2LSV/W33 40 68 38 0.6 0.8×30° 60.8 81 118 5600 7000 50.3 4.5 3 44 63 0.8 0.5 0.583
NNF5008-2LSV 40 68 38 0.6 0.8×30° 60.8 86 129 5600 7000 50.3 44 63 0.8 0.5 0.583
NNF4211X1R-2LS1V 55 130/110 46 0.5 1.5×30° 84 150 220 3800 4500 69 5.3 3 60 102 1.5 0.5 2.54
NNF5013-2LSNRV 65 100 46 0.6 1.0×30° 90 137 244 3800 4500 77.2 73 94 1 0.5 40.2 2.4 3.2 35 1.35
NNF5014-2LS1NV 70 110 54 0.6 1.0×30° 101.9 190 325 3500 4300 85 75 105 1 0.5 48.2 2.4 4.2 42 1.85
NNF5014-2LS1NRV/DIN 70 110 54 0.6 1.0×30° 100.2 190 325 3500 4300 84.2 75 105 1 0.5 48.2 2.5 4.2 40 1.99
NNF5014-2LSNRV 70 110 54 0.6 1.0×30° 100.2 200 350 3500 4300 84.2 7.2 3.5 75 105 1 0.5 48.2 2.4 4.2 42 1.9
NNF5014-2LSNV 70 110 54 0.6 1.0×30° 100 190 325 3500 4300 85 75 105 1 0.5 48.2 2.4 4.2 42 1.85
NNF5015-2LS1V 75 115 54 0.6 1.0×30° 106.2 210 380 3300 4000 91.2 82 110 1 0.5 2.06
NNF5016-2LSNRV 80 125 60 0.6 1.5×30° 115.6 251 428 3000 3700 97.5 7.2 3 88 120 1.5 0.5 54.2 2.4 4.2 49 2.81
NNF5017-2LSNRV 85 130 60 0.6 1.5×30° 119.5 255 445 2900 3500 102.5 7.2 3 92 125 1.5 0.5 54.2 2.4 4.2 49 2.87
NNF5018-2LSNRV-XG 90 140 67 0.6 1.5×30° 127.2 303 568 2600 3200 108.6 7.2 3.5 98 134 1.5 0.5 59 3.5 4.2 54 3.82
NNF5020-2RSV-ZC 100 150 67 1 1.0×30° 138 320 590 2400 3000 118 106 145 1 0.5 13.3
NNF5020-2LSNRV 100 150 67 1 1.0×30° 138 320 590 2400 3000 118 6.6 3 106 145 1 0.5 29.2 3.4 4.2 51 4.12
NNF5020-2RSV 100 150 67 1 1.0×30° 138 320 590 2400 3000 118 106 145 1 0.5 3.99
NNF5022-2LSNRV-DIN 110 170 80 0.6 1.8×30° 154.6 405 750 2100 2700 131 7.2 3.5 117 165 1.8 0.5 70.2 4.4 4.2 65 6.69
NNF5022-2LS1NRV 110 170 80 0.6 1.0×30° 154 380 790 2100 2700 117 165 1 0.5 70 4.5 4.2 62 7.29
NNF5022-2LS1V 110 170 80 1.5 1.0×30° 154 380 790 2100 2700 131 117 165 1 1.5 6.93
NNF5022-2LSNRV 110 170 80 0.6 1.8×30° 154.6 405 750 2100 2700 131 7.2 3.5 117 165 1.8 0.5 70.2 4.4 4.2 65 6.59
NNF5022-2LSV 110 170 80 1.5 1.0×30° 154 380 790 2100 2700 131 117 165 1 1.5 6.93
NNF5024X1-2LSV 120 215 80 0.6 1.8×30° 189 515 850 1600 2100 156 7.2 3.5 127 208 1.8 0.5 12.5
NNF5024-2LS1NV 120 180 80 0.6 1.8×30° 164 445 885 2000 2500 141 127 175 1.8 0.5 71 4 3.2 7.41
NNF5024-2LSNRV/YA1 120 180 80 0.6 1.8×30° 164.5 430 830 2000 2500 141 7.2 3.5 127 175 1.8 0.5 71.2 3.9 4.2 63 7.08
NNF5024-2LSNRV 120 180 80 0.6 1.8×30° 164.5 430 830 2000 2500 141 7.2 3.5 127 175 1.8 0.5 71.2 3.9 4.2 65 7.11
NNF5024-2LSNV 120 180 80 0.6 1.8×30° 164 445 885 2000 2500 141 127 175 1.8 0.5 74 4 3.2 7.41
NNF5026-2ZNRV/C9-ZT 130 200 94 1 1.8×30° 185.2 540 1000 1800 2200 158 137 195 1.8 1 83 5.5 3.2 77 10.8
NNF5026-2LS1NRV 130 200 95 1 1.8×30° 185.2 540 1000 1800 2200 158 137 195 1.8 1 83 5.5 3.2 77 11.1
NNF5026-LS1NRV 130 200 95 1 1.8×30° 185.2 540 1000 1800 2200 158 137 195 1.8 1 83 5.5 3.2 77 10.8
NNF5026-2LSNRV 130 200 95 1 1.8×30° 185.2 540 1000 1800 2200 158 137 195 1.8 1 83 5.5 3.2 77 11.1
NNF5028-2ZNRV/C9-ZT 140 210 94 1 3.0×30° 191.3 560 1123 1600 2000 166 147 204 1.8 0.5 11.9
NNF5028-2LSNRV 140 210 95 0.6 1.8×30° 191.3 610 1100 1600 2000 166 7.2 3.5 147 204 1.8 0.5 83.2 5.4 5.2 77 11.7
NNF4028X2-2LSNRV 140 200 80 0.6 1.8×30° 183.2 470 960 1700 2100 159.6 7.2 3.5 147 194 1.8 0.5 71.2 3.9 4.2 65 8.17
NNCD4928V-2RS 140 190 50 1.5 1.5 176.5 280 550 1800 2200 159.5 171.5 150 180 1.5 1.5 4.03
NNF5030-2LSNRV 150 225 100 0.6 2×30° 207.5 710 1400 1500 1900 177.5 9.3 4.5 159 218 2 0.5 87.2 5.9 5.2 81 13.7
NNF5930-2LSNRV 150 210 80 0.6 1.8×30° 193.3 490 1100 1600 2000 171.3 7.2 3.5 159 204 1.8 0.5 71.2 3.9 5.2 65 8.6
NNUP632V-2RS/HCO 160 290 108 2 3 183.4 870 1580 1400 1700 195.4 221.4 182 280 3 2 34.2
NNF5032-2LSNRV/YB2 160 240 109 1.1 2×30° 222.6 835 1680 1400 1700 191 167 232 2 1 95 6.5 4 89 18.4
NNF5032-2LS1NRV 160 240 109 0.6 2×30° 222.6 835 1680 1400 1700 191 167 235 2 0.5 96 6 6 86 18.8
NNF5032-2LS1NRV/DIN 160 240 109 0.6 2×30° 222.6 835 1680 1400 1700 191 167 235 2 0.5 95.2 6.4 5.2 85.2 18.8
NNF5032-2LS1NRV/YB2 160 240 109 1.1 2×30° 222.6 835 1680 1400 1700 191 167 232 2 1 95 6.5 4 89 18.4
NNF5032-2LSNRV 160 240 109 0.6 2×30° 222.6 835 1680 1400 1700 191 167 235 2 0.5 96 6 6 86 18.8
NNUP6/161V-2RS/HCO 161 290 108 2 3 183.4 870 1580 1400 1700 195.4 233.4 182 280 3 2 33.9
NNF5034-2LSNRV-1 170 260 122 0.6 2×30° 239 1010 1990 1300 1600 203 177 255 2 0.5 107.2 6.9 5.2 99 24.5
NNF5034-2LSNRV 170 260 122 0.6 2×30° 239 1010 1990 1300 1600 203 12 6 177 255 2 0.5 107.2 6.9 5.2 99 23.5
NNF5034-2RSNV 170 260 122 0.6 2×30° 239 1010 1990 1300 1600 203 177 255 2 0.5 107.2 6.9 5.2 99 23.5
NNF5034-2RSV 170 260 122 0.6 2×30° 239 1010 1990 1300 1600 203 177 255 2 0.5 23.5
NNF5934-2LSNRV 170 230 80 0.6 1.8×30° 216.2 520 1170 1400 1700 192.2 7.2 3.5 178 224 1.8 0.5 71.2 3.9 5.2 65 9.42
NNF5036-2LS1NRV 180 280 136 0.6 2×30° 254 1130 2380 1200 1400 218 191 272 2 0.5 118.2 8.4 5.2 110 33.3
NNF5036-2LS1NRV/DIN 180 280 136 0.6 2×30° 254 1130 2380 1200 1400 218 191 272 2 0.5 118.2 8.4 5.2 108.2 33.5
NNF5036-2LS1V 180 280 136 2.1 2×30° 254 1130 2380 1200 1400 218 191 269 2 2 32.5
NNF5036-2LSV 180 280 135 2.1 2×30° 254 1140 2380 1200 1400 218 191 269 2 2 32.5
NNF5036-2LSNRV 180 280 135 0.6 2×30° 254 1095 2270 1200 1400 218 191 272 2 0.5 118.2 8.4 5.2 110 32.7
NNF4940X1-2LSNRV 200 270 80 0.6 1.8×30° 251 590 1380 1100 1400 225 7.2 3.5 208 264 1.8 0.5 73.2 2.9 5.2 65 13.6
NNF5048-2LS1NRV 240 360 160 1.1 2×30° 328 1580 3850 1000 1300 279.5 248 352 2 1 142.6 8.2 6.3 130 60.7
NNF5048-2LS1NRV/DIN 240 360 160 1.1 2×30° 328 1580 3850 1000 1300 279.5 248 352 2 1 138.2 10.4 6.3 126 60.7
NNF5052-2LS1NRV 260 400 190 1.1 3×30° 361 2180 4800 740 920 309 275 392 3 1 168 10.5 8.1 154 92.4
NNF5056-2LS1NRV 280 420 190 1.5 2×30° 382.5 2050 4910 680 840 326 288 410 2 1.5 168.2 10.4 8.1 154 95.8
NNF5060X2-2LSNRV 300 460 200 1.5 3×30° 415 2430 5400 550 800 360 315 430 3 1.5 172 14 7.5 158 129
NNF5018-2LS1NV 140 67 0.6 1.5×30° 127.2 303 568 2600 3200 108.6 1.5 0.5 59 3.5 2.7 3.99
Bearing part number D Weight
kg
NNUP6206X1V-2RS 70 1.31
NNUP6206X1V-2RS/HCO 70 1.31
NNF4208R-2LS1V 95/80 1.16
NNF5008-2LS1V 68 0.583
NNF5008-2LS1V/W33 68 0.583
NNF5008-2LSV/W33 68 0.583
NNF5008-2LSV 68 0.583
NNF4211X1R-2LS1V 130/110 2.54
NNF5013-2LSNRV 100 1.35
NNF5014-2LS1NV 110 1.85
NNF5014-2LS1NRV/DIN 110 1.99
NNF5014-2LSNRV 110 1.9
NNF5014-2LSNV 110 1.85
NNF5015-2LS1V 115 2.06
NNF5016-2LSNRV 125 2.81
NNF5017-2LSNRV 130 2.87
NNF5018-2LSNRV-XG 140 3.82
NNF5020-2RSV-ZC 150 13.3
NNF5020-2LSNRV 150 4.12
NNF5020-2RSV 150 3.99
NNF5022-2LSNRV-DIN 170 6.69
NNF5022-2LS1NRV 170 7.29
NNF5022-2LS1V 170 6.93
NNF5022-2LSNRV 170 6.59
NNF5022-2LSV 170 6.93
NNF5024X1-2LSV 215 12.5
NNF5024-2LS1NV 180 7.41
NNF5024-2LSNRV/YA1 180 7.08
NNF5024-2LSNRV 180 7.11
NNF5024-2LSNV 180 7.41
NNF5026-2ZNRV/C9-ZT 200 10.8
NNF5026-2LS1NRV 200 11.1
NNF5026-LS1NRV 200 10.8
NNF5026-2LSNRV 200 11.1
NNF5028-2ZNRV/C9-ZT 210 11.9
NNF5028-2LSNRV 210 11.7
NNF4028X2-2LSNRV 200 8.17
NNCD4928V-2RS 190 4.03
NNF5030-2LSNRV 225 13.7
NNF5930-2LSNRV 210 8.6
NNUP632V-2RS/HCO 290 34.2
NNF5032-2LSNRV/YB2 240 18.4
NNF5032-2LS1NRV 240 18.8
NNF5032-2LS1NRV/DIN 240 18.8
NNF5032-2LS1NRV/YB2 240 18.4
NNF5032-2LSNRV 240 18.8
NNUP6/161V-2RS/HCO 290 33.9
NNF5034-2LSNRV-1 260 24.5
NNF5034-2LSNRV 260 23.5
NNF5034-2RSNV 260 23.5
NNF5034-2RSV 260 23.5
NNF5934-2LSNRV 230 9.42
NNF5036-2LS1NRV 280 33.3
NNF5036-2LS1NRV/DIN 280 33.5
NNF5036-2LS1V 280 32.5
NNF5036-2LSV 280 32.5
NNF5036-2LSNRV 280 32.7
NNF4940X1-2LSNRV 270 13.6
NNF5048-2LS1NRV 360 60.7
NNF5048-2LS1NRV/DIN 360 60.7
NNF5052-2LS1NRV 400 92.4
NNF5056-2LS1NRV 420 95.8
NNF5060X2-2LSNRV 460 129
NNF5018-2LS1NV 140 3.99

Cylindrical Roller Bearings

Four Row Cylindrical Roller Bearinngs

four row cylindrical roller bearinngs
Bearing part number Basic dimensions
mm		 Basic load ratings
kN		 Mounting dimensions
mm		 Weight
kg
d D B C r1min rmin Figure F Cr Cor D1 min b max k max Da da
FC182870S 90 140 70 70 1.1 1.5 1 105 250 425 123 6.5 4 129 97 3.78
FC182870A 90 140 70 70 1.1 1.5 1 105 275 425 122.6 6.5 4 129 97 3.78
FC182870 90 140 70 70 1.1 1.5 1 105 253 425 123 6.5 4 129 97 3.78
FCD2030106/C9YB2 100 150 106 106 1.1 1.5 1 113 425 890 132 8 4 140 107 6.63
FC2030106 100 150 106 106 1.1 1.5 1 113 425 890 132 8 4 140 107 6.67
FCD2028104 100 140 104 104 1.1 1.5 2 111 360 870 125.4 8 4 129 106 4.99
FC2028104F3/YA4 100 140 104 104 1.1 1.5 1 111 330 775 125.4 8 4 129 107 4.96
FC2028104S 100 140 104 104 1.1 1.5 1 111 330 775 125.4 8 4 129 107 4.99
FC2028104A 100 140 104 104 1.1 1.5 1 111 396 870 125.4 8 4 129 107 4.99
FC2028104 100 140 104 104 1.1 1.5 1 111 330 775 125.4 8 4 129 106 4.99
FC202870S/YA3 100 140 70 70 1.1 1.5 1 111 210 435 125.4 129 107 3.1
FC202870A/YA3 100 140 70 70 1.1 1.5 1 111 209 435 125.4 129 107 3.62
NNQD6920X2/YB3 100 140 70 70 1.1 1.5 5 111 228 435 125.9 129 106 3.08
FC202870/YA3 100 140 70 70 1.1 1.5 1 111 209 435 125.4 129 106 3.1
FC2234120S 110 170 120 120 2 2 1 127 530 1110 149 6.5 4 158 118 10.1
FC2234120 110 170 120 120 2 2 1 127 534 1110 149 6.5 4 158 118 10.1
FC2234120A 110 170 120 120 2 2 1 127 583 1110 149 6.5 4 158 118 10.1
FC2443126X4ZW-XF 119.5 215 126 126 2 2 5 147 755 1350 183.6 9 4 203 128 19.6
FC2436105S 120 180 105 105 2 2 1 135 410 770 160 6.5 4 168 128 9.13
FC2436105A 120 180 105 105 2 2 1 135 561 1100 159 6.5 4 168 128 9.13
FC2436105 120 180 105 105 2 2 1 135 413 770 160 6.5 4 168 128 9.13
FC243390/YAD 120 165 90 90 1.5 1.5 1 132 330 670 151.2 5 3 154 126 5.41
FC243390/YA34 120 165 90 90 1.5 1.5 1 132 400 860 151.2 154 126 5.59
FC2640125S 130 200 125 125 2 2 1 149 580 1200 174 6.5 4 188 138 14.6
FC2640125A 130 200 125 125 2 2 1 149 638 1200 174 6.5 4 188 138 14.6
FC2640125/HC 130 200 125 125 2 2 1 149 583 1200 174 6.5 4 188 138 14.6
FC2640125 130 200 125 125 2 2 1 149 583 1200 174 6.5 4 188 138 14.6
FC2842155SK/C9YA3 140 210 155 155 2 2 166 720 1680 190.9 198 148 18.1
FC2842155K/C9YA3 140 210 155 155 2 2 166 693 1610 190.9 198 148 18.1
FC2842155 140 210 155 155 2 2 1 166 800 1750 190.9 9.5 5 198 148 19
FC2842125AF3 140 210 125 125 2 2 1 158 594 1050 186.8 9.5 5 198 148 14.6
FC2842125S 140 210 125 125 2 2 1 158 590 1160 188 9.5 5 198 148 14.7
FC2842125A 140 210 125 125 2 2 1 158 594 1050 186.8 9.5 5 198 148 14.7
FC2842125 140 210 125 125 2 2 1 158 594 1160 188 9.5 5 198 148 14.7
FC2945156/YA3 145 225 156 156 2 2 1 169 913 1800 197.8 9.5 5 213 153 23.6
FC2945156 145 225 156 156 2 2 1 169 913 1800 197.8 9.5 5 213 153 23.6
FC2942155 145 210 155 155 1.1 1.1 166 752 1610 190.9 200 151 18.3
FC2942155S/YA3 145 210 155 155 2 2 1 166 690 1610 190.9 198 153 18.3
FC2942155A/YA3 145 210 155 155 2 2 1 166 754 1800 190 198 153 18
FC2942155/YA3 145 210 155 155 2 2 1 166 752 1610 190.9 198 153 18.3
FC3046156/YA4 150 230 156 156 2 2 1 174 1010 2090 202.8 9.5 5 218 158 23.6
FC3046156A 150 230 156 156 2 2 1 174 1010 2090 202.8 9.5 5 218 158 23.6
FC3046156 150 230 156 156 2 2 1 174 852 1790 204 9.5 5 218 158 23.6
FC3045150/HCYA34 150 225 150 150 2 2 1 169 900 1950 199.4 9.5 4 213 158 20.9
FC3045120A/YA3 150 225 120 120 2 2 1 169 710 1450 199.4 9 4 213 158 16.7
FC3045120S 150 225 120 120 2 2 1 169 710 1450 200 9 4 213 158 16.7
FCD3045120 150 225 120 120 2 2 2 169 710 1450 199.4 9 4 213 158 16.6
FC3045120A 150 225 120 120 2 2 1 169 781 1450 199.4 9 4 213 158 16.7
FC3045120ZW/C9 150 225 120 120 2 2 5 169 809 1620 202.4 9 4 213 158 17.9
FC3045120 150 225 120 120 2 2 1 169 710 1450 200 9 4 213 158 16.7
FC3044150/YAD 150 220 150 150 2 2 1 170 820 1940 195.6 9.5 5 208 158 19.7
FC3042120/YA3 150 210 120 120 2 2 1 166 570 1320 188.5 8.1 4 198 158 12.9
FC3248168/YA4 160 240 168 168 2.1 2.1 1 183 1060 2350 215 10 5 228 168 26.4
FC3248168/YA3 160 240 168 168 2.1 2.1 1 183 1060 2350 215 10 5 228 168 26.4
FC3248168A 160 240 168 168 2.1 2.1 1 183 1060 2350 215 10 5 228 168 26.4
NNQD6032X2 160 240 168 168 2.1 2.1 5 183 1240 2560 215 228 168 28.1
FC3248168S 160 240 168 168 2.1 2.1 1 183 1060 2350 216 10 5 228 168 26.4
FC3248168 160 240 168 168 2.1 2.1 1 183 1060 2350 216 10 5 228 168 26.4
FC3248124AF3 160 240 124 124 2.1 2.1 1 183 685 1530 215 9 4 228 168 20.1
FC3248124A/YA3 160 240 124 124 2.1 2.1 1 183 685 1530 215 9 4 228 168 20.3
FC3248124S 160 240 124 124 2.1 2.1 1 183 760 1530 216 9 4 228 168 20.3
FC3248124S/YA31 160 240 124 124 2.1 2.1 1 183 760 1530 216 9 4 228 168 20.2
FC3248124/YA31 160 240 124 124 2.1 2.1 1 183 810 1530 215 9 4 228 168 20.2
FC3248124A/YA31 160 240 124 124 2.1 2.1 1 183 810 1530 215 9 4 228 168 20.2
FC3248124A 160 240 124 124 2.1 2.1 1 183 810 1530 215 9 4 228 168 20.3
FC3248124/C9 160 240 124 124 2.1 2.1 1 183 810 1530 216 9 4 228 168 20.3
FC3248124 160 240 124 124 2.1 2.1 1 183 810 1530 216 9 4 228 168 20.3
FC3246168F3/C9YAD 160 230 168 168 2 1.1 1 182 855 2180 207 218 168 23.5
FC3246168/HCYA34-1 160 230 168 168 2.1 2.1 1 179 940 2300 204 8.5 4 218 168 22
FC3246168/YA34-1 160 230 168 168 2.1 2.1 1 179 940 2300 204 8.5 4 218 168 22
FC3246168/C9YA34 160 230 168 168 2.1 2.1 1 179 940 2300 204 8.5 4 218 168 22
FC3246168/YA34 160 230 168 168 2.1 2.1 1 179 940 2300 204 218 168 23.4
FC3246168/W33AYA3 160 230 168 168 2.1 2.1 1 180 900 2200 205.6 9.5 4 218 168 22.3
FC3246168A/YA3 160 230 168 168 2.1 2.1 1 180 897 2200 205.6 218 168 22.3
FC3246168/YA3 160 230 168 168 2.1 2.1 1 180 852 2170 206.6 218 168 22.1
FC3246168 160 230 168 168 2 2 1 180 800 2100 206.6 9.5 4 218 168 22.3
FC3246130/YAD 160 230 130 130 1.5 1.5 1 180 660 1560 204 9 4 219 167 18.1
FC3246130/YA5 160 230 130 130 1.5 1.5 1 180 660 1560 204 9 4 219 167 18.1
FC3246130S 160 230 130 130 1.5 1.5 1 180 680 1380 210 219 167 16.9
FC3246130A/YA3 160 230 130 130 1.5 1.5 1 180 770 1620 210 219 167 17.3
FC3246130 160 230 130 130 1.5 1.5 1 180 742 1705 210 219 167 16.9
FCD3345168X4/YA3 165.1 225.425 168.275 168.275 1.5 1.5 2 181 950 1950 205 214 172 19.7
FC3452150F3/YA3 170 260 150 150 2.1 2.1 1 195 1000 2240 227 9.5 5 247 178 29.5
FC3452150/YA3 170 260 150 150 2.1 2.1 1 195 1000 2240 227 9.5 5 247 178 29.7
FC3452150/HC 170 260 150 150 2.1 2.1 1 195 1180 2240 227 9.5 5 247 178 29.7
FC3452150 170 260 150 150 2.1 2.1 1 195 1000 2240 227 9.5 5 247 178 29.7
FC3452120S 170 260 120 120 2.1 2.1 1 195 840 1790 228 9.5 5 246 178 24.6
FC3452120A 170 260 120 120 2.1 2.1 1 195 867 1790 227 9.5 5 247 178 24.6
FC3452120 170 260 120 120 2.1 2.1 1 195 867 1790 228 9.5 5 246 178 24.6
FC3450170/YA3 170 250 170 170 2.1 2.1 1 192 1380 2550 224 12 6 238 178 28.8
FC3450170A 170 250 170 170 2.1 2.1 1 192 1380 2550 224 12 6 238 178 28.8
FC3450170Q1/HG2YA4 170 250 170 170 2.1 2.1 1 192 1280 2590 225 9.5 5 238 178 28.9
FC3450170S 170 250 170 170 2.1 2.1 1 192 1090 2500 225 12 6 238 178 28.5
FC3450170AF3 170 250 170 170 2.1 2.1 1 192 1100 2570 224 12 6 238 178 28.5
FC3450170 170 250 170 170 2.1 2.1 1 192 1280 2500 225 12 6 238 178 28.5
FC3448170/YAD-1 170 240 170 170 2.1 2.1 1 189 940 2390 215 10 6 228 178 24.7
FC3448170/YA3 170 240 170 170 2.1 2.1 1 189 940 2390 215 10 6 228 178 24.7
FC3448170/YAD 170 240 170 170 2.1 2.1 1 189 940 2390 215 10 6 228 178 24.7
FC3448130/YAD 170 240 130 130 2.1 2.1 1 190 730 1720 216 9.5 3 228 178 18.7
FC3446180/YA4 170 230 180 180 2 2 1 186 1010 2720 210 8 3 218 178 21.7
FC3446180/YAD 170 230 180 180 2 2 1 186 1010 2720 210 8 3 218 178 21.7
FC3446160/YA34 170 230 160 160 2 2 1 185.5 950 2390 211.1 7.5 3 218 178 20.1
FC3446160/YA34/W281 170 230 160 160 2 2 1 185.5 950 2390 211.1 7.5 3 218 178 20.1
FCD3446160S 170 230 160 160 2 2 2 185.5 935 2360 211.5 7.5 3 218 178 20
FCD3446160AF3 170 230 160 160 2 2 2 185.5 1100 2360 211.1 7.5 3 218 178 18.6
FCD3446160A 170 230 160 160 2 2 2 185.5 1210 2360 211.5 7.5 3 218 178 20
FC3656180 180 280 180 180 2.1 2.1 1 207 1300 2800 246 9.5 5 268 188 42
FC3656180F3 180 280 180 180 2.1 2.1 1 207 1300 2800 246 9.5 5 268 188 42
FC3652180F3 180 260 180 180 2.1 2.1 1 202 1250 3000 234.8 12 6 248 188 31.5
FC3652180 180 260 180 180 2.1 2.1 1 202 1250 3000 234.8 12 6 248 188 31.5
FC3652180S 180 260 180 180 2.1 2.1 1 202 1250 3000 234.8 12 6 248 188 31.5
FC3652168/YA4 180 260 168 168 2.1 2.1 1 202 1100 2660 232.4 12 6 248 188 29.3
FC3652168/YA4-2 180 260 168 168 2.1 2.1 1 202 1100 2660 232.4 248 188 29.7
FC3652168AF3 180 260 168 168 2.1 2.1 1 202 1070 2790 234 12 6 248 188 30
FC3652168F3/YA4 180 260 168 168 2.1 2.1 1 202 1100 2660 232.4 12 6 248 188 29.1
FC3652168S/YA3 180 260 168 168 2.1 2.1 1 202 1180 2790 234.8 12 6 248 188 30.1
FC3652168S/YA31 180 260 168 168 2.1 2.1 1 202 1180 2790 234.8 12 6 248 188 30.1
FC3652168S 180 260 168 168 2.1 2.1 1 202 1180 2790 234.8 12 6 248 188 30.2
FC3652168F3/YA4-2 180 260 168 168 2.1 2.1 1 202 1100 2660 232.4 248 188 29.5
FC3652168ZW/YA4 180 260 168 168 2.1 2.1 5 202 1120 2700 232.4 248 188 30.6
FC3652168/YAD-5 180 260 168 168 2.1 2.1 1 202 1070 2790 232.4 9.5 6 248 188 30.1
FC3652168/C4HYAD-4 180 260 168 168 2.1 2.1 1 202 1070 2790 234 9.5 6 248 188 30
FC3652168/YAD-4 180 260 168 168 2.1 2.1 1 202 1070 2790 232.4 9.5 6 248 188 30.1
FC3652168/C4HYAD-3 180 260 168 168 2.1 2.1 1 202 1070 2790 232.4 248 188 30.1
FC3652168/YAD-3 180 260 168 168 2.1 2.1 1 202 1070 2790 232.4 248 188 30.1
FC3652168/YAD-2 180 260 168 168 2.1 2.1 1 202 1070 2790 232.4 248 188 30.1
FC3652168/YAD-1 180 260 168 168 2.1 2.1 1 202 1070 2790 232.4 248 188 30.1
FC3652168/YA31 180 260 168 168 2.1 2.1 1 202 1180 2790 237.6 9.5 5 248 188 30.1
FC3652168A/YA3 180 260 168 168 2.1 2.1 1 202 1180 2790 234 12 6 248 188 30.1
FC3652168A 180 260 168 168 2.1 2.1 1 202 1180 2790 234 12 6 248 188 30.2
FC3652168/YAD 180 260 168 168 2.1 2.1 1 202 1180 2790 232.4 248 188 30.1
FC3652168Q1/HG2YA4 180 260 168 168 2.1 2.1 1 202 1530 2790 234.8 9.5 5 248 188 30.6
FC3652168/YA34 180 260 168 168 2.1 2.1 1 202 1100 2660 232.4 12 6 248 188 26.5
FC3652168/YA3 180 260 168 168 2.1 2.1 1 202 1180 2790 234.8 12 6 248 188 30.1
FC3652168 180 260 168 168 2.1 2.1 1 202 1180 2790 234.8 12 6 248 188 30.2
FC3652124S 180 260 124 124 2.1 2.1 1 202 810 1730 234.8 9.5 5 248 188 21.7
FC3652124A 180 260 124 124 2.1 2.1 1 202 810 1730 234 9.5 5 248 188 21.7
FC3652124 180 260 124 124 2.1 2.1 1 202 810 1730 234.8 9.5 5 248 188 21.7
FC3650156/YA3 180 250 156 156 2 2 1 198 1220 1950 226.8 244 188 23.7
FC3650156/YA3-1 180 250 156 156 2 2 1 198 785 1950 226.8 9.5 5 238 188 23.6
FC3650156 180 250 156 156 2.1 2.1 1 200 740 1770 226 9.5 6.5 238 188 22.7
FC3650156/YA34 180 250 156 156 2 2 1 200 1210 2315 226.8 238 188 23.9
FC3650156/YA4 180 250 156 156 2.1 2.1 1 200 1210 1770 226 9.5 6.5 238 188 22.7
NNQ6936X2V/YA7 180 250 133 133 2 2 234 1050 1870 234 12 6 238 190 18.2
FC3854200/YA35 190 270 200 200 2.1 2.1 1 212 1280 3150 244 15 5 258 198 35.4
FC3854200F3/YA5 190 270 200 200 2.1 2.1 1 212 1280 3150 244 15 5 258 198 35.4
FC3854200/YA5 190 270 200 200 2.1 2.1 1 212 1280 3150 244 15 5 258 198 33.4
FC3854200SQ1 190 270 200 200 2.1 2.1 1 212 1300 3200 245.2 15 7 258 198 35
FC3854200A 190 270 200 200 2.1 2.1 1 212 1580 3275 244 15 7 258 198 35
FC3854200 190 270 200 200 2.1 2.1 1 212 1520 3180 245.2 15 7 258 198 35
FC3854170S/YA3 190 270 170 170 2.1 2.1 1 212 1050 2430 245.2 9.5 5 258 198 30.2
FC3854170A/YA3 190 270 170 170 2.1 2.1 1 212 1430 2650 244 9.5 5 258 198 31.8
FC3854170/YA3 190 270 170 170 2.1 2.1 1 212 1430 2430 245.2 9.5 5 258 198 30.2
FC3854168AQ1/HG2C9YA4 190 270 168 168 2.1 2.1 1 212 1420 2430 244 9.5 5 258 198 30.8
FC3854168A/YA3 190 270 168 168 2.1 2.1 1 212 1420 2430 244 9.5 5 258 198 31
FC3854168A 190 270 168 168 2.1 2.1 1 212 1420 2430 244 9.5 5 258 198 31.9
FC3854168Q1/HG2C9YA4 190 270 168 168 2.1 2.1 1 212 1420 2430 245.2 9.5 5 258 198 30.8
FC3854168/YA3 190 270 168 168 2.1 2.1 1 212 1420 2430 245.2 9.5 5 258 198 29.9
FC3854168 190 270 168 168 2.1 2.1 1 212 1420 2430 245.2 9.5 5 258 198 30.2
FC3854168S/YA3 190 270 168 168 2.1 2.1 1 212 1050 2430 245.2 9.5 5 258 198 29.9
FC3854168AF3/YA3 190 260 168 168 2.1 2.1 1 212 1050 2430 244 9.5 5 248 198 30.4
FC3852168/YAD 190 260 168 168 2.1 2.1 1 212 870 2600 232.8 9.5 5 248 198 27.8
FC3852168F3/YA3-1 190 260 168 168 2.1 2.1 1 212 870 2600 232.8 9.5 5 248 198 27.7
FC3852168A-YDJS 190 260 168 168 2.1 2.1 1 212 890 2600 237.6 9.5 5 248 198 26.2
FC3852168S 190 260 168 168 2.1 2.1 1 212 1020 2750 238.6 9.5 5 248 198 22.6
FC3852168/HG2YAB 190 260 168 168 2.1 2.1 1 208 1000 2600 235 9.5 5 248 198 26.8
FC3852168/HCYA34-1 190 260 168 168 2.1 2.1 1 212 1180 2750 237.6 8 4 248 198 26.2
FC3852168/HCYA34 190 260 168 168 2.1 2.1 1 212 1000 2600 237.6 8 4 248 198 23.1
FC3852168/YA34-1 190 260 168 168 2.1 2.1 1 212 1000 2750 237.6 8 4 248 198 26.2
FC3852168/YA34 190 260 168 168 2.1 2.1 1 212 1450 2600 237.6 8 4 248 198 26.2
FC3852168/YAB 190 260 168 168 2.1 2.1 1 208 1000 2600 235 8.5 5 248 198 26.8
FC3852168A 190 260 168 168 2.1 2.1 1 212 1450 2600 237.6 9.5 5 248 198 23.1
FC3852168/YA3 190 260 168 168 2.1 2.1 1 212 1450 2600 237.6 9.5 5 248 198 23.1
FC4056170X4/YA3 199.86（换行） 280 170 170 2.1 2.1 1 222 1110 3000 254 268 208 33.3
FC4062175/YA3 200 310 175 175 2.1 2.1 1 229 1420 3050 270.6 9.5 5 297 208 49.8
FC4062200/YAB 200 300 200 200 2.1 2.1 1 230 1540 3510 270.5 12 6 288 208 57
FC4058192/YAD-1 200 290 192 192 2.1 2.1 1 226 1360 3700 261 15 6 278 208 41.2
FC4058192A/YA3 200 290 192 192 2.1 2.1 1 226 1360 3695 261 15 6 278 208 41.2
FC4058192/HG2YAD 200 290 192 192 2.1 2.1 1 226 1430 3450 262 15 6 278 208 40.9
FC4058192ZWF3/YA34 200 290 192 192 2.1 2.1 5 226 1400 3500 258 278 208 44.6
FC4058192A/YA4 200 290 192 192 2.1 2.1 1 226 1460 3350 261 15 6 278 208 41.3
FC4058192A 200 290 192 192 2.1 2.1 1 226 1460 3695 261 15 6 278 208 40.9
FC4058192/YA4 200 290 192 192 2.1 2.1 1 226 1490 3300 261 15 6 278 208 40.9
FC4058192 200 290 192 192 2.1 2.1 1 226 1460 3250 262 15 6 278 208 40.9
FC4058192AF3 200 290 192 192 2.1 2.1 1 226 1360 3695 261 15 6 278 208 40.7
FC4058192F3/YA34/W281 200 290 192 192 2.1 2.1 1 226 1400 3400 261 15 6 278 208 41.6
FC4058192S/YA4 200 290 192 192 2.1 2.1 1 226 1430 3450 261 15 6 278 208 40.9
FC4058192S 200 290 192 192 2.1 2.1 1 226 1430 3450 262 15 6 278 208 40.9
FC4058192F3/YAD 200 290 192 192 2.1 2.1 1 226 1400 3400 261 278 208 41.6
FC4056200/YA34-1 200 280 200 200 2.1 2.1 1 222 1340 3400 254 9.5 5 268 208 38.8
FC4056200/YA3 200 280 200 200 2.1 2.1 1 222 1340 3400 254 9.5 5 268 208 38.8
FC4056200/YAD 200 280 200 200 2.1 2.1 1 222 1340 3400 254 9.5 5 268 208 38.8
FC4056200/YAD-1 200 280 200 200 2.1 2.1 1 222 1340 3400 254 268 208 39
FC4056200ZW/YAD 200 280 200 200 2.1 2.1 5 222 1400 3850 250.8 268 208 39.7
FC4056200F3/YA3 200 280 200 200 2.1 2.1 1 222 1340 3400 254 9.5 5 268 208 38.3
FC4056188S 200 280 188 188 2.1 2.1 1 222 1220 3000 255 9.5 5 268 208 35.7
FC4056188A 200 280 188 188 2.1 2.1 1 222 1120 3000 254 9.5 5 268 208 35.9
FC4056188 200 280 188 188 2.1 2.1 1 222 1120 3000 255 9.5 5 268 208 35.7
FC4056170/C9YB2 200 280 170 170 2.1 2.1 1 222 1110 3000 254 9.2 5 268 208 33.8
FC4056170 200 280 170 170 2.1 2.1 1 222 1110 3000 254 9.5 5 268 208 33.3
FC4056170F3 200 280 170 170 2.1 2.1 1 222 1110 3000 254 9.5 5 268 208 33.6
FC4054170F3/YAD-4 200 270 170 170 2.1 2.1 1 222 910 2740 247.6 9.5 5 258 208 28.5
FC4054170F3/YAD-3 200 270 170 170 2.1 2.1 1 222 910 2740 247.6 9.5 5 258 208 28.5
FC4054170/YAD-2 200 270 170 170 2.1 2.1 1 222 910 2740 247.6 9.5 5 268 208 28.7
FC4054170F3/YAD-1 200 270 170 170 2.1 2.1 1 222 950 2780 244.4 258 208 29.1
FC4054170/YAD-1 200 270 170 170 2.1 2.1 1 222 950 2780 244.4 268 208 29.3
FC4054170/YA35 200 270 170 170 2.1 2.1 1 222 1050 3000 246 9 4 258 208 28.7
FC4054170/YA5 200 270 170 170 2.1 2.1 1 222 1050 3000 246 9 4 258 208 28.9
FC4054170F1/YA3 200 270 170 170 2.1 2.1 1 222 910 2740 247.6 258 208 28.5
FC4054170AF3/YA3 200 270 170 170 2.1 2.1 1 222 910 2740 247.6 9.5 5 258 208 28.5
FC4054170/YAB-1 200 270 170 170 2.1 2.1 1 220 980 2650 245.6 9.5 5 258 208 28.1
FC4054170AF3/YAB 200 270 170 170 2.1 2.1 1 222 910 2740 247.6 9.5 5 258 208 28.5
FC4054170/HCG2IYA3 200 270 170 170 2.1 2.1 1 222 910 2740 254 9.5 5 258 208 28.7
FC4054170A/YA3 200 270 170 170 2.1 2.1 1 222 1120 2740 247.6 9.5 5 258 208 28.7
FC4054170Q1/HG2C4Y 200 270 170 170 2.1 2.1 1 222 1120 2270 246.5 258 208 28.7
FC4054170Q1/YA3 200 270 170 170 2.1 2.1 1 222 1120 2270 246.5 9.5 5 258 208 28.7
FC4054170/HCYA3 200 270 170 170 2.1 2.1 1 222 1120 2740 247.6 9.5 5 258 208 28.7
FC4260260/HC 210 300 260 260 2.1 2.1 1 234 2100 4670 269 9.5 5 288 218 58.9
FC4260260 210 300 260 260 2.1 2.1 1 234 2100 4670 269 9.5 5 288 218 58.9
FC4260210/YA34 210 300 210 210 2.1 2.1 1 234 1625 4140 269 9.5 5 288 218 48.3
FC4260210S/C9YA4 210 300 210 210 2.1 2.1 1 234 1620 4150 271 9.5 5 288 218 48.3
FC4260210S 210 300 210 210 2.1 2.1 1 234 1620 4150 271 9.5 5 288 218 48.3
FC4260210A/C9YA4 210 300 210 210 2.1 2.1 1 234 1780 4140 269 9.5 5 288 218 48.3
FC4260210A 210 300 210 210 2.1 2.1 1 234 1780 4140 269 9.5 5 288 218 48.3
FC4260210/C9YA4 210 300 210 210 2.1 2.1 1 234 1560 3950 271 9.5 5 288 218 48.3
FC4260210 210 300 210 210 2.1 2.1 1 234 1560 3950 271 9.5 5 288 218 48.3
FC4260170 210 300 170 170 2.1 2.1 1 234 1320 3150 269 9.5 5 288 218 39.1
FC4468200/YB2 220 340 200 200 4 4 1 250 1950 3550 308.3 15 6 324 232 63.4
FCD4468192 220 340 192 192 2.1 2.1 2 250 298 9.5 5 328 230 64
FC4468192/YA3 220 340 192 192 2.1 2.1 1 250 1620 3390 298 9.5 5 328 230 64.6
FCD4464210 220 320 210 210 2.1 2.1 2 248 1900 4000 286.4 9.5 5 308 230 57.1
FC4464210S/YA3 220 320 210 210 2.1 2.1 1 248 1640 4000 287 308 230 56.5
FC4464210/YA3W33 220 320 210 210 2.1 2.1 1 248 1500 4000 286.4 12.5 5 308 230 57.6
FC4464210/QPC9W33XYAB 220 320 210 210 2.1 2.1 1 248 1500 4000 286.4 9.5 5 308 230 57.6
FC4464210F3/YA3 220 320 210 210 2.1 2.1 1 248 1500 4000 286.4 12.5 5 308 230 57.2
FC4464210A/YA3 220 320 210 210 2.1 2.1 1 248 1900 4000 286.4 308 230 58.2
FC4464210/YA3 220 320 210 210 2.1 2.1 1 248 1900 3800 287 308 230 56.5
FCD4462265 220 310 265 265 2.1 2.1 2 246 1800 4850 281.2 9.5 5 298 230 63.3
FC4462225 220 310 225 225 0.6 2.1 1 244 1850 4050 280 300 230 53.9
FC4462225/YA46 220 310 225 225 2.1 2.1 1 244 1450 4050 280 300 230 53.9
FC4462225/YA34 220 310 225 225 2.1 2.1 1 245 1600 4400 277 297 230 54.8
FC4462225F3/YA3 220 310 225 225 2.1 2.1 1 246 1500 4000 278 5.5 3.5 298 230 54
FC4462225F3/HCYA4 220 310 225 225 2.1 2.1 1 246 1600 4400 278 9.5 5 298 230 54.4
FC4462192/HCYAD-1 220 310 192 192 2.1 2.1 1 247 1410 3950 279 9.5 5 296 228 46.7
FC4462192/HCYAD 220 310 192 192 2.1 2.1 1 246 1760 3750 282.5 15 6 298 228 45.7
FC4462192/HCYA4 220 310 192 192 2.1 2.1 1 246 1450 3600 282.5 15 6 298 228 46.2
FC4462192F3/YA34-3 220 310 192 192 2.1 2.1 1 246 1460 3650 281.2 15 6 298 228 45.7
FC4462192/YA34-2 220 310 192 192 2.1 2.1 1 246 1320 3600 281.2 15 6 298 228 46.1
FC4462192/YA34 220 310 192 192 2.1 2.1 1 246 1320 3600 281.2 15 6 298 228 46.1
FC4462192AF3 220 310 192 192 2.1 2.1 1 246 1320 3600 281.2 15 6 298 228 45.9
FC4462192S/YA3 220 310 192 192 2.1 2.1 1 246 1480 3750 282.5 15 6 298 228 45.7
FC4462192S 220 310 192 192 2.1 2.1 1 246 1480 3750 282.5 15 6 298 228 45.8
FC4462192F3 220 310 192 192 2.1 2.1 1 246 1480 3750 282.5 15 6 298 228 45.3
FC4462192A/YA1 220 310 192 192 2.1 2.1 1 246 1320 3600 281.2 298 228 46.1
FC4462192A/YA3 220 310 192 192 2.1 2.1 1 246 1600 3600 281.2 15 6 298 228 46.1
FC4462192A 220 310 192 192 2.1 2.1 1 246 1600 3600 281.2 15 6 298 228 46.2
FC4462192 220 310 192 192 2.1 2.1 1 246 1600 1910 282.5 15 6 298 228 45.8
FC4462192/YA3 220 310 192 192 2.1 2.1 1 246 1600 1910 282.5 15 6 298 228 45.8
FC4460192/C9-1 220 300 192 192 2.5 2.5 1 242 1070 3040 267.6 287 229 40.7
FC4460192/YA4-1 220 300 192 192 2.5 2.5 1 242 1280 3390 272 9.5 5 287 229 39.8
FC4460192ZW 220 300 192 192 2.5 2.5 5 245 1360 3700 275 9 4 288 235 43.4
FC4460192F3 220 300 192 192 2.5 2.5 1 242 1280 3390 272 9.5 5 287 229 39.6
FC4460192F3/YA4 220 300 192 192 2.5 2.5 1 242 1290 3300 274 9.5 5 287 229 38.5
FC4460192/YA34-1 220 300 192 192 2.5 2.5 1 242 1280 3390 272 9.5 4 287 229 39.6
FCD4562225X4/YA3 224.88 310 225 225 2.1 2.1 2 244.7 1260 3030 278 298 233 50.4
FCD4673250 230 365 250 250 2.1 2.1 2 266 2400 5400 317.2 9.5 5 352 240 102
FC4673250F3/W281 230 365 250 250 2.1 2.1 1 266 2400 5400 317.2 9.5 5 352 240 102
FC4673250/W281 230 365 250 250 2.1 2.1 1 266 2400 5400 317.2 9.5 5 352 240 102
FC4668260/YA3-SY 230 340 260 260 2.1 2.1 1 261 2120 5350 303 8.5 5 328 240 82.1
FC4668260/YA3 230 340 260 260 2.1 2.1 1 261 2120 5350 303 8.5 5 328 240 82.1
FC4668260/C9YA3 230 340 260 260 2.1 2.1 1 261 2120 5350 303 9.5 5 328 240 81.9
FC4668260/HCYA3-SY 230 340 260 260 2.1 2.1 1 261 2120 5350 303 9.5 5 328 240 82.1
FC4668260/HCYA3 230 340 260 260 2.1 2.1 1 261 2120 5350 303 9.5 5 328 240 82.1
FC4666206/YA34 230 330 206 206 2.1 2.1 1 260 1880 4350 295 9.5 5 318 240 57.8
FC4666206/YA4 230 330 206 206 2.5 2.5 1 257 1880 3900 295.6 9.5 5 317 240 58.3
FC4666206F1/HCOIYA34 230 330 206 206 2.1 2.1 1 260 1500 4350 295 9.4 5 317 240 57.5
FC4666206/YA34/W283 230 330 206 206 2.1 2.1 1 260 1500 4350 295 9.5 5 317 240 57.8
FC4666206F1/YA34/W281 230 330 206 206 2.1 2.1 1 260 1500 4350 295 9.5 5 317 240 58.2
FC4666206F3/YA34/W281 230 330 206 206 2.1 2.1 1 260 1500 4350 295 9.5 5 317 240 58.2
FC4666206F1/HCOYA34/W281 230 330 206 206 2.1 2.1 1 260 1500 4350 295 9.5 5 317 240 57.5
FC4666206/YAB 230 330 206 206 2.1 2.1 1 260 1500 4350 295 9.5 6 317 240 57.8
FC4666206/YAD-6 230 330 206 206 2.1 2.1 1 260 1500 3950 295 9.5 5 317 240 57.9
FC4666206/HCYAD-5 230 330 206 206 2.1 2.1 1 260 1500 4350 295 6.5 5 317 240 57.8
FC4666206/YAD-5 230 330 206 206 2.1 2.1 1 260 1500 3850 295 9.5 5 317 240 57.9
FC4666206/YAD-4 230 330 206 206 2.1 2.1 1 260 1500 4350 295 317 240 57.8
FC4666206/YAD-3 230 330 206 206 2.1 2.1 1 260 1500 4350 295 9.5 5 317 240 57.8
FC4666206F1/YAD-2 230 330 206 206 2.1 2.1 1 260 1500 4350 295 9.5 5 317 240 57.9
FC4666206/YAD-1 230 330 206 206 2.1 2.1 1 260 1500 4350 295 317 240 57.8
FC4666206F1/P64YAD 230 330 206 206 2.1 2.1 1 260 1880 3900 297 318 240 58.4
FC4666206/YAD 230 330 206 206 2.1 2.1 1 258 1880 4350 293 316 240 59.1
FC4666206/YA34-1 230 330 206 206 2.1 2.1 1 257 1700 4250 295.7 9.5 5 317 240 58.4
FC4666206A-YDJS 230 330 206 206 2.1 2.1 1 260 1880 4350 295 9.5 5 317 240 57.8
FC4666206AF3/YA3 230 330 206 206 2.1 2.1 1 260 1500 4350 295 9.5 5 317 240 57.5
FC4666206A/YA3 230 330 206 206 2.1 2.1 1 260 1880 4350 295 9.5 5 317 240 57.8
FC4666206S/YA3 230 330 206 206 2.1 2.1 1 260 1540 4000 296 9.5 5 318 240 56.5
FC4666206/YA3 230 330 206 206 2.1 2.1 1 260 1780 3800 296 9.5 5 318 240 56.5
FC4666170/YAD 230 330 170 170 2.1 2.1 1 260 1250 3100 295 317 238 49.6
FC4666170/YAD-1 230 330 170 170 2.1 2.1 1 260 1250 3100 295 317 238 49.6
FCD4872290/YAD 240 360 290 290 4 4 2 270 2460 5940 318 9.5 5 347 252 102
FC4872220/YAD/W283 240 360 220 220 2.1 2.1 1 272 1800 4400 316.8 9.5 6 346 248 80.6
FC4872220/YA3/W283 240 360 220 220 2.1 2.1 1 272 1950 4600 316.8 9.5 6 346 248 79.1
FC4872220SA1/C4YA3 240 360 220 220 2.1 2.1 1 272 1880 4400 320 348 248 78
FC4872220S 240 360 220 220 2.1 2.1 1 272 1880 4400 318 12 6 347 248 78
FC4872220AF3 240 360 220 220 2.1 2.1 1 272 1750 4600 316.8 12 6 346 248 78.7
FC4872220/YA34 240 360 220 220 2.1 2.1 1 272 1950 4600 316.8 9.5 5 346 248 80.1
FC4872220AQ1/HG2YA4 240 360 220 220 2.1 2.1 1 272 2530 4850 316.8 12 6 346 248 79.1
FC4872220A 240 360 220 220 2.1 2.1 1 272 1930 4600 316.8 12 6 346 248 79.1
FC4872220Q1/HG2YA4 240 360 220 220 2.1 2.1 1 272 2430 4410 320 9.5 5 348 248 78.4
FC4872220A/C4YA3 240 360 220 220 2.5 2.5 1 272 1870 4410 320 348 249 78
FC4872220 240 360 200 200 2.1 2.1 1 272 1870 4410 318 12 6 346 248 78
FC4870224/HG2YAD 240 350 224 224 3 3 1 270 1850 4600 310 9.5 6 336 250 75.1
FC4868192/YAD 240 340 192 192 2.1 2.1 1 268 1520 3720 307.5 9.5 5 327 250
FC4868192/YA4 240 340 192 192 2.1 2.1 1 266 1560 3850 305.5 9.5 5 327 250 55.5
FC4868192A 240 340 192 192 2.1 2.1 1 265 1540 3650 305 9.5 5 325 250 54.7
FC4868192A1 240 340 192 192 2.1 2.1 1 265 1440 3380 308 9.5 5 327 250 52.8
FCD4866220 240 330 220 220 2.1 2.1 2 264 1780 4850 299 9.5 5 316 250 57.1
FC4866220S/YA3 240 330 220 220 2.1 2.1 1 264 1780 4850 301 317 250 56.5
FC4866220A/YA3 240 330 220 220 2.1 2.1 1 264 1960 5335 299 9.5 5 316 250 56.8
FC4866220/YA34 240 330 220 220 2.1 2.1 1 264 1780 5355 56.8
FC4866220A/HG2 240 330 220 220 2.1 2.1 1 264 1960 5335 299 316 250 57.1
FC4866220A 240 330 220 220 2.1 2.1 1 264 1960 5335 299 316 250 57.1
FC4866220 240 330 220 220 2.1 2.1 1 264 1780 4850 301 317 250 56.7
FC4866220/YA3 240 330 220 220 2.1 2.1 1 264 1780 4850 301 9.5 5 317 250 56.5
FC5072220ZW 250 360 220 220 3 3 5 282 1900 5350 317.2 9.5 5 346 260 80.5
FC5072220ZW/HCO 250 360 220 220 3 3 5 282 1900 5350 317.2 9.5 5 346 270 80.5
FC5072220S/YA3 250 360 220 220 3 3 1 282 1650 4250 320 9.5 5 346 260 76.9
FC5072220A/YA3 250 360 220 220 3 3 1 282 1710 4670 320 9.5 5 346 260 76.8
FC5072220/YA3 250 360 220 220 3 3 1 282 1650 4250 320 9.5 5 346 260 76.9
FC5070220/HCYA3 250 350 220 220 3 3 1 278 2160 4980 316.4 9.5 5 336 260 67.5
FC5070220S/YA3 250 350 220 220 3 3 1 278 1740 4450 316 9.5 5 336 260 65.5
FC5070220A/YA3 250 350 220 220 3 3 1 278 1840 4980 316.4 9.5 5 336 260 67.5
FC5070220/YA3 250 350 220 220 3 3 1 278 1740 4980 316 9.5 5 336 260 65.5
FCD5068230F3/HCOYA34 250 340 230 230 3.5 3.5 2 276 1750 4700 312 9.5 5 325 262 60.8
FCD5068230/HCOYA34 250 340 230 230 3.5 3.5 2 276 1750 4700 312 9.5 5 325 262 60.8
FC5068230/HCYA34 250 340 230 230 3.5 3.5 1 276 2100 5045 309.6 9.5 5 328 262 62.3
FC5068230/YA34 250 340 230 230 3.5 3.5 1 276 1750 4700 312 9.5 5 328 262 60.9
FCD5068220/YA34 250 340 220 220 3 3 2 276 1740 4750 312 9.5 5 328 262 58.4
FCD5280290/P63YA3 260 400 290 290 4 4 2 296 1800 1720 352 9.5 5 384 274 136
FC5276280/HCYA34 260 380 280 280 3 3 1 294 2640 6050 335.6 9.5 5 366 272 111
FC5276280/HCYA3 260 380 280 280 3 3 1 294 2640 6050 335.6 9.5 5 366 272 111
FC5276280/YA3 260 380 280 280 3 3 1 294 2640 6050 335.6 9.5 5 366 272 111
FC5276280/HCYA3-SY 260 380 280 280 3 3 1 294.3 2640 6050 335.6 9.5 5 366 272 111
FC5276280/YA3-SY 260 380 280 280 3 3 1 294.3 2640 6050 335.6 8.5 5 366 272 111
FC5276220/C4YA4 260 380 220 220 3 3 1 290 2150 4750 332 366 272 87.9
FC5274220AZW/YAD 260 370 22 220 3 3 5 292 1850 4900 330.4 356 272 79.1
FC5274220/HG2YA3 260 370 220 220 3 3 1 292 1950 4900 333.6 9.5 5 356 272 79.6
FC5274220A/W33YAD 260 370 220 220 3 3 1 292 1810 4800 330 9.5 5 356 272 78.9
FC5274220/YA34 260 370 220 220 3 3 1 292 2100 4900 335.5 9.5 5 356 272 79.6
FC5274220A/YAD 260 370 220 220 3 3 1 292 1810 4800 330 356 272 79.7
FC5274220A/YA3 260 370 220 220 3 3 1 292 1760 4900 335.5 9.5 5 356 272 79.6
FC5274220S/YA3 260 370 220 220 3 3 1 292 1930 4900 335.5 9.5 5 356 272 79.2
FC5274220/YA3 260 370 220 220 3 3 1 292 2100 4900 335.5 9.5 5 356 272 79.2
FC5274220F3/YA3 260 370 220 220 3 3 1 292 1960 5000 335.5 9.5 5 356 272 78.7
FC5274220F3/YA4-1 260 370 220 220 3 3 1 292 1840 4900 330 9.5 5 356 272 78.2
FC5274220/YA4-1 260 370 220 220 3 3 1 292 1810 4800 330 9.5 5 356 272 78.7
FC5274220S/YA4 260 370 220 220 3 3 1 292 1680 4400 330 9.5 5 356 272 81
FC5274220A/YA4 260 370 220 220 3 3 1 292 2100 4800 330 9.5 5 356 272 78.7
FC5274220S 260 370 220 220 3 3 1 292 1930 4900 335.5 9.5 5 356 272 80
FC5274220A 260 370 220 220 3 3 1 292 2150 4900 333.6 9.5 5 356 272 80.4
FC5274220 260 370 220 220 3 3 1 292 2100 4900 335.5 9.5 5 356 272 80
FCD5274200/C4YAB 260 370 200 200 3 3 2 290 1710 4100 332 356 272 73
FC5274200S 260 370 200 200 3 3 1 292 1730 4250 335.2 15 6 346 272 73
FC5274200A 260 370 200 200 3 3 1 292 2150 4250 333.6 15 6 356 272 73.8
FC5274200 260 370 200 200 3 3 1 292 2050 4250 335.2 15 6 356 272 73
FC5272230-1 260 360 230 230 3 3 1 292 1900 5400 327 9.5 5 346 272 73.5
FC5272230/YA3 260 360 230 230 3 3 1 288 1920 5150 327 9.5 5 346 272 72.3
FC5272200/YA34-1 260 360 200 200 3 3 1 288 1770 4650 326 9.5 5 346 272 63
FC5272200/YA34 260 360 200 200 3 3 1 288 1770 4650 326 9.5 5 346 272 63
FC5272200S/YA3B2 260 360 200 200 3 3 1 288 1690 4650 328 9.5 5 346 272 63
FC5272200A/YA3B2 260 360 200 200 3 3 1 288 2000 4650 326 9.5 5 346 272 63
FC5272200/YA3B2 260 360 200 200 3 3 1 288 2000 4650 328 9.5 5 346 272 63
FC5478236A 270 390 236 236 3 3 1 312 2310 5950 350.4 9.5 5 376 282 98.3
FC5478236 270 390 236 236 3 3 1 312 2310 5950 352 9.5 5 376 282 97.8
FC5478236S 270 390 236 236 3 3 1 312 2100 5950 352 9.5 5 376 282 97.8
FC5476230/YA34 270 380 230 230 3 3 1 298 1970 4800 342.8 9.5 5 366 282 82.1
FC5476230/HCYAD-1 270 380 230 230 3 3 1 298 2300 4800 342.8 9.5 5 366 282 81.9
FC5476230/HG2YA3 270 380 230 230 3 3 1 298 1720 4800 343 9.5 5 366 282 81.9
FC5476230/YA3-1 270 380 230 230 3 3 1 298 1970 4800 342.8 9.5 5 366 282 81.9
FC5476230S 270 380 230 230 3 3 1 298 1930 4800 346 9.5 5 366 282 80.5
FC5476230S-XXZG 270 380 230 230 3 3 1 298 1930 4800 346 9.5 5 366 282 80.5
FC5476230AF3/YA3 270 380 230 230 3 3 1 298 2010 5000 342.8 9.5 5 366 282 81.3
FC5476230A/YA3 270 380 230 230 3 3 1 298 1970 4800 342.8 9.5 5 366 282 81.9
FC5476230A 270 380 230 230 3 3 1 298 1970 4800 342.8 9.5 5 366 282 82.1
FC5476230/YA3 270 380 230 230 3 3 1 298 1890 4800 346 9.5 5 366 282 80.2
FC5684280 280 420 280 280 4 4 1 318 3500 7000 373 12 6 404 294 139
FCD5682300-KM 280 410 300 300 4 4 2 313 2760 7570 359.2 15 6 394 294 140
FCD5680300/HCYAD 280 400 300 300 4 4 2 312 2800 7700 368 15 6 380 294 125
FCD5680300/YAD 280 400 300 300 4 4 2 312 2800 7700 368 15 6 380 294 125
FCD5680285/YA4 280 400 285 285 4 4 2 312 2680 7300 368 15 6 380 294 118
FCD5680244F3/YAD 280 400 244 244 7.5 4 2 312 2300 6000 357 15 8 377 294 102
FC5678275/YA4 280 390 275 275 3 3 1 312 2300 6860 351 9.5 5 376 292 106
FCD5678275/YA34-1 280 390 275 275 3 3 2 308 2360 6650 348 9.5 5 376 292 105
FCD5678275/C3YA34 280 390 275 275 3 3 2 308 2360 6650 352.8 9.5 5 376 292 102
FCDP5678275 280 390 275 275 1.5 1.1 3 308 2360 6650 354.2 9.5 5 379 288 102
FCD5678275/YAD 280 390 275 275 3 3 2 308 2360 6650 348 9.5 5 376 292 105
FCD5678275 280 390 275 275 3 3 2 308 2360 6650 348 9.5 5 376 292 105
FCD5678275/HCOYA34-1 280 390 275 275 3 3 2 308 2360 6650 348 9.5 5 376 292 105
FCD5678275F3/HCOYA34-1 280 390 275 275 3 3 2 308 2360 6650 348 9.5 5 376 292 104
FCD5678275F3/YA34-1 280 390 275 275 3 3 2 308 2360 6650 348 9.5 5 376 292 104
FCD5678275F1/YA34-1/W281 280 390 275 275 3 3 2 308 2360 6650 348 9.5 5 376 292 104
FCD5678275F3/YA34-1/W281 280 390 275 275 3 3 2 308 2360 6650 348 9.5 5 376 292 104
FCD5678275/YA34-1/W281 280 390 275 275 3 3 2 308 2360 6650 348 9.5 5 376 292 105
FCD5678275/YA34-1 280 390 275 275 3 3 2 308 2360 6650 348 9.5 5 376 292 105
FCD5678275F1/HCOYA34-1/W281 280 390 275 275 3 3 2 308 2360 6650 348 9.5 5 376 292 105
FCD5678275/YA3 280 390 275 275 3 3 2 308 2360 6650 348 9.5 5 376 292 105
FC5678240/YA34-1 280 390 240 240 3 3 1 312 2570 5850 354.5 12 6 376 292 90.4
FC5678240/YAD 280 390 240 240 3 3 1 312 2570 5850 355.5 12 6 376 292 90.4
FC5678240/YA3 280 390 240 240 3 3 1 312 2570 5850 354.5 12 6 376 292 90.4
FC5678240/YA34 280 390 240 240 3 3 1 312 2570 5850 354.5 12 6 376 292 90.4
FC5678240/HCYA34 280 390 240 240 3 3 1 312 2570 5850 354.5 12 6 376 292 90.4
FC5678240 280 390 240 240 3 3 1 312 2570 5850 354.5 12 6 376 292 90.4
FC5678220/YAD-1 280 390 220 220 3 3 1 312 1900 5200 350.4 12 6 376 292 88.6
FC5678220/C4HYAD-2 280 390 220 220 3 3 1 312 1900 5200 350.4 12 6 376 292 88.6
FC5678220F3/YAB 280 390 220 220 3 3 1 312 1900 5200 350.4 12 6 376 292 83.2
FC5678220F3 280 390 220 220 3 3 1 312 1980 5200 355.5 12 6 376 292 83.4
FC5678220F1/HCC4YAD 280 390 220 220 3 3 1 312 2300 5100 352.3 376 292 83
FC5678220/HCYAD 280 390 220 220 3 3 1 312 2300 5100 352.3 376 292 83
FC5678220AF3/C4YAB 280 390 220 220 3 3 1 312 1650 5100 355.5 12 6 376 292 88.2
FC5678220S/YA3 280 390 220 220 3 3 1 312 2440 5000 355.5 12 6 376 292 86.3
FC5678220A/YA3 280 390 220 220 3 3 1 312 2130 5200 350.4 12 6 376 292 88.6
FC5678220/YA3-1 280 390 220 220 3 3 1 312 1840 5150 348.8 12 6 376 292 82.8
FC5678220/YA3 280 390 220 220 3 3 1 312 2680 5000 355.5 12 6 376 292 86.6
FC5678220S 280 390 220 220 3 3 1 312 1980 5200 355.5 12 6 376 292 86.5
FC5678220A 280 390 220 220 3 3 1 312 2130 5200 350.4 12 6 376 292 89
FC5678220 280 390 220 220 3 3 1 312 2130 5150 355.5 12 6 376 292 86.5
FCD5676290/YA3 280 380 290 290 3 3 2 306 2490 7320 345 9.5 5 374 292 96.8
FC5675200/YA3 280 375 200 200 3 3 1 306 1700 4800 341 9.5 5 361 292 62.9
FCD5886280F3/HG2 290 430 280 280 4 4 2 330 2900 7400 381.2 12 6 414 304 143
FCD5884300 290 420 300 300 4 4 2 327 2800 7850 371.8 12 6 404 304 144
FC5882240/HG2YA34 290 410 240 240 4 4 1 320 2400 6000 368 15 8 394 304 102
FC5882240/C4YA3 290 410 240 240 4 4 1 320 2340 5900 368 15 8 394 304 102
FCD6092350ZWF3/HG2YAD 300 460 350 350 4 5 6 340 4100 10500 399 20 10 444 316 226
FCD6092350ZWF3/HCYAD 300 460 350 350 4 5 6 340 4100 10500 399 20 10 444 316 226
FCDP6084300WB/HCYAD 300 420 300 300 3 7×20° 3 332 3750 8800 379.4 12 6 406 312 137
FCDP6084300F1/YAD 300 420 300 300 3 7×20° 3 332 3750 8800 379.4 12 6 406 312 133
FCD6084300/HCC4YA3/W283 300 420 300 300 3 3 2 332 2570 6680 382 12 6 406 312 127
FCD6084300F1/YAD 300 420 300 300 3 3 2 332 2850 7700 382 15 6 406 312 135
FCD6084300F3/YAD 300 420 300 300 3 3 2 332 2960 8060 379.4 15 6 406 312 130
FCD6084300F3/YAD-1 300 420 300 300 3 7×20° 2 332 2960 8060 379.4 15 6 406 312 129
FCD6084300/YAD 300 420 300 300 3 3 2 332 2960 8060 379.4 15 6 406 312 131
FCD6084300F3/YA34 300 420 300 300 3 3 2 332 2270 6800 382 12 6 406 312 128
FCD6084300F3/YA3 300 420 300 300 3 3 2 332 2270 6800 382 406 312 128
FCD6084300/HCYA4 300 420 300 300 3 3 2 332 2650 6950 382 12 6 406 312 129
FCDP6084300F3/YAD 300 420 300 300 3 7×20° 3 332 3750 8800 379.4 12 6 406 312 133
FCDP6084300F3/HCYAD 300 420 300 300 3 3 3 332 3750 8800 479.4 12 6 406 312 133
FCD6084300/W33AYA3 300 420 300 300 3 3 2 332 2270 6800 382 12 6 406 312 127
FCD6084300/HC 300 420 300 300 3 3 2 332 3550 6800 382 12 6 406 312 129
FCD6084300/YA3 300 420 300 300 3 3 2 332 3550 6800 382 12 6 406 312 129
FCD6084300/YA34 300 420 300 300 3 3 2 332 3550 6800 382 12 6 406 312 129
FC6084240/HCYA3 300 420 240 240 4 4 1 332 2500 6600 380 15 8 404 314 104
FC6084240A/YA3 300 420 240 240 4 4 1 332 3450 6300 380 15 8 404 314 111
FC6084240A 300 420 240 240 4 4 1 332 3450 6300 380 15 8 404 314 111
FC6084240YA3 300 420 240 240 4 4 1 332 3450 6300 382 15 8 404 314 111
FC6084240 300 420 240 240 4 4 1 332 3450 6300 382 15 8 404 314 111
FCD6084240ZW/YAB 300 420 240 240 4 4 6 332 2550 6800 379.5 404 316 110
FC6084240ZW/YA3 300 420 240 240 4 4 5 332 2500 6600 381 402 322 110
FCD6084240/P6YAB 300 420 240 240 4 4 2 332 2400 6300 380 15 8 404 314 109
FC6084240S/YA3 300 420 240 240 4 4 1 332 2450 6300 382 15 8 404 314 111
FC6084240S 300 420 240 240 4 4 1 332 2450 6300 382 15 8 404 314 111
FC6084240AF3/YA3 300 420 240 240 4 4 1 332 2450 6300 380 15 8 404 314 103
FC6084218/YA4 300 420 218 218 4 4 1 332 2270 5700 380 9.5 5 404 314 94.3
FC6084218F3/YA4 300 420 218 218 4 4 1 332 2270 5700 380 9.5 5 404 314 93.7
FCD6496350F3/HG2YA34 320 480 350 350 4 4 2 364 5150 10500 427 16 8 462 336 230
FCD6496350F3/HCYA34 320 480 350 350 4 4 2 364 5150 10500 427 12 6 462 336 230
FCD6496306/HG2YA3 320 480 306 306 4 4 2 364 3950 8250 427 12 6 462 336 197
FCD6496306/HCYA3 320 480 306 306 4 4 2 364 3950 8250 427 12 6 462 336 197
FCD6492340/YA3 320 460 340 340 4 4 2 357 3700 10000 413 12 6 442 336 189
FCD6492340F3/YA3 320 460 340 340 4 4 2 357 3700 10000 413 12 6 442 336 187
FCD6492300F3/YA3 320 460 300 300 4 4 2 357 3100 8330 408 11 6 442 336 168
FCD6492300 320 460 300 300 4 4 2 357 3100 8300 408 442 336 169
FC6492280/W33YA34 320 460 280 280 4 4 1 357 2900 7650 408 12 8 442 336 157
FC6492280/YA34 320 460 280 280 4 4 1 357 2900 7650 408 442 336 157
FCD6492240ZW/HCC4YA3 320 460 240 240 3 3 6 364 3370 7550 417 444 334 141
FCD6492240ZW/YA34/W281 320 460 240 240 3 3 6 364 2700 7050 417 444 334 141
FC6492240ZW/YA34 320 460 240 240 3 3 5 364 2700 7050 417 444 334 141
FCD6492240ZW/HG2IYA3 320 460 240 240 3 3 6 364 2710 7550 417 404 340 141
FCD6492240/HCYA34 320 460 240 240 3 3 2 364 2650 6950 416 404 334 130
FC6490240F3/YAD 320 450 240 240 4 4 1 355 2630 7050 403 12 6 432 336 122
FC6490240/YAD-1 320 450 240 240 4 4 1 355 2700 6720 409.4 12 6 432 336 120
FC6490240/YA34 320 450 240 240 4 4 1 355 2760 6720 412 12 6 432 336 120
FC6490240/C4YA3 320 450 240 240 4 4 1 355 2970 6720 409.4 12 6 432 336 120
FC6490240/YA3-1 320 450 240 240 4 4 1 355 2380 6150 403 12 6 432 336 120
FC6490240/YA3 320 450 240 240 4 4 1 355 2760 6720 412 12 6 432 336 119
FCD6488300/YA34 320 440 300 300 3 3 2 352 2910 8000 400 12 6 422 336 138
FCD6488240 320 440 240 240 4 4 1 351 2550 6700 399 12 6 422 336 110
FC6692340-ZH 330 460 340 340 4 4 1 365 3550 9950 416.2 12 6 442 346 211
FCD6692340 330 460 340 340 4 4 2 365 3550 9950 416.2 12 6 442 346 210
FC6896350ZW/YA34 340 480 350 350 4 4 5 378 3800 10800 431 462 356 212
FC6896350/YA34 340 480 350 350 4 4 1 378 3750 10600 430.8 462 356 202
FCD6896350/YA4 340 480 350 350 4 4 2 378 3500 9950 429.2 12 6 462 356 203
FCD6896350F3/HC 340 480 350 350 4 4 2 378 3750 10600 430.8 12 6 462 356 200
FCDP6896350/HCYA4 340 480 350 350 4 4 2 378 4070 11570 432.4 12 6 462 356 203
FCD6896350/YAB 340 480 350 350 4 4 2 378 3200 10300 419.6 12 6 462 356 212
FCD6896350 340 480 350 350 4 4 2 378 3750 10600 430.8 12 6 462 356 202
FCD6896280/YAB 340 480 280 280 4 4 2 378 2970 8050 429.2 12 6 462 356 164
FCD6892260 340 460 260 260 4 4 2 370 2760 7600 418 12 6 432 356 125
FC6892260/HC 340 460 260 260 4 4 1 370 2760 7600 418 12 6 432 356 125
FCD6890250F3/C4YA34 340 450 250 250 4 4 2 371 2400 7250 410.6 12 6 432 356 108
FCD6890250/YA34-1 340 450 250 250 4 4 2 371 2400 7250 410.6 12 6 432 356 109
FC6890250/YA4-2 340 450 250 250 4 4 1 366 2460 7250 408 12 6 432 356 111.8
FC6890250/YAD-3 340 450 250 250 4 4 1 371 2030 7250 406.2 12 6 432 356 115
FC6890250/YAD-2 340 450 250 250 4 4 1 369 2430 6820 415 12 6 432 356 105
FC6890250/YAD-1 340 450 250 250 4 4 1 369 2430 6820 415 12 6 432 356 105
FC6890250/YAD 340 450 250 250 4 4 1 369 2430 6820 415 12 6 432 356 105
FC6890250/YAB-1 340 450 250 250 4 4 1 370 2430 6800 406.8 12 8 432 356 111
FC6890250/YAB 340 450 250 250 4 4 1 370 2430 6800 406.8 12 8 432 356 111
FC6890250/HG2YAD-3 340 450 250 250 4 4 1 369 2430 6800 415 12 6 432 356 105
FC6890250/HG2 340 450 250 250 4 4 1 371 2430 6800 416 432 356 107
FCD6890250/HCYA34 340 450 250 250 4 4 2 371 2420 7250 410.6 12 6 432 356 109
FCD6890250/C4YA34 340 450 250 250 4 4 2 371 2420 7250 410.6 12 6 432 356 109
FCD6890250/C9YA4-1 340 450 250 250 4 4 2 371 2420 7500 410.6 12 6 432 356 109
FCD6890250/C3YA4 340 450 250 250 4 4 2 371 2420 7250 406.2 12 6 432 356 115
FC6996290 345 480 290 290 4 4 1 382 3200 8900 446 12 6 462 361 163
FC70104300 350 520 300 300 5 8×20° 1 401 4200 9000 468 500 361 213
FCDP70100410 350 500 410 410 3 11.5×20° 3 388 5800 13500 455 16.7 9 484 362 280
FCDSP70100380 350 500 380 380 3 6 3 388 3580 10600 440 12 6 484 370 225
FCDSP70100380/HC 350 500 380 380 6 3 3 388 4030 10200 440 12 6 478 364 225
FCD72110430-KM 360 550 430 430 5 5 2 408 5000 13000 477.4 18 10 530 378 379
FCDP72104380F3/HCYA4 360 520 380 380 4 4 4 405 4560 12200 471 12 6 502 376 277
FCD72102370F3 360 510 370 370 4 4 2 397 4220 11400 460 12 6 492 376 249
FCD72102370/YA4 360 510 370 370 4 4 2 399.5 4950 11300 462 12 6 492 376 241
FCD72102370 360 510 370 370 4 4 2 397 4950 11400 460 12 6 492 376 220
FCD72100300/YA3 360 500 300 300 3 3 2 394 4100 11000 160 11 6 484 374 179
FC72100250ZW/HCYA3 360 500 250 250 3 3 5 394 3600 7730 456 484 374 156
FC72100250ZW/YA3 360 500 250 250 3 3 5 394 3600 7730 456 484 374 156
FCD72100250-1/YA3 360 500 250 250 3 3 2 394 3040 7900 450 484 374 151
FCD72100250/HCYA34 360 500 250 250 3 3 2 394 3100 7750 454 484 374 147
FCD72100250F3/HC 360 500 250 250 3 3 2 394 3300 8000 456 484 374 124
FC72100250ZW/HCYA3 360 500 250 250 3 3 5 394 3600 7730 456 484 374 156
FCD7296340/HCYB2 360 480 340 340 4 4 2 392 3700 11300 441.5 12 6 462 376 172
FC73108300 365 540 300 300 2 2 1 421 5000 11000 490 12 6 526 377 225
FCD74108400-KM 370 540 400 400 5 5 2 416 4490 13600 472 16 8 520 388 327
FCDP74106400/HCG2I 370 530 400 400 4 4 3 413 4650 12600 478 12 6 512 386 299
FCD74104400/HCYAD 370 520 400 400 4 4 2 409 4700 13200 470 12 6 517 381 267
FCDP74104380/HCYAD 370 520 380 380 1.5 1.5 4 409 4300 12000 474 12 6 507 381 258
FCDP74104380/YAD 370 520 380 380 1.5 1.5 3 409 4300 12000 474 12 6 507 381 258
FCDP74104380 370 520 380 380 1.5 1.5 3 409 5230 12000 474 12 6 507 381 296
FCDP75120440/P63 375 600 440 440 2 2 3 470 5350 15600 535 15 6 586 387 527
FCD75104360/HG2IYAD 375 520 360 360 5 15×20° 2 422 3500 12300 470 12 6 500 388 241
FCD76112325 380 560 325 325 5 5 2 425 4840 10000 506 540 398 263
FCD76112300 380 560 300 300 2 13.5×20° 2 424 4950 9650 488 13.9 7.5 546 398 261
FCD76108400/HCOYA34 380 540 400 400 4 10×20° 2 422 5900 14200 488 12 6 522 396 297
FCD76108400/HCYA34 380 540 400 400 4 10×20° 2 422 5900 14200 488 12 6 522 396 297
FCD76108400/YA3 380 540 400 400 4 4 2 422 5050 14200 488 12 6 522 396 297
FC76108360/HCC9 380 540 360 360 4 4 1 422 4850 12900 480 20 12 522 396 276
FC76108340 380 540 340 340 4 4 1 422 5250 11900 488 12 6 522 396 256
FC76108304 380 540 304 304 4 4 1 422 4650 10100 488 12 6 522 396 227
FCD76108300 380 540 300 300 2 8.5×20° 2 421 4650 10100 490 12 6 526 395 220
FCD76108260 380 540 260 260 4 4 2 428 3350 8550 495 522 396 198
FCD76104290F1/YA3/W281 380 520 290 290 4 4 2 426 2770 9100 467 12 6 502 396 192
FCD76104290F3/YA3/W281 380 520 290 290 4 4 2 426 2770 9100 467 12 6 502 396 192
FCD76100300/YAG 380 500 315 315 4 4 2 412 3000 8700 460 482 396 157
FC78110400K/HG2YA4 390 550 400 400 4 4 1 432.3 4850 13400 496.5 12 6 532 406 330
FCD78110400/HG2YAD 390 550 400 400 5 1.5 2 434 4850 13400 498 20 10 530 401 300
FC78110400K/HCYA4 390 550 400 400 4 4 1 432.3 4850 13400 496.5 12 6 532 406 330
FCD78108320 390 540 320 320 2 10×20° 2 431 5200 12000 500 13.9 7.5 526 405 228
FCD80118440/HCYAD-SY 400 590 440 440 5 5 2 450 7100 15900 528 15 8 570 418 415
FCD80114440 400 590 440 440 5 5 2 450 7250 16500 530 570 418 410
FCDP80112410/HCEYAD 400 560 410 410 5 5 3 445 5200 15200 510 13 7 540 418 313
FCD80112410/HCYA34 400 560 410 410 5 12×20° 2 445 5200 15000 509 13 7 540 418 320
FCD80112410/HG2YA4 400 560 410 410 5 5 2 445 4500 14000 500 15 8 540 418 325
FCD80112410 400 560 410 410 2 13.5×20° 2 445 6250 15600 509 13.9 7.5 546 310
FC80112300 400 560 300 300 4 4 1 442 4550 10000 513 542 416 242
FC80110300S 400 550 300 300 5 5 1 442 3450 9500 502 12 6 530 418 223
FC80110300A 400 550 300 300 5 5 1 442 4640 5450 499.6 12 6 530 418 225
FC80110300 400 550 300 300 5 5 1 442 4460 5050 502 12 6 530 418 223
FCDP82120440-ZH/W283 410 600 440 440 5 5 3 460 6450 18300 533 20 10 578 430 433
FCD82120440/HCYAD 410 600 440 440 5 5 2 460 6500 16700 533 20 10 578 430 425
FCDP82120440/HCYA34 410 600 440 440 5 5 3 460 6450 18300 533 20 10 578 430 445
FCDP82120440-ZH 410 600 440 440 5 5 3 460 6450 18300 533 20 10 578 430 445
FCDP82120440/HCYA34 410 600 440 440 5 5 3 460 6450 18300 533 20 10 578 430 445
FCDP82112400/HCYAD 410 560 400 400 2 11×20° 3 450 5600 14400 508 16.7 9 544 428 286
FCDP82112400 410 560 400 400 2 11×20° 3 450 6400 15800 515 16.7 9 544 428 287
FCD84124400/HC 420 620 400 400 5 5 2 473 5800 15400 550 15 8 598 440 423
FCDP84120440/HCYAD 420 600 440 440 5 10×20° 2 470 7100 19500 540 29 15.9 578 445 417
FCDP84120440/HCYAD-1 420 600 440 440 5 5 2 470 7100 19500 540 29 15.9 578 440 417
FCDP84120440/HCRG2YA34-2 420 600 440 440 5 5 3 470 7100 19500 540 22 10 578 440 416
FCDP84120440/HCG2IYA34 420 600 440 440 5 5 3 470 7100 19500 540 22 10 578 440 416
FCDP84120440/HCYA34-1 420 600 440 440 5 5 3 470 7100 19500 540 22 10 578 440 416
FCDP84120440/HCYA34 420 600 440 440 5 5 3 470 7100 19500 540 22 10 578 440 416
FCD84120440/HCP6YAB 420 600 440 440 5 5 2 470 5550 16300 535 18 8 578 440 414
FCD84120440/HC 420 600 440 440 5 5 2 470 5550 16300 535 18 8 578 440 414
FCD84116320 420 580 320 320 4 4 2 463 4680 10800 525 560 438 249
FCD84116260 420 580 260 260 4 4 2 468 4350 9600 536 560 438 205
FC88132340ZW/HCC4YA3 440 660 340 340 6 6 5 492 6380 13500 582 636 462 425
FCD88132340ZW/HCC4YA3 440 660 340 340 6 6 6 492 5100 13500 582 636 462 425
FCD88130355/HCYAD 440 650 355 355 4 12.5×20° 2 494 6950 15000 582 15 8 636 459 405
FC88130355A 440 650 355 355 4 12.5×20° 3 494 6700 14700 584 11.1 6 630 459 421
FC88130355 440 650 355 355 3 3 3 509.5 6250 14600 585 11.1 6 632 456 400
FCDP88124450/HCEYA6 440 620 450 450 5 5 3 487 6700 21100 563 15 8 598 460 436
FCDP88124450/HCYA36 440 620 450 450 5 5 3 487 6700 21100 563 15 8 598 460 436
FCDP88124450/HC 440 620 450 450 5 5 3 487 6700 21100 563 15 8 598 460 436
FCDP88124450/HCEYAD-HT 440 620 450 450 5 12×20° 3 487 8730 20600 567 15 8 598 459 426
FCDP88124450/HCYAD-KM 440 620 450 450 5 12×20° 3 487 6700 21100 564.5 15 8 598 459 439
FCDP88124450/YA6 440 620 450 450 5 5 3 487 7420 15800 563 15 8 598 460 452
FCDP88124450 440 620 450 450 5 5 3 487 7420 15800 563 15 8 598 460 452
FCDP89127463X4/HCYAD/W283 447.295 635.176 463.55 463.55 5 13.5×20° 3 495 8400 20500 575 22 8 613 467 478
FC90114300 450 590 300 300 4 14.5×45° 1 490 3900 12200 528 12 6 570 482 240
NNQP692KZW/P5YB5 455 700 310 310 6 6 640 5550 13900 686 470 422
NNQP692KZW/P4YB5 455 700 310 310 6 6 640 5550 13900 686 470 422
FCD92136355X1/HG2 460 685.698 355 355 6 6 2 518 612 15 8 664 482 451
FCD92136355X1/HCYA3 460 685.698 355 355 6 6 2 518 6600 13300 612 15 8 664 482 450
FC92136400 460 680 400 400 6 6 1 518 8050 17400 618 24 8 656 482 630
FCD92130470 460 650 470 470 3 12×20° 2 509 8750 22400 584 11.1 6 632 479 512
FCDP92130470/HCYAD/W283 460 650 470 470 3 12×20° 3 509 8750 21500 588 22 12 632 479 488
FCDP92130470/HCEYAD-1 460 650 470 470 3 12×20° 3 505 9000 21800 588 22 12 632 479 510
FCDP92130470 460 650 470 470 3 12×20° 3 509 8750 21500 588 22 12 632 479 516
FCD92130424 460 650 424 424 3 12×20° 2 510 7800 18200 594 16.7 9 632 479 452
FCD92130355 460 650 355 355 3 12×20° 2 509.5 6250 14500 584 11.1 6 632 479 375
FCDP92124400/HG2CRYAD 460 620 400 400 4 4 4 502 5190 15400 568 15 8 600 478 359
FCDP92124400/HCYAD 460 620 400 400 4 4 3 502 6150 15400 568 15 8 600 478 359
CCT6/462 462 615.95 386 386 4 2 585 3470 8350 570 596 476 338
FCDP95120392/YA3 475 600 392 392 3 3 3 504 5500 14700 577 16.7 9 582 491 242
FCDP95120368HC/YA3 475 600 368 368 3 3 3 504 5500 14700 563 16.7 9 582 491 237
FCD96140420/HCYA3 480 700 420 420 6 12×20° 2 533 7800 20900 625 18 8 676 502 554
FCDP96136500/HCR 480 680 500 500 6 6 3 532 7250 23400 616 15 9 656 502 600
FCD96136500/HCYAD 480 680 500 500 6 6 2 532 7600 22000 612 15 8 656 502 588
FCD96136500/P64YA3 480 680 500 500 6 6 2 532 7100 22900 632 15 9 656 502 588
FCDP96136500/HCP64 480 680 500 500 6 6 3 532 7980 23400 632 15 9 656 502 599
FCDP96136500/P54 480 680 500 500 6 6 3 532 7980 23400 632 15 9 656 502 599
FCDP96136420/HCYA34 480 680 420 420 3 12×20° 3 528 8040 18600 616 16.7 9 662 502 500
FCD96136420 480 680 420 420 3 12×20° 2 528 8400 19400 616 16.7 9 662 502 510
FCDP96130450/HC 480 650 450 450 6 6 3 525 5350 1580 593 15 8 626 502 430
FCDP96130450/HCRG2/W283 480 650 450 450 6 6 3 525 5350 1580 593 15 8 626 502 430
FCD96130450 480 650 450 450 6 6 2 525 7840 15400 593 15 8 626 502 419
FCD100148500X1 500 738 500 500 6 18×20° 2 556 10500 23000 671 22.3 12 714 522 732
FCD100144530/YA6 500 720 530 530 5 13×20° 2 568 10500 28500 651 16.7 9 698 528 729
FCDP100144530/HCYAD-2/W283-BZ 500 720 530 530 6 15×20° 3 568 8550 28100 644 15 8 696 528 787
FCDP100144530/HCYAD-2 500 720 530 530 6 15×20° 3 560 10500 27600 644 15 8 696 528 738
FCDP100144530/HCYAD-1/W283 500 720 530 530 6 15×20° 3 568 8550 28100 650 15 5 696 528 752
FCDP100144530/HCRYA34 500 720 530 530 6 15×20° 3 568 8550 28100 650 15 8 696 528 752
FCDP100144400/HCYA4 500 720 400 400 6 6 3 558 8570 19700 646 15 12 702 522 552
FCD100144400ZW/HCYA3 500 720 400 400 5 5 6 550 8500 18300 646 700 520 469
FC100144400 500 720 400 400 3 6 1 558 7850 17500 656 22.3 12 702 522 526
FCDP100142480/YA6 500 710 480 480 5 18×20° 3 558 8780 21500 642 13.9 7.5 688 522 604
FCDP100142480/HG2CRYAD 500 710 480 480 6 17×20° 3 558 8100 23600 642 22 12 688 522 614
FCDP100142480/HCG2IYAD 500 710 480 480 6 17×20° 3 558 8100 23600 642 22 12 688 522 614
FCDP100142480/HCERC9YA4/W283 500 710 480 480 6 17×20° 3 558 8100 23600 642 22 12 686 522 622
FCDP100140500/HC 500 700 500 500 6 6 3 554 8600 21600 633.6 18 10 676 522 632
FCDP100136450/HCYAD 500 680 450 450 5 12.5×20° 3 540 7600 22200 623 18 10 658 520 488
FCD100136450 500 680 450 450 2 5 2 550 8200 22000 622 13.9 7.5 664 520 485
FCDP100134450/HCEC9YAD 500 670 485 450 5 12.5×20° 3 540 8400 22700 614 18 10 648 520 463
FCD100132450 500 670 450 450 5 5 2 540 8000 21500 612 16.7 9 648 520 455
FCDP100134450/HCC9YAD-2 500 670 450 450 5 12.5×20° 3 540 8400 22700 614 18 10 648 520 454
FCDP100134450/HCRG2YA4/W283 500 670 450 450 5 12.5×20° 3 540 8400 22700 614 18 10 648 520 452
FCDP100134450/HCYA4/W283 500 670 450 450 5 12.5×20° 3 540 8400 22700 614 18 10 648 520 452
FCDP100134450/HCC9YAD-1 500 670 450 450 5 12.5×20° 3 540 8580 22500 614 18 10 648 520 451
FCD100134450/P69HCYA3 500 670 450 450 6 6 2 540 8640 23700 617 15 8 646 520 460
FC100134450/P69 500 670 450 450 6 6 1 540 7840 20100 615 15 7 646 520 446
FCD100130260 500 650 260 260 5 5 2 542 4000 10000 600 628 520 220
FCDP102152550/HCYAD-KM 510 760 550 550 6 16×20° 3 570 11200 29300 685 22 10 732 537 898
FCDP102152550 510 760 550 550 3 16×20° 3 570 12000 26500 688 16.7 9 738 537 947
FCD102146520 510 730 520 520 6 17.5×20° 2 569 9480 21500 665 702 537 744
FCDP102146520/HCYB2 510 730 520 520 6 6 3 565 11000 27000 660 18 8 702 536 722
FCDP102136500/HCYAD/W283 510 680 500 500 5 5 3 560 8300 25200 628 22 12 654 534 521
FCDP102136500/HCRG2YAD 510 680 500 500 5 5 3 560 8300 25200 644 22 12 654 534 522
FCDP102136500/HCG2IYAD 510 680 500 500 5 5 3 560 8300 25200 628 22 12 654 534 522
FCDP102136500/HG2C9 510 680 500 500 5 5 3 560 7000 23500 625 15 8 654 534 535
FCDP102136500 510 680 500 500 5 7.5×20° 3 560 8950 26200 627 22 12 654 534 525
FCDP104147535/HCYAD-1 520 735 535 535 5 20×20° 3 574.5 11000 27800 664.5 22 12 709 548 757
FCDP104147535/HCYAD 520 735 535 535 5 20×20° 3 574.5 11000 27800 664.5 22 12 709 548 757
FCDP106156570/HCEYAD/W283 530 780 570 570 6 6 3 595 13000 32000 694 19 10 752 556 971
FCDP106156570/HCEYAD-1/W283 530 780 570 570 6 6 3 601 11000 30000 695 27.5 12 752 556 972
FCDP106156570/HCRG2YAD-1/W283 530 780 570 570 6 6 3 601 11000 30000 695 27.5 12 752 556 972
FCDP106156570/HCRG2YAD 530 780 570 570 6 6 3 595 13000 32000 694 19 10 752 556 970
FCD106156570 530 780 570 570 3 14×20° 2 601 12700 32500 697 22.3 12 758 556 954
FCD106156500 530 780 500 500 6 6 2 591 9300 20500 690 752 556 810
FCDP106152520/HCG2IYAD 530 760 520 520 5 12×20° 3 587 11100 27000 684 22.3 12 734 552 788
FCDP106152520/HCRG2YAD 530 760 520 520 5 12×20° 3 587 11100 27000 684 22.3 12 734 552 788
FCDP106152520/HCYAD 530 760 520 520 5 12×20° 3 587 11100 27000 684 22.3 12 734 552 788
FCDP106152520F3/HCYAD-1 530 760 520 520 5 5 3 587 9200 25600 684 22.3 12 734 552 792
FCDP106152520/HC 530 760 520 520 5 12×20° 3 587 11100 27000 684 22.3 12 734 552 788
FCDP106152520 530 760 520 520 5 12×20° 3 587 11500 28500 683 16.7 9 734 552 773
FCDP110160560/HCYAD/W283 550 800 560 560 6 6 3 609 13500 32500 724 24 12 772 576 956
FCDP110160560/HCYAD-1/W283 550 800 560 560 6 6 3 610 13600 32500 725 24 12 772 576 950
FCDP110160560/HCYAD-KM 550 800 560 560 6 18.5×20° 3 610 13600 32500 725 24 12 772 576 950
FCDP110160560/HCRG2-YL 550 800 560 560 6 18.5×20° 3 610 13600 32500 725 24 12 772 576 950
FCDP110160560/HCG2I 550 800 560 560 6 6 3 612 13100 31300 721 18 10 772 576 957
FCDP110160560/HCYAD-2 550 800 560 560 6 18.5×20° 3 610 11900 32500 725 24 12 772 576 958
FCD110160550/YA6 550 800 560 560 6 18.5×20° 2 610 12000 28000 725 772 576 928
FCDP110160520/HC/W283 550 800 520 520 6 6 3 612 12200 28500 721 18 10 772 576 893
FCDP110160520/HC 550 800 520 520 6 6 3 612 12200 28500 721 772 576 890
FCDP110160520 550 800 520 520 6 6 3 612 10300 28500 721 772 576 890
FCD110160520/YA6 550 800 520 520 6 10×20° 2 612 11500 26000 721 772 576 890
FCDP110148510/HCC9YAB 550 740 510 510 2 15×20° 3 600 10400 27800 680 22 12 720 575 628
FCDP110148510/YA6 550 740 510 510 2 15×20° 3 600 10000 27500 680 22.3 12 720 575 612
FCDP112164630/HCC4YA3 560 820 630 630 6 6 3 625 11100 36000 743 18 10 798 586 1164
FCDP112164630 560 820 630 630 3 3 3 625 14400 36000 743 16.7 9 798 580 1170
FCDP112164600/HCYAD/W283 560 820 600 600 6 20×20° 3 625 12800 34000 743 22 12 792 586 1091
FCDP112164600 560 820 600 600 3 20×20° 3 625 14200 34000 743 16.7 9 798 586 1075
FCDP112160600 560 800 600 600 7.5 7.5 3 620 13000 33500 710 16.7 9 769 589 1010
FCDP114163594/HCYAD-1 570 815 594 594 6 6 3 628 11100 33300 725 18 10 787 596 1016
FCDP114163594/HCYA3 570 818 594 594 6 6 3 628 11100 33300 725 18 10 787 596 1016
FCDP114163594 570 815 594 594 6 6 3 628 13000 35200 740 22 14 787 596 1010
FCDP114160514/HCC9YAD-DNL 570 800 514 514 6 6 3 626 11000 29000 746 25 10 772 596 841
FCDP114160514/HCC9YAD 570 800 514 514 6 6 3 626 11000 29000 746 22 14 772 596 835
FCDP114156550/HCEYAD 570 780 550 550 6 15×20° 3 625 12300 33000 711 15 8 762 596 805
FC114150530/HCYA3 570 750 530 530 6 6 1 622 9000 26600 690 8 722 596 625
FCDP116170540/HCC9 580 850 540 540 6 6 3 652 11500 33200 756 24 12 822 606 1082
FCDP116170540/HCC9/W283 580 850 540 540 6 6 3 652 11500 33200 756 24 12 822 606 1082
FCDP116156486/WB-2 580 780 558 486 2 12×20° 3 634 9900 27000 717 16.7 9 760 602 713
FCDP116156486/WB-1 580 780 521 486 2 12×20° 3 634 9900 27000 717 16.7 9 760 602 700
FCDP116156520/HCYA4 580 780 520 520 6 15×20° 3 630 11000 30200 712 15 5 760 602 714
FCDP116156486/WB 580 780 520 486 2 12×20° 3 634 9900 27000 717 16.7 9 760 602 696
FCDP118164590 590 820 590 590 6 6 3 649 12800 35100 748 16.7 9 792 616 990
FCDP120174540/HCYAD-FSDT 600 870 540 540 6 6 3 672 12500 35700 784 18 10 842 626 1120
FCDP120174540/HCYAD 600 870 540 540 6 6 3 672 12500 35700 784 18 10 842 626 1120
FCDP120174540 600 870 540 540 4 22×20° 3 672 13000 31500 780 16.7 9 846 626 1100
FCDP120174640/HCC9YA4 600 870 640 640 6 6 3 672 16500 41000 784 18 10 842 626 1367
FCDP120174640/HCYA4 600 870 640 640 6 6 3 672 12600 41000 784 18 10 842 626 1367
FCDP120174640/HCYA34 600 870 640 640 6 6 3 669 13200 38500 809 18 10 842 626 1347
FCDP120174640/HCYAD/W283 600 870 640 640 6 6 3 672 15700 41000 784 18 10 842 626 1330
FCDP120174640/HCYA34-FSBJ 600 870 640 640 6 6 3 669 12000 38500 781 18 10 842 626 1313
FCDP120174640/HCYAD-1/W283 600 870 640 640 6 6 3 682 15500 41200 784 18 10 842 626 1324
FCDP120174640/HCEYA34-AL 600 870 640 640 6 6 3 669 12000 38500 781 18 10 842 626 1313
FCDP120164575/HCYAD-CG 600 820 575 575 3 15×20° 3 660 9750 35000 750 18 9 798 626 948
FCDP120164575/HCYAD-2 600 820 575 575 3 15×20° 3 660 10000 35000 750 22 12 798 626 938
FCDP120164575/HG22ICRYA6 600 820 575 575 3 15×20° 3 660 10000 35000 750 18 9 798 626 944
FCDP120164575/HCYA6/W283 600 820 575 575 3 6 3 660 9750 35000 750 18 9 798 626 947
FCDP120164575/HCYA6-1 600 820 575 575 3 6 3 660 9750 35000 750 18 9 798 626 948
FCDP120164575/HCYA6 600 820 575 575 3 6 3 660 9750 35000 750 18 9 798 626 948
FCDP120164575/HCYA4 600 820 575 575 3 17×20° 3 659 10900 35100 750 18 10 798 626 951
FCDP120164575/HCRYA6/W283 600 820 575 575 3 6 3 660 9750 35000 750 18 9 798 626 947
FCDP120164575/HCYA6-1 600 820 575 575 3 6 3 660 12300 35000 768 18 9 798 626 945
FCDP120164550/HCYA3 600 820 550 550 3 3 3 660 12100 32600 750 24 12 798 626 870
FCDP122174660/HCYA34 610 870 660 660 6 12×20° 3 680 16900 44000 790 20 12 842 633 1316
FCDP122174660/HCYA34/W283-LG 610 870 660 660 6 12×20° 3 680 16900 44000 790 20 12 842 633 1316
FCD126184515/HC 630 920 515 515 7.5 7.5 2 700 13700 17160 825 25 12 889 659 1182
NNU49/630/HCDT 630 850 536 536 6 6 690 7800 23000 780 24 10 822 656 778
FCD126170436 630 850 436 436 6 6 2 690 7450 23500 770 822 656 720
FCD126160360 630 800 360 360 5 5 2 675 6850 19500 742 774 654 560
FCDP128176600 640 880 600 600 6 6 3 700 13500 40000 743 25 12 852 666 1120
FCDP130184690/HCEOYAD/W283 650 920 690 690 6 18×20° 3 723 15700 47500 824 24 12 896 683 1536
FCDP130184670/HCYAD/W283 650 920 670 670 4 17×20° 3 723 14300 44500 829 18 12 896 681 1454
FCDP130184670/HCYAD-1 650 920 670 670 7.5 7.5 3 723 14300 44500 829 18 10 889 681 1457
FCDP130184670/HCRG2YAD/W283 650 920 670 670 4 17×20° 3 723 14300 44500 829 18 12 896 681 1457
FCDP130184670/HG2CRYAD-3 650 920 670 670 4 17×20° 3 723 14300 44500 829 18 10 896 681 1454
FCDP130184670/HCG2IYAD-3 650 920 670 670 7.5 17×20° 3 723 14300 44500 829 18 10 896 681 1454
FCDP130184670/HCRG2YAD-2 650 920 670 670 4 17×20° 3 723 14300 44500 829 18 10 896 681 1454
FCDP130184670/HCYAD/W283-1 650 920 670 670 7.5 17×20° 3 723 14300 44500 829 22 14 889 681 1456
FCDP130184670/HCYA34 650 920 670 670 4 17×20° 3 723 17100 45000 829 18 10 896 681 1454
FCDP130184690 650 920 690 690 7.5 7.5 3 723 14500 45000 829 18 10 889 679 1490
FCDP130184670/HCYA3 650 920 670 670 4 17×20° 3 723 14300 44500 829 18 10 896 679 1460
FCDP130180650/HC 650 900 650 650 7.5 20×20° 3 704 14000 42000 819.4 30 12 869 679 1275
FCDP130180650/HCYAD-FSBJ 650 900 650 650 7.5 7.5 3 704 16900 43000 821.4 30 12 869 679 1257
FCDP130180650/HCRG2YAD-1 650 900 650 650 7.5 7.5 3 704 16900 43000 821.4 30 12 869 679 1253
FCDP130180650/HCG2IYAD-1 650 900 650 650 7.5 7.5 3 704 16900 43000 819.4 30 12 869 679 1253
FCDP130180650/HCYAD 650 900 650 650 7.5 7.5 3 704 16900 43000 821.4 30 12 869 679 1253
FCD132176450 660 880 450 450 6 6 2 727 7500 23500 806 852 686 782
FCD132164440 660 820 440 440 4 7.5 2 702 7450 22700 766 796 689 532
FCDP136204680 680 1020 680 680 6 6 3 775 20000 49500 929 22 12 992 710 2050
FCDP136196640/HCC9YAD/W283 680 980 640 640 4 20×20° 3 760 17700 46000 875 22 12 956 710 1651
FCDP136196640/HCC4YAD/W283 680 980 640 640 4 20×20° 3 760 17700 46000 875 22 12 956 710 1652
FCDP136184600/HCG2IYAD 680 920 600 600 6 18×20° 3 743 12400 41600 839 22 12 892 708 1178
FCDP138196750/HCYAD/W283 690 980 750 750 7.5 20×20° 3 766 16100 51500 880 45 15.9 949 719 1876
FCDP138196750/HCYAD/W283-2 690 980 750 750 7.5 7.5 3 766 20500 57500 880 28 15 949 719 1898
FCDP138196750/HCEYAD-1/W283 690 980 750 750 7.5 7.5 3 733 19800 54300 880 27 15 949 719 1900
FCDP138196750/HCYAD/W283-2-LG 690 980 750 750 7.5 7.5 3 766 20500 57500 880 27 15 949 719 1898
FCDP138196750/HCC9YA6 690 980 750 750 7.5 11.4×20° 3 766 18800 51500 880 45 13 949 719 1920
FCDP138196715/HCP69YAD-1 690 980 715 715 20×20° 4 3 767.5 18800 51500 907.5 22 12 949 712 1805
FCDP138196715/HCP69YAD 690 980 715 715 20×20° 4 3 767.5 18800 51500 907.5 22 12 949 712 1805
FCDP140200710 700 1000 710 710 4 4 3 770 19000 47500 916 22.3 12 976 722 1820
FCDP140196700 700 980 700 700 6 6 3 774 17500 48500 900 22.3 12 952 726 1680
FCDP140186620/HCEC9YAD/W283 700 930 620 620 3 18×20° 3 763 15100 44000 854 22.3 12 908 727 1201
FCDP140186620 700 930 620 620 3 18×20° 3 763 15000 42800 859 22.3 12 908 727 1170
FCDP142210715/HCYAD 710 1050 715 715 7 21×20° 3 791 21300 51000 938 24 12 1022 734 2131
FCDP142204710 710 1020 710 710 4 4 3 785 19500 49700 932 22.3 12 996 732 1940
FCDP142200715/HCYA4/W283 710 1000 715 715 7.5 7.5 3 787.5 16700 54200 902 22.3 12 969 739 1844
FCDP142200715/HCYAD/W283 710 1000 715 715 7.5 17×20° 3 787.5 20100 55500 902 22.3 12 969 739 1844
FCDP142200715/HCRG2YA4 710 1000 715 715 7.5 7.5 3 787.5 16700 54200 902 22.3 12 969 739 1848
FCDP142200715/HCRG2YAD-2 710 1000 715 715 7.5 7.5 3 785.55 16700 54000 902 22.3 12 969 739 1842
FCDP142200715/HCG2IYAD-2 710 1000 715 715 7.5 7.5 3 785.55 16700 54000 902 22.3 12 969 739 1842
FCDP142200715/HCEYAB 710 1000 715 715 7.5 17×20° 3 787.5 23700 55500 902 22.3 12 969 739 1851
FCDP142200715/HCYAD 710 1000 715 715 7.5 17×20° 3 787.5 20100 55500 902 22.3 12 969 739 1844
FCDP145200700 725 1000 700 700 6 6 3 796 18000 49500 920 22.3 12 972 751 1750
FCDP146206750/HC-FY/W283 730 1030 750 750 6 21×20° 3 809 21000 58000 924.2 22 12 1002 760 2081
FCDP146206750/HCRG2YAD 730 1030 750 750 6 21×20° 3 809 21000 58000 924.2 22 12 1002 760 2076
FCDP146206750/HCEYAD/W283-LG 730 1030 750 750 6 21×20° 3 809 21000 58000 924.2 22 12 1002 760 2076
FCDP146206750/HCEYAD/W283-2 730 1030 750 750 6 21×20° 3 809 21800 60600 925.8 22 12 1002 760 2081
FCDP146206750/HCEYAD/W283-1 730 1030 750 750 6 21×20° 3 809 21800 60600 925.8 22 12 1002 760 2081
FCDP146206750/HCEYAD/W283 730 1030 750 750 6 21×20° 3 809 21000 58000 924.2 22 12 1002 760 2082
FCDP146206750 730 1030 750 750 6 21×20° 3 809 20500 58500 929 22.3 12 1002 760 2035
FCDP146200700/HCEYAD/W283 730 1000 700 700 4 20×20° 3 802 16600 54500 916 45 15.9 976 758 1681
FCDP146192620-YDJS 730 960 620 620 6 6 3 790 15000 44000 886 23.5 12 938 758 1254
FCDP146192620/HCC4YA6 730 960 620 620 6 6 3 790 15000 44000 886 23.5 12 938 758 1254
FCDP146192620 730 960 620 620 3 20×20° 3 790 15400 45000 886 22.3 12 938 758 1218
FCDP150226670X1 750 1133 670 670 6 6 3 848 21000 50500 1023 22.3 12 1105 780 2450
FCDP150218750 750 1090 750 750 7.5 22×20° 3 832 21500 51500 993 22.3 12 1059 780 2410
FCDP150216650/WB 750 1080 665 650 7.5 7.5 3 833 19500 48000 989 22.3 12 1049 779 2020
FCDP150200670/HCYAD/W283 750 1000 670 670 3 20×20° 3 813 18000 52000 919 22.3 12 978 779 1497
FCDP150200670/HCC91 750 1000 670 670 3 20×20° 3 813 17000 48500 921 22.3 12 978 779 1522
FCDP150200670/HCC9 750 1000 670 670 3 20×20° 3 813 17000 48500 921 22.3 12 978 779 1522
FCDP152216790X1 760 1080 790 790 6 6 3 846 23500 65000 974 22.3 12 1052 789 2450
FCDP152216790 760 1080 790 790 7.5 7.5 3 846 23500 65000 974 22.3 12 1049 789 2420
FCDP152206750 760 1030 750 750 7.5 7.5 3 828 21000 61200 988 22.3 12 999 789 1870
FCDP152203700 760 1015 700 700 7.5 7.5 3 832 18500 55000 973 22.3 12 984 789 1600
FCDP152215787X4/HC 761.425 1079.6 787.4 787.4 5 22×20° 3 846 26600 64000 982 23.5 12 1054 789 2373
FCDP152215787X4/HC/W283 761.425 1079.6 787.4 787.4 5 22×20° 3 846 26600 64000 982 23.5 12 1054 789 2365
FCDP156214780/HCG2IYAD-KR 780 1070 780 780 7.5 7.5 3 849 23000 64900 969 23.5 12 1039 809 2167
FCDP156214780/HCG2IYAD-2 780 1070 780 780 7.5 7.5 3 849 21400 65700 967 23.5 12 1039 809 2170
FCDP156214780/HG2CRYAD-2 780 1070 780 780 7.5 7.5 3 849 21400 65700 967 23.5 12 1039 809 2170
FCDP156214780/HCEYAD-2 780 1070 780 780 7.5 7.5 3 849 23000 64900 969 23.5 12 1039 809 2167
FCDP156214780/HCYAD 780 1070 780 780 7.5 7.5 3 849 21400 65700 967 23.5 12 1039 809 2164
FCDP156214780/HCYAD-1/W283 780 1070 780 780 7.5 7.5 3 853 21000 63000 971 23.5 12 1039 809 2177
FCDP156214780 780 1070 780 780 6 25×20° 3 853 22000 60000 988 22.3 12 1042 809 2280
FCDP158203610X1 790 1015.9 610 610 6 6 3 850 17500 50000 960 22.3 12 988 816 1280
FCDP160216750 800 1080 750 750 6 6 3 880 20000 60000 1020 23.5 12 1052 826 2030
FCDP160216700/HCEOYAD-1/W283 800 1080 700 700 5 5 3 878 17300 60600 985 30 12 1054 824 1953
FCDP160216700/HCYAD-1/W283 800 1080 700 700 5 5 3 878 17300 60600 985 30 12 1054 824 1953
FCDP160216700/HCC4YAD/W283 800 1080 700 700 5 5 3 878 17300 59500 990 30 12 1054 824 1930
FCDP160216700/HCP64YAD 800 1080 700 700 5 5 3 878 19030 59500 1018 30 12 1054 824 1918
FCDP160216700/HC 800 1080 700 700 3 3 3 878 18800 48500 982 23.5 12 1058 820 1850
FCDP164232840 820 1160 840 840 7.5 7.5 3 910 21600 68500 1045 23.5 12 1129 855 2750
FCDP164226800/HCYA3/W283 820 1130 800 800 4 23×20° 3 903 19700 67000 1026 23.5 12 1106 856 2521
FCDP164226800/HCYA34/W283 820 1130 800 800 4 23×20° 3 903 19700 67000 1026 23.5 12 1106 856 2521
FCDP164226800/HCYA3-SY/W283 820 1130 800 800 4 23×20° 3 903 19700 67000 1026 23.5 12 1106 856 2521
FCDP164226800/HCG2IYA3 820 1130 800 800 4 23×20° 3 903 19700 67000 1026 23.5 12 1106 856 2511
FCDP164226800/HCP6YA3-SY 820 1130 800 800 4 23×20° 3 903 19700 67000 1026 23.5 12 1106 856 2534
FCDP164226800/HCYA3 820 1130 800 800 4 23×20° 3 903 19700 67000 1026 23.5 12 1106 856 2534
FCDP164226800/HC 820 1130 800 800 4 23×20° 3 903 19700 67000 1026 23.5 12 1106 856 2534
FCDP166216710/HCC9YA3 830 1080 710 710 7.5 25×20° 3 896 14500 60500 995 23.5 12 1049 858 1838
FCDP168232840 840 1160 840 840 7.5 7.5 3 920 24700 70800 1016 22.3 12 1129 875 2730
FCDP170236850/WB 850 1180 875 850 7.5 7.5 3 940 26100 74000 1084 22.3 12 1149 885 2950
FCDP170236850/HC 850 1180 850 850 4 20×20° 3 940 26100 74000 1084 22.3 12 1156 885 2920
FCDP170236650 850 1180 650 650 7.5 7.5 3 945 19000 50500 1088 22.3 12 1149 885 2100
FCDP170230840/HCYAD/W283 850 1150 840 840 6 23×20° 3 928 24000 75000 1056 23.5 12 1122 882 2545
FCDP170230840/HCE/W283 850 1150 840 840 6 23×20° 3 928 25000 75500 1055 23.5 12 1122 882 2598
FCDP170230840/HCRG2YAD/W283 850 1150 840 840 6 23×20° 3 928 24000 75000 1056 23.5 12 1122 882 2550
FCDP170230840/HCG2IYAD/W283 850 1150 840 840 6 23×20° 3 928 24000 75000 1056 23.5 12 1122 882 2550
FCDP170230840/HC 850 1150 840 840 4 23×20° 3 928 25400 76500 1056 22.3 12 1126 882 2560
FCDP172232710/WB 860 1160 735 710 6 6 3 940 21000 60000 1070 22.3 12 1132 895 2150
FCDP172228750 860 1140 750 750 7.5 7.5 3 938 20500 61000 1060 22.3 12 1109 895 2100
FCDP176228800 880 1140 800 800 6 6 3 946 24000 76000 1040 22.3 12 1112 906 2210
FCDP180256840/WB 900 1280 1050 840 7.5 7.5 3 1000 28900 80500 1152 22.3 12 1249 929 3890
FCDP180256930/HC 900 1280 930 930 4 25×20° 3 1000 32500 93500 1152 22.3 12 1256 929 4050
FCDP180256780 900 1280 780 780 7.5 23×20° 3 998 28500 80500 1175 22.3 12 1249 929 3250
FCDP180246870/WB 900 1230 895 870 7.5 7.5 3 990 26400 80000 1123 22.3 12 1199 929 3150
FCDP180244840/HCYAD-1 900 1220 840 840 4 24×20° 3 989 25300 83500 1116 22.3 12 1176 929 2958
FCDP180244840/HCYAD/W283 900 1220 840 840 4 24×20° 3 989 20000 80000 1113 22.3 12 1196 929 2970
FCDP180244840/HC 900 1220 840 840 4 24×20° 3 989 26300 80000 1117 22.3 12 1196 929 3050
FCDP184268950/WB 920 1300 975 950 7.5 7.5 3 1019 32500 92500 1256 22.3 12 1269 949 4180
FCDP184256850/WB 920 1280 865 850 7.5 7.5 3 1015 27600 77500 1238 22.3 12 1249 949 3450
FCDP184256800/WB 920 1280 815 800 7.5 7.5 3 1010 28700 80000 1238 22.3 12 1249 949 3280
FCDP190260850X4E/HG2CRC9YAB 949.85 1300 850 850 7.5 25×20° 3 1044 27300 90500 1196 30 14 1269 982 3546
FCDP190260850X4E/HCG2IC9YAB-JG 949.85 1300 850 850 7.5 25×20° 3 1044 27400 91000 1196 30 14 1269 982 3445
FCDP190260850E/HCC9YA3-JG 949.85 1300 850 850 7.5 25×20° 3 1044 27300 90500 1196 30 14 1269 982 3537
FCDP1902721000/HCEYAD/W281 950 1360 1000 1000 5 22×20° 3 1075 41500 113000 1233 30 18 1334 982 5027
FCDP1902721000/K30 950 1360 1000 1000 5 5 3 1075 37500 105000 1229 22.3 12 1334 982 4820
FCDP1902721000 950 1360 1000 1000 5 22×20° 3 1075 37500 105000 1229 22.3 12 1334 982 5013
FCDP190272975 950 1360 975 975 6 26×20° 3 1075 34000 100000 1227 22.3 12 1332 982 4895
FCDP190260850/HCC9YA3 950 1300 850 850 7.5 7.5 3 1044 23000 85000 1182 30 14 1269 979 3443
FCDP190260850E/HCC9YA3 950 1300 850 850 7.5 7.5 3 1044 27300 90500 1196 30 14 1269 979 3550
FCDP190260850/HCP69YAD 950 1300 850 850 10 10 3 1044 17900 64000 1186.8 32 12 1264 984 3360
FCDP190260850/HCC9 950 1300 850 850 10 10 3 1044 21500 80500 1182 30 16 1264 984 3390
FCDP190260850/C9HCYA3 950 1300 850 850 7.5 7.5 3 1044 23000 85000 1182 30 14 1269 979 3390
FCDP174229685/WB 970 1145 705 685 6 6 3 940 20500 63000 1044 22.3 12 1117 996 1990
FCDP196262880 980 1310 880 880 14×45° 20×20° 3 1061.7 28500 86500 1198 30 16 1266 1010 3300
FCDP200272800 1000 1360 800 800 4 23×20° 3 1101 27000 82800 1237 22.3 12 1336 1036 3560
FCDP206276850 1030 1380 850 850 7.5 7.5 3 1124 29000 90500 1258 22.3 12 1349 1065 3650
FCDP2082881000 1040 1440 1000 1000 7.5 27×20° 3 1133 37900 93500 1335 22.3 12 1409 1080 5090
FCDP2403181050 1200 1590 1050 1050 6 30×20° 3 1305 41800 13500 1465 24 15 1562 1242 5980
FCDP254320850X1 1270 1602 850 850 7.5 7.5 3 1354 42000 13600 1568 22.3 12 1571 1305 6000
FCDP260331880HC/WB 1300 1655 890 880 7.5 7.5 3 1391 37300 122000 1552 22.3 12 1624 1335 4800
FCDP2703531360 1350 1765 1360 1360 7.5 42×20° 3 1457 40000 122000 1620 22.3 12 1734 1400 9110
FCDP2703801360 1400 1900 1360 1360 12 40×20° 3 1521 61500 182000 1670 22.3 12 1860 1450 11300
FCDP2703561200 1400 1780 1200 1200 9.5 40×20° 3 1493 52300 163000 1671 12 1745 1450 7380
FCDP296370110X1 1480 1849.74 1100 1100 7.5 7.5 3 1574 52500 164000 1700 22.3 12 1818 1515 7450
Bearing part number D Weight
kg
FC182870S 140 3.78
FC182870A 140 3.78
FC182870 140 3.78
FCD2030106/C9YB2 150 6.63
FC2030106 150 6.67
FCD2028104 140 4.99
FC2028104F3/YA4 140 4.96
FC2028104S 140 4.99
FC2028104A 140 4.99
FC2028104 140 4.99
FC202870S/YA3 140 3.1
FC202870A/YA3 140 3.62
NNQD6920X2/YB3 140 3.08
FC202870/YA3 140 3.1
FC2234120S 170 10.1
FC2234120 170 10.1
FC2234120A 170 10.1
FC2443126X4ZW-XF 215 19.6
FC2436105S 180 9.13
FC2436105A 180 9.13
FC2436105 180 9.13
FC243390/YAD 165 5.41
FC243390/YA34 165 5.59
FC2640125S 200 14.6
FC2640125A 200 14.6
FC2640125/HC 200 14.6
FC2640125 200 14.6
FC2842155SK/C9YA3 210 18.1
FC2842155K/C9YA3 210 18.1
FC2842155 210 19
FC2842125AF3 210 14.6
FC2842125S 210 14.7
FC2842125A 210 14.7
FC2842125 210 14.7
FC2945156/YA3 225 23.6
FC2945156 225 23.6
FC2942155 210 18.3
FC2942155S/YA3 210 18.3
FC2942155A/YA3 210 18
FC2942155/YA3 210 18.3
FC3046156/YA4 230 23.6
FC3046156A 230 23.6
FC3046156 230 23.6
FC3045150/HCYA34 225 20.9
FC3045120A/YA3 225 16.7
FC3045120S 225 16.7
FCD3045120 225 16.6
FC3045120A 225 16.7
FC3045120ZW/C9 225 17.9
FC3045120 225 16.7
FC3044150/YAD 220 19.7
FC3042120/YA3 210 12.9
FC3248168/YA4 240 26.4
FC3248168/YA3 240 26.4
FC3248168A 240 26.4
NNQD6032X2 240 28.1
FC3248168S 240 26.4
FC3248168 240 26.4
FC3248124AF3 240 20.1
FC3248124A/YA3 240 20.3
FC3248124S 240 20.3
FC3248124S/YA31 240 20.2
FC3248124/YA31 240 20.2
FC3248124A/YA31 240 20.2
FC3248124A 240 20.3
FC3248124/C9 240 20.3
FC3248124 240 20.3
FC3246168F3/C9YAD 230 23.5
FC3246168/HCYA34-1 230 22
FC3246168/YA34-1 230 22
FC3246168/C9YA34 230 22
FC3246168/YA34 230 23.4
FC3246168/W33AYA3 230 22.3
FC3246168A/YA3 230 22.3
FC3246168/YA3 230 22.1
FC3246168 230 22.3
FC3246130/YAD 230 18.1
FC3246130/YA5 230 18.1
FC3246130S 230 16.9
FC3246130A/YA3 230 17.3
FC3246130 230 16.9
FCD3345168X4/YA3 225.425 19.7
FC3452150F3/YA3 260 29.5
FC3452150/YA3 260 29.7
FC3452150/HC 260 29.7
FC3452150 260 29.7
FC3452120S 260 24.6
FC3452120A 260 24.6
FC3452120 260 24.6
FC3450170/YA3 250 28.8
FC3450170A 250 28.8
FC3450170Q1/HG2YA4 250 28.9
FC3450170S 250 28.5
FC3450170AF3 250 28.5
FC3450170 250 28.5
FC3448170/YAD-1 240 24.7
FC3448170/YA3 240 24.7
FC3448170/YAD 240 24.7
FC3448130/YAD 240 18.7
FC3446180/YA4 230 21.7
FC3446180/YAD 230 21.7
FC3446160/YA34 230 20.1
FC3446160/YA34/W281 230 20.1
FCD3446160S 230 20
FCD3446160AF3 230 18.6
FCD3446160A 230 20
FC3656180 280 42
FC3656180F3 280 42
FC3652180F3 260 31.5
FC3652180 260 31.5
FC3652180S 260 31.5
FC3652168/YA4 260 29.3
FC3652168/YA4-2 260 29.7
FC3652168AF3 260 30
FC3652168F3/YA4 260 29.1
FC3652168S/YA3 260 30.1
FC3652168S/YA31 260 30.1
FC3652168S 260 30.2
FC3652168F3/YA4-2 260 29.5
FC3652168ZW/YA4 260 30.6
FC3652168/YAD-5 260 30.1
FC3652168/C4HYAD-4 260 30
FC3652168/YAD-4 260 30.1
FC3652168/C4HYAD-3 260 30.1
FC3652168/YAD-3 260 30.1
FC3652168/YAD-2 260 30.1
FC3652168/YAD-1 260 30.1
FC3652168/YA31 260 30.1
FC3652168A/YA3 260 30.1
FC3652168A 260 30.2
FC3652168/YAD 260 30.1
FC3652168Q1/HG2YA4 260 30.6
FC3652168/YA34 260 26.5
FC3652168/YA3 260 30.1
FC3652168 260 30.2
FC3652124S 260 21.7
FC3652124A 260 21.7
FC3652124 260 21.7
FC3650156/YA3 250 23.7
FC3650156/YA3-1 250 23.6
FC3650156 250 22.7
FC3650156/YA34 250 23.9
FC3650156/YA4 250 22.7
NNQ6936X2V/YA7 250 18.2
FC3854200/YA35 270 35.4
FC3854200F3/YA5 270 35.4
FC3854200/YA5 270 33.4
FC3854200SQ1 270 35
FC3854200A 270 35
FC3854200 270 35
FC3854170S/YA3 270 30.2
FC3854170A/YA3 270 31.8
FC3854170/YA3 270 30.2
FC3854168AQ1/HG2C9YA4 270 30.8
FC3854168A/YA3 270 31
FC3854168A 270 31.9
FC3854168Q1/HG2C9YA4 270 30.8
FC3854168/YA3 270 29.9
FC3854168 270 30.2
FC3854168S/YA3 270 29.9
FC3854168AF3/YA3 260 30.4
FC3852168/YAD 260 27.8
FC3852168F3/YA3-1 260 27.7
FC3852168A-YDJS 260 26.2
FC3852168S 260 22.6
FC3852168/HG2YAB 260 26.8
FC3852168/HCYA34-1 260 26.2
FC3852168/HCYA34 260 23.1
FC3852168/YA34-1 260 26.2
FC3852168/YA34 260 26.2
FC3852168/YAB 260 26.8
FC3852168A 260 23.1
FC3852168/YA3 260 23.1
FC4056170X4/YA3 280 33.3
FC4062175/YA3 310 49.8
FC4062200/YAB 300 57
FC4058192/YAD-1 290 41.2
FC4058192A/YA3 290 41.2
FC4058192/HG2YAD 290 40.9
FC4058192ZWF3/YA34 290 44.6
FC4058192A/YA4 290 41.3
FC4058192A 290 40.9
FC4058192/YA4 290 40.9
FC4058192 290 40.9
FC4058192AF3 290 40.7
FC4058192F3/YA34/W281 290 41.6
FC4058192S/YA4 290 40.9
FC4058192S 290 40.9
FC4058192F3/YAD 290 41.6
FC4056200/YA34-1 280 38.8
FC4056200/YA3 280 38.8
FC4056200/YAD 280 38.8
FC4056200/YAD-1 280 39
FC4056200ZW/YAD 280 39.7
FC4056200F3/YA3 280 38.3
FC4056188S 280 35.7
FC4056188A 280 35.9
FC4056188 280 35.7
FC4056170/C9YB2 280 33.8
FC4056170 280 33.3
FC4056170F3 280 33.6
FC4054170F3/YAD-4 270 28.5
FC4054170F3/YAD-3 270 28.5
FC4054170/YAD-2 270 28.7
FC4054170F3/YAD-1 270 29.1
FC4054170/YAD-1 270 29.3
FC4054170/YA35 270 28.7
FC4054170/YA5 270 28.9
FC4054170F1/YA3 270 28.5
FC4054170AF3/YA3 270 28.5
FC4054170/YAB-1 270 28.1
FC4054170AF3/YAB 270 28.5
FC4054170/HCG2IYA3 270 28.7
FC4054170A/YA3 270 28.7
FC4054170Q1/HG2C4Y 270 28.7
FC4054170Q1/YA3 270 28.7
FC4054170/HCYA3 270 28.7
FC4260260/HC 300 58.9
FC4260260 300 58.9
FC4260210/YA34 300 48.3
FC4260210S/C9YA4 300 48.3
FC4260210S 300 48.3
FC4260210A/C9YA4 300 48.3
FC4260210A 300 48.3
FC4260210/C9YA4 300 48.3
FC4260210 300 48.3
FC4260170 300 39.1
FC4468200/YB2 340 63.4
FCD4468192 340 64
FC4468192/YA3 340 64.6
FCD4464210 320 57.1
FC4464210S/YA3 320 56.5
FC4464210/YA3W33 320 57.6
FC4464210/QPC9W33XYAB 320 57.6
FC4464210F3/YA3 320 57.2
FC4464210A/YA3 320 58.2
FC4464210/YA3 320 56.5
FCD4462265 310 63.3
FC4462225 310 53.9
FC4462225/YA46 310 53.9
FC4462225/YA34 310 54.8
FC4462225F3/YA3 310 54
FC4462225F3/HCYA4 310 54.4
FC4462192/HCYAD-1 310 46.7
FC4462192/HCYAD 310 45.7
FC4462192/HCYA4 310 46.2
FC4462192F3/YA34-3 310 45.7
FC4462192/YA34-2 310 46.1
FC4462192/YA34 310 46.1
FC4462192AF3 310 45.9
FC4462192S/YA3 310 45.7
FC4462192S 310 45.8
FC4462192F3 310 45.3
FC4462192A/YA1 310 46.1
FC4462192A/YA3 310 46.1
FC4462192A 310 46.2
FC4462192 310 45.8
FC4462192/YA3 310 45.8
FC4460192/C9-1 300 40.7
FC4460192/YA4-1 300 39.8
FC4460192ZW 300 43.4
FC4460192F3 300 39.6
FC4460192F3/YA4 300 38.5
FC4460192/YA34-1 300 39.6
FCD4562225X4/YA3 310 50.4
FCD4673250 365 102
FC4673250F3/W281 365 102
FC4673250/W281 365 102
FC4668260/YA3-SY 340 82.1
FC4668260/YA3 340 82.1
FC4668260/C9YA3 340 81.9
FC4668260/HCYA3-SY 340 82.1
FC4668260/HCYA3 340 82.1
FC4666206/YA34 330 57.8
FC4666206/YA4 330 58.3
FC4666206F1/HCOIYA34 330 57.5
FC4666206/YA34/W283 330 57.8
FC4666206F1/YA34/W281 330 58.2
FC4666206F3/YA34/W281 330 58.2
FC4666206F1/HCOYA34/W281 330 57.5
FC4666206/YAB 330 57.8
FC4666206/YAD-6 330 57.9
FC4666206/HCYAD-5 330 57.8
FC4666206/YAD-5 330 57.9
FC4666206/YAD-4 330 57.8
FC4666206/YAD-3 330 57.8
FC4666206F1/YAD-2 330 57.9
FC4666206/YAD-1 330 57.8
FC4666206F1/P64YAD 330 58.4
FC4666206/YAD 330 59.1
FC4666206/YA34-1 330 58.4
FC4666206A-YDJS 330 57.8
FC4666206AF3/YA3 330 57.5
FC4666206A/YA3 330 57.8
FC4666206S/YA3 330 56.5
FC4666206/YA3 330 56.5
FC4666170/YAD 330 49.6
FC4666170/YAD-1 330 49.6
FCD4872290/YAD 360 102
FC4872220/YAD/W283 360 80.6
FC4872220/YA3/W283 360 79.1
FC4872220SA1/C4YA3 360 78
FC4872220S 360 78
FC4872220AF3 360 78.7
FC4872220/YA34 360 80.1
FC4872220AQ1/HG2YA4 360 79.1
FC4872220A 360 79.1
FC4872220Q1/HG2YA4 360 78.4
FC4872220A/C4YA3 360 78
FC4872220 360 78
FC4870224/HG2YAD 350 75.1
FC4868192/YAD 340
FC4868192/YA4 340 55.5
FC4868192A 340 54.7
FC4868192A1 340 52.8
FCD4866220 330 57.1
FC4866220S/YA3 330 56.5
FC4866220A/YA3 330 56.8
FC4866220/YA34 330 56.8
FC4866220A/HG2 330 57.1
FC4866220A 330 57.1
FC4866220 330 56.7
FC4866220/YA3 330 56.5
FC5072220ZW 360 80.5
FC5072220ZW/HCO 360 80.5
FC5072220S/YA3 360 76.9
FC5072220A/YA3 360 76.8
FC5072220/YA3 360 76.9
FC5070220/HCYA3 350 67.5
FC5070220S/YA3 350 65.5
FC5070220A/YA3 350 67.5
FC5070220/YA3 350 65.5
FCD5068230F3/HCOYA34 340 60.8
FCD5068230/HCOYA34 340 60.8
FC5068230/HCYA34 340 62.3
FC5068230/YA34 340 60.9
FCD5068220/YA34 340 58.4
FCD5280290/P63YA3 400 136
FC5276280/HCYA34 380 111
FC5276280/HCYA3 380 111
FC5276280/YA3 380 111
FC5276280/HCYA3-SY 380 111
FC5276280/YA3-SY 380 111
FC5276220/C4YA4 380 87.9
FC5274220AZW/YAD 370 79.1
FC5274220/HG2YA3 370 79.6
FC5274220A/W33YAD 370 78.9
FC5274220/YA34 370 79.6
FC5274220A/YAD 370 79.7
FC5274220A/YA3 370 79.6
FC5274220S/YA3 370 79.2
FC5274220/YA3 370 79.2
FC5274220F3/YA3 370 78.7
FC5274220F3/YA4-1 370 78.2
FC5274220/YA4-1 370 78.7
FC5274220S/YA4 370 81
FC5274220A/YA4 370 78.7
FC5274220S 370 80
FC5274220A 370 80.4
FC5274220 370 80
FCD5274200/C4YAB 370 73
FC5274200S 370 73
FC5274200A 370 73.8
FC5274200 370 73
FC5272230-1 360 73.5
FC5272230/YA3 360 72.3
FC5272200/YA34-1 360 63
FC5272200/YA34 360 63
FC5272200S/YA3B2 360 63
FC5272200A/YA3B2 360 63
FC5272200/YA3B2 360 63
FC5478236A 390 98.3
FC5478236 390 97.8
FC5478236S 390 97.8
FC5476230/YA34 380 82.1
FC5476230/HCYAD-1 380 81.9
FC5476230/HG2YA3 380 81.9
FC5476230/YA3-1 380 81.9
FC5476230S 380 80.5
FC5476230S-XXZG 380 80.5
FC5476230AF3/YA3 380 81.3
FC5476230A/YA3 380 81.9
FC5476230A 380 82.1
FC5476230/YA3 380 80.2
FC5684280 420 139
FCD5682300-KM 410 140
FCD5680300/HCYAD 400 125
FCD5680300/YAD 400 125
FCD5680285/YA4 400 118
FCD5680244F3/YAD 400 102
FC5678275/YA4 390 106
FCD5678275/YA34-1 390 105
FCD5678275/C3YA34 390 102
FCDP5678275 390 102
FCD5678275/YAD 390 105
FCD5678275 390 105
FCD5678275/HCOYA34-1 390 105
FCD5678275F3/HCOYA34-1 390 104
FCD5678275F3/YA34-1 390 104
FCD5678275F1/YA34-1/W281 390 104
FCD5678275F3/YA34-1/W281 390 104
FCD5678275/YA34-1/W281 390 105
FCD5678275/YA34-1 390 105
FCD5678275F1/HCOYA34-1/W281 390 105
FCD5678275/YA3 390 105
FC5678240/YA34-1 390 90.4
FC5678240/YAD 390 90.4
FC5678240/YA3 390 90.4
FC5678240/YA34 390 90.4
FC5678240/HCYA34 390 90.4
FC5678240 390 90.4
FC5678220/YAD-1 390 88.6
FC5678220/C4HYAD-2 390 88.6
FC5678220F3/YAB 390 83.2
FC5678220F3 390 83.4
FC5678220F1/HCC4YAD 390 83
FC5678220/HCYAD 390 83
FC5678220AF3/C4YAB 390 88.2
FC5678220S/YA3 390 86.3
FC5678220A/YA3 390 88.6
FC5678220/YA3-1 390 82.8
FC5678220/YA3 390 86.6
FC5678220S 390 86.5
FC5678220A 390 89
FC5678220 390 86.5
FCD5676290/YA3 380 96.8
FC5675200/YA3 375 62.9
FCD5886280F3/HG2 430 143
FCD5884300 420 144
FC5882240/HG2YA34 410 102
FC5882240/C4YA3 410 102
FCD6092350ZWF3/HG2YAD 460 226
FCD6092350ZWF3/HCYAD 460 226
FCDP6084300WB/HCYAD 420 137
FCDP6084300F1/YAD 420 133
FCD6084300/HCC4YA3/W283 420 127
FCD6084300F1/YAD 420 135
FCD6084300F3/YAD 420 130
FCD6084300F3/YAD-1 420 129
FCD6084300/YAD 420 131
FCD6084300F3/YA34 420 128
FCD6084300F3/YA3 420 128
FCD6084300/HCYA4 420 129
FCDP6084300F3/YAD 420 133
FCDP6084300F3/HCYAD 420 133
FCD6084300/W33AYA3 420 127
FCD6084300/HC 420 129
FCD6084300/YA3 420 129
FCD6084300/YA34 420 129
FC6084240/HCYA3 420 104
FC6084240A/YA3 420 111
FC6084240A 420 111
FC6084240YA3 420 111
FC6084240 420 111
FCD6084240ZW/YAB 420 110
FC6084240ZW/YA3 420 110
FCD6084240/P6YAB 420 109
FC6084240S/YA3 420 111
FC6084240S 420 111
FC6084240AF3/YA3 420 103
FC6084218/YA4 420 94.3
FC6084218F3/YA4 420 93.7
FCD6496350F3/HG2YA34 480 230
FCD6496350F3/HCYA34 480 230
FCD6496306/HG2YA3 480 197
FCD6496306/HCYA3 480 197
FCD6492340/YA3 460 189
FCD6492340F3/YA3 460 187
FCD6492300F3/YA3 460 168
FCD6492300 460 169
FC6492280/W33YA34 460 157
FC6492280/YA34 460 157
FCD6492240ZW/HCC4YA3 460 141
FCD6492240ZW/YA34/W281 460 141
FC6492240ZW/YA34 460 141
FCD6492240ZW/HG2IYA3 460 141
FCD6492240/HCYA34 460 130
FC6490240F3/YAD 450 122
FC6490240/YAD-1 450 120
FC6490240/YA34 450 120
FC6490240/C4YA3 450 120
FC6490240/YA3-1 450 120
FC6490240/YA3 450 119
FCD6488300/YA34 440 138
FCD6488240 440 110
FC6692340-ZH 460 211
FCD6692340 460 210
FC6896350ZW/YA34 480 212
FC6896350/YA34 480 202
FCD6896350/YA4 480 203
FCD6896350F3/HC 480 200
FCDP6896350/HCYA4 480 203
FCD6896350/YAB 480 212
FCD6896350 480 202
FCD6896280/YAB 480 164
FCD6892260 460 125
FC6892260/HC 460 125
FCD6890250F3/C4YA34 450 108
FCD6890250/YA34-1 450 109
FC6890250/YA4-2 450 111.8
FC6890250/YAD-3 450 115
FC6890250/YAD-2 450 105
FC6890250/YAD-1 450 105
FC6890250/YAD 450 105
FC6890250/YAB-1 450 111
FC6890250/YAB 450 111
FC6890250/HG2YAD-3 450 105
FC6890250/HG2 450 107
FCD6890250/HCYA34 450 109
FCD6890250/C4YA34 450 109
FCD6890250/C9YA4-1 450 109
FCD6890250/C3YA4 450 115
FC6996290 480 163
FC70104300 520 213
FCDP70100410 500 280
FCDSP70100380 500 225
FCDSP70100380/HC 500 225
FCD72110430-KM 550 379
FCDP72104380F3/HCYA4 520 277
FCD72102370F3 510 249
FCD72102370/YA4 510 241
FCD72102370 510 220
FCD72100300/YA3 500 179
FC72100250ZW/HCYA3 500 156
FC72100250ZW/YA3 500 156
FCD72100250-1/YA3 500 151
FCD72100250/HCYA34 500 147
FCD72100250F3/HC 500 124
FC72100250ZW/HCYA3 500 156
FCD7296340/HCYB2 480 172
FC73108300 540 225
FCD74108400-KM 540 327
FCDP74106400/HCG2I 530 299
FCD74104400/HCYAD 520 267
FCDP74104380/HCYAD 520 258
FCDP74104380/YAD 520 258
FCDP74104380 520 296
FCDP75120440/P63 600 527
FCD75104360/HG2IYAD 520 241
FCD76112325 560 263
FCD76112300 560 261
FCD76108400/HCOYA34 540 297
FCD76108400/HCYA34 540 297
FCD76108400/YA3 540 297
FC76108360/HCC9 540 276
FC76108340 540 256
FC76108304 540 227
FCD76108300 540 220
FCD76108260 540 198
FCD76104290F1/YA3/W281 520 192
FCD76104290F3/YA3/W281 520 192
FCD76100300/YAG 500 157
FC78110400K/HG2YA4 550 330
FCD78110400/HG2YAD 550 300
FC78110400K/HCYA4 550 330
FCD78108320 540 228
FCD80118440/HCYAD-SY 590 415
FCD80114440 590 410
FCDP80112410/HCEYAD 560 313
FCD80112410/HCYA34 560 320
FCD80112410/HG2YA4 560 325
FCD80112410 560 310
FC80112300 560 242
FC80110300S 550 223
FC80110300A 550 225
FC80110300 550 223
FCDP82120440-ZH/W283 600 433
FCD82120440/HCYAD 600 425
FCDP82120440/HCYA34 600 445
FCDP82120440-ZH 600 445
FCDP82120440/HCYA34 600 445
FCDP82112400/HCYAD 560 286
FCDP82112400 560 287
FCD84124400/HC 620 423
FCDP84120440/HCYAD 600 417
FCDP84120440/HCYAD-1 600 417
FCDP84120440/HCRG2YA34-2 600 416
FCDP84120440/HCG2IYA34 600 416
FCDP84120440/HCYA34-1 600 416
FCDP84120440/HCYA34 600 416
FCD84120440/HCP6YAB 600 414
FCD84120440/HC 600 414
FCD84116320 580 249
FCD84116260 580 205
FC88132340ZW/HCC4YA3 660 425
FCD88132340ZW/HCC4YA3 660 425
FCD88130355/HCYAD 650 405
FC88130355A 650 421
FC88130355 650 400
FCDP88124450/HCEYA6 620 436
FCDP88124450/HCYA36 620 436
FCDP88124450/HC 620 436
FCDP88124450/HCEYAD-HT 620 426
FCDP88124450/HCYAD-KM 620 439
FCDP88124450/YA6 620 452
FCDP88124450 620 452
FCDP89127463X4/HCYAD/W283 635.176 478
FC90114300 590 240
NNQP692KZW/P5YB5 700 422
NNQP692KZW/P4YB5 700 422
FCD92136355X1/HG2 685.698 451
FCD92136355X1/HCYA3 685.698 450
FC92136400 680 630
FCD92130470 650 512
FCDP92130470/HCYAD/W283 650 488
FCDP92130470/HCEYAD-1 650 510
FCDP92130470 650 516
FCD92130424 650 452
FCD92130355 650 375
FCDP92124400/HG2CRYAD 620 359
FCDP92124400/HCYAD 620 359
CCT6/462 615.95 338
FCDP95120392/YA3 600 242
FCDP95120368HC/YA3 600 237
FCD96140420/HCYA3 700 554
FCDP96136500/HCR 680 600
FCD96136500/HCYAD 680 588
FCD96136500/P64YA3 680 588
FCDP96136500/HCP64 680 599
FCDP96136500/P54 680 599
FCDP96136420/HCYA34 680 500
FCD96136420 680 510
FCDP96130450/HC 650 430
FCDP96130450/HCRG2/W283 650 430
FCD96130450 650 419
FCD100148500X1 738 732
FCD100144530/YA6 720 729
FCDP100144530/HCYAD-2/W283-BZ 720 787
FCDP100144530/HCYAD-2 720 738
FCDP100144530/HCYAD-1/W283 720 752
FCDP100144530/HCRYA34 720 752
FCDP100144400/HCYA4 720 552
FCD100144400ZW/HCYA3 720 469
FC100144400 720 526
FCDP100142480/YA6 710 604
FCDP100142480/HG2CRYAD 710 614
FCDP100142480/HCG2IYAD 710 614
FCDP100142480/HCERC9YA4/W283 710 622
FCDP100140500/HC 700 632
FCDP100136450/HCYAD 680 488
FCD100136450 680 485
FCDP100134450/HCEC9YAD 670 463
FCD100132450 670 455
FCDP100134450/HCC9YAD-2 670 454
FCDP100134450/HCRG2YA4/W283 670 452
FCDP100134450/HCYA4/W283 670 452
FCDP100134450/HCC9YAD-1 670 451
FCD100134450/P69HCYA3 670 460
FC100134450/P69 670 446
FCD100130260 650 220
FCDP102152550/HCYAD-KM 760 898
FCDP102152550 760 947
FCD102146520 730 744
FCDP102146520/HCYB2 730 722
FCDP102136500/HCYAD/W283 680 521
FCDP102136500/HCRG2YAD 680 522
FCDP102136500/HCG2IYAD 680 522
FCDP102136500/HG2C9 680 535
FCDP102136500 680 525
FCDP104147535/HCYAD-1 735 757
FCDP104147535/HCYAD 735 757
FCDP106156570/HCEYAD/W283 780 971
FCDP106156570/HCEYAD-1/W283 780 972
FCDP106156570/HCRG2YAD-1/W283 780 972
FCDP106156570/HCRG2YAD 780 970
FCD106156570 780 954
FCD106156500 780 810
FCDP106152520/HCG2IYAD 760 788
FCDP106152520/HCRG2YAD 760 788
FCDP106152520/HCYAD 760 788
FCDP106152520F3/HCYAD-1 760 792
FCDP106152520/HC 760 788
FCDP106152520 760 773
FCDP110160560/HCYAD/W283 800 956
FCDP110160560/HCYAD-1/W283 800 950
FCDP110160560/HCYAD-KM 800 950
FCDP110160560/HCRG2-YL 800 950
FCDP110160560/HCG2I 800 957
FCDP110160560/HCYAD-2 800 958
FCD110160550/YA6 800 928
FCDP110160520/HC/W283 800 893
FCDP110160520/HC 800 890
FCDP110160520 800 890
FCD110160520/YA6 800 890
FCDP110148510/HCC9YAB 740 628
FCDP110148510/YA6 740 612
FCDP112164630/HCC4YA3 820 1164
FCDP112164630 820 1170
FCDP112164600/HCYAD/W283 820 1091
FCDP112164600 820 1075
FCDP112160600 800 1010
FCDP114163594/HCYAD-1 815 1016
FCDP114163594/HCYA3 818 1016
FCDP114163594 815 1010
FCDP114160514/HCC9YAD-DNL 800 841
FCDP114160514/HCC9YAD 800 835
FCDP114156550/HCEYAD 780 805
FC114150530/HCYA3 750 625
FCDP116170540/HCC9 850 1082
FCDP116170540/HCC9/W283 850 1082
FCDP116156486/WB-2 780 713
FCDP116156486/WB-1 780 700
FCDP116156520/HCYA4 780 714
FCDP116156486/WB 780 696
FCDP118164590 820 990
FCDP120174540/HCYAD-FSDT 870 1120
FCDP120174540/HCYAD 870 1120
FCDP120174540 870 1100
FCDP120174640/HCC9YA4 870 1367
FCDP120174640/HCYA4 870 1367
FCDP120174640/HCYA34 870 1347
FCDP120174640/HCYAD/W283 870 1330
FCDP120174640/HCYA34-FSBJ 870 1313
FCDP120174640/HCYAD-1/W283 870 1324
FCDP120174640/HCEYA34-AL 870 1313
FCDP120164575/HCYAD-CG 820 948
FCDP120164575/HCYAD-2 820 938
FCDP120164575/HG22ICRYA6 820 944
FCDP120164575/HCYA6/W283 820 947
FCDP120164575/HCYA6-1 820 948
FCDP120164575/HCYA6 820 948
FCDP120164575/HCYA4 820 951
FCDP120164575/HCRYA6/W283 820 947
FCDP120164575/HCYA6-1 820 945
FCDP120164550/HCYA3 820 870
FCDP122174660/HCYA34 870 1316
FCDP122174660/HCYA34/W283-LG 870 1316
FCD126184515/HC 920 1182
NNU49/630/HCDT 850 778
FCD126170436 850 720
FCD126160360 800 560
FCDP128176600 880 1120
FCDP130184690/HCEOYAD/W283 920 1536
FCDP130184670/HCYAD/W283 920 1454
FCDP130184670/HCYAD-1 920 1457
FCDP130184670/HCRG2YAD/W283 920 1457
FCDP130184670/HG2CRYAD-3 920 1454
FCDP130184670/HCG2IYAD-3 920 1454
FCDP130184670/HCRG2YAD-2 920 1454
FCDP130184670/HCYAD/W283-1 920 1456
FCDP130184670/HCYA34 920 1454
FCDP130184690 920 1490
FCDP130184670/HCYA3 920 1460
FCDP130180650/HC 900 1275
FCDP130180650/HCYAD-FSBJ 900 1257
FCDP130180650/HCRG2YAD-1 900 1253
FCDP130180650/HCG2IYAD-1 900 1253
FCDP130180650/HCYAD 900 1253
FCD132176450 880 782
FCD132164440 820 532
FCDP136204680 1020 2050
FCDP136196640/HCC9YAD/W283 980 1651
FCDP136196640/HCC4YAD/W283 980 1652
FCDP136184600/HCG2IYAD 920 1178
FCDP138196750/HCYAD/W283 980 1876
FCDP138196750/HCYAD/W283-2 980 1898
FCDP138196750/HCEYAD-1/W283 980 1900
FCDP138196750/HCYAD/W283-2-LG 980 1898
FCDP138196750/HCC9YA6 980 1920
FCDP138196715/HCP69YAD-1 980 1805
FCDP138196715/HCP69YAD 980 1805
FCDP140200710 1000 1820
FCDP140196700 980 1680
FCDP140186620/HCEC9YAD/W283 930 1201
FCDP140186620 930 1170
FCDP142210715/HCYAD 1050 2131
FCDP142204710 1020 1940
FCDP142200715/HCYA4/W283 1000 1844
FCDP142200715/HCYAD/W283 1000 1844
FCDP142200715/HCRG2YA4 1000 1848
FCDP142200715/HCRG2YAD-2 1000 1842
FCDP142200715/HCG2IYAD-2 1000 1842
FCDP142200715/HCEYAB 1000 1851
FCDP142200715/HCYAD 1000 1844
FCDP145200700 1000 1750
FCDP146206750/HC-FY/W283 1030 2081
FCDP146206750/HCRG2YAD 1030 2076
FCDP146206750/HCEYAD/W283-LG 1030 2076
FCDP146206750/HCEYAD/W283-2 1030 2081
FCDP146206750/HCEYAD/W283-1 1030 2081
FCDP146206750/HCEYAD/W283 1030 2082
FCDP146206750 1030 2035
FCDP146200700/HCEYAD/W283 1000 1681
FCDP146192620-YDJS 960 1254
FCDP146192620/HCC4YA6 960 1254
FCDP146192620 960 1218
FCDP150226670X1 1133 2450
FCDP150218750 1090 2410
FCDP150216650/WB 1080 2020
FCDP150200670/HCYAD/W283 1000 1497
FCDP150200670/HCC91 1000 1522
FCDP150200670/HCC9 1000 1522
FCDP152216790X1 1080 2450
FCDP152216790 1080 2420
FCDP152206750 1030 1870
FCDP152203700 1015 1600
FCDP152215787X4/HC 1079.6 2373
FCDP152215787X4/HC/W283 1079.6 2365
FCDP156214780/HCG2IYAD-KR 1070 2167
FCDP156214780/HCG2IYAD-2 1070 2170
FCDP156214780/HG2CRYAD-2 1070 2170
FCDP156214780/HCEYAD-2 1070 2167
FCDP156214780/HCYAD 1070 2164
FCDP156214780/HCYAD-1/W283 1070 2177
FCDP156214780 1070 2280
FCDP158203610X1 1015.9 1280
FCDP160216750 1080 2030
FCDP160216700/HCEOYAD-1/W283 1080 1953
FCDP160216700/HCYAD-1/W283 1080 1953
FCDP160216700/HCC4YAD/W283 1080 1930
FCDP160216700/HCP64YAD 1080 1918
FCDP160216700/HC 1080 1850
FCDP164232840 1160 2750
FCDP164226800/HCYA3/W283 1130 2521
FCDP164226800/HCYA34/W283 1130 2521
FCDP164226800/HCYA3-SY/W283 1130 2521
FCDP164226800/HCG2IYA3 1130 2511
FCDP164226800/HCP6YA3-SY 1130 2534
FCDP164226800/HCYA3 1130 2534
FCDP164226800/HC 1130 2534
FCDP166216710/HCC9YA3 1080 1838
FCDP168232840 1160 2730
FCDP170236850/WB 1180 2950
FCDP170236850/HC 1180 2920
FCDP170236650 1180 2100
FCDP170230840/HCYAD/W283 1150 2545
FCDP170230840/HCE/W283 1150 2598
FCDP170230840/HCRG2YAD/W283 1150 2550
FCDP170230840/HCG2IYAD/W283 1150 2550
FCDP170230840/HC 1150 2560
FCDP172232710/WB 1160 2150
FCDP172228750 1140 2100
FCDP176228800 1140 2210
FCDP180256840/WB 1280 3890
FCDP180256930/HC 1280 4050
FCDP180256780 1280 3250
FCDP180246870/WB 1230 3150
FCDP180244840/HCYAD-1 1220 2958
FCDP180244840/HCYAD/W283 1220 2970
FCDP180244840/HC 1220 3050
FCDP184268950/WB 1300 4180
FCDP184256850/WB 1280 3450
FCDP184256800/WB 1280 3280
FCDP190260850X4E/HG2CRC9YAB 1300 3546
FCDP190260850X4E/HCG2IC9YAB-JG 1300 3445
FCDP190260850E/HCC9YA3-JG 1300 3537
FCDP1902721000/HCEYAD/W281 1360 5027
FCDP1902721000/K30 1360 4820
FCDP1902721000 1360 5013
FCDP190272975 1360 4895
FCDP190260850/HCC9YA3 1300 3443
FCDP190260850E/HCC9YA3 1300 3550
FCDP190260850/HCP69YAD 1300 3360
FCDP190260850/HCC9 1300 3390
FCDP190260850/C9HCYA3 1300 3390
FCDP174229685/WB 1145 1990
FCDP196262880 1310 3300
FCDP200272800 1360 3560
FCDP206276850 1380 3650
FCDP2082881000 1440 5090
FCDP2403181050 1590 5980
FCDP254320850X1 1602 6000
FCDP260331880HC/WB 1655 4800
FCDP2703531360 1765 9110
FCDP2703801360 1900 11300
FCDP2703561200 1780 7380
FCDP296370110X1 1849.74 7450

Cylindrical Roller Bearings

Insulated Cylindrical Roller Bearings

insulated cylindrical roller bearings-a
Bearing part number Basic dimensions
mm		 Basic load ratings
kN		 Limit Rotational Speed
rmin		 Mounting dimensions
mm		 Weight
kg
d D B r1min rmin E Cr Cor Grease lubrication Oil lubrication damin damax Dbmax Dbmin
IS-N309EM 45 100 25 1.5 1.5 88.5 96 109 6300 7500 53 86 92 91 0.964
IS-N310EM 50 110 27 2 2 97 108 125 5000 6000 59 95 101 99 1.3
IS-N210M 50 90 20 1.1 1.1 80.4 52 64 6300 7500 56.5 79 83.5 82 0.559
IS-N311EM 55 120 29 2 2 106.5 126 144 4800 5600 64 104 111 109 1.59
IS-N311M 55 120 29 2 2 104.5 134 156 4800 5600 64 104 111 109 1.61
IS-N312EM 60 130 31 2.1 2.1 115 148 174 4300 5000 71 112 119 118 2.06
IS-N312E 60 130 31 2.1 2.1 113 148 174 4300 5000 71 110 119 116 1.94
IS-N313EM 65 140 33 2.1 2.1 124.5 166 194 4000 4800 76 122 129 127 2.42
IS-N313M 65 140 33 2.1 2.1 121.5 142 168 4000 4800 76 119 129 124 2.24
IS-N314EM 70 150 35 2.1 2.1 133 199 242 3600 4300 81 130 139 136 3.08
IS-N314M 70 150 35 2.1 2.1 130 199 242 3600 4300 81 127 139 133 3.01
IS-N214EM 70 125 24 1.5 1.5 113.5 117 152 4500 5300 78 111 117 116 1.29
IS-N315EM 75 160 37 2.1 2.1 143 240 264 3400 4000 86 140 149 146 3.65
IS-N315M 75 160 37 2.1 2.1 139.5 255 226 3400 4000 86 136 149 142 3.59
IS-N316EM 80 170 39 2.1 2.1 151 275 286 3200 3800 91 148 159 154 4.22
IS-N316M 80 170 39 2.1 2.1 147 217 246 3200 3800 91 144 159 150 3.98
IS-N216EM 80 140 26 2 2 127.3 137 184 4000 4800 89 125 131 130 1.672
IS-N317EM 85 180 41 3 3 160 284 361 3000 3600 98 157 167 163 5.2
IS-N318EM 90 190 43 3 3 169.5 289 356 2800 3400 103 166 177 173 5.99
IS-N318M 90 190 43 3 3 165 274 315 2800 3400 103 162 177 170 5.93
IS-N319EM 95 200 45 3 3 177.5 307 390 2600 3200 108 174 187 181 7.1
IS-N319M 95 200 45 3 3 173.5 295 340 2600 3200 108 170 187 177 6.92
IS-N320EM 100 215 47 3 3 191.5 372 468 2400 3000 113 188 202 195 9.67
IS-N320M 100 215 47 3 3 185.5 335 400 2400 3000 113 182 202 190 8.24
IS-N220EM 100 180 34 2.1 2.1 163 242 333 3200 3800 111 160 169 166 3.77
IS-N321EM 105 225 49 3 3 201 416 527 2200 2800 118 130 212 203 10.5
IS-N322EM 110 240 50 3 3 211 420 596 2000 2600 123 204 227 215 11.4
IS-N322 110 240 50 3 3 207 373 479 2000 2600 123 208 227 210 10.2
IS-N224M 120 215 40 2.1 2.1 191.5 270 391 2400 3000 131 140 204 195 6.11
IS-N226EM 130 230 40 3 3 209.5 354 496 2200 2800 143 206 217 213 7.09
IS-N328M 140 300 62 4 4 260 595 806 1900 2400 156 256 284 264 21.9
Bearing part number D Weight
kg
IS-N309EM 100 0.964
IS-N310EM 110 1.3
IS-N210M 90 0.559
IS-N311EM 120 1.59
IS-N311M 120 1.61
IS-N312EM 130 2.06
IS-N312E 130 1.94
IS-N313EM 140 2.42
IS-N313M 140 2.24
IS-N314EM 150 3.08
IS-N314M 150 3.01
IS-N214EM 125 1.29
IS-N315EM 160 3.65
IS-N315M 160 3.59
IS-N316EM 170 4.22
IS-N316M 170 3.98
IS-N216EM 140 1.672
IS-N317EM 180 5.2
IS-N318EM 190 5.99
IS-N318M 190 5.93
IS-N319EM 200 7.1
IS-N319M 200 6.92
IS-N320EM 215 9.67
IS-N320M 215 8.24
IS-N220EM 180 3.77
IS-N321EM 225 10.5
IS-N322EM 240 11.4
IS-N322 240 10.2
IS-N224M 215 6.11
IS-N226EM 230 7.09
IS-N328M 300 21.9

Cylindrical Roller Bearings

Rolling Bearings

rolling bearings
Bearing part number Basic dimensions
mm		 Basic load ratings
kN		 Limit Rotational Speed
rmin		 Mounting dimensions
mm		 Weight
kg
d D B C r1min rmin Cr Cor Grease lubrication e F
NNTR50-2ZL 50 130 65 63 1.5 2×45° 245 320 1200 63 60 5.09
NUTR56160/YA7 56 160 63 60 5 3 295 420 1000 101 77 7.69
NUTR56160 56 160 63 60 5 1.5 275 380 1000 82 72.3 7.87
NUTR60165X 60 165 65 60 1.1 1.5 240 390 850 92.2 75.5 8.41
NNTR60-2ZL 60 150 75 73 3 2×45° 250 410 880 83 76 7.86
NUTR60130 60 130 65 62 5 1.5 230 385 950 78 74.2 4.74
NNTR65-2ZL 65 160 75 73 3 2 280 460 800 82 78.5 8.44
NUTR65150 65 150 54 52 2 2 235 375 850 94 85.7 5.26
NUTR70 70 190 60 58 2 1.5 234 345 700 87 85.7 10.3
NNTR70-2ZL 70 180 85 83 3 2×45° 410 610 740 92 86 12.9
NNTR80X3-2ZL/YA1 80 190 80 80 2.5 2.5 490 795 550 182 85 12.4
NNTR80X3-2ZL 80 190 80 80 2.5 2.5 490 795 550 182 85 13.7
NNTR80-1/C9 80 260 72 70 1.5 1×45° 515 715 550 170 84 24.7
NUTR616-2RS/C9YAD 80 215 100 100 1.5 1.5 240 390 550 105 96 18
NNTR80DZ 80 200 90 88 3 1.5×45° 470 770 580 101 94.2 16.7
NNTR80-2ZL 80 200 90 88 4 2 530 835 580 111 102.3 16.5
NUTR616-2RS/C9 80 190 80 80 1.5 1.5 240 390 600 105 96 13.2
NUPTR80R-2ZL 80 190 62 60 2×45° 1.5 285 425 600 115 97 7.7
NUTR80170 80 170 62.5 58 3 3 350 510 630 125.2 98 7.55
NNTR85-ORS/YB2 85 160 80 80 2 2 300 625 500 125 90 8.56
NNTR85-ORS/YAB 85 170 80 80 2 2 300 625 500 125 90 8.4
NNTR90-2ZL 90 220 100 98 4 2.5 630 1000 420 119 112.5 22.2
NNTR90-2Z 90 220 100 98 1 2 545 880 420 119 108.5 22
NNTR100-2ZL/HCO 100 250 106 103 5 1.5×45° 680 1020 350 180 105 30.1
NNTR100-1/C9 100 300 82 80 1.5 1×45° 710 1220 350 152 134 36.7
NNTR100WB-2Z 100 300 65 65 0.5 1.5 230 480 350 110.15 110 3.42
NNTR100-2Z 100 300 55 55 0.5 1.5 230 480 350 116 110 3.37
NNTR100DZ 100 240 105 103 3 1.5×45° 680 1210 380 131 122 27.6
NNTR100 100 240 105 103 3 1.5×45° 680 1210 380 131 122 27.6
NNUPTR100R-2ZL1 100 230 93 90 6 3 490 900 380 132 122.5 16.4
NNTR100R-2ZL/YA2 100 230 93 90 4 2 560 950 380 126 116 16.7
NNTRP105R-2ZL/S2YA2 105 280 135 135 2 2 1040 1800 320 152.4 142 44.2
NNTR110-2ZL 110 260 115 113 4 2 775 1350 240 143 133 35.6
NNTR110 110 250 100 100 3 1.1×45° 380 695 250 132 124 27.3
NNTR110X3-2ZL 110 240 190 180 4 3 1260 2720 260 142 134 49.1
NUTR110 200 110 200 60 58 4 1.5×45° 500 760 300 160.9 126 8.93
NNTR120-2Z 120 290 135 133 3 2 880 1600 260 157 143 50.9
NNTR130-2ZL-1 130 310 146 144 5 3 1150 1930 260 165 153 65
NNTR130-XRS 130 275 110 110 2 7 660 1180 250 170 154 29.4
NNTR130-2ZL 130 250 106 103 4 4 800 1330 240 160 147 26.8
NUTR130230XS/YAD 130 230 120 120 4 3 1050 1610 230 173 146 23.5
NUTR130230XS 130 230 120 120 4 3 880 1550 230 186.5 130 23.6
NNTR140-2ZL-1/HCOYA1 140 320 170 170 5 2.5 1500 2830 210 145 300 70.2
NNTR140-2ZL-1/HCO 140 320 170 170 5 2.5 1500 2830 210 145 300 80
NUTR140250XS 140 250 115 115 20×23° 4 755 1570 220 160 160 27.1
NNTR140-2ZL 140 250 114 114 5 4 610 1300 220 179 158 27.7
NNTR150-2ZL 150 360 173 171 5 3.75×45° 1570 3040 200 196 191 105
Bearing part number D Weight
kg
NNTR50-2ZL 130 5.09
NUTR56160/YA7 160 7.69
NUTR56160 160 7.87
NUTR60165X 165 8.41
NNTR60-2ZL 150 7.86
NUTR60130 130 4.74
NNTR65-2ZL 160 8.44
NUTR65150 150 5.26
NUTR70 190 10.3
NNTR70-2ZL 180 12.9
NNTR80X3-2ZL/YA1 190 12.4
NNTR80X3-2ZL 190 13.7
NNTR80-1/C9 260 24.7
NUTR616-2RS/C9YAD 215 18
NNTR80DZ 200 16.7
NNTR80-2ZL 200 16.5
NUTR616-2RS/C9 190 13.2
NUPTR80R-2ZL 190 7.7
NUTR80170 170 7.55
NNTR85-ORS/YB2 160 8.56
NNTR85-ORS/YAB 170 8.4
NNTR90-2ZL 220 22.2
NNTR90-2Z 220 22
NNTR100-2ZL/HCO 250 30.1
NNTR100-1/C9 300 36.7
NNTR100WB-2Z 300 3.42
NNTR100-2Z 300 3.37
NNTR100DZ 240 27.6
NNTR100 240 27.6
NNUPTR100R-2ZL1 230 16.4
NNTR100R-2ZL/YA2 230 16.7
NNTRP105R-2ZL/S2YA2 280 44.2
NNTR110-2ZL 260 35.6
NNTR110 250 27.3
NNTR110X3-2ZL 240 49.1
NUTR110 200 200 8.93
NNTR120-2Z 290 50.9
NNTR130-2ZL-1 310 65
NNTR130-XRS 275 29.4
NNTR130-2ZL 250 26.8
NUTR130230XS/YAD 230 23.5
NUTR130230XS 230 23.6
NNTR140-2ZL-1/HCOYA1 320 70.2
NNTR140-2ZL-1/HCO 320 80
NUTR140250XS 250 27.1
NNTR140-2ZL 250 27.7
NNTR150-2ZL 360 105

Cylindrical Roller Bearings

Sendzimir Bearings

Sendzimir Bearings1-a
Sendzimir Bearings2-a
Sendzimir Bearings3-a
Sendzimir Bearings4-a
Bearing part number Basic dimensions
mm		 Basic load ratings
kN		 Weight
kg
d D B C r1min rmin F Cr Cor
SJ-NNUPTR2407X3/HCO 35 110 40 39 1 1.5 45 83 100 2.46
SJ-NUPT608Q1/HCO 40 105 48 46 1 1 51 114 148 2.43
SJ-NUTR50110-2Z/HCO 50 110 32 30 2 1 57.3 108 173 1.7
BNPF102060X1V-2RZ 51 98.4 60 54 2 0.5×45° 61.14 170 250 2.25
BNPF102060X1-2RZ 51 98.4 60 54 2 0.5×45° 61.14 154 270 4.53
BNPF112564X1-2RZ 55 126 64 63.2 2 0.5×45° 69 172 260 4.53
SJ-NNUPTR3311X2/HCOC9 55 120 52 51.2 1.2 0.8 65 165 225 3.21
BNPF123075-2RZ-1 60 150 75 73 1 1.2 75 270 390 7.85
BNPF123075-2RZ 60 150 75 73 1 0.8 75 270 390 7.85
BNPF2045100 100 225 100 95 1 1.2 119.5 520 795 21.6
SJ-TCNP130-XRS 130 300.2 170 168 2.5 1.1 158.455 1300 2230 68.5
SJ-NNUP130-2ZL-1 130 300.02 172.65 171.6 3.1 2 156 1450 2430 69.8
SJ-NNUP130-2ZL 130 300.02 172.65 171.6 2.5 2.5 156 1450 2430 70.1
SJ-NNUP130 130 300.02 132 129 3.1 2 156 1090 1820 53.8
SJ-TCNB130-3 130 300 172.644 2.5 2.5 161 1480 2810 72
SJ-TCNB130-1 130 300 172.664 2.5 2.5 158.7 1510 2790 72.9
SJ-TCNB130-5 130 300 172.64 2.5 3 159.5 1480 2720 72.3
SJ-TCNB130-4 130 300 172.64 2.7 2 159.455 1880 2940 73.6
SJ-TCNB130-2 130 300 172.64 4 2.5 159.455 1880 2940 73.6
SJ-TCNB130/WN26 130 300 172.64 4 2.5 158.455 1720 2670 72.2
SJ-TCNB130 130 300 172.64 4 2.5 158.455 1720 2670 72.3
BNPF2660172 130 300 172 172 1 2 159.3 1500 2740 71.1
SJ-NNFP130X2 130 300.02 132 129 2 2 156 1100 1860 53.1
SJ-NNFP130 130 300 172.64 172.64 4 2 158.45 1390 2500 69.6
SJ-NNJ130-2RS 130 300 172.664 172.661 6 10×15° 157 1320 2210 68.9
BNPF3697344A 180 485 344 338 1.1 1.1 238 4700 7000 385
BNPF3697344 180 485 344 338 1.1 1.1 4550 7050 380
BNPF3697212 180 485 211.7 205.7 1.1 1.1 239 2740 3680 230
BNPF3680170X3/YA5 180 406.42 171.04 171.04 1.5 4 2200 4000 128
BNPF3680170X3 180 406.42 171.04 171.04 1.5 4 2070 3850 128
SJ-TCNP180-2 180 410 240 220 1.1 1.1 2500 4950 170
SJ-TCNP180-XRS-1 180 406.6 181 179 2.5 1.1 222 1800 3300 133
SJ-TCNB180X2 180 406.42 224 1.5 4 217.3 2640 5250 171
SJ-TCNP180-XRS-3 180 406.42 224 222 2.5 1.1 222 2200 4300 166
SJ-TCNP180-XRS-2 180 406.42 171 169 2.5 1.1 222 1700 3100 124
SJ-TCNP180-XRS 180 406.42 182 179 2.5 1.1 222 1740 3200 133
SJ-TCNB180-PX 180 406.42 171.04 1.5 4 217.3 2360 4050 130
SJ-TCNB180-1 180 406.42 171.04 1.5 4 217.3 2360 4050 130
SJ-TCNB180 180 406.42 171.04 1.5 4 217.3 2360 4050 130
SJ-NNJ180-2RS 180 406.42 171.04 1.5 10×15° 217 1450 2770 125
BNPF3897350X2A 190 485 349.5 343.5 1.1 1.1 4550 7050 378
BNPF3897350X2 190 485 349.7 343.7 1.1 1.1 238 4700 7000 379
BNPF3897218X2A 190 485 217.5 211.1 1.1 1.1 239 2740 3680 230
BNPF3897212X2 190 485 217.7 211.7 1.1 1.1 238 2950 3850 230
BNNB41104168 205 520 168 168 1.5 2 248 2500 4100 218
BNPF41104240/C9 205 520 240 216 1.1 1×45° 3500 5350 277
BNPF41104240 205 520 240 216 1.1 1×45° 3500 5350 277
SJ-NNUP215-XRS 215 550 205 200 1.1 1.1 2600 4500 293
BNPF41104160 258 520 160 160 1 3 258 2480 4150 207
Bearing part number D Weight
kg
SJ-NNUPTR2407X3/HCO 110 2.46
SJ-NUPT608Q1/HCO 105 2.43
SJ-NUTR50110-2Z/HCO 110 1.7
BNPF102060X1V-2RZ 98.4 2.25
BNPF102060X1-2RZ 98.4 4.53
BNPF112564X1-2RZ 126 4.53
SJ-NNUPTR3311X2/HCOC9 120 3.21
BNPF123075-2RZ-1 150 7.85
BNPF123075-2RZ 150 7.85
BNPF2045100 225 21.6
SJ-TCNP130-XRS 300.2 68.5
SJ-NNUP130-2ZL-1 300.02 69.8
SJ-NNUP130-2ZL 300.02 70.1
SJ-NNUP130 300.02 53.8
SJ-TCNB130-3 300 72
SJ-TCNB130-1 300 72.9
SJ-TCNB130-5 300 72.3
SJ-TCNB130-4 300 73.6
SJ-TCNB130-2 300 73.6
SJ-TCNB130/WN26 300 72.2
SJ-TCNB130 300 72.3
BNPF2660172 300 71.1
SJ-NNFP130X2 300.02 53.1
SJ-NNFP130 300 69.6
SJ-NNJ130-2RS 300 68.9
BNPF3697344A 485 385
BNPF3697344 485 380
BNPF3697212 485 230
BNPF3680170X3/YA5 406.42 128
BNPF3680170X3 406.42 128
SJ-TCNP180-2 410 170
SJ-TCNP180-XRS-1 406.6 133
SJ-TCNB180X2 406.42 171
SJ-TCNP180-XRS-3 406.42 166
SJ-TCNP180-XRS-2 406.42 124
SJ-TCNP180-XRS 406.42 133
SJ-TCNB180-PX 406.42 130
SJ-TCNB180-1 406.42 130
SJ-TCNB180 406.42 130
SJ-NNJ180-2RS 406.42 125
BNPF3897350X2A 485 378
BNPF3897350X2 485 379
BNPF3897218X2A 485 230
BNPF3897212X2 485 230
BNNB41104168 520 218
BNPF41104240/C9 520 277
BNPF41104240 520 277
SJ-NNUP215-XRS 550 293
BNPF41104160 520 207

Cylindrical Roller Bearings

Single Row Cylindrical Roller Bearings

Single Row Cylindrical Roller Bearings
Bearing part number Basic dimensions
mm		 Basic load ratings
kN		 Limit Rotational Speed
rmin		 Mounting dimensions
mm		 Weight
kg		 Inclined retaining ring
d D B r1min rmin F E Cr Cor Grease lubrication Oil lubrication damin damax dbmin Damax Damin ramax rbmax Bearing part number Weight A1 A2 r3.r4
N212EM 6 110 22 1.5 1.5 100 104 85 5300 6300 65 70 102 1.5 1.5 0.91
NU2204ETYN/P5S1 20 47 18 1 0.6 26.5 33 31 11000 13500 22 25 43 40 0.5 0.5 0.139
NJ2305M/HAP6 25 62 24 1.1 1.1 35 48.5 49 9500 12000 31.5 32 40 55.5 1.1 1.1 0.453
NUP305EM 25 62 17 1.1 34 45.5 36 9500 12000 31.5 40 55.5 1.1 1.1 0.28
NJ305ETN1 25 62 17 1.1 1.1 34 45.5 36 9500 12000 31.5 32 40 55.5 1.1 1.1 0.239
NJ2205ETN1/HCP69YAD-GTR 25 52 18 1 0.1 31.5 35 34.5 11000 13500 28 29 30 47 1 1 0.162
NU2205ETN1-YSJ 25 52 18 1 0.6 31.5 33.5 33 11000 13500 30.6 36 46.4 1 1 0.188
NU2205ETN1/C9-YSJ 25 52 18 1 0.6 31.5 33.5 33 11000 13500 30.6 36 46.4 1 1 0.188
NJ2205EM/P49YB2 25 52 18 1 0.6 31.5 33.5 33 11000 13500 30.6 36 46.4 0.6 1 0.188
NUP2205ETN1 25 52 18 1 31.5 33.5 33 11000 13500 30.6 36 46.4 1 1 0.171
NU205ETN1/C9 25 52 15 1 0.6 31.5 28 26.5 11000 13500 29 30 36 47 0.6 1 0.134
NJ205ETN1 25 52 15 1 0.6 31.5 28 26.5 11000 13500 29 30 36 47 0.6 1 0.134
NJ205M 25 52 15 1 0.6 31.5 28 26.5 11000 13500 29 30 36 47 0.6 1 0.164
NU205EM 25 52 15 1 0.6 31.5 28 26.5 11000 13500 29 30 36 47 0.6 1 0.159
NU6/26NRTN1-DZ 26 55 18 1 0.3 32 39 56 10500 13000 29.5 30.5 0.3 1 0.212
NJ406M 30 90 23 1.5 1.5 45 60 52 7500 9000 38 43 52 82 1.5 1.5 0.882
NU2306EM 30 72 27 1.1 1.1 62.5 80 72 8000 95000 36.5 47 65.5 1.1 1.1 0.593
NUP2306M 30 72 27 1.1 42 80 72 9000 11000 36.5 47 65.5 1.1 1.1 0.585
NF306X3EM/YA6 30 72.046 23 1.1 1.1 40.5 63.5 63 9000 11000 36.5 39 47 65.5 1.1 1.1 0.502
NJ306X2EM-2RSL 30 72 23 1.1 1.1 40.5 53 50 9000 11000 36.5 39 47 65.5 1.1 1.1 0.472
NJ306X2EM-RSL 30 72 19 1.1 1.1 40.5 56 48 9000 11000 36.5 39 47 65.5 1 1 0.472
NJ306ENTN1/C3-FST 30 72 19 1.1 1.1 40.5 56 48 9000 11000 36.5 39 47 65.5 1 1 0.369
NJ306EM/YA8 30 72 19 1.1 1.1 40.5 58.5 50 9000 11000 36.5 39 47 65.5 1 1 0.425
NJ306ETN1 30 72 19 1.1 1.1 40.5 56 48 9000 11000 36.5 39 47 65.5 1.1 1.1 0.374
N306M 30 72 19 1.1 1.1 62 45 42.5 9000 11000 36.5 39 67 65 1.1 1.1 0.403
NJ306EM 30 72 19 1.1 1.1 40.5 56 48 9000 11000 36.5 39 47 65.5 1.1 1.1 0.411
NJ306X3WB/C9 30 70 19.6/18 1.1 0.6 40 57.2 55 9000 11000 35 38 45 63.5 1.1 1.1 0.342
NU2206ETN1/C9 30 62 20 1 0.6 37.5 53 54 9500 12000 34 36 43 57 0.6 1.1 0.259
NJ2206ETN1 30 62 20 1 0.6 37.5 53 54 9500 12000 34 36 43 57 0.6 1 0.265
NU2206ETN1 30 62 20 1 0.6 37.5 53 54 9500 12000 34 36 43 57 0.6 1 0.259
NJ2206EM 30 62 20 1 0.6 37.5 53 54 9500 12000 34 36 43 57 0.6 1 0.297
NU206ETN1/C9 30 62 16 1 0.6 37.5 42 35 9500 12000 34 36 39 57 0.6 1 0.198
NU206EM 30 62 16 1 0.6 37.5 42 35 9500 12000 34 36 39 57 0.6 1 0.259
NJ206ETN1 30 62 16 1 0.6 37.5 42 35 9500 12000 34 36 43 57 0.6 1 0.203
NJ206EM 30 62 16 1 0.6 37.5 42 35 9500 12000 34 36 43 57 0.6 1 0.264
NU1006TN1 30 55 13 1 0.6 36.5 20 23 12000 15000 34 35 38 50 0.6 1 0.119
NU1006M 30 55 13 1 0.6 36.5 20 23 12000 15000 34 35 38 50 0.6 1 0.138
NJ407M 35 100 25 1.5 1.5 53 89 85 6700 8000 44 49 59 85 1.5 1.5 1.1
NU2307EM 35 80 31 1.1 1.1 46.2 102 94 7000 8500 41.5 44 48 72 1.1 1.5 0.81
NJ2307EM 35 80 31 1.5 1.5 46.2 102 94 7000 8500 41.5 44 53 72 1.5 1.5 0.823
NJ2307M 35 80 31 1.5 1.5 46.2 87 75 7000 8500 41.5 44 53 72 1.5 1.5 0.833
NU307EQ1 35 80 21 1.5 1.1 46.2 72 60 8000 9500 41.5 44 48 72 1.1 1.5 0.591
NU307E 35 80 21 1.5 1.1 46.2 72 60 8000 9500 41.5 44 48 72 1.1 1.5 0.526
NU307EMA 35 80 21 1.5 1.1 46.2 72 60 8000 9500 41.5 44 48 72 1.1 1.5 0.547
NF307ETN1-FST 35 80 21 1.5 1.5 70.2 72 60 8000 9500 41.5 67 73.5 72 1.5 1.5 0.519
NU307ETN1/C9 35 80 21 1.5 1.1 46.2 72 60 8000 9500 41.5 44 48 72 1.1 1.5 0.5
NJ307ENRM 35 80 21 1.5 1.1 46.2 72 60 8000 9500 41.5 44 53 72 1.1 1.5 0.62
NU307ENRM 35 80 21 1.5 1.1 46.2 72 60 8000 9500 41.5 44 48 72 1.1 1.5 0.607
NU307M 35 80 21 1.5 1.1 46.2 72 60 8000 9500 41.5 44 48 72 1.1 1.5 0.591
NF307ETN1 35 80 21 1.5 1.1 70.2 72 60 8000 9500 41.5 67 73.5 72 1.1 1.5 0.519
NF307M 35 80 21 1.5 1.1 70.2 72 60 8000 9500 41.5 67 73.5 72 1.1 1.5 0.61
NJ307E 35 80 21 1.5 1.1 46.2 72 60 8000 9500 41.5 44 53 72 1.1 1.5 0.54
N307M 35 80 21 1.5 1.5 70.2 72 60 8000 9500 41.5 44 73.5 72 1.5 1.5 0.595
NJ307M 35 80 21 1.5 1.1 46.2 72 60 8000 9500 41.5 44 53 72 1.1 1.5 0.604
NCL307E/YA 35 80 21 1.5 1.5 67.8 72 60 8000 9500 41.5 44 48 72 1.5 1.5 0.503
NU2207ETN1/C9 35 72 23 1 1.1 44 66 70 8500 10000 39 42 50 65.5 1.1 1 0.393
NJ2207EM/C9YA8 35 72 23 1 0.6 44 66 70 8500 10000 39 42 50 65.5 0.6 1 0.455
NJ2207ETN1 35 72 23 1 0.6 44 66 70 8500 10000 39 42 50 65.5 0.6 1 0.404
NU2207EM 35 72 23 1.1 1.1 44 66 70 8500 10000 39 42 46 65.5 0.6 1 0.444
NJ2207EM 35 72 23 1.1 1.1 44 66 70 8500 10000 39 42 50 65.5 0.6 1 0.445
NU207EM 35 72 17 1.1 0.6 44 54 46 8500 10000 39 42 46 65.5 0.6 1 0.331
NJ207ETN1 35 72 17 1.1 0.6 44 54 46 8500 10000 39 42 50 65.5 0.6 1 0.303
NJ207EM 35 72 17 1.1 0.6 44 54 46 8500 10000 39 42 50 65.5 0.6 1 0.338
N207EM 35 72 17 0.6 1.1 64 54 46 8500 10000 41.5 62 68 66 0.6 1 0.331
NU1007TN1 35 62 14 1 0.6 42 34 36 9000 11000 38.2 41 44 56 0.6 1 0.156
NU1007M 35 62 14 1 0.6 42 34 36 9000 11000 38.2 41 44 56 0.6 1 0.173
NUP6/38X2NM 38 83 25.4 1.1 1.1 48.5 73.5 74.5 7500 9000 44.5 47 55 75 1 1 0.705
NJ2308E 40 90 33 1.5 1.5 52 124 115 6300 7500 48 49 60 82 1.5 1.5 1.1
NU2308EM 40 90 33 1.5 1.5 52 124 115 6300 7500 48 49 55 82 1.5 1.5 1.01
NUP308ETN1/YA6 40 90 23 1.5 52 90 75 6700 8000 48 60 82 1.5 1.5 0.673
NUP308EM/YA6 40 90 23 1.5 52 90 75 6700 8000 48 60 82 1.5 1.5 0.819
NUP308EM/C2 40 90 23 1.5 52 90 75 6700 8000 48 60 82 1.5 1.5 0.819
NJ308ETN1 40 90 23 1.5 1.5 52 90 75 6700 8000 48 50 60 82 1.5 1.5 0.669
NJ308EM/YA8 40 90 23 1.5 1.5 52 90 75 6700 8000 48 50 60 82 1.5 1.5 0.805
NJ308EM 40 90 23 1.5 1.5 52 90 75 6700 8000 48 50 60 82 1.5 1.5 0.815
NF308EM/C9-FST 40 90 23 1.5 1.5 80 90 75 6700 8000 48 60 82 1.5 1.5 0.813
NJ308EJC 40 90 23 1.5 1.5 52 87.5 87.5 6700 8000 47 50 53 82 1.5 1.5 0.718
NJ308EB1M 40 90 23 1.5 1.5 52 87.5 87.5 6700 8000 47 50 53 82 1.5 1.5 0.778
NJ308EB1JC 40 90 23 1.5 1.5 52 87.5 87.5 6700 8000 47 50 53 82 1.5 1.5 0.681
NJ308E 40 90 23 1.5 1.5 52 87.5 87.5 6700 8000 47 50 53 82 1.5 1.5 0.752
NF308E 40 90 23 1.5 1.5 80 90 75 6700 8000 48 82 82 1.5 1.5 0.75
N308EM 40 90 23 1.5 1.5 80 90 75 6700 8000 48 78 82 82 1.5 1.5 0.794
NCL308E/YA 40 90 23 1.5 1.5 77.5 90 75 6700 8000 48 50 60 82 1.5 1.5 0.683
NF308ETN1/C9-FST 40 90 23 1.5 1.5 80 90 75 6700 8000 48 60 82 1.5 1.5 0.667
N308ETN1 40 90 23 1.1 0.2 80 90 75 6700 8000 48 78 82 82 0.2 1.1 0.648
NCL308E/C9YA-1 40 90 23 1.1 0.2 52.5 90 75 6700 8000 48 50 60 82 0.2 1.1 0.678
NU2208ETN1/SPCNL 40 80 23 1.1 1.1 49.5 78 72 7500 9000 46.5 48 51 73.5 1.1 1.1 0.487
NU2208ETN1/C9-YSJ 40 80 23 1.1 1.1 49.5 78 72 7500 9000 46.5 48 51 73.5 1.1 1.1 0.487
NU2208ETN1/C9 40 80 23 1.1 1.1 49.5 78 72 7500 9000 46.5 48 51 73.5 1.1 1.1 0.487
NU2208ETN1 40 80 23 1.1 1.1 49.5 78 72 7500 9000 46.5 48 51 73.5 1.1 1.1 0.487
NU2208EM 40 80 23 1.1 1.1 49.5 78 72 7500 9000 46.5 48 51 73.5 1.1 1.1 0.53
NJ2208EM 40 80 23 1.1 1.1 49.5 78 72 7500 9000 46.5 48 56 73.5 1.1 1.1 0.539
NU208ETN1 40 80 18 1.1 1.1 49.5 60 55.5 7500 9000 46.5 48 51 73.5 1.1 1.1 0.377
NU208ETN1/C9 40 80 18 1.1 1.1 49.5 60 55.5 7500 9000 46.5 48 51 73.5 1.1 1.1 0.377
NJ208ETN1 40 80 18 1.1 1.1 49.5 60 55.5 7500 9000 46.5 69 73.5 73 1.1 1.1 0.398
N208EM 40 80 18 1.1 1.1 71.5 60 55.5 7500 9000 46.5 69 73.5 73 1.1 1.1 0.425
NUP208ETN1 40 80 18 1.1 1.1 49.5 60 55.5 7500 9000 46.5 48 56 73.5 1.1 1.1 0.4
NUP208EM 40 80 18 1.1 1.1 49.5 60 55.5 7500 9000 46.5 56 73.5 1.1 1.1 0.46
NU208EM 40 80 18 1.1 1.1 49.5 60 55.5 7500 9000 46.5 48 51 73.5 1.1 1.1 0.439
NJ208E 40 80 18 1.1 1.1 49.5 60 55.5 7500 9000 46.5 56 73.5 1.1 1.1 0.442
NJ208EM 40 80 18 1.1 1.1 49.5 60 55.5 7500 9000 46.5 48 56 73.5 1.1 1.1 0.46
NU1008TN1 40 68 15 1 0.6 47 27 32 9500 12000 42 45 50 65 0.6 1 0.183
NU1008M 40 68 15 1 0.6 47 27 32 9500 12000 42 45 50 65 0.6 1 0.231
NJ409M 45 120 29 2 2 64.5 124 123 5600 6700 54 62 74 111 2 2 1.88
NU409M 45 120 29 2 2 64.5 124 123 5600 6700 54 62 67 111 2 2 1.87
N409M 45 120 29 2 2 100.5 124 123 5600 6700 54 97 111 103 2 2 1.67
NU2309E 45 100 36 1.5 1.5 58.5 154 150 5600 6700 53 56 61 93 1.5 1.5 1.42
NJ2309EM/C4W124 45 100 36 1.5 1.5 58.5 154 150 5600 6700 53 56 67 92 1.5 1.5 1.47
NJ2309EM 45 100 36 1.5 1.5 58.5 154 150 5600 6700 53 56 67 92 1.5 1.5 1.52
NJ2309X2NV/C9YA26 45 100 31 1.5 1.5 58.5 141 153 5600 6700 53 56 67 92 1.5 1.5 1.17
NJ2309E 45 100 36 1.5 1.5 58.5 154 150 5600 6700 53 56 67 92 1.5 1.5 1.45
NU2309EM/C3 45 100 36 1.5 1.5 58.5 154 150 5600 6700 53 56 61 93 1.5 1.5 1.49
NF2309X2J/YA6 45 100 31 4.5 88 119 120 6300 7500 53 92 91 4 1.5 1.12
NUP309EWB1NRTN1 45 100 27.5/25 1.5 58.5 101 102 6300 7500 53 67 92 1.5 1.5 0.942
NUP309ETN1/HAC3YA6 45 100 25 1.5 0.8 58.5 108 96 6300 7500 53 67 92 1.5 1.5 0.892
NU309NRB1/YA6 45 100 25/20.8 1.5 1.5 56.4 108 96 6300 7500 51 54 60 92 1.5 1.5 0.912
NU309E 45 100 25 1.5 1.5 58.5 108 96 6300 7500 53 56 61 92 1.5 1.5 0.986
NJ309EM/C4W124YA8 45 100 25 1.5 1.5 58.5 108 96 6300 7500 53 56 67 92 1.5 1.5 1.09
NJ309E 45 100 25 1.5 1.5 58.5 108 96 6300 7500 53 56 67 92 1.5 1.5 1.01
NF309E 45 100 25 1.5 1.5 88.5 108 96 6300 7500 53 92 91 1.5 1.5 0.995
N309ETN1 45 100 25 1.5 1.5 88.5 108 96 6300 7500 53 86 92 91 1.5 1.5 0.846
NUP309EN 45 100 25 1.5 58.5 106 109 6300 7500 53 67 92 1.5 1.5 0.997
N309E 45 100 25 1.5 1.5 88.5 108 96 6300 7500 53 86 92 91 1.5 1.5 0.964
NUP309E 45 100 25 1.5 58.5 108 96 6300 7500 53 67 92 1.5 1.5 1.01
N309EM 45 100 25 1.5 1.5 88.5 108 96 6300 7500 53 86 92 91 1.5 1.5 0.959
NJ309EM/YA8 45 100 25 1.5 1.5 58.5 108 96 6300 7500 53 56 67 92 1.5 1.5 1.09
NJ309EM 45 100 25 1.5 1.5 58.5 108 96 6300 7500 53 56 67 92 1.5 1.5 1
NU309M/C3 45 100 25 1.5 1.5 58.5 108 96 6300 7500 53 56 61 92 1.5 1.5 0.992
NCL309E/YA 45 100 25 1.5 1.5 88.5 108 96 6300 7500 53 84 92 90.5 1.5 1.5 0.872
NJ309ETN1 45 100 25 1.5 1.5 58.5 108 96 6300 7500 53 56 67 92 1.5 1.5 0.891
NCL309EN/YA 45 100 25 1.5 1.5 88.5 108 96 6300 7500 53 84 92 90.5 1.5 1.5 0.872
N309J 45 100 25 1.5 1.5 86.5 108 96 6300 7500 53 84 92 90.5 1.5 1.5 0.82
NF309X1MR/YA1 45 100.038 25 1.5 1.5 86.5 108 96 6300 7500 53 84 92 90.5 1.5 1.5 1.03
N309M 45 100 25 1.5 1.5 86.5 108 96 6300 7500 53 84 92 90.5 1.5 1.5 0.92
NU5209XPC3 45 85 30.16 1.1 1.1 55.52 94.6 119 6300 7500 51 53 58 79 1.1 1.1 0.843
NU3209X2M/C9YA6 45 85 30.16 1.1 1.7 55.52 94.6 119 6300 7500 51 53 58 79 1.5 1.1 0.831
NJ2209EM 45 85 23 1.1 1.1 54.5 82 78 5600 6700 51.5 53 61 78.5 1.1 1.1 0.645
NJ2209E/C3 45 85 23 1.1 1.1 54.5 82 78 5600 6700 51.5 53 61 78.5 1.1 1.1 0.639
NU2209ETN1/C9 45 85 23 1.1 1.1 54.5 82 78 5600 6700 51 53 58 79 1.1 1.1 0.571
NU2209ETN1 45 85 23 1.1 1.1 54.5 82 78 5600 6700 51 53 58 79 1.1 1.1 0.571
NU2209EM 45 85 23 1.1 1.1 54.5 82 78 5600 6700 51 53 58 79 1.1 1.1 0.635
NUP209EM 45 85 19 1.1 54.5 67.5 61.5 6700 8000 52 61 78 1.1 1.1 0.507
NF209ETN1 45 85 19 1.1 1.1 76.5 67.5 61.5 6700 8000 51.5 73 78.5 78 1.1 1.1 0.444
NF209EM 45 85 19 1.1 1.1 76.5 67.5 61.5 6700 8000 51.5 73 78.5 78 1.1 1.1 0.51
NU209EM 45 85 19 1.1 1.1 54.5 67.5 61.5 6700 8000 51.5 53 61 78.5 1.1 1.1 0.498
NJ209EM 45 85 19 1.1 1.1 54.5 67.5 61.5 6700 8000 51.5 53 61 78.5 1.1 1.1 0.51
NJ209TN1 45 85 19 1.1 1.1 55 57.5 56 6700 8000 51.5 53 61 78.5 1.1 1.1 0.439
NJ209M 45 85 19 1.1 1.1 55 57.5 56 6700 8000 51.5 53 61 78.5 1.1 1.1 0.487
NJ609M/YA1 45 80.036 16 1 1 57.5 35.5 46.5 6700 8000 51.5 53 61 73.5 73 1 1 0.363
NU410TN1 50 130 31 2.1 2.1 70 150 150 5000 6000 61 68 73 119 2 2 1.99
NJ410TN1 50 130 31 2.1 2.1 70 150 150 5000 6000 61 68 81 119 2 2 2.02
NJ410M 50 130 31 2.1 2.1 70 150 150 5000 6000 61 68 81 119 2 2 2.24
NJ410 50 130 31 2.1 2.1 70 150 150 5000 6000 61 68 81 119 2 2 2.15
NU410 50 130 31 2.1 2.1 70 150 150 5000 6000 61 68 73 119 2 2 2.11
NU410M 50 130 31 2.1 2.1 70 150 150 5000 6000 61 68 73 119 2 2 2.2
N410 50 130 31 2.1 2.1 110 150 150 5000 6000 61 107 119 113 2 2 2.09
N410M 50 130 31 2.1 2.1 110 150 150 5000 6000 61 107 119 113 2 2 2.18
NJ2310ETN1 50 110 40 2 2 65 180 180 5000 6000 59 62 73 101 2 2 1.74
NU2310ETN1 50 110 40 2 2 65 180 180 5000 6000 59 61 67 101 2 2 1.71
NU2310EM 50 110 40 2 2 65 180 180 5000 6000 59 61 67 101 2 2 1.89
NU2310E 50 110 40 2 2 65 180 180 5000 6000 59 61 62 67 101 2 2 1.92
NJ2310EM 50 110 40 2 2 65 180 180 5000 6000 59 62 73 101 2 2 1.92
NJ2310E 50 110 40 2 2 65 180 180 5000 6000 59 62 73 101 2 2 1.95
NU2310M 50 110 40 2 2 65 180 180 5000 6000 59 61 67 101 2 2 1.91
NU310EWBTN1 50 100 32 2 2 65 112 116 5000 6000 59 63 67 101 2 2 1.19 HJ310E 0.152 8 12.74 2
NU310TN1 50 110 27 2 2 65 122 108 5000 6000 59 63 67 101 2 2 1.1 HJ310 0.158 8 13.74 2
NU310ETN1/C9-YSJ 50 110 27 2 2 65 102 103 5000 6000 59 63 73 101 2 2 1.12 HJ310E 0.152 8 12.74 2
NJ310TN1 50 110 27 2 2 65 122 108 5000 6000 59 63 73 101 2 2 1.14 HJ310 0.158 8 13.74 2
NUP310ENTN1/YA6 50 110 27 2 65 119 125 5000 6000 59 66 101 2 2 1.2
NUP310ENTN1 50 110 27 2 65 119 125 5000 6000 59 66 101 2 2 1.2
NUP310ENJC 50 110 27 2 65 119 125 5000 6000 59 66 101 2 2 1.37
NUP310EN 50 110 27 2 65 119 125 5000 6000 59 66 101 2 2 1.65
NUP310M 50 110 27 2 65 122 108 5000 6000 61 73 99 2 2 1.37
NUP310EM 50 110 27 2 65 122 108 5000 6000 59 63 67 101 2 2 1.34
NU310EM 50 110 27 2 2 65 122 108 5000 6000 59 63 67 101 2 2 1.27 HJ310E 0.152 8 12.74 2
NU310E 50 110 27 2 2 65 122 108 5000 6000 59 63 67 101 2 2 1.29 HJ310E 0.152 8 12.74 2
NJ310E 50 110 27 2 2 65 122 108 5000 6000 59 63 73 101 2 2 1.33 HJ310E 0.152 8 12.74 2
N310E 50 110 27 2 2 97 122 108 5000 6000 59 95 101 99 2 2 1.3
N310EM 50 110 27 2 2 97 122 108 5000 6000 59 95 101 99 2 2 1.3
NU310M/C3 50 110 27 2 2 65 122 108 5000 6000 59 63 67 101 2 2 1.29 HJ310 0.158 8 13.74 2
NJ310M+HJ310 50 110 27 2 2 65 122 108 5000 6000 59 63 73 101 2 2 1.52 HJ310 0.158 8 13.74 2
NJ310EM 50 110 27 2 2 65 112 115 5000 6000 59 63 73 101 2 2 1.36 HJ310 0.158 8 13.74 2
NJ310M 50 110 27 2 2 65 122 108 5000 6000 59 63 73 101 2 2 1.36 HJ310 0.158 8 13.74 2
NF310M 50 110 27 2 2 95 122 108 5000 6000 59 93 101 97 2 2 1.31
N310M 50 110 27 2 2 95 122 108 5000 6000 59 93 101 97 2 2 1.17
NU5211XPC3 50 100 33.34 1.5 1.1 66.9 118 155 6000 7000 60 62 94 1.1 1.1 1.21
NU3210X2M/C9YA6 50 90 30.16 1.1 1.1 60.45 99 128 6300 7500 56 58 62 84 1.1 1.1 0.902
NU5210XPC3 50 90 30.16 1.1 1.1 60.45 99 128 6300 7500 56 58 62 84 1.1 1.1 0.902
NU2210ETN1-YSJ 50 90 23 1.1 1.1 59.5 86.5 84.5 6300 7500 56.5 57 62 83.5 1 1 0.563
NU2210ETN1/C9-YSJ 50 90 23 1.1 1.1 59.5 86.5 84.5 6300 7500 56.5 57 62 83.5 1 1 0.563
NU2210ETN1/C91-YSJ 50 90 23 1.1 1.1 59.5 84 98 6300 7500 56.5 57 62 83.5 1 1 0.563
NJ2210ETN1 50 90 23 1.1 1.1 59.5 86.5 84.5 6300 7500 56.5 57 66 83.5 1.1 1.1 0.579
NJ2210EM 50 90 23 1.1 1.1 59.5 86.5 84.5 6300 7500 56.5 57 66 83.5 1.1 1.1 0.666
NU2210ETN1/C9 50 90 23 1.1 1.1 59.5 86.5 84.5 6300 7500 56.5 57 66 83.5 1.1 1.1 0.563
NU2210EM 50 90 23 1.1 1.1 59.5 86.5 84.5 6300 7500 56.5 57 62 83.5 1.1 1.1 0.65
NU210ETN1/C9-YSJ 50 90 20 1.1 1.1 59.5 70.5 67.5 6300 7500 56.5 57 62 83.5 1.1 1.1 0.489
NUP210E 50 90 20 1.1 59.5 70.5 67.5 6300 7500 56.5 66 83.5 1.1 1.1 0.591
NF210EM 50 90 20 1.1 1.1 81.5 70.5 67.5 6300 7500 56.5 83.5 82 1.1 1.1 0.596
NF210E 50 90 20 1.1 1.1 81.5 70.5 67.5 6300 7500 56.5 83.5 82 1.1 1.1 0.578
NJ210ETN1 50 90 20 1.1 1.1 59.5 70.5 67.5 6300 7500 56.5 57 66 83.5 1.1 1.1 0.503
NJ210EM 50 90 20 1.1 1.1 59.5 70.5 67.5 6300 7500 56.5 57 66 83.5 1.1 1.1 0.573
NU210EM 50 90 20 1.1 1.1 59.5 70.5 67.5 6300 7500 56.5 57 62 83.5 1.1 1.1 0.562
NU210Q1 50 90 20 1.1 1.1 60.4 57.2 64 6300 7500 56.5 57 62 83.5 1.1 1.1 0.557
NU210M 50 90 20 1.1 1.1 60.4 57.2 64 6300 7500 56.5 57 62 83.5 1.1 1.1 0.564
NF210M 50 90 20 1.1 1.1 80.4 57.2 64 6300 7500 56.5 83.5 82 1.1 1.1 0.565
N210EM 50 90 20 1.1 1.1 81.5 70.5 67.5 6300 7500 56.5 79 83.5 82 1.1 1.1 0.566
N210M 50 90 20 1.1 1.1 80.4 57.2 64 6300 7500 56.5 79 83.5 82 1.1 1.1 0.559
N1010KM/P49 50 80 16 1 1 60.5 45 54 8500 10000 54 56 75 1 1 0.309
NJ1010TN1 50 80 16 1 0.6 57.5 45 54 8500 10000 54 56 60 75 0.6 1 0.279
NJ1010M 50 80 16 1 0.6 57.5 45 54 8500 10000 54 56 60 75 0.6 1 0.316
NU411M 55 140 33 2.1 2.1 77.2 162 168 4800 5600 66 74 88 129 2 2 2.85
NJ411M/C5 55 140 33 2.1 2.1 77.2 162 168 4800 5600 66 74 88 129 2 2 2.95
N411M 55 140 33 2.1 2.1 117.2 162 168 4800 5600 66 114 129 119 2 2 2.86
NU2311E 55 120 43 2 2 70.5 223 246 4800 5600 64 68 73 111 2 2 2.59
NJ2311E 55 120 43 2 2 70.5 223 246 4800 5600 64 68 80 111 2 2 2.62
N2311E 55 120 43 2 2 106.5 223 246 4800 5600 64 104 111 110 2 2 2.56
NU2311M 55 120 43 2 2 70.5 156 174 4800 5600 64 68 73 111 2 2 2.43
NU311EM/C9 55 120 29 2 2 70.5 150 137 4800 5600 64 68 73 111 2 2 1.63
NU311EM 55 120 29 2 2 70.5 150 137 4800 5600 64 68 73 111 2 2 1.64
N311ETN1 55 120 29 2 2 106.5 150 137 4800 5600 64 104 111 109 2 2 1.42
NUP311E 55 120 29 2 2 70.5 150 137 4800 5600 64 80 111 2 2 1.69
NU311E 55 120 29 2 2 70.5 150 137 4800 5600 64 68 73 111 2 2 1.64
NJ311E 55 120 29 2 2 70.5 150 137 4800 5600 64 68 80 111 2 2 1.67
NU311TN1 55 120 29 2 2 70.5 150 137 4800 5600 64 68 73 111 2 2 1.44
NU311ETN1/C9 55 120 29 2 2 70.5 150 137 4800 5600 64 68 73 111 2 2 1.45
NUP311ETN1/YA6 55 120 29 2 70.5 150 137 4800 5600 64 73 111 2 2 1.5
NJ311TN1/YA6 55 120 29 2 2 70.5 150 137 4800 5600 64 68 80 111 2 2 1.45
N311E 55 120 29 2 2 106.5 150 137 4800 5600 64 104 111 109 2 2 1.61
N311EM 55 120 29 2 2 106.5 150 137 4800 5600 64 104 111 109 2 2 1.6
NUP311NRJC 55 120 29 2 68.75 150 137 4800 5600 64 80 111 2 2 1.71
NUP311NJC 55 120 29 2 2 68.75 150 137 4800 5600 64 80 111 2 2 1.65
NJ311M/YA6 55 120 29 2 2 70.5 150 137 4800 5600 64 68 80 111 2 2 1.75
NUP311M 55 120 29 2 70.5 150 137 4800 5600 64 79 111 2 2 1.76
NJ311M 55 120 29 2 2 70.5 150 137 4800 5600 64 68 79 111 2 2 1.75
NU311M 55 120 29 2 2 70.5 150 137 4800 5600 64 68 73 111 2 2 1.74
N311J 55 120 29 2 2 104.5 150 137 4800 5600 64 102 111 107 2 2 1.45
N311M 55 120 29 2 2 104.5 150 137 4800 5600 64 102 111 107 2 2 1.65
NF311M 55 120 29 2 2 104.5 150 137 4800 5600 64 111 107 2 2 1.7
NU3211X2M/C9YA6 55 100 33.34 1.1 1.1 66.9 118 155 4800 5600 61 65 69 93 1.1 1.1 1.21
NU5211XPC3 55 100 33.34 1.1 1.1 66.9 118 155 4800 5600 61 65 69 93 1.1 1.1 1.21
N3211M 55 100 33.3 1.5 1.1 88.9 117 155 4800 7000 63 87 93.5 92 1.1 1.5 1.2
NU2211EM 55 100 25 1.5 1.1 66 109 113 6000 7000 61.5 64 68 92 1.1 1.5 0.763
NJ2211ETN1 55 100 25 1.5 1.1 66 109 113 6000 7000 61.5 64 73 92 1.1 1.5 0.666
NJ2211EM 55 100 25 1.5 1.1 66 109 113 6000 7000 61.5 64 73 92 1.1 1.5 0.783
NJ211ETN1 55 100 21 1.5 1.1 66 93 91 6000 7000 61.5 64 73 92 1.1 1.5 0.701
NUP211ETN1 55 100 21 1.5 66 93 91 6000 7000 61.5 64 73 92 1.5 1.5 0.667
NU211ETN1/C9 55 100 21 1.5 1.5 66 93 91 6000 7000 61.5 64 73 92 1.5 1.5 0.67
NUP211EM 55 100 21 1.5 66 93 91 6000 7000 61.5 64 73 92 1.5 1.5 0.762
NUP211E 55 100 21 1.5 66 93 91 6000 7000 61.5 64 73 92 1.5 1.5 0.751
NJ211E 55 100 21 1.5 1.1 66 93 91 6000 7000 61.5 64 73 92 1.1 1.5 0.767
NF211E 55 100 21 1.5 1.5 90 93 91 6000 7000 63 93.5 92 1.5 1.5 0.757
NF211M 55 100 21 1.5 1.5 88.5 93 91 6000 7000 63 93.5 92 1.5 1.5 0.806
NU1011TN1 55 90 18 1.1 1 64.5 55 67 7000 8500 59.6 63 67 84 1 1.1 0.403
NU1011M 55 90 18 1.1 1 64.5 55 67 7000 8500 59.6 63 67 84 1 1.1 0.479
NU412TN1 60 150 35 2.1 2.1 83 195 200 4300 5000 71 80 85 139 2 2 2.91
NUP412M 60 150 35 2.1 83 195 200 4300 5000 71 94 139 2 2 3.42
NUP412J 60 150 35 2.1 83 195 200 4300 5000 71 94 139 2 2 3.31
NUP412 60 150 35 2.1 83 195 200 4300 5000 71 94 139 2 2 3.43
NJ412 60 150 35 2.1 2.1 83 195 200 4300 5000 71 80 94 139 2 2 3.25
NJ412M 60 150 35 2.1 2.1 83 195 200 4300 5000 71 80 94 139 2 2 3.36
NJ412J 60 150 35 2.1 2.1 83 195 200 4300 5000 71 80 94 139 2 2 3.13
NU412 60 150 35 2.1 2.1 83 195 200 4300 5000 71 80 85 139 2 2 3.13
NU412M 60 150 35 2.1 2.1 83 195 200 4300 5000 71 80 85 139 2 2 3.23
N412 60 150 35 2.1 2.1 127 195 200 4300 5000 71 124 139 130 2 2 3.18
N412M 60 150 35 2.1 2.1 127 195 200 4300 5000 71 124 139 130 2 2 3.29
N612M/C9 60 140 51 2.5 2.5 122 270 310 4300 5000 72 119 128 125 2 2 3.96
N612M 60 140 51 2.5 2.5 122 270 310 4300 5000 72 119 128 125 2 2 3.96
NJ2312E 60 130 46 2.1 2.1 77 250 255 4300 5000 71 73 87 119 2 2 3
NU2312E 60 130 46 2.1 2.1 77 250 255 4300 5000 71 73 80 119 2 2 2.95
NU2312ETN1/C9 60 130 46 2.1 2.1 77 250 255 4300 5000 71 112 119 118 2 2 2.79
N2312E 60 130 46 2.1 2.1 115 250 255 4300 5000 71 112 119 118 2 2 2.93
NJ2312EM/C9-DT 60 130 45 2.1 2.1 77 234 279 4300 5000 70 72 79 120 2 2 3.1
NJ2312M 60 130 46 2.1 2.1 77 190 215 4300 5000 71 73 87 119 2 2 3.38
NJ2312M/C4W124YA8 60 130 46 2.1 2.1 77 190 215 4300 5000 71 73 80 119 2 2 3.39
N2312M 60 130 46 2.1 2.1 113 190 215 4300 5000 71 110 119 117 2 2 2.95
NJ312TN1 60 130 31 2.1 2.1 77 140 150 4300 5000 71 72 86 119 2 2 1.83
N312TN1 60 130 31 2.1 2.1 113 140 150 4300 5000 71 110 119 116 2 2 1.78
NUP312ENRJ/C3 60 130 31 2.1 77 165 155 4300 5000 71 87 119 2 2 1.92
NUP312ENRM 60 130 31 2.1 77 165 155 4300 5000 71 87 119 2 2 2.2
NUP312E/C9 60 130 31 2.1 77 165 155 4300 5000 71 87 119 2 2 2.03
NUP312E 60 130 31 2.1 77 165 155 4300 5000 71 87 119 2 2 2.03
NU312ETN1/C9 60 130 31 2.1 2.1 77 165 155 4300 5000 71 74 79 119 2 2 1.78
NU312ETN1 60 130 31 2.1 2.1 77 165 155 4300 5000 71 74 79 119 2 2 1.78
NU312EM 60 130 31 2.1 2.1 77 165 155 4300 5000 71 74 79 119 2 2 2.06
NU312E/YA6 60 130 31 2.1 2.1 77 162 174 4300 5000 71 74 79 119 2 2 1.94
NU312E 60 130 31 2.1 2.1 77 165 155 4300 5000 71 74 79 119 2 2 1.94
NJ312EM/YAB 60 130 31 2.1 2.1 77 165 155 4300 5000 71 74 87 119 2 2 2.1
NJ312E 60 130 31 2.1 2.1 77 165 155 4300 5000 71 74 87 119 2 2 1.98
NF312EM 60 130 31 2.1 2.1 115 165 155 4300 5000 71 119 118 2 2 2.12
NF312E 60 130 31 2.1 2.1 115 165 155 4300 5000 71 119 118 2 2 2
N312ETN1 60 130 31 2.1 2.1 115 165 155 4300 5000 71 112 119 118 2 2 1.79
N312EM 60 130 31 2.1 2.1 115 165 155 4300 5000 71 112 119 118 2 2 2.06
N312E 60 130 31 2.1 2.1 115 165 155 4300 5000 71 112 119 118 2 2 1.94
NJ312M 60 130 31 2.1 2.1 77 141 150 4300 5000 71 72 86 119 2 2 2.1
NU312Q1 60 130 31 2.1 2.1 77 141 150 4300 5000 71 72 80 119 2 2 2.03
NU312M 60 130 31 2.1 2.1 77 141 150 4300 5000 71 72 80 119 2 2 2.06
N312EF6D-GX 60 130 31 2.1 2.1 114 145 150 70 79 120 118 2 2 2.04
N312M 60 130 31 2.1 2.1 113 165 150 4300 5000 71 110 119 116 2 2 2.04
NU2212WBM/C3 60 110 28 1.5 1.5 73.5 105 130 5300 6300 68 70 74 102 1.5 1.5 1.57
NU3212X2M/C9YA6 60 110 36.51 1.5 1.5 72.39 150 195 4800 5600 66 70 75 103 1.5 1.5 1.75
NU5212XPC3 60 110 36.51 1.5 1.5 72.39 150 195 4800 5600 66 70 75 103 1.5 1.5 1.75
NJ2212ETN1 60 110 28 1.5 1.5 72 140 145 5300 6300 68 70 80 102 1.5 1.5 1.07
NJ2212EM 60 110 28 1.5 1.5 72 140 145 5300 6300 68 70 80 102 1.5 1.5 1.23
NU2212EM 60 110 28 1.5 1.5 72 140 145 5300 6300 68 70 74 102 1.5 1.5 1.21
NUP2212M 60 110 28 1.5 73.5 140 145 5300 6300 68 80 102 1.5 1.5 1.27
NUP212NM/YB2 60 110 22 1.5 73.5 104 85 5300 6300 68 70 80 102 1.5 1.5 0.978
NU212ETN1/C9 60 110 22 1.5 1.5 72 104 85 5300 6300 68 70 80 102 1.5 1.5 0.82
NJ212ETN1 60 110 22 1.5 1.5 72 104 85 5300 6300 68 70 80 102 1.5 1.5 0.842
NJ212EM 60 110 22 1.5 1.5 72 104 85 5300 6300 68 70 80 102 1.5 1.5 0.938
NJ212E 60 110 22 1.5 1.5 72 104 85 5300 6300 68 70 80 102 1.5 1.5 0.947
NJ212M 60 110 22 1.5 1.5 73.5 104 85 5300 6300 68 70 80 102 1.5 1.5 0.952
NU212EM 60 110 22 1.5 1.5 72 104 85 5300 6300 68 70 80 102 1.5 1.5 0.916
NU212M 60 110 22 1.5 1.5 73.5 104 85 5300 6300 68 70 75 102 1.5 1.5 0.938
NF212M 60 110 22 1.5 1.5 97.5 104 85 5300 6300 68 102 1.5 1.5 0.957
N212M 60 110 22 1.5 1.5 97.5 104 85 5300 6300 68 102 1.5 1.5 0.937
NU1012M 60 95 18 1.1 1 69.5 50.6 66 6700 8000 65 67 72 90 1 1.1 0.466
N1012TN1 60 95 18 1 1.1 85.5 50.6 66 6700 8000 65 83 88.5 87 1.1 1.1 0.387
N1012M 60 95 18 1 1.1 85.5 50.6 66 6700 8000 65 83 88.5 87 1.1 1.1 0.432
NUP413M 65 160 37 2.1 2.1 89.5 209 222 4000 4800 76 101 149 2 2 4.19
NJ413W1 65 160 37 2.1 2.1 89.5 209 222 4000 4800 76 86 101 149 2 2 4
NJ413M/YA8 65 160 37 2.1 2.1 89.5 209 222 4000 4800 76 86 101 149 2 2 4.01
NJ413M 65 160 37 2.1 2.1 89.5 209 222 4000 4800 76 86 101 149 2 2 4.09
NU413 65 160 37 2.1 2.1 89.5 209 222 4000 4800 76 86 92 149 2 2 3.94
NU413M 65 160 37 2.1 2.1 89.5 209 222 4000 4800 76 86 92 149 2 2 4.03
N413 65 160 37 2.1 2.1 135.5 209 222 4000 4800 76 132 149 139 2 2 3.92
N413M 65 160 37 2.1 2.1 135.5 209 222 4000 4800 76 132 149 139 2 2 4.01
NU2313E 65 140 48 2.1 2.1 82.5 274 278 4000 4800 76 79 85 129 2 2 3.48
NJ2313E 65 140 48 2.1 2.1 82.5 274 278 4000 4800 76 79 93 129 2 2 3.55
NF2313E 65 140 48 2.1 2.1 124.5 274 278 4000 4800 76 129 127 2 2 3.6
NU2313ETN1/C9 65 140 48 2.1 2.1 83.5 274 278 4000 4800 76 79 85 129 2 2 3.26
NU2313EM 65 140 48 2.1 2.1 82.5 250 291 4000 4800 76 79 85 129 2 2 4.38
NU2313ETN1 65 140 48 2.1 2.1 83.5 274 278 4000 4800 76 79 85 129 2 2 3.26
NU2313M 65 140 48 2.1 2.1 83.5 211 248 4000 4800 76 79 85 129 2 2 3.6
NJ2313M 65 140 48 2.1 2.1 83.5 211 248 4000 4800 76 79 93 129 2 2 3.67
NU313M/YA1 65 140 33 2.1 2.1 83.5 205 188 4000 4800 76 81 86 129 2 2 2.46
NUP313EM 65 140 33 2.1 82.5 205 188 4000 4800 77 93 128 2 2 2.64
NU313E 65 140 33 2.1 2.1 82.5 205 188 4000 4800 76 80 85 129 2 2 2.46
NJ313E 65 140 33 2.1 2.1 82.5 205 188 4000 4800 76 80 93 129 2 2 2.59
N313E 65 140 33 2.1 2.1 124.5 205 188 4000 4800 76 122 129 127 2 2 2.43
NU313ETN1 65 140 33 2.1 2.1 82.5 205 188 4000 4800 76 80 85 129 2 2 2.18
NU313EM 65 140 33 2.1 2.1 82.5 205 188 4000 4800 76 80 85 129 2 2 2.45
NF313EM 65 140 33 2.1 2.1 124.5 205 188 4000 4800 76 122 129 127 2 2 2.48
N313EM 65 140 33 2.1 2.1 124.5 205 188 4000 4800 76 122 129 127 2 2 2.42
NJ313EM 65 140 33 2.1 2.1 82.5 205 188 4000 4800 76 80 93 129 2 2 2.5
NU313Q1 65 140 33 2.1 2.1 83.5 156 168 4000 4800 76 81 86 129 2 2 2.46
NU313M 65 140 33 2.1 2.1 83.5 156 168 4000 4800 76 81 86 129 2 2 2.54
NJ313M 65 140 33 2.1 2.1 83.5 156 168 4000 4800 76 81 93 129 2 2 2.6
N313ETN1 65 140 33 2.1 2.1 121.5 195 210 4000 4800 76 119 129 124 2 2 2.15
N313M 65 140 33 2.1 2.1 121.5 156 168 4000 4800 76 119 129 124 2 2 2.45
N313 65 140 33 2.1 2.1 121.5 156 168 4000 4800 76 119 129 124 2 2 2.24
NU3213M/C9YA6 65 120 38.1 1.5 1.5 80.42 166 218 4000 4800 72 78.5 82.5 113.5 1.5 1.5 1.96
NU5213XPC3 65 120 38.1 1.5 1.5 80.42 166 218 4000 4800 72 78.5 82.5 113.5 1.5 1.5 1.96
NU2213ETN1-YSJ 65 120 31 1.5 78.5 163 173 4800 5600 73 76 81 112 1.5 1.5 1.43
NU2213ETN1/SPCNL 65 120 31 1.5 78.5 163 173 4800 5600 73 76 81 112 1.5 1.5 1.43
NU2213ETN1/C9-YSJ 65 120 31 1.5 78.5 163 173 4800 5600 73 76 81 112 1.5 1.5 1.43
NU2213EM 65 120 31 1.5 1.5 78.5 163 173 4800 5600 73 76 81 112 1.5 1.5 1.61
NUP2213NM 65 120 31 1.5 78.5 122 154 4800 5600 73 76 81 112 1.5 1.5 1.74
NU2213ETN1/C9-YSJ 65 120 31 1.5 1.5 78.5 149 182 4800 5600 73 76 81 112 1.5 1.5 1.43
NU2213ETN1/C9 65 120 31 1.5 78.5 163 173 4800 5600 73 76 81 112 1.5 1.5 1.43
NUP2213M 65 120 31 1.5 79.6 131 165 4800 5600 73 87 112 1.5 1.5 1.75
NU2213NM 65 120 31 1.5 1.5 79.6 131 165 4800 5600 73 87 112 1.5 1.5 1.64
NU2213M 65 120 31 1.5 1.5 79.6 122 155 4800 5600 73 76 81 112 1.5 1.5 1.65
NJ2213EM 65 120 31 1.5 1.5 78.5 149 182 4800 5600 72 76 72 113 1.5 1.5 1.67
NJ2213M 65 120 31 1.5 1.5 79.6 122 155 4800 5600 73 76 87 112 1.5 1.5 1.65
NU213ETN1 65 120 23 1.5 1.5 78.5 120 135 4800 5600 73 76 81 112 1.5 1.5 1
NU213ETN1/C9 65 120 23 1.5 1.5 78.5 120 135 4800 5600 73 87 112 1.5 1.5 1.02
NUP213ETN1 65 120 23 1.5 78.5 120 135 4800 5600 73 87 112 1.5 1.5 1.07
NUP213EM 65 120 23 1.5 78.5 120 135 4800 5600 73 87 112 1.5 1.5 1.22
NUP213E 65 120 23 1.5 78.5 120 135 4800 5600 73 87 112 1.5 1.5 1.16
NJ213E 65 120 23 1.5 1.5 78.5 120 135 4800 5600 73 76 87 112 1.5 1.5 1.13
NU213E 65 120 23 1.5 1.5 78.5 120 135 4800 5600 73 76 81 112 1.5 1.5 0.994
N213E 65 120 23 1.5 1.5 108.5 120 135 4800 5600 73 106 112 111 1.5 1.5 1.05
NF213E 65 120 23 1.5 1.5 108.5 120 135 4800 5600 73 112 111 1.5 1.5 1.14
NUP213M 65 120 23 1.5 1.5 79.6 89 102 4800 5600 73 87 112 1.5 1.5 1.22
NJ213M 65 120 23 1.5 1.5 79.6 89 102 4800 5600 73 76 87 112 1.5 1.5 1.14
NU213M 65 120 23 1.5 1.5 79.6 89 102 4800 5600 73 76 81 112 1.5 1.5 1.12
N213M 65 120 23 1.5 1.5 105.6 89 102 4800 5600 73 103 112 111 1.5 1.5 1.13
NU234EWBM 70 310 86 4 4 207 644 870 1800 2200 186 203 210 294 3 3 21.4
NUP414M 70 180 42 3 100 262 283 3600 4300 83 102 167 2.5 2.5 6.17
NJ414M/YA8 70 180 42 3 3 100 262 283 3600 4300 83 97 113 167 2.5 2.5 5.91
NJ414M 70 180 42 3 3 100 262 283 3600 4300 83 97 113 167 2.5 2.5 5.94
NJ414 70 180 42 3 3 100 262 283 3600 4300 83 97 113 167 2.5 2.5 6.68
NU414 70 180 42 3 3 100 262 283 3600 4300 83 97 102 167 2.5 2.5 6.38
NU414M 70 180 42 3 3 100 262 283 3600 4300 83 97 102 167 2.5 2.5 5.79
N414 70 180 42 3 3 152 262 283 3600 4300 83 148 167 155 2.5 2.5 6.4
N414M 70 180 42 3 3 152 262 283 3600 4300 83 148 167 155 2.5 2.5 5.66
NJ2314E/WBYAD 70 150 51 2.1 2.1 86 320 370 3600 4300 81 86 101 139 2 2 4.51
NJ2314E 70 150 51 2.1 2.1 89 302 345 3600 4300 81 86 100 139 2 2 4.33
NJ2314EM/C9-DT 70 150 51 2.1 2.1 89 286 345 3600 4300 80 85 93 140 2 2 4.52
NU2314E 70 150 51 2.1 2.1 89 302 345 3600 4300 81 86 92 139 2 2 4.24
NU2314ETN1/C9 70 150 51 2.1 2.1 89 302 345 3600 4300 81 86 92 139 2 2 3.89
N2314E 70 150 51 2.1 2.1 133 302 345 3600 4300 81 130 139 136 2 2 4.27
NJ2314M/C4W124YA8 70 150 51 2.1 2.1 90 248 300 3600 4300 81 86 101 139 2 2 4.61
NJ2314M 70 150 51 2.1 2.1 90 248 300 3600 4300 81 86 101 139 2 2 4.62
NU2314M 70 150 51 2.1 2.1 90 248 300 3600 4300 81 86 93 139 2 2 4.52
NU314ETN1/C9 70 150 35 2.1 2.1 89 226.5 220 3600 4300 82 86 91 138 2 2 2.7
NU314ETN1 70 150 35 2.1 2.1 89 226.5 220 3600 4300 82 86 91 138 2 2 2.7
NU314EM 70 150 35 2.1 2.1 89 226.5 220 3600 4300 82 86 91 138 2 2 3.45
NUP314E 70 150 35 2.1 89 226.5 220 3600 4300 81 100 139 2 2 3.14
NJ314EM/YAB 70 150 35 2.1 2.1 89 226.5 220 3600 4300 81 86 100 139 2 2 3.14
NJ314E 70 150 35 2.1 2.1 89 226.5 220 3600 4300 81 86 100 139 2 2 3.06
NU314E 70 150 35 2.1 2.1 89 226.5 220 3600 4300 81 86 92 139 2 2 3.01
NJ314E/C9 70 150 35 2.1 2.1 89 226.5 220 3600 4300 81 86 100 139 2 2 3.06
N314EM 70 150 35 2.1 2.1 133 226.5 220 3600 4300 81 130 139 136 2 2 3.08
N314E 70 150 35 2.1 2.1 133 226.5 220 3600 4300 81 130 139 136 2 2 3
NU314NTN1/YB2 70 150 35 2.1 2.1 90 185 202 3600 4300 81 86 93 139 2 2 2.66
NU314NM/YB2 70 150 35 2.1 2.1 90 185 202 3600 4300 81 86 93 139 2 2 2.96
NU314NRM/YAB 70 150 35 3 2.1 90 182 202 3600 4300 81 86 92 139 2 2 3.05
NU314Q1 70 150 35 2.1 2.1 90 182 202 3600 4300 81 86 92 139 2 2 3.03
NF314M 70 150 35 2.1 2.1 130 182 202 3600 4300 81 139 2 2 3.08
NJ314M 70 150 35 2.5 2.5 90 182 202 3600 4300 81 86 100 139 2 2 3.12
NU314M 70 150 35 2.5 2.5 90 182 202 3600 4300 81 86 93 139 2 2 3.05
N314J 70 150 35 2.1 2.1 130 182 202 3600 4300 81 127 139 133 2 2 2.78
N314M 70 150 35 2.1 2.1 130 182 202 3600 4300 81 127 139 133 2 2 3
NJ314Q1 70 150 35 2.1 2.1 90 182 202 3600 4300 81 86 100 139 2 2 3.11
NU2214WBM/C2 70 125 41/31 1.5 1.5 84.5 130 155 4500 5300 78 81 86 117 1.5 1.5 1.88
NU3214X2M/C9YA6 70 125 39.69 1.5 3 84.76 166 232 4500 5300 76.5 82.5 86.5 118.5 3 1.5 2.17
NU5214/C9YA6 70 125 39.69 1.5 1.5 84.76 166 232 4500 5300 76.5 82.5 86.5 118.5 1 1.5 2.17
NU5214XPC3 70 125 39.69 1.5 1.5 84.76 166 232 4500 5300 76.5 82.5 86.5 118.5 1 1.5 2.17
NJ2214M 70 125 31 1.5 1.5 84.5 130 155 4500 5300 78 81 92 117 1.5 1.5 1.73
NU2214M 70 125 31 1.5 1.5 84.5 130 155 4500 5300 78 81 86 117 1.5 1.5 1.7
N2214M 70 125 31 1.5 1.5 110.5 130 155 4500 5300 78 81 117 100 1.5 1.5 1.68
NUP2214M 70 125 31 1.5 84.5 130 155 4500 5300 78 92 117 1.5 1.5 1.8
NU214E 70 125 24 1.5 1.5 83.5 132 152 4500 5300 78 81 86 117 1.5 1.5 1.32
NJ214E/YA6 70 125 24 1.5 1.5 83.5 132 152 4500 5300 78 81 92 117 1.5 1.5 1.34
NU214ETN1/C9 70 125 24 1.5 1.5 83.5 132 152 4500 5300 78 81 92 117 1.5 1.5 1.16
NJ214E 70 125 24 1.5 1.5 83.5 132 152 4500 5300 78 81 92 117 1.5 1.5 1.34
NUP214ENM-DFMC 70 125 24 1.5 83.5 130 152 4500 5300 78 92 117 1.5 1.5 1.36
NUP214ENM 70 125 24 1.5 83.5 129 152 4500 5300 78 92 117 1.5 1.5 1.36
NUP214E 70 125 24 1.5 83.5 132 152 4500 5300 78 92 117 4 1.5 1.39
NF214ETN1/C9YB2 70 125 24 1.5 4.3 113.5 132 152 4500 5300 78 117 116 4 1.5 1.17
NF214E/C9YB2 70 125 24 1.5 4.3 113.5 132 152 4500 5300 78 117 116 4 1.5 1.33
NF214E 70 125 24 1.5 1.5 113.5 132 152 4500 5300 78 177 116 1.5 1.5 1.31
N214E 70 125 24 1.5 1.5 113.5 132 152 4500 5300 78 111 117 116 1.5 1.5 1.29
NF214EJ/C9YB2 70 125 24 1.5 4.3 113.5 132 152 4500 5300 78 117 116 4 1.5 1.21
NU214M 70 125 24 1.5 1.5 84.5 92.4 116 4500 5300 78 81 86 117 1.5 1.5 1.24
NU214Q1 70 125 24 1.5 1.5 84.5 92.4 116 4500 5300 78 81 86 117 1.5 1.5 1.23
NF214M 70 125 24 1.5 1.5 110.5 92.4 110 4500 5300 78 117 116 1.5 1.5 1.3
N214M 70 125 24 1.5 1.5 110.5 92.4 110 4500 5300 78 108 117 116 1.5 1.5 1.27
NUP214M 70 125 24 1.5 1.5 84.5 92.4 96 4500 5300 78 92 117 1.5 1.5 1.35
NU1014M 70 110 20 1.1 1.1 80 73.5 89.5 4600 5500 75 76 104 1.1 1.1 0.69
NU415M 75 190 45 3 3 104.5 300 325 3400 4000 88 101 107 177 2.5 2.5 6.94
N415M 75 190 45 3 3 160.5 300 325 3400 4000 88 101 177 2.5 2.5 6.86
NJ415M/YA8 75 190 45 3 3 104.5 300 325 3400 5300 88 87 119 177 2.5 2.5 7.2
NJ415M 75 190 45 3 3 104.5 300 325 3400 5300 88 87 119 177 2.5 2.5 7.14
NU2315M 75 160 55 2.1 2.1 95.5 287 345 3400 4000 86 91 98 149 2 2 5.96 HJ2315 0.512 11 21.28 2.1
NJ2315M 75 160 55 2.1 2.1 95.5 287 345 3400 4000 86 91 107 149 2 2 5.86 HJ2315 0.512 11 21.28 2.1
N2315Q1 75 160 55 2.1 2.1 139.5 287 345 3400 4000 86 136 149 143 2 2 5.84
N2315M 75 160 55 2.1 2.1 139.5 287 345 3400 4000 86 136 149 143 2 2 5.3
NJ315EM/YA8 75 160 37 2.1 2.1 95 255 285 3400 4000 86 91 96 150 2 2 3.93
NJ315E 75 160 37 2.1 2.1 95 269 254 3400 4000 86 157 107 149 163 2 2 3.64
NJ315X2EM/YAB 75 160 46 2.1 2.1 95 269 303 3400 4000 86 92 107 149 3 2 4.62
NJ315M 75 160 37 2.1 2.1 95.5 255 226 3400 4000 86 92 107 149 2 2 3.63
NU315E 75 160 37 2.1 2.1 95 269 254 3400 4000 86 92 97 149 2 2 3.56
NU315M 75 160 37 2.1 2.1 95.5 255 226 3400 4000 86 92 97 149 2 2 3.56
N315M 75 160 37 2.1 2.1 139.5 255 226 3400 4000 86 140 149 146 2 2 3.59
NUP315EM 75 160 37 2.1 95 269 254 3400 4000 86 107 149 2 2 3.75
NU315ENM 75 160 37 2.1 2.1 95 269 254 3400 4000 86 92 97 149 2 2 3.59
NU315ETN1 75 160 37 2.1 2.1 95 269 254 3400 4000 86 92 97 149 2 2 3.25
N315E 75 160 37 2.1 2.1 143 269 254 3400 4000 86 140 149 146 2 2 3.59
NU315Q1 75 160 37 2.1 2.1 95.5 204 226 3400 4000 86 92 97 149 2 2 3.68
NU315EM 75 160 37 2.1 2.1 95 269 254 3400 4000 86 92 97 149 2 2 3.62
N315J 75 160 37 2.1 2.1 139.5 204 226 3400 4000 86 92 149 2 2 3.28
N315EM 75 160 37 2.1 2.1 139.5 269 254 3400 4000 86 140 149 146 2 2 3.65
NJ315Q1 75 160 37 2.1 2.1 95.5 204 226 3400 4000 86 137 107 149 142 2 2 3.75
NU3215X2M/C9YA6 75 130 41.28 1.5 3 89 204 268 4000 4000 81.5 92 91 123.5 1.3 1.5 2.27
NU5215XPC3 75 130 41.28 1.5 1.5 89 204 268 4000 4000 81.5 92 91 123.5 1.5 1.5 2.27
NUP2215TN1 75 130 31 1.5 88.5 132 166 4500 5300 83 97 122 1.5 1.5 1.83
N2215M 75 130 31 1.5 1.5 116.5 132 166 4500 5300 83 86 122 121 1.5 1.5 1.77
NU2215M/C9 75 130 31 1.5 1.5 88.5 140 180 4500 5300 83 86 91 122 1.5 1.5 1.75
NU2215M 75 130 31 1.5 1.5 88.5 132 166 4500 5300 83 86 91 122 1.5 1.5 1.75
NU2215ETN1/C9-YSJ 75 130 31 1.5 1.5 88.5 164 211 4500 4500 83 86 91 122 1.5 1.5 1.54
NU2215ETN1/C9 75 130 31 1.5 1.5 88.5 164 211 4500 4500 83 97 122 1.5 1.5 1.54
NFP2215EM 75 130 30 1.5 1.5 88.5 164 211 4500 4500 83 97 122 1.5 1.5 1.86
NFP2215E 75 130 30 1.5 1.5 88.5 164 211 4500 4500 83 97 122 1.5 1.5 1.81
NUP2215M 75 130 30 1.5 88.5 132 166 4500 4500 83 97 122 1.5 1.5 2.03
NU215M-DT 75 130 25 1.5 1.5 88.5 107 127 4500 5300 83 86 91 122 1.5 1.5 1.42
NU215EM/YA5-DT 75 130 25 1.5 1.5 88.5 107 127 4500 5300 83 86 91 122 1.5 1.5 1.42
NUP215EL3/HAP53 75 130 25 1.5 88.5 144 150 4500 5300 83 97 122 1.5 1.5 1.35
NU215EL3/HAP53 75 130 25 1.5 1.5 88.5 144 150 4500 5300 83 86 91 122 1.5 1.5 1.3
NJ215E 75 130 25 1.5 1.5 88.5 144 150 4500 5300 83 86 97 122 1.5 1.5 1.38
NU215ETN1/C9 75 130 25 1.5 1.5 88.5 144 150 4500 5300 83 86 91 122 1.5 1.5 1.24
NU215ETN1 75 130 25 1.5 1.5 88.5 144 150 4500 5300 83 86 91 122 1.5 1.5 1.24
NU215E 75 130 25 1.5 1.5 88.5 144 150 4500 5300 83 86 91 122 1.5 1.5 1.39
N215E 75 130 25 1.5 1.5 118.5 144 150 4500 5300 83 116 122 121 1.5 1.5 1.38
NJ215M 75 130 25 1.5 1.5 88.5 107 127 4500 5300 83 86 97 122 1.5 1.5 1.45
NU215M 75 130 25 1.5 1.5 88.5 107 127 4500 5300 83 86 91 122 1.5 1.5 1.42
N215M 75 130 25 1.5 1.5 116.5 107 127 4500 5300 83 114 122 121 1.5 1.5 1.4
NF1015X1M 75 115.05 20 1.1 1.1 105 60 74 5600 6700 80 83 87 108.5 1.1 1.1 0.765
NU1015M 75 115 20 1.1 1 85 65 83 5600 6700 80 83 87 108.5 1 1.1 0.739
NJ416M/YA8 80 200 48 3 3 110 341 375 3200 3800 93 106 125 187 2.5 2.5 8.27 HJ416 0.37 13 21.78 3
NJ416M 80 200 48 3 3 110 341 375 3200 3800 93 106 125 187 2.5 2.5 8.31 HJ416 0.37 13 21.78 3
NU416M 80 200 48 3 3 110 341 375 3200 3800 93 106 113 187 2.5 2.5 8.19 HJ416 0.37 13 21.78 3
N416M 80 200 48 3 3 170 341 375 3200 3800 93 167 187 2.5 2.5 8.02
NUP2316M/YAB 80 170 58/60 2.1 100 305 380 3200 3800 91 98 118 159 2 2 7.23
NJ2316EM/C9-DT 80 170 58 2.1 2.1 101 400 422 3200 3800 91 98 113 159 2 2 6.62
NJ2316EM 80 170 58 2.1 2.1 101 400 422 3200 3800 91 98 113 159 2 2 6.62
NJ2316E 80 170 58 2.1 2.1 101 400 422 3200 3800 91 98 113 159 2 2 6.94
N2316E 80 170 58 2.1 2.1 151 400 422 3200 3800 91 148 159 150 2 2 6.26
NU2316EM 80 170 58 2.1 2.1 101 370 435 3200 3800 91 98 104 159 2 2 6.46
NU2316E 80 170 58 2.1 2.1 101 400 422 3200 3800 91 98 104 159 2 2 6.28
NJ2316TN1 80 170 58 2.1 2.1 103 305 380 3200 3800 91 98 113 159 2 2 5.68
NJ2316M 80 170 58 2.1 2.1 103 305 380 3200 3800 91 98 113 159 2 2 6.44
NU2316M 80 170 58 2.1 2.1 103 305 380 3200 3800 91 98 106 159 154 2 2 6.34
N2316M 80 170 58 2.1 2.1 147 305 380 3200 3800 91 144 159 2 2 6.15
NU316ETN1 80 170 39 2.1 2.1 101 288 278 3200 3800 91 98 104 159 2 2 3.89
NU316E 80 170 39 2.1 2.1 101 288 278 3200 3800 91 98 104 159 2 2 4.25
NJ316E 80 170 39 2.1 2.1 101 288 278 3200 3800 91 98 113 159 154 2 2 4.08
N316E 80 170 39 2.1 2.1 151 288 278 3200 3800 91 148 159 154 2 2 3.98
NU316EF1/C9 80 170 39 2.1 2.1 101 288 278 3200 3800 91 98 104 159 2 2 4.2
NU316EM 80 170 39 2.1 2.1 101 288 278 3200 3800 91 98 104 159 2 2 4.26
N316EM 80 170 39 2.1 2.1 151 288 278 3200 3800 91 148 159 154 2 2 4.22
NJ316EM 80 170 39 2.1 2.1 101 288 278 3200 3800 91 98 113 159 2 2 4.32
NUP316M 80 170 39 2.1 103 217 246 3200 3800 91 113 159 2 2 4.58
NJ316M 80 170 39 2.1 2.1 103 217 246 3200 3800 91 98 113 159 2 2 4.47
NU316Q1 80 170 39 2.1 2.1 103 217 246 3200 3800 91 100 106 159 2 2 4.45
NU316M 80 170 39 2.1 2.1 103 217 246 3200 3800 91 100 106 159 150 2 2 4.37
NF316M 80 170 39 2.1 2.1 147 217 246 3200 3800 91 144 159 2 2 4.46
N316M 80 170 39 2.1 2.1 147 217 246 3200 3800 91 144 159 2 2 4.3
NJP3216X3M/P54 80 150 45 2 2 97 245 320 3800 4500 90 94 104 136 2 2 3.69
NJ3216X3M/P54 80 150 45 2 2 97 245 320 3800 4500 90 94 104 136 2 2 3.69
NU3216X2M/C9YA6 80 140 44.45 2 2 95.28 210 290 4000 4800 88 93 97 132 1.5 1.5 3.03
NU5216 80 140 44.45 2 2 95.28 220 305 4000 4800 88 93 97 132 1.5 1.5 3.03
NUP2216ENM-DFMC 80 140 33 2 95.3 210 260 4000 4800 89 98 131 2 2 2.24
NUP2216ENM 80 140 33 2 95.3 197 260 4000 4800 89 98 131 2 2 2.27
NUP2216E 80 140 33 2 95.3 204 235 4000 4800 89 104 131 2 2 2.13
N2216E 80 140 33 2 2 127.3 204 235 4000 4800 89 124 131 130 2 2 2.16
NU2216E 80 140 33 2 2 95.3 204 235 4000 4800 89 93 98 131 2 2 2.3
NJ2216E 80 140 33 2 2 95.3 204 235 4000 4800 89 93 104 131 2 2 2.34
NU2216EM 80 140 33 2 2 95.3 204 235 4000 4800 89 93 98 131 2 2 2.39
NJ2216M 80 140 33 2 2 95.3 152 226 4000 4800 89 93 104 131 2 2 2.35
NU2216M 80 140 33 2 2 59.3 152 195 4000 4800 89 93 98 131 2 2 2.32
NU216M-DT 80 140 26 2 2 95 127 154 4000 4800 89 93 98 131 2 2 1.69
NU216M-DT 80 140 26 2 2 95 120 144 4000 4800 89 93 98 131 2 2 1.65
NUP216ENRM/YA6 80 140 26 2 95.3 160 184 4000 4800 89 104 131 2 2 1.81
NUP216ENRJ/C3YA6 80 140 26 2 95.3 160 184 4000 4800 89 104 131 2 2 1.66
NJ216E 80 140 26 2 2 95.3 151 184 4000 4800 89 93 104 131 2 2 1.68
N216E 80 140 26 2 2 127.3 151 184 4000 4800 89 125 131 130 2 2 1.67
NUP216E 80 140 26 2 95.3 151 184 4000 4800 89 104 131 2 2 1.72
NU216ETN1/C9 80 140 26 2 2 95.3 151 184 4000 4800 89 93 98 131 2 2 1.48
NU216Q1 80 140 26 2 2 95 135 170 4000 4800 89 93 98 131 2 2 1.74
NU216E 80 140 26 2 2 95.3 151 184 4000 4800 89 93 98 131 2 2 1.65
NUP216M 80 140 26 2 95 127 154 4000 4800 89 104 131 2 2 1.77
NU216M 80 140 26 2 2 95 127 154 4000 4800 89 93 98 131 2 2 1.69
NJ216M 80 140 26 2 2 95 127 154 4000 4800 89 93 104 131 2 2 1.73
N216M 80 140 26 2 2 125 127 154 4000 4800 89 123 131 128 2 2 1.66
NF216M 80 140 26 2 2 125 127 154 4000 4800 89 131 2 2 1.72
NU1016M 80 125 22 1.1 1 91.5 95 122 5300 6300 85 90 94 118.5 1 1.1 1.21
N1016M 80 125 22 1.1 1 113.5 95 122 5300 6300 85 110 118.5 116.5 1 1.1 1
NUP417M 85 210 52 4 4 115.5 385 425 3000 3600 101 129 194 3 3 10.1
NJ417M 85 210 52 4 4 115.5 385 425 3000 3600 101 109 129 194 3 3 9.83 HJ417 0.4 14 23.73 4
NU417M 85 210 52 4 4 115.5 385 425 3000 3600 101 112 119 194 3 3 9.66 HJ417 0.4 14 23.73 4
N417M 85 210 52 4 4 179.5 385 425 3000 3600 101 176 194 183 3 3 9.48
NJ2317E 85 180 60 3 3 108 435 470 3000 3600 96 104 120 169 163 2.5 2.5 7.57
NU2317E 85 180 60 3 3 108 435 470 3000 3600 96 104 111 169 2.5 2.5 7.4
N2317E 85 180 60 3 3 160 435 470 3000 3600 96 157 169 2.5 2.5 7.44
NJ2317M 85 180 60 3 3 108 347 435 3000 3600 96 103 120 169 2.5 2.5 7.81 HJ2317 0.617 12 23.73 3
NU2317M 85 180 60 3 3 108 347 435 3000 3600 96 103 111 169 2.5 2.5 7.36 HJ2317 0.617 12 23.73 3
NJ317EM 85 180 41 3 3 108 325 330 3000 3600 98 105 111 167 2.5 2.5 5.27
NJ317E 85 180 41 3 3 108 325 330 3000 3600 98 105 120 167 2.5 2.5 5.21
N317EN1T 85 180 41 3 3 160 325 330 3000 3600 98 157 167 163 2.5 2.5 4.59
N317EM 85 180 41 3 3 160 325 330 3000 3600 98 157 167 163 2.5 2.5 5.2
N317EM/YA1-1 85 180 41 3 3 160 310 360 3000 3600 97 112 168 121 2.5 2.5 5.19
N317E/YA1 85 180 41 3 3 160 300 330 3000 3600 98 157 167 163 2.5 2.5 5.13
N317E 85 180 41 3 3 160 325 330 3000 3600 98 157 167 163 2.5 2.5 5.14
NU317EQ1 85 180 41 3 3 108 325 330 3000 3600 98 105 111 167 2.5 2.5 5.18
NU317ETN1 85 180 41 3 3 108 325 330 3000 3600 98 105 111 167 2.5 2.5 4.57
NUP317EM 85 180 41 3 3 108 295 336 3000 3600 98 111 167 2.5 2.5 5.32
NU317EM-DT 85 180 41 3 3 108 325 330 3000 3600 98 105 111 167 2.5 2.5 5.1
NU317EM 85 180 41 3 3 108 325 330 3000 3600 98 105 111 167 2.5 2.5 5.16
NU317E 85 180 41 3 3 108 325 330 3000 3600 98 105 111 167 2.5 2.5 5.12
NJ317EQ1 85 180 41 3 3 108 325 330 3000 3600 98 105 120 167 2.5 2.5 5.27
N317EQ1 85 180 41 3 3 160 325 330 3000 3600 98 157 167 163 2.5 2.5 5.2
NU3217X2M/C9YA6 85 150 49.21 2 3.5 102 240 330 3800 4500 94 100 104 141 1.5 1.5 3.88
NU5217XPC3 85 150 49.21 2 2 102 252 350 3800 4500 94 100 104 141 1.5 1.5 3.88
NU3217M/C3 85 150 49.2 2 2 102 223 310 3800 4500 94 98 103 141 2 2 3.88
NJ2217EM 85 150 36 2 2 100.5 240 270 3800 4500 98 110 141 2 2 2.86
NU2217ETN1/C9 85 150 36 2 2 100.5 240 270 3800 4500 94 98 103 141 2 2 2.42
NU2217EM 85 150 36 2 2 100.5 240 270 3800 4500 94 98 103 141 2 2 2.82
NU2217M/C3 85 150 36 2 2 101.8 195 265 3800 4500 94 98 103 141 2 2 2.8
NUP217EM 85 150 28 2 100.5 183 215 3800 4500 94 110 141 2 2 2.27
NJ217E 85 150 28 2 2 100.5 183 215 3800 4500 94 98 110 141 2 2 2.12
NU217E 85 150 28 2 2 100.5 183 215 3800 4500 94 98 103 141 2 2 2.08
N217E 85 150 28 2 2 136.5 183 215 3800 4500 94 134 141 139 2 2 2.08
NJ217M 85 150 28 2 2 101.8 143 175 3800 4500 94 98 110 141 2 2 2.15
NU217M/W124 85 150 28 2 2 101.8 143 175 3800 4500 94 98 103 141 2 2 2.09
NU217M 85 150 28 2 2 101.8 143 175 3800 4500 94 98 103 141 2 2 2.09
N217M 85 150 28 2 2 133.8 143 175 3800 4500 94 132 141 139 2 2 2.08
NJ1017TN1/C9YA6 85 130 22 1.1 1.1 96.5 89 109 5000 6000 90 95 99 122 1.1 1.1 0.972
NJ418M/C5 90 225 54 4 4 123.5 430 480 2800 3400 106 120 140 209 3 3 11.9
NU418M 90 225 54 4 4 123.5 430 480 2800 3400 106 120 126 209 3 3 11.5
N418M 90 225 54 4 4 191.5 430 480 2800 3400 106 188 209 195 3 3 11.3
NU2318EM 90 190 64 3 3 113.5 450 560 2800 3400 103 110 118 177 2.5 2.5 9.05
NU2318E 90 190 64 3 3 113.5 480 520 2800 3400 103 110 118 177 2.5 2.5 8.69
NJ2318E 90 190 64 3 3 113.5 480 520 2800 3400 103 110 127 177 2.5 2.5 8.84
NUP2318M 90 190 64 3 115 400 505 2800 3400 103 110 127 177 2.5 2.5 9.36
NJ2318M/C4 90 190 64 3 3 115 400 505 2800 3400 103 110 127 177 2.5 2.5 9.29
NH318EQ1/YB2 90 190 43 3 3 113.5 350 345 2800 3400 103 110 127 177 2.5 2.5 6.64
NU318E 90 190 43 3 3 113.5 350 345 2800 3400 103 110 116 177 2.5 2.5 5.84
NUP318E 90 190 43 3 113.5 350 345 2800 3400 103 127 177 2.5 2.5 6.05
NJ318E 90 190 43 3 3 113.5 350 345 2800 3400 103 110 127 177 2.5 2.5 6.09
N318E 90 190 43 3 3 169.5 350 345 2800 3400 103 166 177 173 2.5 2.5 5.93
NU318ETN1 90 190 43 3 3 113.5 350 345 2800 3400 103 110 116 177 2.5 2.5 5.36
NU318EM-DT 90 190 43 3 3 113.5 335 385 2800 3400 103 110 116 177 2.5 2.5 5.99
NU318EM 90 190 43 3 3 113.5 350 345 2800 3400 103 110 116 177 2.5 2.5 5.9
N318EM 90 190 43 3 3 169.5 350 345 2800 3400 103 166 177 173 2.5 2.5 5.99
NJ318M/C4YA8 90 190 43 3 3 113.5 274 315 2700 3300 103 110 127 177 2.5 2.5 6.37
NUP318M 90 190 43 3 115 274 315 2800 3400 103 127 177 2.5 2.5 6.33
NJ318M 90 190 43 3 3 115 274 315 2800 3400 103 110 127 177 2.5 2.5 6.19
NU318Q1 90 190 43 3 3 115 274 315 2800 3400 103 112 118 177 2.5 2.5 5.88
NU318M 90 190 43 3 3 115 274 315 2800 3400 103 112 118 177 2.5 2.5 6.06
N318M 90 190 43 3 3 168 274 315 2800 3400 103 162 177 168 2.5 2.5 6.05
NF318M 90 190 43 3 3 165 274 315 2800 3400 103 177 168 2.5 2.5 6.21
NF318 90 190 43 3 3 165 274 295 2800 3400 103 177 168 2.5 2.5 5.78
NU3218M/C9YA6 90 160 52.4 2 3.5 107.218 280 390 3600 4300 95 105 110 151 1.5 1.5 4.5
NU5218/C9YA6 90 160 52.4 2 3.5 107.218 280 390 3200 3800 95 105 110 151 1.5 1.5 4.5
NU5218XPC3 90 160 52.4 2 2 107.218 280 390 3200 3800 95 105 110 151 1.5 1.5 4.5
NU3218A 90 160 52.4 2 2 107.218 280 390 3600 4300 99 104 110 151 2 2 4.5
NUP2218EM 90 160 40 2 107 270 300 2800 3400 104 117 149 2 2 3.59
NUP2218F2-2Z/C9S2YAD 90 160 40 2 107 270 300 2800 3400 100 105 110 150 2.5 2.5 3.45
NU2218ETN1 90 160 40 2 2 107 270 300 2800 3400 100 105 110 150 2.5 2.5 3.12
NU2218EM/C9 90 160 40 2 2 107 235 300 2800 3400 99 105 110 150 2.5 2.5 3.53
NU2218EM 90 160 40 2 2 107 235 300 2800 3400 99 105 110 150 2.5 2.5 3.53
NUP2218EM 90 160 40 2 107 270 300 3600 4300 99 117 151 2 2 3.68
N2218M 90 160 40 2 2 143 215 285 3600 4300 99 105 158 151 2 2 3.62
NU218M-DT 90 160 30 2 2 107 170 205 3600 4300 99 104 110 151 2 2 2.66
NU218EM-DT-1 90 160 30 2 2 107 170 205 3600 4300 99 104 110 151 2 2 2.66
NU218EM-DT 90 160 30 2 2 107 170 205 3600 4300 99 104 110 151 2 2 2.58
NU218EM 90 160 30 2 2 107 170 205 3600 4300 99 104 110 151 2 2 2.66
NUP218M 90 160 30 2 107 165 195 3600 4300 99 110 151 2 2 2.81
NU218M-DT 90 160 30 2 2 107 165 195 3600 4300 99 104 110 151 2 2 2.57
NJ218EM 90 160 30 2 2 107 185 225 3600 4300 99 104 117 151 2 2 2.65
NJ218E 90 160 30 2 2 107 200 215 3600 4300 99 104 117 151 2 2 2.54
NU218E 90 160 30 2 2 107 200 215 3600 4300 99 104 110 151 2 2 2.49
NU218ETN1/C9 90 160 30 2 2 107 200 215 3600 4300 99 104 110 151 2 2 2.26
N218E 90 160 30 2 2 145 200 215 3600 4300 99 142 151 148 2 2 2.49
NF218E 90 160 30 2 2 145 200 215 3600 4300 99 151 148 2 2 2.55
NJ218M 90 160 30 2 2 107 170 205 3600 4300 99 104 117 151 2 2 2.72
NU218M/W124 90 160 30 2 2 107 170 205 3600 4300 99 104 110 151 2 2 2.66
NU218M 90 160 30 2 2 107 170 205 3600 4300 99 104 110 151 2 2 2.66
N218M 90 160 30 2 2 143 170 205 3600 4300 99 140 151 148 2 2 2.64
NF218M 90 160 30 2 2 143 170 205 3600 4300 99 151 148 2 2 2.71
N218J1 90 160 30 2 2 143 165 195 3600 4300 99 140 151 148 2 2 2.47
N218J 90 160 30 2 2 143 165 195 3600 4300 99 140 151 148 2 2 2.37
NU1018M 90 140 24 1.5 1.1 103 90 115 3600 4300 96.5 99 106 132 1.1 1.5 1.34
NUP1018M 90 140 24 1.5 1.1 103 90 115 3600 4300 96.5 106 132 1.1 1.5 1.4
NJ1018M 90 140 24 1.5 1.1 103 90 115 3600 4300 96.5 101 106 132 1.1 1.5 1.38
NUP419M 95 240 55 4 133.5 455 525 2600 3200 111 150 224 3 3 14.2
NJ419M 95 240 55 4 4 133.5 455 525 2600 3200 111 130 150 224 3 3 13.9 HJ419 1.35 15 25.23 4
NU419M 95 240 55 4 4 133.5 455 525 2600 3200 111 130 136 224 3 3 13.6 HJ419 1.35 15 25.23 4
N419M 95 240 55 4 4 201.5 455 525 2600 3200 111 198 224 205 3 3 13.3
N2319E 95 200 67 3 3 177.5 510 560 2600 3200 108 116 187 181 2.5 2.5 9.76
NJ2319E 95 200 67 3 3 121.5 510 560 2600 3200 108 116 135 187 2.5 2.5 9.77
NU2319ETN1/C9 95 200 67 3 3 121.5 510 560 2600 3200 108 116 124 187 2.5 2.5 9.4
NU2319E 95 200 67 3 3 121.5 510 560 2600 3200 108 116 124 187 2.5 2.5 9.84
NJ2319M/W20 95 200 67 3 3 121.5 435 565 2600 3200 108 116 135 187 2.5 2.5 10.2 HJ2319 0.864 13 26.23 3
NJ2319M/C4W124YA8 95 200 67 3 3 121.5 435 565 2600 3200 108 116 135 187 2.5 2.5 10.1 HJ2319 0.864 13 26.23 3
NJ2319M/YA8 95 200 67 3 3 121.5 435 565 2600 3200 108 116 135 187 2.5 2.5 10.1 HJ2319 0.864 13 26.23 3
NJ2319M 95 200 67 3 3 121.5 435 565 2600 3200 108 116 135 187 2.5 2.5 10.2 HJ2319 0.864 13 26.23 3
NU2319M 95 200 67 3 3 121.5 435 565 2600 3200 108 116 124 187 2.5 2.5 10.3 HJ2319 0.864 13 26.23 3
NU2319Q1 95 200 67 3 3 121.5 435 565 2600 3200 108 116 124 187 2.5 2.5 9.86 HJ2319 0.864 13 26.23 3
NU319EM-DT 95 200 45 3 3 121.5 375 375 2600 3200 108 118 124 187 2.5 2.5 6.73
NU319E 95 200 45 3 3 121.5 375 375 2600 3200 108 118 124 187 2.5 2.5 6.74
NJ319E 95 200 45 3 3 121.5 375 375 2600 3200 108 118 135 187 2.5 2.5 6.86
N319ETN1 95 200 45 3 3 177.5 375 375 2600 3200 108 174 187 181 2.5 2.5 6.31
N319E 95 200 45 3 3 177.5 375 375 2600 3200 108 174 187 181 2.5 2.5 6.92
NU319EM/W124 95 200 45 3 3 121.5 375 375 2600 3200 108 118 124 187 2.5 2.5 6.68
N319EM 95 200 45 3 3 177.5 375 375 2600 3200 108 174 187 181 2.5 2.5 7
NU319EM/Z1 95 200 45 3 3 121.5 375 375 2600 3200 108 118 124 187 2.5 2.5 6.68
NJ319M 95 200 45 3 3 121.5 295 340 2600 3200 108 118 133 187 2.5 2.5 7.06
NU319M 95 200 45 3 3 121.5 295 340 2600 3200 108 118 124 187 2.5 2.5 7
N319J 95 200 45 3 3 173.5 295 340 2600 3200 108 170 187 181 2.5 2.5 6.74
N319M 95 200 45 3 3 173.5 295 340 2600 3200 108 170 187 178 2.5 2.5 6.67
NU5219XPC3 95 170 55.56 2 3.5 113.612 305 445 3400 4000 107.5 112 116 161 3 2 5.48
NU3219X2M/C9YA6 95 170 55.56 2 3.2 113.612 305 445 3400 4000 107.5 112 116 161 3 2 5.48
NJ2219M 95 170 43 2.1 2.1 113.5 242 315 3200 3900 107 110 115 158 2 2 4.39
NU2219M 95 170 43 2.1 2.1 113.5 242 315 3200 3900 107 110 115 158 2 2 4.31
N2219M 95 170 43 2.1 2.1 151.5 242 315 3400 4000 106 152 159 157 2 2 4.27
NF219EM 95 170 32 2.1 2.1 154.5 245 255 3400 4000 106 152 159 157 2 2 3.23
N219EM 95 170 32 2.1 2.1 154.5 245 255 3400 4000 106 152 159 157 2 2 3.19
NJ219ETN1 95 170 32 2.1 2.1 112.5 245 255 3400 4000 106 110 123 159 2 2 2.86
NJ219EM 95 170 32 2.1 2.1 112.5 245 255 3400 4000 106 110 123 159 2 2 3.24
NJ219E 95 170 32 2.1 2.1 112.5 245 255 3400 4000 106 110 123 159 2 2 3.12
NU219ETN1/C9 95 170 32 2.1 2.1 112.5 245 255 3400 4000 106 110 115 159 2 2 2.8
NU219E 95 170 32 2.1 2.1 112.5 245 255 3400 4000 106 110 115 159 2 2 3.06
N219E 95 170 32 2.1 2.1 154.5 245 255 3400 4000 106 152 159 157 2 2 3.07
N219EJ 95 170 32 2.1 2.1 154.5 245 255 3400 4000 106 152 159 157 2 2 2.91
NJ219M 95 170 32 2.1 2.1 113.5 190 230 3400 4000 106 110 123 159 2 2 3.23
NU219M/W124 95 170 32 2.1 2.1 113.5 190 230 3400 4000 106 110 116 159 2 2 3.13
NU219M 95 170 32 2.1 2.1 113.5 190 230 3400 4000 106 110 116 159 2 2 3.13
N219M 95 170 32 2.1 2.1 151.5 190 230 3400 4000 106 149 159 157 2 2 3.07
NU1019MA/C3S1 95 145 25 1.5 1.1 109 116 166 4500 5300 101.6 104 116 137 1.6 2 1.5
NJ1019M 95 145 24 1.5 1.1 108 115 165 4500 5300 101.5 104 116 137 1.1 1.5 1.53
NJ2220X4M/P63 99.5 180 46 2.1 2.1 120 275 385 3200 3800 111 116 130 169 2 2 5.42
NJ420M 100 250 58 4 4 139 505 590 2400 3000 116 135 156 234 3 3 15.9
NU420M 100 250 58 4 4 139 505 590 2400 3000 116 135 142 234 3 3 15.5
N420M 100 250 58 4 4 211 505 590 2400 3000 116 208 234 215 3 3 15.4
NF3320Q1 100 215 82.6 3 3 185.5 560 760 2400 3000 113 202 195 2.5 2.5 15.6
NU2320EMA 100 215 73 3 3 127.5 645 760 2400 3000 113 124 130 202 2.5 2.5 13.4
NJ2320EQ1 100 215 73 3 3 127.5 645 760 2400 3000 113 142 202 2.5 2.5 12.9 HJ2320E 0.946 23.28 23.5 3
NJ2320E 100 215 73 3 3 127.5 645 760 2400 3000 113 124 142 202 2.5 2.5 12.9 HJ2320E 0.946 23.28 23.5 3
NU2320ETN1/C9 100 215 73 3 3 127.5 645 760 2400 3000 113 124 130 202 2.5 2.5 11.5 HJ2320E 0.946 23.28 23.5 3
NU2320EM/C9 100 215 73 3 3 127.5 645 760 2400 3000 113 124 130 202 2.5 2.5 13.8 HJ2320E 0.946 23.28 23.5 3
NU2320E 100 215 73 3 3 127.5 645 760 2400 3000 113 124 130 202 2.5 2.5 12.7 HJ2320E 0.946 23.28 23.5 3
N2320E 100 215 73 3 3 191.5 645 760 2400 3000 113 188 202 195 2.5 2.5 12.9
NJ2320M/C4W124YA8 100 215 73 3 3 129.5 480 625 2400 3000 113 125 142 202 2.5 2.5 13.5 HJ2320 0.98 13 27.23 3
NJ2320M/YA8 100 215 73 3 3 129.5 480 625 2400 3000 113 125 142 202 2.5 2.5 13.5 HJ2320 0.98 13 27.23 3
NJ2320M 100 215 73 3 3 129.5 480 625 2400 3000 113 125 142 202 2.5 2.5 13.5 HJ2320 0.98 13 27.23 3
NU2320M 100 215 73 3 3 129.5 480 625 2400 3000 113 125 133 202 2.5 2.5 13.2 HJ2320 0.98 13 27.23 3
N2320M 100 215 73 3 3 185.5 480 625 2400 3000 113 182 202 190 2.5 2.5 13.1
NJ320E 100 215 47 3 3 127.5 430 465 2400 3000 113 124 142 202 2.5 2.5 8.5 HJ320E 0.888 13 20.5 3
NU320EQ1 100 215 47 3 3 127.5 430 465 2400 3000 113 124 130 202 2.5 2.5 9.59 HJ320E 0.888 13 20.5 3
NU320EM/C9 100 215 47 3 3 127.5 430 465 2400 3000 113 124 130 202 2.5 2.5 9.67 HJ320E 0.888 13 20.5 3
NU320EM/W124 100 215 47 3 3 127.5 430 465 2400 3000 113 124 130 202 2.5 2.5 9.67 HJ320E 0.888 13 20.5 3
NU320EM 100 215 47 3 3 127.5 430 465 2400 3000 113 124 130 202 2.5 2.5 9.67 HJ320E 0.888 13 20.5 3
NU320E 100 215 47 3 3 127.5 430 465 2400 3000 113 124 130 202 2.5 2.5 8.35 HJ320E 0.888 13 20.5 3
N320EM 100 215 47 3 3 191.5 430 465 2400 3000 113 188 202 195 2.5 2.5 9.67
N320E 100 215 47 3 3 191.5 430 465 2400 3000 113 188 202 195 2.5 2.5 8.24
NJ320EQ1/HA 100 215 47 3 3 127.5 390 410 2400 3000 113 124 142 202 2.5 2.5 9.59 HJ320E 0.888 13 20.5 3
NH320EQ1/HAYB2 100 215 47 3 3 128.925 350 410 2400 3000 113 124 142 202 2.5 2.5 9.69
A-0320-22 100 215 47 3.6 4 130.19 350 420 2400 3000 113 124 142 202 2.3 2.3 9.15
NU320M-DT 100 215 47 3 3 129.5 335 400 2400 3000 113 120 202 2.5 2.5 8.55 HJ320 0.867 13 22.5 3
NUP320M 100 215 47 3 129.5 335 400 2400 3000 113 142 202 2.5 2.5 9.05
NH320M 100 215 47 3 3 129.5 335 400 2400 3000 113 124 142 202 2.5 2.5 9.64
NU320Q1 100 215 47 3 3 129.5 335 400 2400 3000 113 124 132 202 2.5 2.5 8.78 HJ320 0.867 13 22.5 3
NJ320EM 100 215 47 3 3 127.5 390 440 2400 3000 113 124 142 202 2.5 2.5 9.82 HJ320E 0.888 13 20.5 3
NU3220X2M/C9YA6 100 180 60.32 2.1 4.5 121.099 345 495 3200 3800 115 119 123 170 2 2 7.69
NU5220XPC3 100 180 60.32 2.1 4 121.099 358 515 3200 3800 115 119 123 170 2 2 7.69
NU3220M/P59YAD 100 180 60.3 2.1 3×45° 120 208 256 3200 3800 121 140 147 244 3 3 7.06
NU3220Q1/P691YAD-XD 100 180 60.3 2.1 3×45° 120.8 335 440 3200 3800 121 140 147 244 3 3 7.17
NJP3220TN1/HG2P54 100 180 60.3 2.1 2.1 119 335 440 3200 3800 121 140 147 244 3 3 5.98
NU3220M/C3 100 180 60.3 2.1 2.1 120 208 256 3200 3800 121 140 147 244 3 3 6.81
NU2220ETN1 100 180 46 2.1 2.1 119 365 470 3200 3800 111 116 122 169 2 2 4.69
NU2220EM/YA8 100 180 46 2.1 2.1 119 365 470 3200 3800 111 116 122 169 2 2 5.28
NU2220EM 100 180 46 2.1 2.1 119 320 420 3200 3800 111 116 122 169 2 2 5.24
NU2220E 100 180 46 2.1 2.1 119 365 470 3200 3800 111 116 122 169 2 2 5.08
NU2220M 100 180 46 2.1 2.1 120 275 385 3200 3800 111 116 122 169 2 2 5.2
NJ2220M 100 180 46 2.1 2.1 120 275 385 3200 3800 111 116 130 169 2 2 5.86
NJP2220M/P63 100 180 46 2.1 2.1 120 275 385 3200 3800 111 116 130 169 2 2 5.38
NUP2220M 100 180 46 2.1 120 275 385 3200 3800 111 116 130 169 2 2 5.49
N2220M 100 180 46 2.1 2.1 160 275 385 3200 3800 111 116 169 166 2 2 5.25
NU220M-DT 100 180 34 2.1 2.1 120 208 256 3200 3800 111 116 123 169 2 2 3.52
NU220M/C9YA1 100 180 34 2.1 2.1 120 208 256 3200 3800 111 116 123 169 2 2 3.52
NU220M-DT 100 180 34 2.1 2.1 120 195 240 3200 3800 111 116 123 169 2 2 3.03
NUP220M 100 180 34 2.1 120 231 240 3200 3800 112 130 168 2 2 3.71
NUP220ETN1 100 180 34 2.1 119 275 330 3200 3800 111 130 169 2 2 3.54
NUP220E 100 180 34 2.1 119 275 330 3200 3800 111 130 169 2 2 3.9
NJ220ETN1 100 180 34 2.1 2.1 119 275 330 3200 3800 111 116 130 169 2 2 3.45
NJ220E 100 180 34 2.1 2.1 119 275 330 3200 3800 111 116 130 169 2 2 3.81
NU220ETN1/C9 100 180 34 2.1 2.1 119 275 330 3200 3800 111 116 122 169 2 2 3.39
NU220ETN1 100 180 34 2.1 2.1 119 275 330 3200 3800 111 116 122 169 2 2 3.39
NU220E 100 180 34 2.1 2.1 119 275 330 3200 3800 111 116 122 169 2 2 3.75
N220ETN1 100 180 34 2.1 2.1 163 275 330 3200 3800 111 160 169 166 2 2 3.75
N220E 100 180 34 2.1 2.1 163 275 330 3200 3800 111 160 169 166 2 2 3.77
NU220Q1 100 180 34 2.1 2.1 120 208 256 3200 3800 111 116 123 169 2 2 3.57
NU220M/W124 100 180 34 2.1 2.1 120 208 256 3200 3800 111 116 123 169 2 2 3.52
NU220M 100 180 34 2.1 2.1 120 208 256 3200 3800 111 116 123 169 2 2 3.52
NJ220EM 100 180 34 2.1 2.1 265 330 3200 3800 111 116 130 169 2 2 3.93
NJ220M 100 180 34 2.1 2.1 120 208 256 3200 3800 111 116 130 169 2 2 3.61
NF220M 100 180 34 2.1 2.1 160 208 256 3200 3800 111 169 163 2 2 3.55
N220M 100 180 34 2.1 2.1 160 208 256 3200 3800 111 157 169 163 2 2 3.45
NJ1020M 100 150 24 1.5 1.1 113 94.5 125 3600 4300 105 110 123 132 1.1 1.5 1.51
NU1920M 100 140 20 1.1 1.1 110 75.5 110 3600 4300 102 107 118 133 1.1 1.1 0.9
NJ421M/C5 105 260 60 4 4 144.5 560 655 2200 2800 121 217 136 244 3 3 17.6
NU421M 105 260 60 4 4 144.5 560 655 2200 2800 121 217 136 244 3 3 17.3
N421M 105 260 60 4 4 220.5 560 655 2200 2800 121 151 244 224 3 3 17.2
N3321 105 225 87.3 3 3 196 660 910 2200 2800 116 193 208 199 2.5 2.5 18.3
NU321EM/C9 105 225 49 3 3 133 480 525 2200 2800 118 217 136 212 2.5 2.5 10.6
NU321EM 105 225 49 3 3 133 480 525 2200 2800 118 217 136 212 2.5 2.5 10.6
NJ321EM 105 225 49 3 3 133 480 525 2200 2800 118 130 148 212 2.5 2.5 10.7
N321EM 105 225 49 3 3 201 480 525 2200 2800 118 130 212 203 2.5 2.5 10.5
NU3221M/C3 105 190 65.1 2.1 2.1 126.8 350 500 3000 3600 116 122 128 179 2 2 8.22
NU221EM 105 190 36 2.1 2.1 125 290 315 3000 3600 116 128 137 179 2 2 4.33
NU221EM/C9 105 190 36 2.1 2.1 125 290 315 3000 3600 116 128 137 179 2 2 4.42
NJ221EM 105 190 36 2.1 2.1 125 290 315 3000 3600 116 128 137 179 2 2 4.52
NU221M/W124 105 190 36 2.1 2.1 126.8 225 285 3000 3600 116 128 137 179 2 2 4.25
NJ221M 105 190 36 2.1 2.1 126.8 225 285 3000 3600 116 128 137 179 2 2 4.34
N221M 105 190 36 2.1 2.1 168.8 225 285 3000 3600 116 121 179 172 2 2 4.33
NJ1021M 105 160 26 2 1.1 119.5 110 152 4000 4800 111.5 116 114 151 2 1 1.95
N1021M 105 160 26 1.1 2 145.5 120 170 4000 4800 111.5 166 151 149 2 1.1 1.85
NF1021M 105 160 26 2 2.1 145.5 120 170 4000 4800 111.5 141 151 149 2 2 1.93
NA6/107X4/C9 107.95 165.1 57.15 2.5 2.5 127 285 590 3000 3600 114 121 125 155 2 2 5.11
NJ422Q1/P69S0 110 280 65 4 4 155 615 725 2000 2600 126 129 174 264 3 3 22.5
NJ422M 110 280 65 4 4 155 615 725 2000 2600 126 129 174 264 3 3 22.3
NU422M 110 280 65 4 4 155 615 725 2000 2600 126 150 158 264 3 3 22
N422M 110 280 65 4 4 235 615 725 2000 2600 126 150 264 240 3 3 21.8
FL-NU2322EM/P6 110 240 80 3 3 143 750 865 2000 2600 123 138 146 227 2.5 2.5 18.6
N2322E 110 240 80 3 3 211 750 865 2000 2600 123 138 227 215 2.5 2.5 17.5
NU2322E 110 240 80 3 3 143 750 865 2000 2600 123 138 146 227 2.5 2.5 17.6 HJ2322E 1.31 14 26.22 3
NU2322M/C9 110 240 80 3 3 143 750 865 2000 2600 123 133 146 227 2.5 2.5 18.3 HJ2322E 1.31 14 26.22 3
NU2322EM 110 240 80 3 3 143 750 865 2000 2600 123 138 146 227 2.5 2.5 18.3 HJ2322E 1.31 14 26.22 3
NJ2322EM 110 240 80 3 3 143 750 865 2000 2600 123 138 159 227 2.5 2.5 18.7 HJ2322E 1.31 14 26.22 3
NJ2322EM/YA8 110 240 80 3 3 143 750 865 2000 2600 123 138 159 227 2.5 2.5 18.8 HJ2322E 1.31 14 26.22 3
NU2322EQ1 110 240 80 3 3 143 750 865 2000 2600 123 138 146 227 2.5 2.5 17.6 HJ2322E 1.31 14 26.22 3
NU322EQ1/C9 110 240 50 3 3 143 510 520 2000 2600 123 139 146 227 2.5 2.5 11.8 HJ322E 1.25 14 22 3
NU322E 110 240 50 3 3 143 510 520 2000 2600 123 139 146 227 2.5 2.5 11.3 HJ322E 1.25 14 22 3
NJ322E 110 240 50 3 3 143 510 520 2000 2600 123 139 159 227 2.5 2.5 11.4 HJ322E 1.25 14 22 3
N322E 110 240 50 3 3 211 510 520 2000 2600 123 204 227 215 2.5 2.5 11.2
NU322EM/W124 110 240 50 3 3 143 510 520 2000 2600 123 139 146 227 2.5 2.5 11.5 HJ322E 1.25 14 22 3
NU322ETN1/C9 110 240 50 3 3 143 510 520 2000 2600 123 139 146 227 2.5 2.5 10.4 HJ322E 1.25 14 22 3
NU322EM 110 240 50 3 3 143 510 520 2000 2600 123 139 146 227 2.5 2.5 11.5 HJ322E 1.25 14 22 3
N322EM 110 240 50 3 3 211 510 520 2000 2600 123 204 227 215 2.5 2.5 11.4
NUP322M 110 240 50 3 143 430 515 2000 2600 123 230 159 227 2.5 2.5 10.3
NU322Q1 110 240 50 3 3 143 430 515 2000 2600 123 146 227 2.5 2.5 11.6
NU322M 110 240 50 3 3 143 430 515 2000 2600 123 139 146 227 2.5 2.5 11.6
NJ322M 110 240 50 3 3 143 430 515 2000 2600 123 139 159 227 2.5 2.5 11.8
N322M 110 240 50 3 3 207 430 515 2000 2600 123 139 227 210 2.5 2.5 11.4
NU322M-DT 110 240 50 3 3 143 410 480 2000 2600 123 139 146 227 2.5 2.5 11.6 HJ322E 1.25 14 22 3
N322 110 240 50 3 3 207 410 480 2000 2600 123 208 227 210 2.5 2.5 10.2
NU3222M/C3 110 200 69.8 2.1 2.1 132.5 450 655 2800 3400 121 129 135 189 2 2 9.92
NU2222ETN1/C9 110 200 53 2 2 132 420 520 2800 3400 121 145 189 2 2 6.57
NJ2222M 110 200 53 2.1 2.1 132 352 470 2800 3400 121 138 145 189 2 2 7.83
NU2222M 110 200 53 2.1 2.1 132 352 470 2800 3400 121 129 135 189 2 2 7.63
NUP2222M 110 200 53 2.1 132 352 470 2800 3400 121 145 189 2 2 7.95
NJ222E 110 200 38 2.1 2.1 132.5 320 350 2800 3400 121 204 145 189 2 2 5.02
NU222E 110 200 38 2.1 2.1 132.5 320 350 2800 3400 121 129 135 189 2 2 5.12
N222E 110 200 38 2.1 2.1 180.5 320 350 2800 3400 121 177 189 183 2 2 5.11
NJ222EM 110 200 38 2.1 2.1 132.5 320 350 2800 3400 121 204 145 189 2 2 5.38
N222EM 110 200 38 2.1 2.1 180.5 320 350 2800 3400 121 129 189 183 2 2 5.27
NU222EM/CNM-DT 110 200 38 2.1 2.1 132.5 300 360 2800 3400 121 129 135 189 2 2 5.32
NU222EM/C9 110 200 38 2.1 2.1 132.5 320 350 2800 3400 121 129 189 183 2 2 5.28
NU222M 110 200 38 2.1 2.1 132.5 270 335 2800 3400 121 129 135 189 2 2 5.05
NU222M/W124 110 200 38 2.1 2.1 132.5 270 335 2800 3400 121 129 135 189 2 2 5.05
NJ222M 110 200 38 2.1 2.1 132.5 270 335 2800 3400 121 129 145 189 2 2 5.1
N222M 110 200 38 2.1 2.1 178.5 270 335 2800 3400 121 129 189 181 2 2 5.02
NF222M 110 200 38 2.1 2.1 178.5 255 315 2800 3400 121 129 189 181 2 2 5.17
NU222Q1 110 200 38 2.1 2.1 132.5 255 315 2800 3400 121 129 135 189 2 2 5.36
NU222M/YA8 110 200 38 2.1 2.1 132.5 255 315 2800 3400 121 129 135 189 2 2 5.3
N222J 110 200 38 2.1 2.1 178.5 255 315 2800 3400 121 175 189 181 2 2 4.7
NUP1022TN1/C9YB2 110 170 28 2 125 140 195 3800 4500 116 135 161 2 2 2.17
NUP1022M 110 170 28 2 125 140 195 3800 4500 116 135 161 2 2 2.45
NJ1022M 110 170 28 2 1.1 125 140 195 3800 4500 116.5 175 128 161 1.1 2 2.39
NU1022M 110 170 28 2 1.1 125 140 195 3800 4500 116.5 175 128 161 1.1 2 2.32
N1022M 110 170 28 1.1 2 155 140 195 3800 4500 116.5 123 161 157 2 1.1 2.31
NJ424M 120 310 72 5 5 170 770 915 1900 2400 140 165 191 290 4 4 29.7
NU424Q1 120 310 72 5 5 170 770 915 1900 2400 140 165 173 290 4 4 28.8
NU424M 120 310 72 5 5 170 770 915 1900 2400 140 165 173 290 4 4 29.1
N424M 120 310 72 5 5 260 770 915 1900 2400 140 254 290 266 4 4 29
NF3324Q1 120 260 106 3 3 230 990 1380 1900 2400 133 149 170 247 2.5 2.5 29.9
N3324X2M 120 260 104.775 3 3 230 910 1240 1900 2400 133 226 247 234 2.5 2.5 28
FL-NJ2324EQ1A/C3 120 260 86 3 3 154 860 1040 1900 2400 133 149 170 247 2.5 2.5 31
FL-NJ2324EQ1A 120 260 86 3 3 154 860 1040 1900 2400 133 149 170 247 2.5 2.5 31
NJ2324M/C4W124YA8-1 120 260 86 3 3 154 780 1040 1900 2400 133 149 170 247 2.5 2.5 23.7 HJ2324 1.52 14 27.72 3
NJ2324M/C4YA8 120 260 86 3 3 154 780 1040 1900 2400 133 149 170 247 2.5 2.5 24.6 HJ2324 1.52 14 27.72 3
NJ2324M 120 260 86 3 3 154 735 970 1900 2400 133 149 170 247 2.5 2.5 23.6 HJ2324 1.52 14 27.72 3
NJ2324EM/YA8-2 120 260 86 3 3 154 810 1060 1900 2400 132 147 162 248 2.5 2.5 23.5
NJ2324M/YA8-1 120 260 86 3 3 154 780 1040 1900 2400 133 149 170 247 2.5 2.5 23.7 HJ2324 1.52 14 27.72 3
NU2324EM/YA1 120 260 86 3 3 154 670 970 1900 2400 132 147 162 248 2.5 2.5 23.1
NU2324EM 120 260 86 3 3 154 670 970 1900 2400 132 147 162 248 2.5 2.5 23.1
NU2324M 120 260 86 3 3 154 735 970 1900 2400 133 149 157 247 2.5 2.5 23.1 HJ2324 1.52 14 27.72 3
N2324M 120 260 86 3 3 226 735 970 1900 2400 133 223 247 229 2.5 2.5 22.9
NU324M-DT 120 260 55 3 3 154 490 710 1900 2400 133 150 157 247 2.5 2.5 15
NU324L3-DT 120 260 55 3 3 154 490 710 1900 2400 133 150 157 247 2.5 2.5 14.9
NU324L3-DT/YB2 120 260 55 3 3 154 490 710 1900 2400 133 150 157 247 2.5 2.5 14.3
NU324M-DT/YB2 120 260 55 3 3 154 490 710 1900 2400 133 150 157 247 2.5 2.5 15
NJ324E 120 260 55 3 3 154 594 710 1900 2400 133 150 171 247 2.5 2.5 16
NU324ETN1/C9 120 260 55 3 3 154 590 710 1900 2400 133 150 157 247 2.5 2.5 14.6
NU324E 120 260 55 3 3 154 595 710 1900 2400 133 150 157 247 2.5 2.5 15.8
N324E 120 260 55 3 3 230 540 710 1900 2400 133 226 247 234 2.5 2.5 14.3
NU324EM 120 260 55 3 3 154 590 710 1900 2400 133 150 157 247 2.5 2.5 16.3
NUP324M 120 260 55 3 154 540 645 1900 2400 133 171 247 2.5 2.5 16
NJ324EQ1A/C9YA8 120 260 55 3 3 154 560 660 1900 2400 133 150 171 247 2.5 2.5 15.4
NJ324M 120 260 55 3 3 154 540 645 1900 2400 133 150 171 247 2.5 2.5 15.7
NU324Q1 120 260 55 3 3 154 540 645 1900 2400 133 150 157 247 2.5 2.5 15.2
NU324M/W124 120 260 55 3 3 154 540 645 1900 2400 133 150 157 247 2.5 2.5 15.4
NU324M 120 260 55 3 3 154 540 645 1900 2400 133 150 157 247 2.5 2.5 15.4
N324J 120 260 55 3 3 226 490 645 1900 2400 133 222 247 230 2.5 2.5 13.9
N324M 120 260 55 3 3 226 490 645 1900 2400 133 247 230 2.5 2.5 15.1
NF324M/YA8 120 260 55 3 3 226 460 600 2400 3000 133 222 247 230 2.5 2.5 14.3
NF324M 120 260 55 3 3 226 505 600 2400 3000 133 222 247 230 2.5 2.5 14.3
NJ624M 120 240 80 3.7 3.7 150 585 790 2400 3200 140 147 165 222 3 2.5 17.7
NU5224XPC3 120 215 76.2 5.1 2 145.14 550 845 2200 2800 135.6 142 148 204 2 4 12.6
NU3224X2M/C9YA6 120 215 76.2 5.3 2 145.14 515 780 2200 2800 135.6 142 148 204 2 4 12.6
NU3224M/C4 120 215 76 2.1 2.1 145.14 515 780 2400 3000 131 140 146 204 2 2 12.4
NU3224M 120 215 76 2.1 2.1 145.14 515 780 2400 3000 131 140 146 204 2 2 12.4
NJ2224E 120 215 58 2.1 2.1 143.5 500 605 2400 3000 131 140 156 204 2 2 9.15
NU2224ETN1/C9 120 215 58 2.1 2.1 143.5 500 605 2400 3000 131 140 146 204 2 2 8.33
NU2224ETN1 120 215 58 2.1 2.1 143.5 500 605 2400 3000 131 140 146 204 2 2 8.33
NU2224E 120 215 58 2.1 2.1 143.5 500 605 2400 3000 131 140 146 204 2 2 9
N2224E 120 215 58 2.1 2.1 195.5 500 605 2400 3000 131 192 204 199 2 2 9.15
NF2224EM 120 215 58 2.1 2.1 195.5 500 605 2400 3000 130 206 199 2 2 9.72
NJ2224EM 120 215 58 2.1 2.1 143.5 500 605 2400 3000 131 140 156 204 2 2 9.8
NJ2224M 120 215 58 2.1 2.1 143.5 395 550 2400 3000 131 139 156 204 2 2 9.46
NU2224M 120 215 58 2.1 2.1 143.5 395 550 2400 3000 131 139 146 204 2 2 9.31
N2224M 120 215 58 2.1 2.1 191.5 395 550 2400 3000 131 188 204 195 2 2 8.92
NU224EM/C9 120 215 40 2.1 2.1 143.5 375 420 2400 3000 131 140 146 204 2 2 6.74
NU224EM/W124 120 215 40 2.1 2.1 143.5 375 420 2400 3000 131 140 146 204 2 2 6.78
NU224EM 120 215 40 2.1 2.1 143.5 375 420 2400 3000 131 140 146 204 2 2 6.74
NU224EQ1 120 215 40 2.1 2.1 143.5 375 420 2400 3000 131 140 146 204 2 2 6.88
NUP224E 120 215 40 2.1 2.1 143.5 375 420 2400 3000 131 156 204 2 2 6.8
NJ224EM 120 215 40 2.1 2.1 143.5 375 420 2400 3000 131 156 204 2 2 6.68
NJ224E 120 215 40 2.1 2.1 143.5 375 420 2400 3000 131 156 204 2 2 6.67
NU224E 120 215 40 2.1 2.1 143.5 375 420 2400 3000 131 140 146 204 2 2 6.73
N224E 120 215 40 2.1 2.1 195.5 375 420 2400 3000 131 140 204 199 2 2 6.32
NU224EMA 120 215 40 2.1 2.1 143.5 375 420 2400 3000 131 192 146 204 2 2 6.92
NU224EM/CNM-DT 120 215 40 2.1 2.1 143.5 355 460 2400 3000 131 142 146 204 2 2 6.78
NU224M-DT 120 215 40 2.1 2.1 143.5 305 390 2400 3000 131 192 146 204 2 2 6.19
NU224M 120 215 40 2.1 2.1 143.5 305 390 2400 3000 131 192 146 204 2 2 6.27 HJ224 0.698 11 18.73 2.1
NJ224M 120 215 40 2.1 2.1 143.5 305 390 2400 3000 131 140 156 204 2 2 6.39 HJ224 0.698 11 18.73 2.1
N224M 120 215 40 2.1 2.1 191.5 305 390 2400 3000 131 140 204 195 6.11
NU224M/P59 120 215 40 2.1 2.1 143.5 290 210 2400 3000 131 140 146 204 2 2 6.27
N2224NM/YB2 120 215 58 2.1 2.1 191.5 400 550 2400 3000 130 145 205 196 2 2 8.86
NJP2224M 120 215 58 2.1 2.1 143.5 400 550 2400 3000 130 138 148 205 2 2 9.44
NJ1024M 120 180 28 2 1.1 135 145 205 3400 4000 126.5 188 144 171 1 2 3.09
NU1024MA 120 180 28 2 1.1 135 145 205 3400 4000 126.5 133 138 171 1 2 2.96
NU1024M 120 180 28 2 1.1 135 145 205 3400 4000 126.5 133 138 171 1 2 2.96
NF2924X1M 120 164 27 1.1 1.1 152 105 170 3400 4000 126 130 158 150 1 1 1.74
N6/127M/YAB 127 228.6 34.925 2 1.1 199.8 295 410 1900 2400 134 196 223 204 1.1 2 5.6
NJ3226X1K2 129 250 80 3 3.7 158 665 807 1800 2200 150 170 200 230 3 2.5 18.4
NJP3226X1K2 129 250 80 3 3.7 158 665 807 1800 2200 150 170 200 230 3 2.5 18.6
NJ3226X1K1 129.5 250 80 3 3.7 158 665 807 1800 2200 150 170 200 230 3 3 18.4
NJP3226X1K1 129.5 250 80 3 3.7 158 665 807 1800 2200 150 170 200 230 3 3 18.5
NJ426M 130 340 78 5 5 185 940 1110 1800 2200 150 180 195 320 4 4 40.4
NU426M 130 340 78 5 5 185 941 1110 1800 2200 150 180 190 320 4 4 39.5
A-0326-WAB-30-1 130 280.01 58.001 4.318 6.477 166.848 660 795 1800 2200 146 161 170 264 6 4 18.7
32626QTY 130 280 93 4 4 167 780 1060 1800 2200 146 161 170 264 3 3 29.3
NUP2326M 130 280 93 4 167 870 1180 1800 2200 146 185 264 3 3 29.5
NJ2326J 130 280 93 4 4 167 870 1180 1800 2200 146 161 185 264 3 3 30 HJ2326 1.8 14 29.17 4
NJ2326M/C4W124YA8-1 130 280 93 4 4 167 790 1180 1800 2200 146 161 185 264 3 3 29.1 HJ2326 1.8 14 29.17 4
NU2326EM/C9 130 280 93 4 4 167 900 1200 1800 2200 146 161 185 264 3 3 29.3 HJ2326E 1.79 14 27.69 4
NJ2326M 130 280 93 4 4 167 870 1180 1800 2200 146 161 185 264 3 3 29 HJ2326 1.8 14 29.17 4
N2326M 130 280 93 4 4 243 870 1180 1800 2200 146 240 264 246 3 3 29
NJ2326M/YA8-2 130 280 93 4 4 167 870 1180 1800 2200 146 161 185 264 3 3 29.4 HJ2326 1.8 14 29.17 4
NJ2326M/YA8 130 280 93 4 4 167 870 1180 1800 2200 146 161 185 264 3 3 30 HJ2326 1.8 14 29.17 4
NU2326M 130 280 93 4 4 167 870 1180 1800 2200 146 161 170 264 3 3 28.7 HJ2326 1.8 14 29.17 4
NJ326E 130 280 58 4 4 167 655 795 1800 2200 146 163 185 264 3 3 19
N326E 130 280 58 4 4 247 655 795 1800 2200 146 243 264 251 3 3 18.5
NU326E 130 280 58 4 4 167 655 795 1800 2200 146 163 170 264 3 3 18.7
NU326EM/W124 130 280 58 4 4 167 595 795 1800 2200 146 163 170 264 3 3 18.7
NJ326EM 130 280 58 4 4 247 595 795 1800 2200 146 243 264 251 3 3 19
N326EM 130 280 58 4 4 247 595 795 1800 2200 146 243 264 251 3 3 18.5
FL-NU326EMA 130 280 58 4 4 167 595 795 1800 2200 146 163 170 264 3 3 18.7
NJ326M 130 280 58 4 4 167 570 690 1800 2200 146 163 185 264 3 3 18.2
NU326Q1 130 280 58 4 4 167 570 690 1800 2200 146 163 170 264 3 3 17.9
NU326EM/W124 130 280 58 4 4 167 595 795 1800 2200 146 163 170 264 3 3 18.7
NU326M-DT 130 280 58 4 4 167 565 680 1800 2200 146 163 170 264 3 3 18
NU326M 130 280 58 4 4 167 570 690 1800 2200 146 163 170 264 3 3 17.9
N326M 130 280 58 4 4 243 570 690 1800 2200 146 239 264 247 3 3 17.8
NU326Q1/HAC9YA5 130 280 58 3 3 167 732 780 1800 2200 146 163 170 264 3 3 19
NJ3226X1K1 130 250 80 3 3 158 605 805 1800 2200 146 153 167 227 2.5 2.5 18.4
NJ3226X1TN1 130 250 80 3 3 158 665 805 1800 2200 146 153 167 227 2.5 2.5 16.8
NJP3226X1TN1 130 250 80 3 3 158 665 805 1800 2200 146 153 167 227 2.5 2.5 16.8
NJP3226X1SCTN 130 240 87 3 3 156 580 800 1800 2200 146 153 167 227 2.5 2.5 14.79
NJ3226X1SCTN 130 240 87 3 3 156 580 800 1800 2200 146 153 167 227 2.5 2.5 14.95
NJP3226X1WBM-1 130 240 85 3 3 158 655 975 1800 2200 146 153 167 227 2.5 2.5 17.3
NJ3226X1M-1 130 240 80 3 3 158 655 975 1800 2200 146 153 167 227 2.5 2.5 17
NU3226X2M/C9YA6 130 230 79.38 3 5.3 155 590 890 1800 2200 146 240 264 246 3.5 3 14.6
NJ2226EQ1 130 230 64 3 3 153.5 550 780 2200 2800 143 149 167 217 2.5 2.5 11.5
N2226M/YA1 130 230 64 3 3 204 430 625 2200 2800 143 200 217 209 2.5 2.5 11.6
NU2226EQ1 130 230 64 3 3 153.5 530 735 2200 2800 143 149 156 217 2.5 2.5 11.1
FL-NU2226EMA/C3 130 230 64 3 3 153.5 595 795 2200 2800 143 149 156 217 2.5 2.5 11.2
NU2226E 130 230 64 3 3 153.5 530 735 2200 2800 143 149 156 217 2.5 2.5 11.5
NUP2226M 130 230 64 3 156 430 625 2200 2800 143 167 217 2.5 2.5 12.2
NJ2226Q1 130 230 64 3 3 156 430 625 2200 2800 143 153 167 217 2.5 2.5 11.9
NJ2226M 130 230 64 3 3 156 430 625 2200 2800 143 153 167 217 2.5 2.5 11.9
NU2226M 130 230 64 3 3 156 430 625 2200 2800 143 153 159 217 2.5 2.5 11.8
N2226M 130 230 64 3 3 204 430 625 2200 2800 143 200 217 209 2.5 2.5 11.6
NF2226M 130 230 64 3 3 204 430 625 2200 2800 143 217 209 2.5 2.5 11.7
NU226EM/CNM-DT 130 230 40 3 3 153.5 375 465 2200 2800 143 153 159 217 2.5 2.5 7.25
NU226M-DT 130 230 40 3 3 156 315 415 2200 2800 143 153 159 217 2.5 2.5 7.12
NUP226E 130 230 40 3 153.5 400 465 2200 2800 143 167 217 2.5 2.5 7.49
NU226E 130 230 40 3 3 153.5 400 465 2200 2800 143 150 156 217 2.5 2.5 7.26
NJ226EM 130 230 40 3 3 153.5 400 465 2200 2800 143 150 167 217 2.5 2.5 7.66
NJ226E 130 230 40 3 3 153.5 400 465 2200 2800 143 150 167 217 2.5 2.5 7.38
NF226EM 130 230 40 3 3 209.5 340 420 2200 2800 143 206 217 213 2.5 2.5 7.57
N226E 130 230 40 3 3 209.5 400 465 2200 2800 143 206 217 213 2.5 2.5 7.09
NJ226EQ1 130 230 40 3 3 153.5 400 465 2200 2800 143 150 167 217 2.5 2.5 7.5
NU226EM/C9 130 230 40 3 3 153.5 400 465 2200 2800 143 150 156 217 2.5 2.5 7.54
NU226EQ1 130 230 40 3 3 153.5 400 465 2200 2800 143 150 156 217 2.5 2.5 7.38
NJ226M 130 230 40 3 3 156 315 415 2200 2800 143 153 167 217 2.5 2.5 7.32
NU226M/W124 130 230 40 3 3 156 315 415 2200 2800 143 153 159 217 2.5 2.5 7.54
NU226M 130 230 40 3 3 156 315 415 2200 2800 143 153 159 217 2.5 2.5 7.22
N226M 130 230 40 3 3 204 315 415 2200 2800 143 200 217 207 2.5 2.5 7.08
N226J 130 230 40 3 3 204 301 395 2200 2800 143 200 217 207 2.5 2.5 6.52
N2226NM/YB2 130 230 64 3 3 204 430 620 2200 2800 142 162 218 213 2.5 2.5 11.2
NJP2226Q1/C4S0 130 230 64 3 3 150 410 580 2200 2800 143 149 167 217 2.5 2.5 11.9
NJ2226X3TN1/HG2 130 220 62 2 2.1 150 528 675 2200 2800 143 149 167 217 2 2 8.69
NJP2226X3TN1/HG2 130 220 62 2 2.1 150 528 675 2200 2800 143 149 167 217 2 2 8.68
N2026X2EF6D-GX 130 200 46 2 2 183 2700 395 3000 3700 139 148 191 187 1 1 5.31
NU2026EMA 130 200 42 2 1.1 147 280 415 3000 3700 143 149 167 217 1.1 2 4.95
NJ1026M 130 200 33 2 1.1 148 190 274 3200 3800 136.5 145 151 191 1.1 2 4.61
NU1026M 130 200 33 2 1.1 148 190 274 3200 3800 136.5 145 151 191 1.1 2 4.66
N1026M 130 200 33 2 1.1 182 190 274 3200 3800 136.5 178 191 184 1.1 2 4.57
NA4926/C9 130 180 50 1.5 1.5 150 220 555 1900 2400 150 170 145 160 1.5 1.5 4.36
NJ428MA/YAD 140 360 82 6 6 196 950 1120 1800 2200 160 192 219 340 5 5 48.6
NJ428M 140 360 82 5 5 196 1010 1200 1800 2200 160 192 219 340 4 4 46.3
NJ2328M/W20 140 300 102 4 4 180 960 1310 1800 2200 156 176 199 284 3 3 34.8 HJ2328 2.34 15 33.17 3
NJ2328M 140 300 102 4 4 180 960 1310 1800 2200 156 176 199 284 3 3 34.8 HJ2328 2.34 15 33.17 3
NJ2328M/YA8 140 300 102 4 4 180 1000 1400 1800 2200 156 176 199 284 3 3 34.7 HJ2328 2.34 15 33.17 3
NU2328M 140 300 102 4 4 180 960 1310 1800 2200 156 176 183 284 3 3 33.6 HJ2328 2.34 15 33.17 3
NF2328M 140 300 102 4 4 260 960 1310 1800 2200 155 188 285 273 3 3 35
N2328M 140 300 102 4 4 260 960 1310 1800 2200 156 256 284 264 3 3 34.6
NU328M-DT 140 300 62 4 4 180 655 805 1800 2200 156 176 183 284 3 3 21.9 HJ328 1.2 15 25.69 4
NU328EM 140 300 62 4 4 180 715 880 1800 2200 156 176 183 284 3 3 21.8
NJ328Q1 140 300 62 4 4 180 655 805 1800 2200 156 176 199 284 3 3 22.1 HJ328 1.2 15 25.69 4
NUP328M 140 300 62 4 180 660 810 1800 2200 156 199 284 3 3 22.3
NU328Q1/S0 140 300 62 4 4 180 660 810 1800 2200 156 176 183 284 3 3 21.7 HJ328 1.2 15 25.69 4
NU328M 140 300 62 4 4 180 660 810 1800 2200 156 176 183 284 3 3 22.2 HJ328 1.2 15 25.69 4
NJ328M 140 300 62 4 4 180 660 810 1800 2200 156 176 199 284 3 3 22.6 HJ328 1.2 15 25.69 4
NF328M 140 300 62 3.7 3.7 260 655 805 1900 2400 156 284 264 3 3 21.8
N328M 140 300 62 4 4 260 660 810 1900 2400 156 256 284 264 3 3 21.9
NU2228MWB 140 250 100 3 3 169 506 755 2000 2600 153 164 172 237 2.5 2.5 16.2
NU3228X2M/C9YA6 140 250 82.5 5.1 3 168.46 640 980 2000 2600 155 166 172 237 3 4 18.3
NU5228XPC3 140 250 82.5 5.1 3 168.46 693 1060 2000 2600 155 166 172 237 3 4 18.3
NJ3228X2M 140 250 80 3 3 169 682 1040 2000 2600 153 164 183 237 2.5 2.5 17.8
N2228E 140 250 68 3 3 225 570 840 2000 2600 154 218 224 236 2.5 2.5 14.2
NU2228EM 140 250 68 3 3 169 570 840 2000 2600 153 164 172 237 2.5 2.5 14.3
NU2228E 140 250 68 3 3 169 572 840 2000 2600 153 164 172 237 2.5 2.5 14.2
NJ2228E 140 250 68 3 3 169 572 840 2000 2600 153 164 183 237 2.5 2.5 14.5
NJ2228M/C4YA8 140 250 68 3 3 169 517 770 2000 2600 153 164 183 237 2.5 2.5 15 HJ2228 1.13 11 24.68 3
NJ2228M 140 250 68 3 3 169 506 755 2000 2600 153 164 183 237 2.5 2.5 14.8 HJ2228 1.13 11 24.68 3
NU2228M 140 250 68 3 3 169 506 755 2000 2600 153 164 172 237 2.5 2.5 14.4 HJ2228 1.13 11 24.68 3
FL-NJ2228M/P6 140 250 68 3 3 169 480 700 2000 2600 153 164 183 237 2.5 2.5 14.8
FL-NU2228EMA/C3 140 250 68 3 3 169 574 836 2000 2600 153 164 172 237 2.5 2.5 14.2
NJ2228Q1/C4S0 140 250 68 3 3 169 510 755 2000 2600 153 164 183 237 2.5 2.5 15.1
NJP2228Q1/C4S0 140 250 68 3 3 169 510 755 2000 2600 153 183 237 2.5 2.5 15.1
NU2228EM 140 250 68 3 3 169 570 840 2000 2600 153 164 172 237 2.5 2.5 14.3
NJ228Q1 140 250 42 3 3 169 365 490 2000 2600 153 166 183 237 2.5 2.5 9.24
N228EM 140 250 42 3 3 225 400 530 2000 2600 153 221 237 232 2.5 2.5 9.19
NU228EM/CNM-DT 140 250 42 3 3 169 400 530 2000 2600 153 166 172 237 2.5 2.5 9.23
NU228M-DT 140 250 42 3 3 169 350 470 2000 2600 153 166 172 237 2.5 2.5 9.16
NU228EQ1 140 250 42 3 3 169 402 530 2000 2600 153 166 172 237 2.5 2.5 9.37
NU228EM/W124 140 250 42 3 3 169 400 530 2000 2600 150 167 171 237 2.5 2.5 9.23
NU228EM/C9 140 250 42 3 3 169 400 530 2000 2600 150 167 171 237 2.5 2.5 9.23
NU228EMA 140 250 42 3 3 169 400 530 2000 2600 150 167 171 237 2.5 2.5 9.11
NU228EM 140 250 42 3 3 169 400 530 2000 2600 150 167 171 237 2.5 2.5 9.23
NU228E 140 250 42 3 3 169 402 530 2000 2600 150 167 171 237 2.5 2.5 9.05
NJ228E 140 250 42 3 3 169 402 530 2000 2600 150 167 181 237 2.5 2.5 9.2
N228EM 140 250 42 3 3 225 400 530 2400 3000 152 221 237 232 2.5 2.5 9.19
N228E 140 250 42 3 3 225 402 530 2400 3000 153 221 237 232 2.5 2.5 9.01
NUP228M 140 250 42 3 169 363 490 2000 2600 153 183 237 2.5 2.5 9.51
NJ228M 140 250 42 3 3 169 363 490 2000 2600 153 166 183 237 2.5 2.5 9.38
NU228M 140 250 42 3 3 169 363 490 2000 2600 153 166 172 237 2.5 2.5 9.16
N228M 140 250 42 3 3 221 363 490 2400 3000 153 218 237 225 2.5 2.5 9.14
NCF228J 140 250 42 3 3 221 341 450 2000 2600 153 237 225 2.5 2.5 7.77
N228Q1 140 250 42 3 3 221 319 410 2400 3000 153 218 237 225 2.5 2.5 8.66
NU1128X3M 140 220 36 2.7 2.3 160 245 345 660 1300 151 157 163 209 2 2 5.03
NU3028M 140 210 53 2 1.1 158 358 630 2600 3400 147 154 162 200 1.1 2 7.64
NJ1028M 140 210 33 2 1.1 158 195 287 3000 3600 146.5 155 161 201 1.1 2 4.01
FL-NU1028M 140 210 33 2 1.1 158 183 263 3000 3600 146.5 155 161 201 1.1 2 3.89
NJ1028EM 140 210 33 2 1.1 157 220 320 3000 3600 146 153 149 201 2 1 4.17
NU1028M 140 210 33 2 1.1 158 183 263 3000 3600 146.5 155 161 201 1.1 2 3.89
NJ2928M 140 190 30 1.5 1.5 152 184 315 3000 3600 146.5 155 161 181 1.5 1.5 2.6
NF2928M 140 190 30 1.5 1.1 178 184 315 3000 3600 146.5 155 161 181 1.1 1.5 2.59
NU3/149X4Q1/HAYB2 149.959 320 65 3 3 190.144 880 950 1700 2000 166 189 196 304 3 3 26.7
NU3/149X4EM 149.959 320 65 3 3 189.796 864 930 1700 2000 166 189 196 304 3 3 26.4
NJ330X2EM 150 320 128 4 4 193 1320 1870 1400 1800 166 189 213 304 3 3 49.9
NJ3330M 150 320 128 4 4 193 1320 1880 1400 1800 166 189 213 304 3 3 49.9
FL-NU2330EMA/C3 150 320 108 4 4 193 1140 1570 1700 2000 166 189 196 304 3 3 42.6
N2330M 150 320 108 4 4 277 1030 1420 1700 2000 166 304 284 3 3 42.8
NJ2330M/C4W124YA8 150 320 108 4 4 193 1070 1480 1700 2000 166 186 213 304 3 3 43.2 HJ2330 2.8 15 33.67 3.7
NJ2330M/YA8 150 320 108 4 4 193 1070 1480 1700 2000 166 186 213 304 3 3 42.7 HJ2330 2.8 15 33.67 3.7
NJ2330M/YA8-1 150 320 108 4 4 193 1070 1480 1700 2000 166 186 213 304 3 3 42.7 HJ2330 2.8 15 33.67 3.7
NJ2330M 150 320 108 4 4 193 1030 1420 1700 2000 166 186 213 304 3 3 42.4 HJ2330 2.8 15 33.67 3.7
NU2330EMA 150 320 108 4 4 193 1140 1570 1700 2000 166 189 196 304 3 3 44.9 HJ2330E 2.64 15 31.19 4
NU2330MA 150 320 108 4 4 193 1141 1570 1700 2000 166 186 196 304 3 3 44.9 HJ2330 2.8 15 33.67 3.7
NU2330M 150 320 108 4 4 193 1070 1480 1700 2000 166 186 196 304 3 3 41.5 HJ2330 2.8 15 33.67 3.7
NF2330M 150 320 108 4 4 277 1070 1480 1700 2000 166 304 284 3 3 43.6
NUP2330M 150 320 108 4 193 1030 1420 1700 2000 166 213 304 3 3 43.1
NU330EWBM 150 320 108 4 4 193 814 1010 1700 2000 166 189 196 304 3 3 29.5
NU330EQ1/YB2 150 320 65 4 4 193 996 920 1700 2000 166 189 196 304 3 3 26.7
NJ330EM 150 320 65 4 4 193 814 1010 1700 2000 166 189 213 304 3 3 26.2
NU330EQ1/C9 150 320 65 4 4 193 814 1010 1700 2000 166 189 196 304 3 3 26.2
NU330EQ1 150 320 65 4 4 193 814 1010 1700 2000 166 189 196 304 3 3 26.2
NUP330M 150 320 65 4 193 715 890 1700 2000 166 213 304 3 3 27.4
NJ330M 150 320 65 4 4 193 715 890 1700 2000 166 189 213 304 3 3 26.9
NU330M-DT 150 320 65 4 4 193 715 890 1700 2000 166 189 196 304 3 3 26.6
NU330M 150 320 65 4 4 193 715 890 1700 2000 166 189 196 304 3 3 26.6
N330ENM 150 320 65 4 4 277 815 1010 1700 2000 166 272 304 282 3 3 24.8
N330M 150 320 65 4 4 277 715 890 1700 2000 166 272 304 282 3 3 26.5
NU3230X2M/C9YA6 150 270 88.9 2.6 7.5 181.53 980 1550 1800 2200 167 180 185 260.5 6 2 23.6
NU5230XPC3 150 270 88.9 2.6 6.4 181.53 1020 1610 1800 2200 167 180 185 260.5 6 2 23.6
NJ2230E 150 270 73 3 3 182 660 980 1900 2400 163 177 197 257 2.5 2.5 18.1
FL-NU2230EMA/C3 150 270 73 3 3 182 634 925 1900 2400 163 173 257 2.5 2.5 18.4
NU230EMA 150 270 45 3 3 182 435 570 2000 2600 163 178 185 247 2.5 2.5 11.6
NU230M-DT 150 270 45 3 3 182 405 550 2000 2600 163 178 185 257 2.5 2.5 11.7
NJ230E 150 270 45 3 3 182 457 610 1900 2400 163 178 197 257 2.5 2.5 11.6
NU230EQ1 150 270 45 3 3 182 457 610 1900 2400 163 178 185 257 2.5 2.5 11.8
NU230EM/CNM-DT 150 270 45 3 3 182 435 570 1900 2400 163 178 185 247 2.5 2.5 11.3
NU230EM/W124 150 270 45 3 3 182 435 570 1900 2400 163 178 185 247 2.5 2.5 11.3
NU230EM/C9 150 270 45 3 3 182 435 570 1900 2400 163 178 185 247 2.5 2.5 11.3
NU230E 150 270 45 3 3 182 457 610 1900 2400 163 178 185 247 2.5 2.5 11.2
N230E 150 270 45 3 3 242 457 610 1900 2400 163 238 257 246 2.5 2.5 11.5
NUP230M 150 270 45 3 182 418 565 1900 2400 163 197 257 2.5 2.5 12.3
NJ230M 150 270 45 3 3 182 418 565 1900 2400 163 178 197 257 2.5 2.5 12
NU230M 150 270 45 3 3 182 418 565 1900 2400 163 178 185 257 2.5 2.5 11.8
NF230M 150 270 45 3 3 238 405 550 2000 2600 163 234 257 242 2.5 2.5 12.1
N230M 150 270 45 3 3 238 418 565 2000 2600 163 234 257 242 2.5 2.5 11.6
NU3030M/P6 150 225 56 2.1 2.1 169.5 330 620 2400 3000 159 166 172 214 2 2 7.99
DDL-NU1030EM/C3 150 225 35 2.1 1.5 169 279 430 3600 3200 159 166 172 214 2 2 5
NU1030Q1/HAYA6 150 225 35 2 1.5 169.5 238 320 2600 3200 159 166 172 214 1.5 2 5.13
NJ1030EM 150 225 35 2.1 1.5 169 279 430 2600 3200 158 165 160 215 2 2 5.11
NU1030M 150 225 35 2.1 2.1 169.5 212 310 2600 3200 159 166 172 214 2 2 4.94
NJ1030M 150 225 35 2.1 1.5 169.5 212 310 2600 3200 159 166 178 214 1.5 2 5.05
NF1930X1WCM/YA6 150 215.88 28 4 3 195 180 290 3200 3800 136.5 145 151 191 2.5 3 4.18
NJ1930B1M/YA6-1 150 210 28 2 4 165 170 270 2700 3300 166 189 165 180 3 2 2.94
NJ1930B1M/YA6 150 210 28 3 4 165 171 270 2700 3300 166 189 165 180 3 2.5 2.94
NJ1930NB1M/YA16 150 210 28 4 3 165 171 270 2700 3300 166 189 165 180 2.5 3 2.86
NJ2232WBK3 158 290 110 3 3 193 935 1130 1800 2200 173 188 208 277 2.5 2.5 26
NJ2232WBK2 158.5 290 110 3 3 193 935 1130 1800 2200 173 188 208 277 2.5 2.5 26
N231.775Q4/W33 158.75 231.775 161.925 2.1 2.1 176.5 1020 2390 2400 3000 167 172 177 220 2 2 23.9
NJ2232WBK1 159 290 110 3 3 193 935 1130 1800 2200 173 188 208 277 2.5 2.5 26
NJ2232WBYK1 159 290 85 3 3 193 935 1130 1800 2200 173 188 208 277 2.5 2.5 24.4
NUP2332M 160 340 114 4 204 1120 1610 1350 1700 176 201 209 324 3 3 56.5
NJ2332M 160 340 114 4 4 208 1120 1610 1350 1700 176 215 194 324 3 3 54.3 HJ2332 3.21 15 36.67 4
NU2332M 160 340 114 4 4 204 1120 1610 1350 1700 176 201 209 324 3 3 54.4 HJ2332 3.21 15 36.67 4
NU2332E/YA5 160 340 114 4 4 204 1310 1820 1350 1700 176 201 209 324 3 3 50.7
NU2332EMA 160 340 114 4 4 204 1120 1730 1350 1700 176 201 209 324 3 3 53.9
NU2332EM/C9 160 340 114 4 4 204 1260 1730 1350 1700 176 201 209 324 3 3 52.4
N2332M 160 340 114 4 4 292 1120 1610 1350 1700 176 201 209 324 3 3 51.6
FL-NU332EMA/C3 160 340 68 4 4 204 870 1080 1500 1800 176 200 207 324 3 3 31.4
NU332M-DT 160 340 68 4 4 208 755 970 1500 1800 176 204 211 324 3 3 30.6
NU332EQ1 160 340 68 4 4 204 919 1150 1500 1800 176 200 207 324 3 3 27.8
NU332EQ1/HA 160 340 68 4 4 204 858 1050 1500 1800 176 200 207 324 3 3 31.3
NJ332M 160 340 68 4 4 208 750 970 1500 1800 176 204 225 324 3 3 31.5
NU332M/YA8 160 340 68 4 4 208 750 970 1500 1800 176 204 211 324 3 3 30.9
NU332M 160 340 68 4 4 208 750 970 1500 1800 176 204 211 324 3 3 30.9
N332M 160 340 68 4 4 292 750 970 1500 1800 176 288 324 296 3 3 30.8
NU632M 160 320 108 4 4 198 1070 1490 1500 1800 176 188 208 304 3 3 40.9
NJ2232WB 160 290 110 3 3 193 935 1130 1800 2200 173 188 208 277 2.5 2.5 26
NJ2232WBY 160 290 97.5 3 3 193 935 1130 1800 2200 173 188 208 277 2.5 2.5 25.8
NU2232WBQ1/YB2 160 290 97.5 3 3 193 1030 1130 1800 2200 173 189 196 277 2.5 2.5 24.8
N2232ENM 160 290 80 3 3 261 810 1190 1800 2200 173 198 277 2.5 2.5 23.5
NU2232EMA/YA8-1 160 290 80 3 3 193 810 1190 1800 2200 173 189 196 277 2.5 2.5 23.1
NJ2232WB1Q1/YB2 160 290 80 3 3 193 1030 1130 1800 2200 173 188 208 277 2.5 2.5 26
NJ2232WB11Q1/YB2 160 290 80 3 3 193 1030 1130 1800 2200 173 188 208 277 2.5 2.5 24.2
NJ2232M 160 290 80 3 3 195 700 1050 1800 2200 173 189 196 277 2.5 2.5 23.9
NJ2232E 160 290 80 3 3 193 809 1190 1800 2200 173 188 208 277 2.5 2.5 24.7
NU2232EMA/YA8-1 160 290 80 3 3 193 810 1190 1800 2200 173 189 196 277 2.5 2.5 23.1
NU2232EM/YA8 160 290 80 3 3 193 810 1190 1800 2200 173 189 196 277 2.5 2.5 23.6
NU2232EM 160 290 80 3 3 193 810 1190 1800 2200 173 189 196 277 2.5 2.5 24.2
NU2232 160 290 80 3 3 193 688 1000 1800 2200 173 189 196 277 2.5 2.5 23.3
NU232EM/P4YA8 160 290 48 3 3 195 515 695 1800 2200 173 191 198 277 2.5 2.5 13.8
NU232EM/CNM-DT 160 290 48 3 3 195 470 615 1800 2200 173 191 198 277 2.5 2.5 14
NU232EM-DT 160 290 48 3 3 195 470 615 1800 2200 173 191 198 277 2.5 2.5 14
NUP232E 160 290 48 3 195 515 695 1800 2200 173 210 277 2.5 2.5 14.5
NJ232EM/YA8 160 290 48 3 3 195 520 700 1800 2200 173 191 210 277 2.5 2.5 14.5
NJ232E 160 290 48 3 3 195 515 695 1800 2200 173 191 210 277 2.5 2.5 14.3
NU232EQ1 160 290 48 3 3 195 515 695 1800 2200 173 191 198 277 2.5 2.5 14.3
NU232EMA 160 290 48 3 3 195 495 665 1800 2200 173 191 198 277 2.5 2.5 14.3
NU232EM/YA8 160 290 48 3 3 195 515 695 1800 2200 173 191 198 277 2.5 2.5 13.8
NU232EM/C91 160 290 48 3 3 195 515 695 1800 2200 173 191 198 277 2.5 2.5 14.3
NU232EM/P59V2 160 290 48 3 3 195 517 695 1800 2200 173 191 198 277 2.5 2.5 14.3
NU232EM/W124 160 290 48 3 3 195 517 695 1800 2200 173 191 198 277 2.5 2.5 14.3
NU232E 160 290 48 3 3 195 517 695 1800 2200 173 191 198 277 2.5 2.5 14
N232E 160 290 48 3 3 259 517 695 1800 2200 173 255 277 263 2.5 2.5 13.9
NUP232M 160 290 48 3 193 495 655 1800 2200 173 210 277 2.5 2.5 14.6
NJ232M 160 290 48 3 3 193 495 655 1800 2200 173 191 210 277 2.5 2.5 14.2 HJ232 1.4 12 19.68 3
NU232M 160 290 48 3 3 193 495 655 1800 2200 173 191 198 277 2.5 2.5 14.4 HJ232 1.4 12 19.68 3
N232M 160 290 48 3 3 257 495 655 1800 2200 173 255 277 263 2.5 2.5 14.3
NU1032Q1 160 240 38 2.1 2.1 180 259 380 2400 3000 168 177 183 229 2 2 5.86
NU1032M 160 240 38 2.1 2.1 180 259 380 2400 3000 168 177 183 229 2 2 5.96
NJ1032M 160 240 38 2.1 1.5 180 259 380 2400 3000 168 177 191 229 1.5 2 6.13
NJ1032EM 160 240 38 2.1 1.5 179 330 495 2400 3000 167 175 170 230 2 2 6.22
N1032M 160 240 38 2.1 2.1 220 260 365 2400 3000 168 217 232 223 2 2 5.96
N032M 160 240 25 1.5 1.5 216 193 300 2800 3400 168 213 229 220 1.5 1.5 4.47
N032X3M 160 230 22 1.5 1.5 209 160 240 2900 3500 168 205 220 210 1.5 1.5 3.37
NJ2932M 160 220 36 2 2 173 255 435 2500 3200 169 171 181 211 2 2 4.17
NU2334M/C9 170 360 120 4 4 220 1270 1850 1400 1700 186 212 223 344 3 3 61.3
NU2334MA 170 360 120 4 4 220 1270 1850 1400 1700 186 212 223 344 3 3 61.5
NU2334M/YA8 170 360 120 4 4 220 1270 1850 1335 1995 186 212 223 344 3 3 63.8
NU2334M 170 360 120 4 4 220 1270 1850 1400 1700 186 212 223 344 3 3 61.1
NJ2334M 170 360 120 4 4 220 1270 1850 1400 1700 186 212 240 344 3 3 62.5
NJ334M 170 360 72 4 4 220 810 1040 1400 1700 186 214 243 344 3 3 38.4
NU334M 170 360 72 4 4 220 810 1040 1400 1700 186 214 223 344 3 3 37.7
NJ2334M/YA8 170 360 72 4 4 220 1335 1995 1400 1700 185 230 235 345 3 3 64.7
N2334M/YA8 170 360 72 4 4 310 1340 1970 1400 1700 185 230 345 324 3 3 61.2
N334M 170 360 72 4 4 310 815 1040 1400 1700 186 307 344 315 3 3 37.3
NJ2234EQ1/YA1 170 310 86 4 4 205 1000 1480 1800 2300 187 212 293 3 3 29.5
NJ2234EM 170 310 86 4 4 205 1000 1480 1800 2300 187 212 293 3 3 29.5
NJ2234EQ1 170 310 86 4 4 205 1000 1480 1800 2300 187 212 293 3 3 29.5
NU2234M 170 310 86 4 4 208 875 1400 1800 2200 187 203 211 293 3 3 30.5
NU2234EM 170 310 86 4 4 205 1000 1480 1800 2200 186 201 208 294 3 3 29
FL-NU234EM 170 310 52 4 4 207 640 870 1800 2200 186 203 210 294 3 3 18.4
NU234EM/CNM-DT 170 310 52 4 4 207 640 870 1800 2200 186 203 210 294 3 3 18
NU234EM-DT 170 310 52 4 4 207 640 870 1800 2200 186 203 210 294 3 3 18
NU234EM/P59V2 170 310 52 4 4 207 640 870 1800 2200 186 203 210 294 3 3 18.4
NU234EM 170 310 52 4 4 207 640 870 1800 2200 186 203 210 294 3 3 18.4
NJ234M 170 310 52 4 4 208 550 780 1800 2200 186 203 224 294 3 3 19.2
NU234Q1 170 310 52 4 4 208 550 780 1800 2200 186 203 210 294 3 3 18.1
NU234M/YA8 170 310 52 4 4 208 550 780 1800 2200 186 203 210 294 3 3 17.4
NU234M 170 310 52 4 4 208 550 780 1800 2200 186 203 210 294 3 3 17.9
N234M 170 310 52 4 4 272 500 780 1800 2200 186 266 294 278 3 3 18.2
N1034X1M 170 265 42 2.1 2.1 237 330 500 580 1100 186 234 254 241 2 2 7.97
NJ1034EM 170 260 42 2.1 2.1 192 355 550 2200 2800 180 187 180 255 2 2 -180
NJ1034M 170 260 42 2.1 2.1 193 299 440 2200 2800 181 190 205 249 2 2 8.47
NU1034M 170 260 42 2.1 2.1 193 299 440 2200 2800 181 190 196 249 2 2 8.23
N1034M 170 260 42 2.1 2.1 237 299 400 2200 2800 181 233 249 241 2 2 8.02
N1934M 170 230 28 2 1.1 216 193 310 2400 2900 180 213 222 219 1.1 2 3.64
NU2336M 180 380 126 4 4 232 1360 1850 1300 1600 196 227 236 364 3 3 69.5
NJ2336M 180 380 126 4 4 232 1360 1850 1300 1600 196 227 255 364 3 3 72
N2336M/YA8 180 380 126 4 4 328 1430 2100 1300 1500 195 244 365 342 3 3 70.7
NU336EMA 180 380 75 4 4 231 1060 1360 1500 1800 196 226 236 364 3 3 43.3
NU336EM 180 380 75 4 4 231 1170 1360 1500 1800 196 226 236 364 3 3 42.1
NJ336EM 180 380 75 4 4 231 1170 1360 1500 1800 196 226 254 364 3 3 42.7
NJ336M 180 380 75 4 4 230 990 1260 1500 1800 196 226 236 364 3 3 43.6 HJ336 3.1 17 29.16 4
NU336M 180 380 75 4 4 230 990 1260 1500 1800 196 226 236 364 3 3 42.8 HJ336 3.1 17 29.16 4
N336M 180 380 75 4 4 330 990 1260 1500 1800 196 325 364 335 3 3 39.6
NU3236M/HC 180 320 112 4 4 218 1120 1950 1700 2000 196 211 218 304 3 3 41.6
NU3236M/C3 180 320 112 4 4 218 1120 1950 1700 2000 196 211 218 304 3 3 41.6
NUP2236M 180 320 86 4 215 1050 1580 1700 2000 196 232 304 3 3 32.1
NJ2236EQ1 180 320 86 4 4 215 1100 1580 1700 2000 196 211 232 304 3 3 31.7
NJ2236EM 180 320 86 4 4 215 1100 1580 1700 2000 196 211 232 304 3 3 31 HJ2236E 1.94 12 23.67 4
NJ2236M 180 320 86 4 4 215 1050 1580 1700 2000 196 211 232 304 3 3 31.9
NU2236EM 180 320 86 4 4 215 1100 1580 1700 2000 196 211 218 304 3 3 30.3 HJ2236E 1.94 12 23.67 4
NU2236M 180 320 86 4 4 215 1050 1580 1700 2000 196 211 218 304 3 3 31.4
NU236L3-DT/YB2 180 320 52 4 4 218 555 785 1700 2000 196 213 220 304 3 3 18.6
NU236L3-DT 180 320 52 4 4 218 555 785 1700 2000 196 213 220 304 3 3 18.6
NU236M-DT/YB2 180 320 52 4 4 218 555 785 1700 2000 196 213 220 304 3 3 19.4
NUP236M 180 320 52 4 218 555 785 1700 2000 196 234 304 3 3 20.5
NJ236M 180 320 52 4 4 218 555 785 1700 2000 196 213 234 304 3 3 19.3
NU236M/CNM-DT 180 320 52 4 4 218 555 785 1700 2000 196 213 220 304 3 3 19.4
NU236M-DT 180 320 52 4 4 218 555 785 1700 2000 196 213 220 304 3 3 19.4
NU236EM/CNM-DT 180 320 52 4 4 217 615 830 1700 2000 196 213 218 304 3 3 18.7
NU236EM 180 320 52 4 4 217 615 830 1700 2000 196 202 208 304 3 3 18.7
NU236M/YA8 180 320 52 4 4 218 555 785 1700 2000 196 213 220 304 3 3 19.4
NU236M 180 320 52 4 4 218 555 785 1700 2000 196 213 220 304 3 3 19.2
N236M 180 320 52 4 4 282 555 785 1700 2000 196 278 304 286 3 3 19.7
NJ1036M 180 280 46 2.1 2.1 205 380 565 2000 2600 191 202 208 269 2 2 10.7
NU1036M 180 280 46 2.1 2.1 205 418 565 2000 2600 191 202 208 269 2 2 10.4
NF1036X2M 180 280 50 2.1 2.1 255 420 640 2000 2600 191 221 265 260 2 2 11.9
NF1036X2M 180 280 50 2.1 2.1 255 420 640 2000 2600 191 221 265 260 2 2 11.9
N1036M 180 280 46 2.1 2.1 255 380 565 2000 2600 191 221 265 260 2 2 10.3
N036X2 180 280 33 2 2 260 341 540 1900 2200 191 256 269 264 2 2 8.44
N036EM 180 280 31 2 2 260 330 472 2000 2400 191 246 269 254 2 2 7.15
N036L 180 280 31 2 2 250 270 420 2000 2400 191 246 269 254 2 2 7.08
N036M 180 280 31 2 2 250 270 420 2000 2400 191 246 269 254 2 2 8.59
NU2338M/YA8 190 400 132 5 5 245 1650 2480 1200 1500 206 240 246 380 4 4 82.6
NU2338M 190 400 132 5 5 245 1560 2300 1200 1500 210 230 380 4 4 82.9
NU2338EMA 190 400 132 5 5 240 1870 2450 1200 1500 210 235 249 380 4 4 82.8
N338M 190 400 78 5 5 345 1040 1730 1200 1500 210 340 380 350 4 4 50.2
NU338M 190 400 78 5 5 245 1040 1370 1200 1500 210 240 249 380 4 4 48.5 HJ338 4.3 18 31.65 5
NJ338M 190 400 78 5 5 245 1040 1370 1200 1500 206 240 266 380 4 4 49.4 HJ338 4.3 18 31.65 5
NU3238M/C3 190 340 120 4 4 231 1320 2340 1600 1900 206 223 232 324 3 3 51.2
NJ2238EM 190 340 92 4 4 228 1210 1660 1600 1900 206 232 218 324 3 3 39.6
NU2238EM/C9 190 340 92 4 4 228 1210 1660 1600 1900 206 225 230 324 3 3 38.6
NU2238M 190 340 92 4 4 228 1140 1750 1600 1900 206 223 232 324 3 3 38.6
NU238EM/CNM-DT 190 340 55 4 4 230 710 980 1600 1900 206 226 234 324 3 3 22.5
NU238EM-DT 190 340 55 4 4 230 710 980 1600 1900 206 226 234 324 3 3 22.5
N238EM 190 340 55 4 4 306 710 980 1600 1900 206 236 324 3 3 22.6
NUP238M 190 340 55 4 231 620 885 1600 1900 206 248 324 3 3 22.3
NJ238EM/W33YA8 190 340 55 4 4 230 700 970 1600 1900 206 226 237 324 3 3 23
NJ238EM 190 340 55 4 4 230 710 980 1600 1900 206 226 237 324 3 3 23.2
NJ238M 190 340 55 4 4 231 620 885 1600 1900 206 226 248 324 3 3 22 HJ238 2.04 13 23.13 4
NU238M 190 340 55 4 4 231 620 885 1600 1900 206 226 234 324 3 3 21.6 HJ238 2.04 13 23.13 4
NU238EM/C9 190 340 55 4 4 231 710 980 1600 1900 206 226 234 324 3 3 22.8
NJ1038Q1/HAP63 190 290 46 2.1 2.1 215 435 600 2000 2600 201 212 218 279 2 2 11.2
NU1038M 190 290 46 2.1 2.1 215 413 640 2000 2600 201 212 218 279 2 2 10.9
NU2938Q1 190 260 42 2 1.1 208 347 685 2200 2800 196 206 210 252 1 1.5 6.98
NU6/190.5/W33X 190.5 266.7 103.188 2 1.1 2.8 715 1480 1500 1800 197 200 257 1 2 18
NU3340M/HCW20T 200 420 165 5 5 260 2310 3400 1200 1500 220 253 264 400 4 4 115
NUP3340 200 420 165 5 260 2150 3540 1200 1500 220 282 400 4 4 121
NU3340M 200 420 165 5 5 260 2150 3540 1200 1500 220 253 264 400 4 4 118
NJ2340M/YA4 200 420 138 5 5 256 1970 2450 1200 1500 220 241 251 400 4 4 98.4 HJ2340 6.13 18 41.6 5
NU2340EM 200 420 138 5 5 253 2040 2880 1200 1500 220 248 255 404 4 4 96.7
NU2340EM/P5YA4-FYT 200 420 138 5 5 253 2040 2880 1200 1500 220 240 400 4 4 96.7
NU2340MA 200 420 138 5 5 260 1650 2510 1200 1500 220 243 400 4 4 95.6 HJ2340 6.13 18 41.6 5
N2340M 200 420 138 5 5 364 1650 2510 1200 1500 220 360 400 368 4 4 94.5
NJ2340M 200 420 138 5 5 260 1650 2510 1200 1500 220 241 251 400 4 4 99 HJ2340 6.13 18 41.6 5
NU340F3 200 420 80 5 5 260 1090 1475 1300 1600 220 253 264 400 4 4 57.3
NU340M 200 420 80 5 5 260 1090 1400 1300 1600 220 253 264 400 4 4 56.7 HJ340 5.2 18 32.63 5
NU5240XPC3 200 360 120.65 4 4 244 1280 2190 1900 2400 211 225 233 299 2 2 57.6
NU1240X2WBM/HG2 200 360 115 4 4 244 957 1520 1900 2400 211 225 233 299 2 2 42.9
FL-NJ2240EMA/P6 200 360 98 4 4 241 1240 1900 1500 1800 216 236 230 344 3 3 46.7
N2240EM/YA1 200 360 98 4 4 325 1240 1900 1500 1800 216 320 344 330 3 3 44.9
NU2240EM/C9W33A 200 360 98 4 4 241 1230 1900 1500 1800 216 236 245 344 3 3 42
NU2240EM 200 360 98 4 4 241 1230 1980 1500 1800 216 236 245 344 3 3 42.2
N2240EM 200 360 98 4 4 325 1240 1900 1500 1800 216 320 344 330 3 3 44.9
NUP2240M 200 360 98 4 244 996 1600 1500 1800 216 260 344 3 3 46.3
NJ2240M 200 360 98 4 4 244 970 1550 1500 1800 216 236 260 344 3 3 45.5
NJ240EM/YA8 200 360 58 4 4 243 780 1090 1500 1800 216 239 252 344 3 3 26.5
NJ240M 200 360 58 4 4 244 625 995 1500 1800 216 239 262 344 3 3 27.1
NU240EMA 200 360 58 4 4 244 780 1090 1500 1800 216 239 247 344 3 3 27.5 HJ240E 2.72 14 23 4
NU240M 200 360 58 4 4 244 688 995 1500 1800 216 239 247 344 3 3 26.5
N240M 200 360 58 4 4 316 690 995 1500 1800 216 310 344 322 3 3 26.8
NU3040X3M/C4-NJB 200 320 88.9 3 3 232.689 776 1350 1700 2000 211 225 235 309 3 3 28.7
NU3040X3M/C3 200 320 88.9 3 3 232.689 776 1350 1700 2000 211 225 235 309 3 3 28.7
N640M 200 320 48 2.1 2.1 283 473 705 1900 2400 211 280 299 286 2 2 14.7
NAOL4040X2 200 310 100 2.5 2.5 275.5 234.5 930 2110 1900 2400 211 225 233 299 2 2 30.2
NU1040M 200 310 51 2.1 2.1 227 468 705 1900 2400 211 225 233 299 2 2 14.3 HJ1040 1.7 13 24.13 2.1
NJ2940M 200 280 48 2.1 2.1 218 405 675 2000 2600 211 214 222 270 2 2 9.43
NU30/203X4Q1/HA 203.23 310 82 3 3 229.006 880 1410 1000 1200 220 253 230 290 2 2 23.9
NU2344EMA 220 460 145 5 5 275 2230 3250 950 1100 240 268 280 440 4 4 116
N2344EM 220 460 145 5 5 407 2300 3360 1000 1300 240 403 440 411 4 4 114
NU2344E/YA5 220 460 145 5 5 275 2310 3400 1000 1300 240 403 440 411 4 4 121
NU2344M/C9 220 460 145 5 5 284 2170 3270 1000 1300 240 276 288 440 4 4 114
NJ2344M 220 460 145 5 5 284 2040 2780 1000 1300 240 276 300 440 4 4 125
NU2344M 220 460 145 5 5 284 2040 2780 1000 1300 240 276 288 440 4 4 125
NU2344M/C3 220 460 145 5 5 284 2040 2780 1000 1300 240 276 288 440 4 4 125
NJ344EM 220 460 88 5 5 282 1370 1840 1000 1300 240 292 270 440 4 4 75.6
NU344M 220 460 88 5 5 284 1280 1730 1000 1300 240 277 288 440 4 4 73.4 HJ344 6.7 20 35.62 5
N2244M 220 400 108 4 4 350 1440 1990 1300 1600 237 255 360 383 3 3 61.8
NU2244EMA 220 400 108 4 4 265 1490 2280 1300 1600 237 255 264 383 3 3 63.8
NU2244EM/HC 220 400 108 4 4 265 1490 2280 1300 1600 237 255 264 383 3 3 62.8
N2244M/YA1 220 400 108 4 4 350 1440 1990 1300 1600 237 255 360 383 3 3 61.8
NJ2244EM 220 400 108 4 4 265 1490 2280 1300 1600 235 258 235 385 3 3 62.4
NU2244EM 220 400 108 4 4 270 1490 2280 1300 1600 237 255 264 383 3 3 62.8
NJ2244M 220 400 108 4 4 270 1440 1990 1300 1600 236 262 290 384 3 3 63.3
NB3244F1 220 400 144 4 4 270 1950 3350 1500 1800 236 263 276 384 3 3 77.3
NU2244M/YA4 220 400 108 4 4 270 1440 1990 1300 1600 236 262 274 384 3 3 62.6
NU2244M 220 400 108 4 4 270 1220 1990 1300 1600 236 262 274 384 3 3 62.2
NUP244M 220 400 65 4 270 835 1220 1500 1800 236 263 276 384 3 3 38.8
NU244M 220 400 65 4 4 270 835 1440 1990 1800 236 263 276 384 3 3 35 HJ244 3.78 15 27.13 4
NJ244M 220 400 65 4 4 270 835 1220 1500 1800 236 263 290 384 3 3 35.4 HJ244 3.78 15 27.13 4
N244M 220 400 65 4 4 350 836 1220 1500 1800 236 342 384 358 3 3 36.7
NU3044X3M/C92YA6-LS 220 350 98.4 3 5 253 1280 2090 1800 2200 233 248 257 332 2.5 2.5 38
NU3044X3M/C91YA6 220 350 98.4 3 3 253 1280 2090 1800 2200 233 248 257 332 2.5 2.5 38
NU3044X3M/C9-NJB 220 350 98.4 3 3 253 1280 2090 1800 2200 233 248 257 332 2.5 2.5 38.1
NU3044M/HG2W33A 220 350 90 3 3 253 965 1830 1800 2200 233 248 257 332 2.5 2.5 32.4
NU3044X3M/C9 220 350 98.4 3 3 253 1280 2090 1800 2200 233 248 257 332 2.5 2.5 38.1
NU3044Q1/HA 220 340 90 3 3 251.409 1060 1820 1800 2200 233 246 254 327 2.5 2.5 32
NFP1044M 220 340 56 3 3 310 530 810 1800 2200 233 246 254 327 2.5 2.5 20.2
NJ1044M 220 340 56 3 3 250 534 810 1800 2200 233 246 265 327 2.5 2.5 19.6
NU1044Q1 220 340 56 3 3 250 517 775 1800 2200 233 246 254 327 2.5 2.5 19.4
NJ2944M 220 300 48 2.1 2.1 240 407 750 1900 2400 229 237 243 289 2 2 10.8
NU2944Q1 220 300 48 2.1 1.5 240 407 755 1900 2400 229 237 243 289 1 2 10.5
NU2348E/YA5 240 500 155 5 5 303 2640 4000 950 1200 260 296 314 480 4 4 154
NU2348M 240 500 155 5 5 310 2190 3360 950 1200 260 296 314 480 4 4 154
NU2348MA 240 500 155 5 5 310 2190 3360 950 1200 260 296 314 480 4 4 155
NU348EM 240 500 95 5 5 306 1670 2190 1000 1300 260 296 313 480 4 4 94.9
NU348M 240 500 95 5 5 310 1530 2120 1000 1300 260 302 314 480 4 4 96.3
N348M 240 500 95 5 5 430 1530 2120 1000 1300 260 426 480 434 4 4 96.3
NU5248/P5 240 440 146 4 4 290 2240 3820 1100 1400 256 287 293 424 3 3 104
NJ2248MA 240 440 120 4 4 295 1490 2450 1200 1500 255 285 255 425 3 3 86.4
NU2248MA 240 440 120 4 4 295 1490 2450 1200 1500 256 284 299 423 3 3 84.8
N248EM 240 440 72 4 4 393 1180 1690 1300 1600 256 288 300 424 3 3 50.5
N248M 240 440 72 4 4 385 1050 1540 1300 1600 256 288 317 424 3 3 49.1
NJ248M 240 440 72 4 4 295 1050 1540 1300 1600 256 288 317 424 3 3 49.6
NU248EMA 240 440 72 4 4 295 1050 1185 1690 1600 256 288 299 424 3 3 51.3
NUP248M 240 440 72 4 4 295 1050 1540 1300 1600 256 299 424 3 3 46.9
NU248M 240 440 72 4 4 295 1050 1540 1300 1600 256 288 299 424 3 3 46.9
N248EM 240 440 72 4 295 1040 1540 1300 1600 255 302 424 3 3 49.4
NUFP2148X3M/C9YA1 240 390 107.95 3 3 272.26 1400 2230 1500 1800 253 266 280 410 2.5 2.5 50.5
NU1048MA/P4 240 360 56 3 3 270 510 775 1700 2000 253 266 274 347 2.5 2.5 19.6
NU1048MA 240 360 56 3 3 270 510 775 1700 2000 253 266 274 347 2.5 2.5 19.6
NU1048Q1 240 360 56 3 3 270 545 855 1700 2000 253 266 274 347 2.5 2.5 21.2
NJ1048M 240 360 56 3 3 270 512 775 1700 2000 253 266 274 347 2.5 2.5 21.1
NU1048M 240 360 56 3 3 270 512 775 1700 2000 253 266 274 347 2.5 2.5 20.5
NJ1948M 240 320 38 2.5 1.8 260 310 540 1900 2400 249 251 260 308 1.5 2 8.74
NU1948M 240 320 38 2.5 1.8 260 308 540 1900 2400 249 257 263 308 1.5 2 8.5
N650EM/HAC9 250 308 50 6 2.3 347 655 1050 1800 2300 268 343 368 351 2 5 21.4
NJD2352M/YA8 260 540 165 6 6 319 3200 4720 850 1050 286 310 323 514 5 5 165
NU2352M 260 540 165 6 6 319 3150 4500 850 1050 286 310 323 514 5 5 188
NU352M 260 540 102 6 6 336 1690 2290 850 1050 286 330 341 514 5 5 120
NU2252X2M 260 480 150 5 5 320 2100 3600 950 1250 280 309 324 460 4 4 128
NJ2252MA 260 480 130 5 5 320 1780 2910 950 1250 280 309 324 460 4 4 110
NJ2252M 260 480 130 5 5 320 1780 2910 950 1250 280 309 324 460 4 4 108
N2252M 260 480 130 5 5 420 1780 2910 950 1250 280 416 427 460 4 4 105
NU2252MA 260 480 130 5 5 320 1750 2910 1000 1300 280 309 324 460 4 4 107
NU2252 260 480 130 5 5 320 1780 2910 1000 1300 280 309 324 460 4 4 106
NJ252EM/YA8 260 480 80 5 5 317 1370 1970 1050 1350 280 313 324 460 4 4 68.8
NUP252M 260 480 80 5 320 1220 1800 1050 1350 280 313 324 460 4 4 70
NJ252MA 260 480 80 5 5 320 1220 1800 1050 1350 280 313 324 460 4 4 68.3
NJ252M 260 480 80 5 5 320 1220 1800 1050 1350 280 313 324 460 4 4 68.5
NU252EMA 260 480 80 5 5 320 1370 1970 1100 1400 280 313 324 460 4 4 68.4
NU252M 260 480 80 5 5 320 1220 1800 1100 1400 280 313 324 460 4 4 67.1
NB3152M 260 440 144 4 4 305 2090 3800 950 1250 277 295 302 423 3 3 86.4
NU3152M 260 440 144 4 4 298.5 2050 3450 950 1250 277 295 302 423 3 3 98
NU2052ENM 260 400 82 4 4 294 1090 1880 1300 1700 276 291 300 384 3 3 40.1
NJ1052M 260 400 65 4 4 296 690 1090 1500 1800 276 291 300 384 3 3 36.3
NUP1052M 260 400 65 4 296 690 1090 1500 1800 276 313 384 3 3 37.2
NU1052M 260 400 65 4 4 296 690 1090 1500 1800 276 291 300 384 3 3 30.2
NUP3952M/C9W33 260 360 75 3 285 860 1780 1600 1850 274 287 346 3 3 24.9
NUP3952M/C9YA8 260 360 75 3 285 740 1470 1600 1850 274 287 346 3 3 24.4
NUP3952M/C9W33YA8 260 360 75 3 285 740 1470 1600 1850 274 287 346 24.5
NF1952M 260 360 46 2.1 2.1 337 445 785 1600 1850 276 280 295 346 2 2 14.9
NU2356M 280 580 175 6 6 362 2920 4675 850 1000 300 354 366 560 5 5 237
NU356M 280 580 108 6 6 362 1880 2660 850 1000 306 347 366 554 5 5 147
NU3256X2/C9YA1 280 500 165.1 5 5 333 2820 4900 950 1300 300 333 344 480 4 4 142
NU2256EM-1 280 500 130 5 5 333 2080 3270 1100 1400 300 333 344 480 4 4 118
NU2256EM 280 500 130 5 5 333 2080 3270 1100 1400 300 333 344 480 4 4 118
NU2256EF3 280 500 130 5 5 333 2080 3270 1100 1400 300 333 344 480 4 4 116
NU2256E 280 500 130 5 5 333 2090 3270 1100 1400 300 333 344 480 4 4 116
N256M/SPC9W33 280 500 80 5 5 440 1140 1700 1150 1450 300 350 480 4 4 70.2
NU256M 280 500 80 5 5 340 1100 1750 1150 1450 300 333 344 480 4 4 70
NJ256M 280 500 80 5 5 340 1100 1750 1150 1450 300 333 364 480 4 4 71.5
NU2156X2M/YA4-1 280 460 123.825 5 5 320.675 1900 3300 900 1150 300 316 325 440 4 4 85.8
NB4056X3M 280 440 135 3 3 318 406 1880 3400 1100 1400 296 311 340 424 3 3 75.4
NU2056EMA 280 420 82 4 4 314 1110 1980 1050 1300 295 310 318 405 3 3 42
NU2056M 280 420 82 4 4 314 1190 2170 1050 1300 295 310 318 405 3 3 39.5
NJ1056M 280 420 65 4 4 316 700 1150 1400 1700 296 311 332 404 3 3 32.2
NU1056M 280 420 65 4 4 316 700 1150 1400 1700 296 311 320 404 3 3 30.9
N1056M 280 420 65 4 4 384 700 1150 1400 1700 296 380 411 388 3 3 31.5
N2956X2M/W33YA8 280 380 55 2.1 2.1 356 630 1180 1700 1900 298 309 370 363 18.4
NJ1956M 280 380 46 2.1 2.1 306 470 865 1700 1900 290 301 290 370 2 2 15.9
NF1956M 280 380 46 2.1 2.1 354 325 533 1700 1900 291 340 308 2 2 16.9
NU1956M 280 380 46 2.1 2.1 306 473 865 1700 1900 291 303 309 369 2 2 15.5
N1856X3M/HG2P6-1 280 360 30 2 2 341 385 625 1700 1900 289 309 340 330 2 2 8
NJ1856X3M/HG2 280 360 30 2 2 301 385 625 1700 1900 289 309 334 340 2 2 8.11
NJ2856M 280 350 42 2 2 299 363 790 1800 2200 289 309 324 330 2 2 9.15
N1856X3M/HG2 280 340 30 2 2 327 308 690 1800 2200 289 324 330 330 2 2 5.76
NFP10/290K 290 420 65 4 4 389 730 1200 1300 1600 305 320 332 404 3 3 33.2
NU360M 300 620 109 7.5 7.5 385 2310 3300 900 1100 330 379 390 590 7 7 166
NU2260M 300 540 140 5 5 364 2080 3450 1000 1200 320 352 368 520 4 4 146
NJ260M 300 540 85 5 5 364 1420 2190 1000 1300 3820 358 375 522 4 4 89.3
NU260M 300 540 85 5 5 364 1510 2270 1000 1300 320 358 368 520 4 4 86.9
NU3060M 300 460 118 4 4 340 1470 2700 1200 1500 316 335 344 444 3 3 72.5
NU2060MA 300 460 95 4 4 341 1400 2510 980 1250 317 336 345 443 3 3 60
NU2060M 300 460 95 4 4 341 1400 2510 980 1250 317 336 345 443 3 3 60
NU1060M/HA 300 460 74 4 4 340 935 1510 1200 1500 316 335 344 444 3 3 44.1
NU1060M 300 460 74 4 4 340 935 1510 1200 1500 316 335 344 444 3 3 44.1
NJ1060M 300 460 74 4 4 340 935 1510 1200 1500 316 335 358 444 3 3 45.1
NJ1060X2M 300 460 57 4 4 344 770 1250 1400 1700 316 335 358 444 3 3 36.5
NUP3960M/C9W33 300 420 90 3 328.5 1150 2250 1350 1600 314 333 406 40.7
NUP3960M/C9YA8 300 420 90 3 328.5 1150 2250 1350 1600 314 333 406 4 4 41.3
NUP3960M/C9W33YA8 300 420 90 3 328.5 1150 2250 1350 1600 314 333 406 41
N3860M/HG2 300 380 60 2.1 2.1 360 468 990 1200 1500 316 335 444 440 4 4 16.6
NU2860M 300 380 48 2.1 2.1 321 450 1000 1370 1650 310 318 324 370 1.5 1.5 14.5
NJ2860M 300 380 48 2.1 2.1 321 450 1000 1370 1650 310 318 332 370 1.5 1.5 15.5
NU2364F1/HC 320 670 200 7.5 7.5 410 4150 6500 1100 1400 360 377 390 642 7 7 349
NU2364/HCR 320 670 200 7.5 7.5 410 4590 7200 1100 1400 360 377 390 642 7 7 349
NUD2264M/YA8 320 580 150 5 5 377 3190 4720 900 1100 340 377 394 560 4 4 151
NU2264X2M 320 580 190.5 5 5 390 3050 5480 900 1100 340 377 394 560 4 4 232
NU2264X2M-1 320 580 170 5 5 390 2940 5200 900 1100 340 377 394 560 4 4 212
NU2264EM 320 580 150 5 5 380 2700 4200 900 1100 340 377 394 560 4 4 181
NU2264 320 580 150 5 5 390 2480 4150 900 1100 340 377 394 560 4 4 181
NJ264M 320 580 92 5 5 390 1620 2450 960 1200 340 383 407 560 4 4 114
NU264M 320 580 92 5 5 390 1620 2450 960 1200 340 383 394 560 4 4 112
NU3164M 320 540 176 5 5 374 2780 5000 870 1050 367 369 387 490 4 4 172
NJ3064X1EM 320 500 121 4 4 366 1700 3050 900 1200 335 356 375 485 3 3 92.6
NU3064M 320 480 121 4 4 360 1540 2910 1100 1400 336 335 380 464 3 3 78.1
NJ2064EQ1A 320 480 95 4 4 360 1470 2650 1100 1400 335 352 335 465 3 3 65
NUP1064M 320 480 74 4 4 360 910 1490 1100 1400 336 380 464 3 3 49.1
NU1064KM/C9 320 480 74 4 4 360 957 1580 1100 1400 336 355 364 464 3 3 46.3
NU1064MA 320 480 74 4 4 360 915 1490 1100 1400 336 355 364 464 3 3 48.2
NU1064M 320 480 74 4 4 360 910 1490 1100 1400 336 355 364 464 3 3 48.2
NJ1064M 320 480 74 4 4 360 960 1580 1100 1400 336 355 380 464 3 3 47.8
NUP3964M/C9 320 440 90 3 350 1060 2190 1100 1400 334 354 426 2.5 2.5 45.8
FL-NU1964EMA 320 440 56 3 3 350 670 1150 1100 1400 335 346 354 425 2.5 2.5 24.7
NU1964M 320 440 56 3 3 350 638 1130 1100 1400 335 346 354 425 2.5 2.5 24.7
NU2864M 320 400 48 2.1 1.5 341 490 1050 1250 1550 327 337 345 389 1.5 2 15
NU1864M 320 400 38 2.1 1.5 341 365 715 1270 1550 327 337 345 389 1.5 2 11.3
NU666/HCYA8 330 580 151 6 6 395 2750 4800 900 1100 350 387 411 560 5 5 177
NU3268 340 620 224 6 6 410 4600 8600 810 950 366 401 421 594 5 5 307
NU2268F3 340 620 165 6 6 416 2950 4900 810 950 366 401 421 594 5 5 229
NU2268MA/HC 340 620 165 6 6 412 2950 4900 810 950 366 401 421 594 5 5 230
NU2268MA 340 620 165 6 6 416 2950 4900 810 950 366 401 421 594 5 5 230
NU2268 340 620 165 6 6 416 2950 4900 810 950 366 401 421 594 5 5 229
NU2268X3/HC 340 600 170 5 5 405 3250 5700 740 880 360 392 403 580 4 4 205
NU3168EF3 340 580 190 5 5 399 3300 5900 760 910 360 388 403 560 4 4 211
NU3168WB 340 580 200 5 5 400 3550 6650 760 910 360 388 403 560 4 4 213
NU3168 340 580 190 5 5 400 3550 6650 760 910 360 388 403 560 4 4 211
NU3168EF3/YA3 340 580 190 5 5 399 3300 5900 760 910 360 388 403 560 4 4 211
NU3168E 340 580 190 5 5 399 3300 5900 760 910 360 388 403 560 4 4 211
NJ1068M 340 520 82 5 5 385 1130 1830 1000 1300 360 380 389 500 4 4 64.7
NU1068M 340 520 82 5 5 385 1130 1910 1000 1300 360 380 389 500 4 4 65
NU2968M 340 460 72 3 3 373 785 1650 1050 1350 353 369 377 447 2.5 2.5 36.2
NU1968M 340 460 56 3 3 370 700 1400 1050 1350 353 365 374 447 2.5 2.5 28.3
NJ1968X1M 340 440 56 3 3 365 690 1380 1050 1350 348 355 366 427 2.5 2.5 22.7
NU1968X1M 340 440 56 3 3 365 690 1380 1050 1350 348 355 366 427 2.5 2.5 22.3
NJ2868M 340 420 48 2.1 2.1 361 490 1150 1150 1450 350 357 372 410 2 2 15.5
NU2372F3 360 750 224 7.5 7.5 455 5300 8450 700 850 390 445 460 720 7 7 480
NUP2372M 360 750 224 7.5 455 4900 7600 700 850 390 445 460 720 7 7 513
NU3172M 360 600 192 5 5 420 3520 6500 900 1000 373 417 423 587 4 4 221
NU2372 360 750 224 7.5 7.5 455 5390 8650 700 850 390 445 460 720 7 7 480
NU3272M/HC 360 650 232 6 6 435 4400 8050 800 950 381 400 410 520 5 5 352
NU2272M 360 650 170 6 6 437 3150 5400 800 950 386 428 442 624 5 5 262
NU3172 360 600 192 5 5 420 3520 6500 900 1000 373 417 587 423 4 4 219
NU3072M 360 540 134 5 5 405 2060 4050 800 1000 381 400 410 520 4 4 112
NU2072M 360 540 106 5 5 405 1890 3560 870 1050 380 399 410 520 4 4 89.5
NF1072M 360 540 82 5 5 499 1180 2000 980 1280 378 400 410 522 4 4 67.7
NU1072M 360 540 82 5 5 405 1190 2000 980 1280 378 400 410 522 4 4 65.9 HJ1072 7.7 21 39.03 5
NU1072MA 360 540 82 5 5 405 1190 2000 980 1280 378 400 410 522 4 4 66.2 HJ1072 7.7 21 39.03 5
N1072M/C9W33A 360 540 82 5 5 495 1180 2000 980 1280 378 410 522 508 4 4 65.2
NUP3972M/C9W33 360 480 90 3 388 1220 2590 1100 1300 380 380 464 3 3 51.3
NUP3972M/C9W33YA8 360 480 90 3 388 1220 2590 1100 1300 380 380 464 3 3 47.7
NUP3972M/C9YA8 360 480 90 3 388 1220 2590 1100 1300 380 380 464 3 3 47.7
NU2972E 360 480 72 3 3 388 1110 2300 1100 1300 380 400 380 464 3 3 37.4
NF2972EM 360 480 72 3 3 388 1110 2300 1100 1300 380 400 380 464 3 3 37.6
NJ2972E 360 480 72 3 3 388 1220 2300 1100 1300 380 400 380 464 3 3 38.1
NUP2876KY/P69 379.5 480 60 2.1 406 454 550 680 900 1180 391 406 468 2 2 26.1
N2876KY/P69 379.5 480.5 60 2.1 2.1 454 550 680 900 1180 391 408 470 463 2 2 26.1
NUP2876K/P69 379.5 480 60 2.1 406 550 680 900 1180 391 406 468 2 2 27.1
N2876K/P69 379.5 480 60 2.1 2.1 454 550 680 900 1180 391 406 468 463 2 2 26
NU3276/HC 380 680 240 6 6 458 5860 9290 730 860 406 435 435 654 5 5 383
NU2276MA/YA36 380 680 175 7.5 7.5 462 2860 5400 730 860 406 443 443 654 7 7 289
NU2276MA 380 680 175 6 6 462 2860 5400 730 860 406 443 443 654 5 5 289
NU2276EM 380 680 175 6 6 462 3050 5500 730 860 406 443 443 654 5 5 276
NU3076EM 380 560 135 5 5 425 2250 4700 800 950 398 417 430 542 4 4 116
NU2076EM 380 560 106 5 5 425 1930 3750 800 950 398 422 430 542 4 4 93
NJ1076M 380 560 82 5 5 425 1220 2090 398 415 398 542 4 4 72.8
NU1076M 380 560 82 5 5 425 1220 2090 950 1200 400 420 430 540 4 4 71 HJ1076 8.48 21 39.03 5
N2976M 380 520 82 4 4 482 1180 2540 920 1200 400 419 428 490 3 3 82.8
NUP1876M 380 480 46 2.1 406 525 1050 950 1250 390 401 410 470 2 2 24
NJ1876M 380 480 46 2.1 2.1 407 270 1140 950 1250 391 402 391 469 2 2 20.8
NU1876M 380 480 46 2.1 2.1 406 525 1050 950 1250 390 401 410 470 2 2 23.5
N2876/P69 380 480 60 2.1 2.1 454 550 680 900 1180 390 401 410 470 2 2 25.9
NU3180M 400 650 200 6 6 460 3760 7170 700 850 420 450 460 590 4 4 274
NU2180M 400 650 145 6 6 460 2920 5190 700 850 420 450 460 590 4 4 197
NU3080M 400 600 148 5 5 450 2330 4550 900 1100 420 446 455 580 4 4 153
NU2080EM 400 600 118 5 5 449 2150 4800 750 900 418 446 454 582 4 4 122
NJ1080 400 600 90 5 5 450 1450 2480 900 1100 420 446 472 580 4 4 90.6
NU1080MA 400 600 90 5 5 450 1330 2210 900 1100 420 446 455 580 4 4 93
NU1080M 400 600 90 5 5 450 1450 2470 900 1100 420 446 455 580 4 4 92.5
NUP1080M 400 600 90 5 450 1450 2470 900 1100 420 455 580 4 4 93.6
NF2980M 400 540 82 4 4 506 1250 2510 900 1150 415 434 442 525 3 3 52.6
NU2980M 400 540 82 4 4 438 1250 2510 900 1150 415 434 442 525 3 3 55.2
FL-NJ2980/HCEC9 400 540 82 4 4 435 1340 2780 900 1150 415 429 439 525 3 3 56.2
NU2980EM 400 540 82 4 4 435 1350 2850 900 1150 415 429 439 525 3 3 57.8
NJ1980M 400 540 65 4 4 434 1000 1850 900 1150 415 429 425 525 3 3 42.7
NU1980 400 540 65 4 4 435 1000 1850 900 1150 415 429 439 525 3 3 41.7
NU1980M 400 540 65 4 4 435 900 1750 900 1150 415 429 439 525 3 3 42
NU3880Q1 400 500 75 2.1 2.1 425 855 2010 980 1250 410 419 428 490 2 2 33.4
NU1880M 400 500 46 2.1 2.1 423 565 1150 980 1250 410 419 428 490 2 2 21.2
NF6/406/C9W33 406 502 76 2 2 481 1130 2660 1000 1200 420 490 470 2 2 31.2
N6/406X4M/C9W520 406.362 501.688 76.2 3 3 481.33 1050 2550 1000 1200 418 432 491 489 2.5 2.5 34.1
NU3284X2/HCYA3 420 760 280 7.5 7.5 507 6800 13400 560 700 446 478 490 730 6 6 577
NU3184EM 420 700 224 6 6 485 4950 8950 650 780 446 478 490 694 5 5 368
NJ3084X3/HCE+HJ3084X3 420 670 150 5 5 484 3990 6500 700 900 438 478 500 652 4 4 220 HJ3084X3 6.52 12 18.4 2.1
NJ3084X1/HCE+HJ3084 420 670 150 5 5 484 3990 6500 700 900 438 478 500 652 4 4 220 HJ3084 6.52 12 18.4 2.1
NU2084EM 420 620 118 5 5 469 2400 4750 770 950 438 466 474 602 4 4 127
NU1084M/C3 420 620 90 5 5 470 1440 2490 900 1100 440 466 475 600 4 4 98
NU684ZWF1/C9YA3 420 580 130 4 4 468 1790 4660 930 1150 435 452 463 567 558 3 3 110
NUP3984M/C9W33 420 560 106 4 458 1550 3700 930 1150 435 463 545 3 3 78.7
NUP3984M/C9 420 560 106 4 458 1550 3700 930 1150 435 463 545 3 3 77.9
NJ2984 420 560 82 4 4 458 1290 2800 930 1150 435 452 463 545 3 3 59.5
NU2984M 420 560 82 4 4 458 1290 2800 930 1150 435 452 463 545 3 3 58.1
NJ1984MA 420 560 65 4 4 449 1080 1950 930 1150 435 442 466 545 3 3 46
NF1984F3 420 560 65 4 4 528 1080 2010 930 1150 435 523 530 533 3 3 45.2
NU3884M/C9W33A 420 520 75 2.1 2.1 447 840 2000 930 1150 430 438 450 510 2 2 34.1
NJ3884M/C9W33A 420 520 75 2.1 2.1 447 840 2000 930 1150 430 438 450 510 2 2 35.1
NJ3884M 420 520 75 2.1 2.1 447 900 2250 930 1150 427 441 462 510 2 2 33.3
NF1884M 420 520 46 2.1 2.1 499 605 1270 900 1100 431 451 507 504 2 2 23
NU1884M 420 520 46 2.1 2.1 447 605 1270 900 1100 440 466 380 500 2 2 22.7
NUP1884 420 520 46 2.1 447 605 1270 900 1100 440 466 380 500 2 2 23.7
NU1884 420 520 46 2.1 2.1 447 605 1270 900 1100 440 466 380 500 2 2 20.7
NU3288X2/HC 440 790 255 7.5 7.5 530 5760 10700 650 800 468 498 510 762 6 6 583
NU3188 440 720 226 6 6 508 5230 9800 600 750 460 498 518 700 5 5 374
N1188 440 720 122 6 6 648 2850 4300 800 950 466 488 690 670 5 5 207
NU2088EM 440 650 122 6 6 487 2450 5000 670 820 463 483 492 627 5 5 146
NJ1088M 440 650 94 6 6 493 1570 2430 850 1000 466 488 498 624 5 5 106 HJ1088 12.8 24 44.47 6
NU1088M 440 650 94 6 6 493 1570 2430 850 1000 466 488 498 624 5 5 102 HJ1088 12.8 24 44.47 6
NUP3988EM 440 600 118 4 481.5 1940 4250 850 1000 455 483 585 3 3 106
NJ2988EM 440 600 95 4 4 481.5 1670 3550 870 1050 455 477 500 585 3 3 83.5
NJ1988M 440 600 74 4 4 482 1030 1900 870 1050 455 477 487 585 3 3 61.4
NU1988M 440 600 74 4 4 482 1010 1980 870 1050 455 477 487 585 3 3 65
NJ1888MA 440 540 46 2.1 2.1 464 620 1330 580 710 391 458 391 469 3 3 23.6
NU689M/C9 445 815 210 7.5 7.5 539 4800 7950 750 1100 478 535 560 770 6 6 501
NU10/452M/YB2 452 680 100 6 6 516 1690 2630 600 750 470 510 580 660 5 5 116 HJ10/452 15.1 25 47.47 6
NU2292MA/HCC9 460 830 212 7.5 7.5 554 4850 8000 580 670 492 542 559 798 6 6 518
NU2292MA-1 460 830 212 7.5 7.5 554 4850 8000 580 670 492 542 559 798 6 6 518
NU2292MA/HC 460 830 212 7.5 7.5 554 4850 8000 580 670 492 542 559 798 6 6 518
NU2292MA 460 830 212 7.5 7.5 554 4850 8000 580 670 492 542 559 798 6 6 518
NU2292M 460 830 212 7.5 7.5 554 4850 8000 580 670 492 542 559 798 6 6 515
NU2292X3/HC 460 820 200 7.5 7.5 554 5650 9070 580 670 492 542 559 798 6 6 505
NU2292/HCYAD 460 830 212 7.5 7.5 554 5700 10000 580 670 492 542 559 798 6 6 505
NU1292 460 830 165 7.5 7.5 554 4200 6800 600 720 492 542 559 798 6 6 405
NU3192F3 460 760 240 7.5 7.5 531 5310 10400 400 480 490 526 536 730 6 6 467
NU3192MA 460 760 240 7.5 7.5 531 5450 10400 400 480 490 526 536 730 6 6 481
NU3192 460 760 240 7.5 7.5 531 5450 10400 400 480 490 526 536 730 6 6 467
NU3092M 460 680 163 6 6 516 2970 6150 650 790 483 496 508 657 5 5 211
NU2092MA 460 680 128 6 6 516 2450 4800 650 800 483 496 508 657 5 5 164
NU2092EMA 460 680 128 6 6 513 2450 4800 650 800 483 509 518 657 5 5 164
NU2092EM 460 680 128 6 6 513 2700 5450 650 800 483 509 518 657 5 5 166
NU1092M 460 680 100 6 6 516 1690 2630 800 950 486 511 521 654 5 5 111
NUP3992M/C9W33 460 620 118 4 502 1950 4400 800 950 476 510 604 3 3 107
NUP3992M/C9-1 460 620 118 4 502 1950 4400 800 950 476 510 604 3 3 107
NUP3992M/C9W33-1 460 620 118 4 502 1950 4400 800 950 476 510 604 3 3 107
NU2992 460 620 95 4 4 502 1670 1600 800 950 480 524 600 3 3 98.3
NUP2992 460 620 95 4 502 1670 1600 800 950 480 524 600 3 3 85
NJ2992 460 620 95 4 4 502 1640 3500 800 950 486 511 550 610 3 3 83.4
FL-NJ2892/HCEC9 460 580 72 3 3 490 1090 2480 860 1050 473 485 505 567 2.5 2.5 46.1
NJ2892EM 460 580 72 3 3 489 1030 2350 860 1050 473 485 505 567 2.5 2.5 48.7
NJ2892M 460 580 72 3 3 490 1070 2420 860 1050 473 484 494 567 2.5 2.5 46.6
NF2892M 460 580 72 3 3 552 1070 2420 860 1050 473 494 567 560 2.5 2.5 46.3
N1892Q1B/W33YAD 460 580 56 3 3 546 750 1650 800 950 473 495 567 558 2.5 2.5 35.7
NJ1892M 460 580 56 3 3 489 840 1730 800 950 473 480 503 567 2.5 2.5 36.3
NF1892M 460 580 56 3 3 553 840 1730 800 950 473 548 567 558 2.5 2.5 36.5
N1892M 460 580 56 3 3 553 795 1720 800 950 473 548 567 558 2.5 2.5 37.2
NU696/HCCNH 480 855 270 7.5 7.5 578 7260 14300 450 550 512 559 580 830 6 6 686
NU3196M 480 790 248 7.5 7.5 556 5700 11000 500 600 512 545 561 767 6 6 508
NU3196EM 480 790 248 7.5 7.5 547 5650 10700 500 600 512 536 552 758 6 6 495
NU2096MA 480 700 128 6 6 536 2600 5250 600 720 503 529 538 677 5 5 176
NU1096MA 480 700 100 6 6 536 1900 3500 720 860 503 531 538 677 5 5 129
NU1096M 480 700 100 6 6 536 1600 2970 720 860 503 531 538 677 5 5 128
NU1996/HCYA4 480 650 78 5 5 525 1130 2200 780 920 498 517 530 632 4 4 74.3
NJ2896EM 480 600 72 3 3 509.5 1140 2600 840 950 493 504 524 587 2.5 2.5 49
NJ2896EM 480 600 72 3 3 509.5 1050 2400 840 950 493 504 524 587 2.5 2.5 46.5
NF1896M 480 600 56 3 3 571 785 1680 840 950 493 515 587 580 2.5 2.5 37
NJ1896M 480 600 56 3 3 511 785 1680 840 950 439 507 516 587 2.5 2.5 37.4
NU1896 480 600 56 3 3 511 785 1680 840 950 439 507 516 587 2.5 2.5 36.3
NU1896M 480 600 56 3 3 511 750 1620 840 950 439 507 516 587 2.5 2.5 37.5
NU6/488X4/W33X 488.95 660.4 149.225 5 5 532 2350 5480 600 750 507 517 640 4 4 153
NU12/500/HCEC9 500 920 185 7.5 7.5 603.1 5800 9800 540 650 532 593 610 888 6 6 572
NU12/500M 500 920 185 7.5 7.5 603.1 5050 8450 540 650 532 593 610 888 6 6 585
NU12/500X3/HCYB2 500 900 210 7.5 7.5 600 6500 11800 540 600 532 593 610 868 6 6 606
NU12/500X3/HC 500 900 210 7.5 7.5 600 6500 11800 540 600 532 593 610 868 6 6 606
NU31/500/HCC9YA3 500 830 264 7.5 7.5 581 7500 12200 480 580 6 6 602
NU31/500 500 830 264 7.5 7.5 581 6250 12200 480 580 532 550 580 798 6 6 602
NU30/500 500 720 167 6 6 556 3210 6970 620 720 523 530 545 697 5 5 232
NU20/500EM 500 720 128 6 6 553 2850 5900 620 720 523 549 558 697 5 5 175
NJ10/500 500 720 100 6 6 556 1680 3050 720 880 523 550 697 5 5 136
N39/500EM 500 670 128 5 5 633 2250 5150 670 840 518 627 638 652 4 4 128
NUP39/500M/C9W33 500 670 128 5 543 2400 5700 670 840 522 549 648 4 4 137
NUP39/500M/C9W33-1 500 670 128 5 543 2300 5350 670 840 522 549 648 4 4 137
N29/500 500 670 100 5 5 627 1860 4100 750 900 519 537 648 4 4 103
NUP29/500F3 500 670 100 5 543 1860 4100 750 900 522 549 648 3 3 105
NU29/500F3 500 670 100 5 5 543 1940 4300 750 900 522 537 549 648 4 4 102
NJ29/500 500 670 100 5 5 543 1860 4100 750 900 522 537 549 648 4 4 105
NU29/500 500 670 100 5 5 543 1930 4300 750 900 522 537 549 648 4 4 101
N29/500 500 670 100 5 5 627 1860 4100 750 900 518 550 652 640 3 3 103
NU19/500EM 500 670 78 5 5 544 1160 2350 720 880 518 537 549 652 4 4 80
NU28/500EM 500 620 72 3 3 530 1130 2670 780 940 513 526 534 607 2.5 2.5 48.5
NF18/500EM 500 620 56 3 3 592 795 1700 780 940 513 607 598 2.5 2.5 38.5
NUP6/508Q1/C9 508 622.3 95.25 4 538 1360 3430 740 850 520 526 534 607 3 3 65.6
NU6/530/HCCNH 530 905 270 6 6 628 7690 15800 350 460 636 612 632 885 6 6 744
NU31/530/HCYA6 530 870 272 7.5 7.5 612 7500 13500 460 550 562 605 617 838 6 6 670
NU31/530/HG2 530 870 272 7.5 7.5 612 6900 13500 460 550 562 605 617 838 6 6 670
NU31/530 530 870 272 7.5 7.5 612 7000 13500 460 550 562 605 617 838 6 6 670
NU31/530/HCE 530 870 272 7.5 7.5 612 7500 13500 460 550 562 605 617 838 6 6 670
NU31/530EM 530 870 272 7.5 7.5 612 7250 14500 460 550 562 605 617 838 6 6 663
NU20/530EM 530 780 145 6 6 591 3650 7360 550 650 553 587 596 757 5 5 252
NU10/530M 530 780 112 6 6 593 2200 4050 650 780 553 585 598 757 5 5 187
NU29/530F3 530 710 106 5 5 580 2000 4800 400 500 555 585 605 585 4 4 125 HJ29/530 13.2 24 41.42 5
NU29/530/YA1 530 710 106 5 5 580 1990 4550 400 500 555 585 605 585 4 4 125 HJ29/530 13.2 24 41.42 5
NUP29/530F3 530 710 106 5 580 2000 4600 400 500 555 605 585 4 4 125
NUP29/530 530 710 106 5 580 2000 4600 400 500 555 605 585 4 4 125
NJ19/530EM 530 710 82 5 5 573 1500 2980 680 830 548 568 598 692 4 4 94.5
NJ28/530 530 650 72 3 3 562 1160 2890 900 1100 544 645 625 2.5 2.5 54.4
NUP28/530M-ZGBY 530 650 72 3 562 1160 2890 900 1100 544 570 645 2.5 2.5 56.1
NF28/530 530 650 72 3 3 622 1170 2890 900 1100 544 645 625 2.5 2.5 52.2
NUP6/558.8Q1/C9-NJB 558.8 685.8 100 5 590.5 1680 4450 670 820 573 584 590 667 4 4 82.9
NU12/560MA 560 1030 206 9.5 9.5 668 6850 11000 460 550 600 657 674 990 8 8 809
NU6/560/HC 560 960 270 9.5 9.5 670 8900 17000 480 550 588 630 646 932 8 8 846
N6/560M 560 850 170 6 6 780 4200 8500 470 580 582 616 828 795 5 5 360
NU10/560X1MA 560 820.28 115 6 6 625 2600 4890 620 720 583 617 630 797 5 5 210
NU20/560EM 560 820 150 6 6 626 3650 7600 500 600 583 616 631 797 5 5 289
NU10/560MA 560 820 115 6 6 625 2600 4890 620 720 583 617 630 797 5 5 209
NU10/560M 560 820 115 6 6 625 2250 4200 620 720 583 617 630 797 5 5 215
FL-NU29/560/C3 560 750 112 5 5 607 2470 5570 650 780 586 620 693 724 4 4 146
N29/560 560 750 112 5 5 703 2420 5600 650 780 586 693 724 713 4 4 138
NJ29/560F3 560 750 112 5 5 607 2400 5450 650 780 586 620 693 724 4 4 148
NJ29/560 560 750 112 5 5 607 2400 5450 650 780 586 620 693 724 4 4 148
NJ19/560MA 560 750 85 5 5 608 1660 3250 650 780 578 600 613 732 4 4 111
NJ19/560 560 750 85 5 5 608 1660 3250 650 780 578 600 613 732 4 4 111
NU19/560EM 560 750 85 5 5 608 1630 3200 650 780 578 600 613 732 4 4 108
NF28/560 560 680 72 3 3 651 1170 2950 670 820 573 645 665 657 2.5 2.5 53
NJ18/560MA 560 680 56 3 3 591 810 1830 670 820 573 584 606 667 2.5 2.5 44.2
NJ18/560M 560 680 56 3 3 591 810 1830 670 820 573 584 606 667 2.5 2.5 42.5
NU2/600M/YB2 600 1090 155 9.5 9.5 740 5100 8400 500 600 623 655 666 1062 8 8 676 HJ2/600 54.4 30 54.67 9.5
NU2/600MA/HC 600 1090 155 9.5 9.5 740 5100 8400 500 600 623 655 666 1062 8 8 686 HJ2/600 54.4 30 54.67 9.5
NU30/600F3/HCYA4 600 870 200 6 6 661 5400 11000 500 600 623 655 666 847 5 5 416
NU30/600E 600 870 200 6 6 661 5390 11000 500 600 623 655 666 847 5 5 412
NU20/600EM 600 870 155 6 6 661 4180 8000 500 600 623 652 667 847 5 5 320
NU10/600 600 870 118 6 6 667 2840 5250 590 680 623 658 672 847 5 5 234
NU6/600 600 830 150 5 5 655 3410 7450 600 700 619 647 703 806 4 4 237
NU29/600E 600 800 118 5 5 649 2900 6550 620 750 618 675 782 4 4 163
NU19/600Q1/YAD 600 800 90 5 5 649 1860 3600 620 750 618 642 645 782 4 4 125
NU19/600 600 800 90 5 5 649 1860 3600 620 750 618 642 645 782 4 4 128
NJ19/600M 600 800 90 5 5 649 1860 3600 620 750 619 642 657 782 4 4 130
NF19/600EM 600 800 90 5 5 757 1900 3800 620 750 618 675 782 4 4 130
NUP19/600EM 600 800 90 5 649 1900 3800 620 750 618 675 782 4 4 135
NU19/600 600 800 90 5 5 649 1860 3600 620 750 618 642 645 782 4 4 128
NU19/600EM 600 800 90 5 5 649 1900 3800 620 750 618 642 645 782 4 4 128
NU28/600EM 600 730 78 3 3 632 1250 3350 620 730 613 625 637 717 2.5 2.5 68.5
NJ28/600M 600 730 78 3 3 635 1265 3340 650 780 613 628 640 717 2.5 2.5 70.2
NU18/600EM 600 730 60 3 3 632 860 2000 650 780 613 625 637 717 2.5 2.5 49.3
N620/780 620 780 102 4 4 740 1950 4800 600 750 654 680 695 765 3 3 124
NFP6/620Q1 620 780 102 4 4 740 1950 4800 600 750 654 680 695 765 3 3 124
NU30/630 630 920 212 7.5 7.5 699 6450 14500 450 530 658 690 705 892 6 6 485
NU20/630MA 630 920 170 7.5 7.5 699 4650 9150 480 560 658 690 705 892 6 6 399
NU20/630EM 630 920 170 7.5 7.5 699 4650 9150 480 560 658 690 705 892 6 6 399
NU20/630EM 630 920 170 7.5 7.5 699 4700 9500 480 560 658 690 705 892 6 6 395
NUP10/630EM 630 920 128 7.5 702 3400 6250 450 530 658 691 706 892 6 6 284
NU10/630EM 630 920 128 7.5 7.5 702 3400 6250 450 530 658 691 706 892 6 6 284
NJ29/630EM 630 850 128 6 6 683 3250 7250 580 680 653 678 689 827 5 5 222
NU29/630EM 630 850 128 6 6 683 3250 7250 580 680 653 678 689 827 5 5 214
NU29/630 630 850 128 6 6 688 3050 6950 580 680 653 678 689 827 5 5 210
NU19/630EM 630 850 100 6 6 683 2150 4250 600 700 653 676 688 827 5 5 160
NJ19/630 630 850 100 6 6 688 1980 4000 600 700 653 681 694 827 5 5 167
NU19/630M 630 850 100 6 6 688 1980 4000 600 700 653 681 694 827 5 5 158
NF38/630M 630 780 112 4 4 745 2150 5750 550 650 645 739 765 744 3 3 120
N38/630M 630 780 112 4 4 745 2150 5750 550 650 645 739 765 744 3 3 118
NU28/630M 630 780 88 4 4 668 1800 4500 630 750 645 660 674 765 3 3 96
N28/630M 630 780 88 4 4 744 1800 4500 630 750 645 737 765 744 3 3 95.6
NJFP6/640K/HCC3 640 960 140 7.5 7.5 710 4370 7900 400 480 655 670 952 6 6 345
NUP6/660.4Q1/C91-NJB 660.4 863.6 107.95 5.1 704 3000 6050 560 670 680 734 843 4 4 170
NUP6/660.4Q1/C9-LS 660.4 863.6 107.95 5.1 704 3000 6050 560 670 680 734 843 4 4 170
NUP6/660.4Q1/C9 660.4 863.6 107.95 5.1 704 3000 6050 560 670 680 734 843 4 4 179
NUP6/660.4Q1/C9-1 660.4 812.8 107.95 4 697 2280 6000 560 670 680 734 843 4 4 127
NFP6/666X4Q1/C9-LS 666.75 838.2 114.3 3 6 796 2870 6850 560 680 682 790 820 812 3 5 158
NFP6/666X4Q1/C91-LS 666.75 838.2 114.3 3 6 796 2870 6850 560 680 682 790 820 812 3 5 158
NFP6/666X4Q1/C9 666.75 838.2 114.3 3 6 796 2870 6850 560 680 682 790 820 812 3 5 160
NU30/670M 670 980 230 7.5 7.5 744 6500 14500 430 500 698 736 750 952 6 6 596
N30/670 670 980 230 7.5 7.5 914 6930 15000 430 500 908 952 919 6 6 594
NU20/670E 670 980 180 7.5 7.5 746 5400 11500 430 500 698 736 752 952 6 6 477
NU10/670 670 980 136 7.5 7.5 747 3700 6800 430 500 698 736 753 952 6 6 344
NU19/670 670 900 103 6 6 731 2420 4900 530 630 693 730 755 877 5 5 193
NUP19/670 670 900 103 6 731 2420 4900 530 630 693 730 755 877 5 5 193
NFP38/670Q1/C9YAD 670 820 112 4 4 786 2490 6700 560 670 640 780 800 792 3 3 133
NJ38/670Q1 670 820 112 4 4 706 2570 7000 560 670 640 700 727 805 3 3 133 HJ38/670 7.8 15 25 4
NJ18/670M 670 820 69 4 4 706 1450 3350 550 650 685 697 685 805 3 3 84.8
NF18/670 670 820 69 4 4 786 1450 3350 550 650 654 698 712 805 797 3 3 85.8
NJ18/670 670 820 69 4 4 708 1230 2800 550 650 654 700 727 805 3 3 83.8
NUP6/700F3 700 930 160 6 760 3520 8500 500 600 733 772 900 5 5 316
NUP6/700 700 930 160 6 760 3520 8500 500 600 733 772 900 5 5 316
NU6/700F3 700 930 160 6 6 760 3520 8500 500 600 733 760 772 900 5 5 306
NU6/700M 700 930 160 6 6 760 3200 8520 500 600 733 760 772 900 5 5 309
NU6/700 700 930 160 6 6 760 3520 8500 500 600 733 760 772 900 5 5 306
NU11/710X2 710 1150 185 9.5 9.5 835 5900 11700 400 450 743 790 815 1116 9 9 874 HJ11/710 67.7 35 62 9.5
NU20/710EM 710 1030 185 7.5 7.5 787 5800 12000 420 490 738 780 793 1002 6 6 535
NU10/710EM 710 1030 140 7.5 7.5 778 4550 8400 420 490 738 769 783 1002 6 6 420
NU29/710M 710 950 140 6 6 776 3000 7000 480 560 733 760 772 927 5 5 291
NU29/710EM 710 950 140 6 6 766 3650 8250 480 560 733 760 772 927 5 5 294
NU19/710Q1/YAD 710 950 106 6 6 770 2600 5500 480 560 740 755 900 5 5 217
NU19/710/HCRYA3 710 950 106 6 6 770 2600 5500 480 560 740 755 900 5 5 208
NU19/710 710 950 106 6 6 770 2590 5500 480 560 740 755 900 5 5 210
NF19/710F3 710 950 106 6 6 884 2450 6000 480 560 740 875 910 890 5 5 229
N19/710F3/CNL 710 950 106 6 6 884 2450 6000 480 560 740 875 910 890 5 5 227
N28/710X3F3/W33 710 900 106 4 4 845 1800 5200 480 560 740 755 880 850 3 3 168
N28/710X3/W33 710 900 106 4 4 845 1800 5200 480 560 740 755 880 850 3 3 168
NJ28/710M 710 870 95 4 4 751 1900 4800 480 560 725 742 760 855 3 3 125
NF28/710 710 870 95 4 4 831 1880 4950 480 560 725 825 855 835 3 3 125
NU18/710M 710 870 74 4 4 750 1450 3370 480 560 725 825 855 835 3 3 102
N8/710/HC 710 870 74 4 4 830 1450 3370 500 600 725 855 835 3 3 102
NUP6/711.2M/C9 711.2 863.6 107.95 6.35 743 3300 6700 500 600 740 750 800 835 5 5 136
NFP6/723.8Q1/C9 723.8 908.05 120.65 5 5 865 3350 8300 480 550 752 765 883 850 4 4 197
NU2/750X3 750 1320 185 6 6 895 8200 14100 320 400 773 820 876 1296 5 5 1105 HJ750 115 40 70 6
NU20/750EM 750 1090 195 7.5 7.5 832 6700 14500 350 415 778 823 838 1062 6 6 634
NU10/750EM 750 1090 150 7.5 7.5 830 4500 8500 350 415 778 823 838 1062 6 6 492
NUP19/750 750 1000 112 6 815 2660 5500 470 550 733 770 977 5 5 252
NF19/750EM 750 1000 112 6 6 943 2750 5750 470 550 773 938 977 953 5 5 264
NU19/750X2/C9 750 1000 100 6 6 815 3030 6500 460 550 733 750 770 977 5 5 220
N38/750X2M 750 920 120 5 5 880 2690 7300 480 590 773 875 900 885 5 5 176
N28/750F3 750 920 100 5 5 880 2160 5500 480 590 773 875 900 885 5 5 145
N28/750 750 920 100 5 5 880 2160 5500 480 590 773 875 900 885 5 5 145
NF18/750F3 750 920 78 5 5 880 1510 3480 480 590 773 875 900 885 5 5 101
NF18/750M 750 920 78 5 5 880 1510 3480 480 590 770 784 800 900 4 4 102
NU18/750M 750 920 78 5 5 794 1450 3500 480 590 770 784 800 900 4 4 105
NU20/800MA/HC 800 1150 200 7.5 7.5 885 7910 14600 320 380 828 868 888 1122 6 6 725
NU20/800EM 800 1150 200 7.5 7.5 882 6900 14500 320 380 828 868 888 1122 6 6 710
NU10/800EM 800 1150 155 7.5 7.5 883 5400 10500 320 380 828 869 889 1122 6 6 565
NU19/800 800 1060 115 6 6 870 2880 6150 400 450 824 838 856 1036 5 5 279
NJ18/800EM 800 980 82 5 5 846 1700 4200 430 510 818 838 866 962 4 4 144
NJ18/800M 800 980 82 5 5 846 1690 4000 430 510 818 836 818 962 5 5 134
NF18/800 800 980 82 5 5 936 1690 4000 430 510 818 930 950 942 5 5 133
NUP6/810-ZGBY 810 1000 130 5 3180 8600 420 500 816 856 868 982 6 6 238
NUP6/812X4 812.8 1016 139.7 6 865 4150 10500 420 500 830 860 880 986 5 5 277
N6/820 820 990 72 5 5 943 1180 2960 450 530 840 937 970 944 4 4 128
NU20/850EM/HC 850 1220 212 7.5 7.5 935 7300 15400 390 460 878 981 912 1192 6 6 835
NUP28/850MA/W33YA8 850 1030 106 5 902 2250 6500 410 480 868 908 1012 4 4 197
NUP28/850MA 850 1030 106 5 902 2250 6500 410 480 868 908 1012 4 4 197
NU28/850MA/W33YA8 850 1030 106 5 5 902 2250 6500 410 480 868 895 908 1012 4 4 189
NU28/850MA 850 1030 106 5 5 902 2250 6500 410 480 868 895 908 1012 4 4 190
NJ19/850 850 1120 118 6 6 919 2930 7000 390 460 873 909 926 1097 5 5 326
NU19/850EM 850 1120 118 6 6 919 3050 6900 390 460 873 909 926 1097 5 5 325
N28/850MB 850 1030 106 5 5 982 2250 6490 410 480 868 891 1010 994 4 4 187
NJ28/850M 850 1030 106 5 5 902 2250 6500 410 480 868 891 908 1012 4 4 191
NU28/850MB 850 1030 106 5 5 902 2050 6490 410 480 868 891 908 1012 4 4 192
NU28/850M 850 1030 106 5 5 902 2050 5900 410 480 868 891 908 1012 4 4 192
N6/900 900 1200 150 6 6 1124 4450 10200 350 420 923 985 1165 5 5 485
NU29/900EM 900 1180 165 6 6 969 5750 13500 350 420 923 958 975 1157 5 5 565
NU19/900EM 900 1180 122 6 6 966.5 4050 8700 350 420 923 957 973 1157 5 5 378
NU38/900 900 1090 140 5 5 945 3300 9100 350 420 918 956 1072 4 4 268
NF28/900 900 1090 112 5 5 1045 2700 7250 370 440 918 944 956 1072 4 4 228
NU28/900M 900 1090 112 5 5 949 2650 7150 370 440 918 944 956 1072 4 4 234
NU18/900M 900 1090 85 5 5 949 1900 4850 370 440 918 942 956 1072 4 4 172
NU29/950F3 950 1250 175 7.5 7.5 1024 5560 13000 340 400 978 1013 1013 1222 6 6 596
NUP29/950 950 1250 175 7.5 1024 5670 13400 140 170 990 1069 1210 6 6 616
NU29/950 950 1250 175 7.5 7.5 1024 5560 13000 340 400 978 1013 1013 1222 6 6 596
NU29/1000E 1000 1320 185 7.5 7.5 1082 6700 17000 290 350 1028 1072 1089 1292 6 6 705
NJ28/1000EM 1000 1220 128 6 6 1053 3600 9500 350 420 1023 1040 1082 1197 5 5 345
NJ18/1000M 1000 1220 100 6 6 1053 2650 6550 350 420 1023 1060 1197 5 5 252
NU18/1000M 1000 1220 100 6 6 1053 2650 6550 350 420 1023 1040 1060 1197 5 5 264
NU6/1030M 1030 1310 175 7.5 7.5 5700 14300 300 360 1055 1088 1092 1285 6 6 579
N30/1060 1060 1500 325 9.5 9.5 1390 12500 32500 230 290 1094 1382 1466 1402 8 8 1880
NU39/1060EM 1060 1400 250 7.5 7.5 1146 9000 23500 250 310 1028 1140 1153 1372 6 6 1060
NU29/1060EM 1060 1400 195 7.5 7.5 1146 7200 17000 290 350 1028 1133 1152 1372 6 6 875
NU19/1060M 1060 1400 150 7.5 7.5 1148 5280 12100 290 350 1088 1010 1133 6 6 653
N28/1060M 1060 1280 128 6 6 1225 3550 10500 310 370 1083 1218 1257 1230 5 5 355
NJ18/1120M 1120 1360 106 6 6 1185 3250 8550 270 330 1143 1175 1210 1337 5 5 329
NJ18/1120M/W20YB2 1120 1360 106 6 6 1185 3250 8550 270 330 1143 1175 1210 1337 5 5 329
NJ18/1120F3/W20YB2 1120 1360 106 6 6 1185 3250 8550 270 330 1143 1175 1210 1337 5 5 329
NJ18/1120F3/W20 1120 1360 106 6 6 1185 3250 8550 270 330 1143 1175 1210 1337 5 5 327
NJ18/1120EM 1120 1360 106 6 6 1182 3350 8600 270 330 1143 1175 1210 1337 5 5 330
N39/1180M 1180 1540 272 7.5 7.5 1466 11000 28500 190 250 1208 1458 1512 1474 6 6 1350
NU29/1180EM 1180 1540 206 7.5 7.5 1258 8950 21500 180 220 1208 1250 1266 1512 6 6 1046
NJ18/1180M 1180 1420 106 6 6 1242 3050 8000 250 320 1203 1228 1270 1397 5 5 340
NJ18/1180EM 1180 1420 106 6 6 1242 2950 7750 250 320 1203 1228 1270 1397 5 5 354
FL-N6/1200/YAD 1200 1520 185 7.5 7.5 1439 6240 17000 110 140 1240 1290 1480 6 6 838
NU6/1200F3/C91 1200 1520 185 7.5 7.5 1289 6220 17000 110 140 1240 1274 1304 1480 6 6 825
NU6/1200F3/C9 1200 1520 185 7.5 7.5 1289 6220 17000 110 140 1240 1274 1304 1480 6 6 825
NU6/1200F3 1200 1520 185 7.5 7.5 1289 6220 17000 110 140 1240 1274 1304 1480 6 6 825
NU6/1200 1200 1520 185 7.5 7.5 1289 6220 17000 110 140 1240 1274 1304 1480 6 6 825
NU6/1200/C9 1200 1520 185 7.5 7.5 1289 6220 17000 110 140 1240 1274 1304 1480 6 6 825
NU6/1200/C91 1200 1520 185 7.5 7.5 1289 6220 17000 110 140 1240 1274 1304 1480 6 6 825
N20/1250M 1250 1750 290 9.5 9.5 1635 12500 29500 165 190 1284 1625 1716 1650 8 8 2310
NU18/1250/HCE 1250 1500 145 6 6 1316 4900 14000 300 380 1280 1306 1326 1470 5 5 517
NU18/1250F3/C9 1250 1500 112 6 6 1316 3630 9550 300 380 1280 1306 1326 1470 5 5 386
NU18/1250C9 1250 1500 112 6 6 1316 3630 9550 300 380 1280 1306 1326 1470 5 5 386
N39/1320M 1320 1720 300 7.5 7.5 1640 12600 32500 175 210 1348 1630 1692 1655 6 6 1890
NU29/1320E 1320 1720 230 7.5 7.5 1420 10900 29000 180 230 1348 1405 1430 1692 6 6 1510
NU19/1320D/HCRYAD 1320 1720 175 7.5 7.5 1475 6700 16200 1348 1460 1478 1692 6 6 1080
NU19/1320 1320 1720 175 7.5 7.5 1425 7920 19500 190 240 1348 1406 1428 1692 6 6 1110
FL-NU6/1320 1320 1640 185 7.5 15 1040 6520 17730 190 250 1364 1376 1382 1610 6 6 893
NU18/1320M 1320 1600 122 6 6 1395 3650 9500 190 250 1343 1382 1403 1577 5 5 525
N28/1400EM 1400 1700 175 7.5 7.5 1637 6300 1750 175 210 1428 1627 1672 1647 6 6 858
NU18/1500/HCR 1500 1820 140 7.5 7.5 1585 6220 17300 195 250 1528 1570 1748 1792 6 6 773
NF18/1500/HC 1500 1820 140 7.5 7.5 1735 6220 17300 195 250 1528 1728 1792 1745 6 6 773
NU18/1500/HC 1500 1820 140 7.5 7.5 1585 6220 17300 195 250 1528 1570 1748 1792 6 6 773
NU6/1500/HCC9YA34 1500 1770 160 4 7.5 1580 5700 19200 200 260 1528 1570 1742 4 6 730
NU28/1600F3 1600 1950 200 7.5 7.5 1690 8340 24300 150 185 1655 1680 1700 1886 6 6 1272
FL-N18/1600 1600 1950 155 7.5 7.5 1857 6560 18300 150 185 1630 1680 1700 1886 1876 6 6 1030
NU18/1700EM 1700 2060 160 7.5 7.5 1784 6950 18500 125 155 1728 1771 1795 2032 6 6 1156
N18/1900 1900 2300 175 9.5 9.5 2204 8150 23700 90 115 1934 2194 2266 2219 8 8 1480
Bearing part number D Weight
kg
N212EM 110 0.91
NU2204ETYN/P5S1 47 0.139
NJ2305M/HAP6 62 0.453
NUP305EM 62 0.28
NJ305ETN1 62 0.239
NJ2205ETN1/HCP69YAD-GTR 52 0.162
NU2205ETN1-YSJ 52 0.188
NU2205ETN1/C9-YSJ 52 0.188
NJ2205EM/P49YB2 52 0.188
NUP2205ETN1 52 0.171
NU205ETN1/C9 52 0.134
NJ205ETN1 52 0.134
NJ205M 52 0.164
NU205EM 52 0.159
NU6/26NRTN1-DZ 55 0.212
NJ406M 90 0.882
NU2306EM 72 0.593
NUP2306M 72 0.585
NF306X3EM/YA6 72.046 0.502
NJ306X2EM-2RSL 72 0.472
NJ306X2EM-RSL 72 0.472
NJ306ENTN1/C3-FST 72 0.369
NJ306EM/YA8 72 0.425
NJ306ETN1 72 0.374
N306M 72 0.403
NJ306EM 72 0.411
NJ306X3WB/C9 70 0.342
NU2206ETN1/C9 62 0.259
NJ2206ETN1 62 0.265
NU2206ETN1 62 0.259
NJ2206EM 62 0.297
NU206ETN1/C9 62 0.198
NU206EM 62 0.259
NJ206ETN1 62 0.203
NJ206EM 62 0.264
NU1006TN1 55 0.119
NU1006M 55 0.138
NJ407M 100 1.1
NU2307EM 80 0.81
NJ2307EM 80 0.823
NJ2307M 80 0.833
NU307EQ1 80 0.591
NU307E 80 0.526
NU307EMA 80 0.547
NF307ETN1-FST 80 0.519
NU307ETN1/C9 80 0.5
NJ307ENRM 80 0.62
NU307ENRM 80 0.607
NU307M 80 0.591
NF307ETN1 80 0.519
NF307M 80 0.61
NJ307E 80 0.54
N307M 80 0.595
NJ307M 80 0.604
NCL307E/YA 80 0.503
NU2207ETN1/C9 72 0.393
NJ2207EM/C9YA8 72 0.455
NJ2207ETN1 72 0.404
NU2207EM 72 0.444
NJ2207EM 72 0.445
NU207EM 72 0.331
NJ207ETN1 72 0.303
NJ207EM 72 0.338
N207EM 72 0.331
NU1007TN1 62 0.156
NU1007M 62 0.173
NUP6/38X2NM 83 0.705
NJ2308E 90 1.1
NU2308EM 90 1.01
NUP308ETN1/YA6 90 0.673
NUP308EM/YA6 90 0.819
NUP308EM/C2 90 0.819
NJ308ETN1 90 0.669
NJ308EM/YA8 90 0.805
NJ308EM 90 0.815
NF308EM/C9-FST 90 0.813
NJ308EJC 90 0.718
NJ308EB1M 90 0.778
NJ308EB1JC 90 0.681
NJ308E 90 0.752
NF308E 90 0.75
N308EM 90 0.794
NCL308E/YA 90 0.683
NF308ETN1/C9-FST 90 0.667
N308ETN1 90 0.648
NCL308E/C9YA-1 90 0.678
NU2208ETN1/SPCNL 80 0.487
NU2208ETN1/C9-YSJ 80 0.487
NU2208ETN1/C9 80 0.487
NU2208ETN1 80 0.487
NU2208EM 80 0.53
NJ2208EM 80 0.539
NU208ETN1 80 0.377
NU208ETN1/C9 80 0.377
NJ208ETN1 80 0.398
N208EM 80 0.425
NUP208ETN1 80 0.4
NUP208EM 80 0.46
NU208EM 80 0.439
NJ208E 80 0.442
NJ208EM 80 0.46
NU1008TN1 68 0.183
NU1008M 68 0.231
NJ409M 120 1.88
NU409M 120 1.87
N409M 120 1.67
NU2309E 100 1.42
NJ2309EM/C4W124 100 1.47
NJ2309EM 100 1.52
NJ2309X2NV/C9YA26 100 1.17
NJ2309E 100 1.45
NU2309EM/C3 100 1.49
NF2309X2J/YA6 100 1.12
NUP309EWB1NRTN1 100 0.942
NUP309ETN1/HAC3YA6 100 0.892
NU309NRB1/YA6 100 0.912
NU309E 100 0.986
NJ309EM/C4W124YA8 100 1.09
NJ309E 100 1.01
NF309E 100 0.995
N309ETN1 100 0.846
NUP309EN 100 0.997
N309E 100 0.964
NUP309E 100 1.01
N309EM 100 0.959
NJ309EM/YA8 100 1.09
NJ309EM 100 1
NU309M/C3 100 0.992
NCL309E/YA 100 0.872
NJ309ETN1 100 0.891
NCL309EN/YA 100 0.872
N309J 100 0.82
NF309X1MR/YA1 100.038 1.03
N309M 100 0.92
NU5209XPC3 85 0.843
NU3209X2M/C9YA6 85 0.831
NJ2209EM 85 0.645
NJ2209E/C3 85 0.639
NU2209ETN1/C9 85 0.571
NU2209ETN1 85 0.571
NU2209EM 85 0.635
NUP209EM 85 0.507
NF209ETN1 85 0.444
NF209EM 85 0.51
NU209EM 85 0.498
NJ209EM 85 0.51
NJ209TN1 85 0.439
NJ209M 85 0.487
NJ609M/YA1 80.036 0.363
NU410TN1 130 1.99
NJ410TN1 130 2.02
NJ410M 130 2.24
NJ410 130 2.15
NU410 130 2.11
NU410M 130 2.2
N410 130 2.09
N410M 130 2.18
NJ2310ETN1 110 1.74
NU2310ETN1 110 1.71
NU2310EM 110 1.89
NU2310E 110 1.92
NJ2310EM 110 1.92
NJ2310E 110 1.95
NU2310M 110 1.91
NU310EWBTN1 100 1.19
NU310TN1 110 1.1
NU310ETN1/C9-YSJ 110 1.12
NJ310TN1 110 1.14
NUP310ENTN1/YA6 110 1.2
NUP310ENTN1 110 1.2
NUP310ENJC 110 1.37
NUP310EN 110 1.65
NUP310M 110 1.37
NUP310EM 110 1.34
NU310EM 110 1.27
NU310E 110 1.29
NJ310E 110 1.33
N310E 110 1.3
N310EM 110 1.3
NU310M/C3 110 1.29
NJ310M+HJ310 110 1.52
NJ310EM 110 1.36
NJ310M 110 1.36
NF310M 110 1.31
N310M 110 1.17
NU5211XPC3 100 1.21
NU3210X2M/C9YA6 90 0.902
NU5210XPC3 90 0.902
NU2210ETN1-YSJ 90 0.563
NU2210ETN1/C9-YSJ 90 0.563
NU2210ETN1/C91-YSJ 90 0.563
NJ2210ETN1 90 0.579
NJ2210EM 90 0.666
NU2210ETN1/C9 90 0.563
NU2210EM 90 0.65
NU210ETN1/C9-YSJ 90 0.489
NUP210E 90 0.591
NF210EM 90 0.596
NF210E 90 0.578
NJ210ETN1 90 0.503
NJ210EM 90 0.573
NU210EM 90 0.562
NU210Q1 90 0.557
NU210M 90 0.564
NF210M 90 0.565
N210EM 90 0.566
N210M 90 0.559
N1010KM/P49 80 0.309
NJ1010TN1 80 0.279
NJ1010M 80 0.316
NU411M 140 2.85
NJ411M/C5 140 2.95
N411M 140 2.86
NU2311E 120 2.59
NJ2311E 120 2.62
N2311E 120 2.56
NU2311M 120 2.43
NU311EM/C9 120 1.63
NU311EM 120 1.64
N311ETN1 120 1.42
NUP311E 120 1.69
NU311E 120 1.64
NJ311E 120 1.67
NU311TN1 120 1.44
NU311ETN1/C9 120 1.45
NUP311ETN1/YA6 120 1.5
NJ311TN1/YA6 120 1.45
N311E 120 1.61
N311EM 120 1.6
NUP311NRJC 120 1.71
NUP311NJC 120 1.65
NJ311M/YA6 120 1.75
NUP311M 120 1.76
NJ311M 120 1.75
NU311M 120 1.74
N311J 120 1.45
N311M 120 1.65
NF311M 120 1.7
NU3211X2M/C9YA6 100 1.21
NU5211XPC3 100 1.21
N3211M 100 1.2
NU2211EM 100 0.763
NJ2211ETN1 100 0.666
NJ2211EM 100 0.783
NJ211ETN1 100 0.701
NUP211ETN1 100 0.667
NU211ETN1/C9 100 0.67
NUP211EM 100 0.762
NUP211E 100 0.751
NJ211E 100 0.767
NF211E 100 0.757
NF211M 100 0.806
NU1011TN1 90 0.403
NU1011M 90 0.479
NU412TN1 150 2.91
NUP412M 150 3.42
NUP412J 150 3.31
NUP412 150 3.43
NJ412 150 3.25
NJ412M 150 3.36
NJ412J 150 3.13
NU412 150 3.13
NU412M 150 3.23
N412 150 3.18
N412M 150 3.29
N612M/C9 140 3.96
N612M 140 3.96
NJ2312E 130 3
NU2312E 130 2.95
NU2312ETN1/C9 130 2.79
N2312E 130 2.93
NJ2312EM/C9-DT 130 3.1
NJ2312M 130 3.38
NJ2312M/C4W124YA8 130 3.39
N2312M 130 2.95
NJ312TN1 130 1.83
N312TN1 130 1.78
NUP312ENRJ/C3 130 1.92
NUP312ENRM 130 2.2
NUP312E/C9 130 2.03
NUP312E 130 2.03
NU312ETN1/C9 130 1.78
NU312ETN1 130 1.78
NU312EM 130 2.06
NU312E/YA6 130 1.94
NU312E 130 1.94
NJ312EM/YAB 130 2.1
NJ312E 130 1.98
NF312EM 130 2.12
NF312E 130 2
N312ETN1 130 1.79
N312EM 130 2.06
N312E 130 1.94
NJ312M 130 2.1
NU312Q1 130 2.03
NU312M 130 2.06
N312EF6D-GX 130 2.04
N312M 130 2.04
NU2212WBM/C3 110 1.57
NU3212X2M/C9YA6 110 1.75
NU5212XPC3 110 1.75
NJ2212ETN1 110 1.07
NJ2212EM 110 1.23
NU2212EM 110 1.21
NUP2212M 110 1.27
NUP212NM/YB2 110 0.978
NU212ETN1/C9 110 0.82
NJ212ETN1 110 0.842
NJ212EM 110 0.938
NJ212E 110 0.947
NJ212M 110 0.952
NU212EM 110 0.916
NU212M 110 0.938
NF212M 110 0.957
N212M 110 0.937
NU1012M 95 0.466
N1012TN1 95 0.387
N1012M 95 0.432
NUP413M 160 4.19
NJ413W1 160 4
NJ413M/YA8 160 4.01
NJ413M 160 4.09
NU413 160 3.94
NU413M 160 4.03
N413 160 3.92
N413M 160 4.01
NU2313E 140 3.48
NJ2313E 140 3.55
NF2313E 140 3.6
NU2313ETN1/C9 140 3.26
NU2313EM 140 4.38
NU2313ETN1 140 3.26
NU2313M 140 3.6
NJ2313M 140 3.67
NU313M/YA1 140 2.46
NUP313EM 140 2.64
NU313E 140 2.46
NJ313E 140 2.59
N313E 140 2.43
NU313ETN1 140 2.18
NU313EM 140 2.45
NF313EM 140 2.48
N313EM 140 2.42
NJ313EM 140 2.5
NU313Q1 140 2.46
NU313M 140 2.54
NJ313M 140 2.6
N313ETN1 140 2.15
N313M 140 2.45
N313 140 2.24
NU3213M/C9YA6 120 1.96
NU5213XPC3 120 1.96
NU2213ETN1-YSJ 120 1.43
NU2213ETN1/SPCNL 120 1.43
NU2213ETN1/C9-YSJ 120 1.43
NU2213EM 120 1.61
NUP2213NM 120 1.74
NU2213ETN1/C9-YSJ 120 1.43
NU2213ETN1/C9 120 1.43
NUP2213M 120 1.75
NU2213NM 120 1.64
NU2213M 120 1.65
NJ2213EM 120 1.67
NJ2213M 120 1.65
NU213ETN1 120 1
NU213ETN1/C9 120 1.02
NUP213ETN1 120 1.07
NUP213EM 120 1.22
NUP213E 120 1.16
NJ213E 120 1.13
NU213E 120 0.994
N213E 120 1.05
NF213E 120 1.14
NUP213M 120 1.22
NJ213M 120 1.14
NU213M 120 1.12
N213M 120 1.13
NU234EWBM 310 21.4
NUP414M 180 6.17
NJ414M/YA8 180 5.91
NJ414M 180 5.94
NJ414 180 6.68
NU414 180 6.38
NU414M 180 5.79
N414 180 6.4
N414M 180 5.66
NJ2314E/WBYAD 150 4.51
NJ2314E 150 4.33
NJ2314EM/C9-DT 150 4.52
NU2314E 150 4.24
NU2314ETN1/C9 150 3.89
N2314E 150 4.27
NJ2314M/C4W124YA8 150 4.61
NJ2314M 150 4.62
NU2314M 150 4.52
NU314ETN1/C9 150 2.7
NU314ETN1 150 2.7
NU314EM 150 3.45
NUP314E 150 3.14
NJ314EM/YAB 150 3.14
NJ314E 150 3.06
NU314E 150 3.01
NJ314E/C9 150 3.06
N314EM 150 3.08
N314E 150 3
NU314NTN1/YB2 150 2.66
NU314NM/YB2 150 2.96
NU314NRM/YAB 150 3.05
NU314Q1 150 3.03
NF314M 150 3.08
NJ314M 150 3.12
NU314M 150 3.05
N314J 150 2.78
N314M 150 3
NJ314Q1 150 3.11
NU2214WBM/C2 125 1.88
NU3214X2M/C9YA6 125 2.17
NU5214/C9YA6 125 2.17
NU5214XPC3 125 2.17
NJ2214M 125 1.73
NU2214M 125 1.7
N2214M 125 1.68
NUP2214M 125 1.8
NU214E 125 1.32
NJ214E/YA6 125 1.34
NU214ETN1/C9 125 1.16
NJ214E 125 1.34
NUP214ENM-DFMC 125 1.36
NUP214ENM 125 1.36
NUP214E 125 1.39
NF214ETN1/C9YB2 125 1.17
NF214E/C9YB2 125 1.33
NF214E 125 1.31
N214E 125 1.29
NF214EJ/C9YB2 125 1.21
NU214M 125 1.24
NU214Q1 125 1.23
NF214M 125 1.3
N214M 125 1.27
NUP214M 125 1.35
NU1014M 110 0.69
NU415M 190 6.94
N415M 190 6.86
NJ415M/YA8 190 7.2
NJ415M 190 7.14
NU2315M 160 5.96
NJ2315M 160 5.86
N2315Q1 160 5.84
N2315M 160 5.3
NJ315EM/YA8 160 3.93
NJ315E 160 3.64
NJ315X2EM/YAB 160 4.62
NJ315M 160 3.63
NU315E 160 3.56
NU315M 160 3.56
N315M 160 3.59
NUP315EM 160 3.75
NU315ENM 160 3.59
NU315ETN1 160 3.25
N315E 160 3.59
NU315Q1 160 3.68
NU315EM 160 3.62
N315J 160 3.28
N315EM 160 3.65
NJ315Q1 160 3.75
NU3215X2M/C9YA6 130 2.27
NU5215XPC3 130 2.27
NUP2215TN1 130 1.83
N2215M 130 1.77
NU2215M/C9 130 1.75
NU2215M 130 1.75
NU2215ETN1/C9-YSJ 130 1.54
NU2215ETN1/C9 130 1.54
NFP2215EM 130 1.86
NFP2215E 130 1.81
NUP2215M 130 2.03
NU215M-DT 130 1.42
NU215EM/YA5-DT 130 1.42
NUP215EL3/HAP53 130 1.35
NU215EL3/HAP53 130 1.3
NJ215E 130 1.38
NU215ETN1/C9 130 1.24
NU215ETN1 130 1.24
NU215E 130 1.39
N215E 130 1.38
NJ215M 130 1.45
NU215M 130 1.42
N215M 130 1.4
NF1015X1M 115.05 0.765
NU1015M 115 0.739
NJ416M/YA8 200 8.27
NJ416M 200 8.31
NU416M 200 8.19
N416M 200 8.02
NUP2316M/YAB 170 7.23
NJ2316EM/C9-DT 170 6.62
NJ2316EM 170 6.62
NJ2316E 170 6.94
N2316E 170 6.26
NU2316EM 170 6.46
NU2316E 170 6.28
NJ2316TN1 170 5.68
NJ2316M 170 6.44
NU2316M 170 6.34
N2316M 170 6.15
NU316ETN1 170 3.89
NU316E 170 4.25
NJ316E 170 4.08
N316E 170 3.98
NU316EF1/C9 170 4.2
NU316EM 170 4.26
N316EM 170 4.22
NJ316EM 170 4.32
NUP316M 170 4.58
NJ316M 170 4.47
NU316Q1 170 4.45
NU316M 170 4.37
NF316M 170 4.46
N316M 170 4.3
NJP3216X3M/P54 150 3.69
NJ3216X3M/P54 150 3.69
NU3216X2M/C9YA6 140 3.03
NU5216 140 3.03
NUP2216ENM-DFMC 140 2.24
NUP2216ENM 140 2.27
NUP2216E 140 2.13
N2216E 140 2.16
NU2216E 140 2.3
NJ2216E 140 2.34
NU2216EM 140 2.39
NJ2216M 140 2.35
NU2216M 140 2.32
NU216M-DT 140 1.69
NU216M-DT 140 1.65
NUP216ENRM/YA6 140 1.81
NUP216ENRJ/C3YA6 140 1.66
NJ216E 140 1.68
N216E 140 1.67
NUP216E 140 1.72
NU216ETN1/C9 140 1.48
NU216Q1 140 1.74
NU216E 140 1.65
NUP216M 140 1.77
NU216M 140 1.69
NJ216M 140 1.73
N216M 140 1.66
NF216M 140 1.72
NU1016M 125 1.21
N1016M 125 1
NUP417M 210 10.1
NJ417M 210 9.83
NU417M 210 9.66
N417M 210 9.48
NJ2317E 180 7.57
NU2317E 180 7.4
N2317E 180 7.44
NJ2317M 180 7.81
NU2317M 180 7.36
NJ317EM 180 5.27
NJ317E 180 5.21
N317EN1T 180 4.59
N317EM 180 5.2
N317EM/YA1-1 180 5.19
N317E/YA1 180 5.13
N317E 180 5.14
NU317EQ1 180 5.18
NU317ETN1 180 4.57
NUP317EM 180 5.32
NU317EM-DT 180 5.1
NU317EM 180 5.16
NU317E 180 5.12
NJ317EQ1 180 5.27
N317EQ1 180 5.2
NU3217X2M/C9YA6 150 3.88
NU5217XPC3 150 3.88
NU3217M/C3 150 3.88
NJ2217EM 150 2.86
NU2217ETN1/C9 150 2.42
NU2217EM 150 2.82
NU2217M/C3 150 2.8
NUP217EM 150 2.27
NJ217E 150 2.12
NU217E 150 2.08
N217E 150 2.08
NJ217M 150 2.15
NU217M/W124 150 2.09
NU217M 150 2.09
N217M 150 2.08
NJ1017TN1/C9YA6 130 0.972
NJ418M/C5 225 11.9
NU418M 225 11.5
N418M 225 11.3
NU2318EM 190 9.05
NU2318E 190 8.69
NJ2318E 190 8.84
NUP2318M 190 9.36
NJ2318M/C4 190 9.29
NH318EQ1/YB2 190 6.64
NU318E 190 5.84
NUP318E 190 6.05
NJ318E 190 6.09
N318E 190 5.93
NU318ETN1 190 5.36
NU318EM-DT 190 5.99
NU318EM 190 5.9
N318EM 190 5.99
NJ318M/C4YA8 190 6.37
NUP318M 190 6.33
NJ318M 190 6.19
NU318Q1 190 5.88
NU318M 190 6.06
N318M 190 6.05
NF318M 190 6.21
NF318 190 5.78
NU3218M/C9YA6 160 4.5
NU5218/C9YA6 160 4.5
NU5218XPC3 160 4.5
NU3218A 160 4.5
NUP2218EM 160 3.59
NUP2218F2-2Z/C9S2YAD 160 3.45
NU2218ETN1 160 3.12
NU2218EM/C9 160 3.53
NU2218EM 160 3.53
NUP2218EM 160 3.68
N2218M 160 3.62
NU218M-DT 160 2.66
NU218EM-DT-1 160 2.66
NU218EM-DT 160 2.58
NU218EM 160 2.66
NUP218M 160 2.81
NU218M-DT 160 2.57
NJ218EM 160 2.65
NJ218E 160 2.54
NU218E 160 2.49
NU218ETN1/C9 160 2.26
N218E 160 2.49
NF218E 160 2.55
NJ218M 160 2.72
NU218M/W124 160 2.66
NU218M 160 2.66
N218M 160 2.64
NF218M 160 2.71
N218J1 160 2.47
N218J 160 2.37
NU1018M 140 1.34
NUP1018M 140 1.4
NJ1018M 140 1.38
NUP419M 240 14.2
NJ419M 240 13.9
NU419M 240 13.6
N419M 240 13.3
N2319E 200 9.76
NJ2319E 200 9.77
NU2319ETN1/C9 200 9.4
NU2319E 200 9.84
NJ2319M/W20 200 10.2
NJ2319M/C4W124YA8 200 10.1
NJ2319M/YA8 200 10.1
NJ2319M 200 10.2
NU2319M 200 10.3
NU2319Q1 200 9.86
NU319EM-DT 200 6.73
NU319E 200 6.74
NJ319E 200 6.86
N319ETN1 200 6.31
N319E 200 6.92
NU319EM/W124 200 6.68
N319EM 200 7
NU319EM/Z1 200 6.68
NJ319M 200 7.06
NU319M 200 7
N319J 200 6.74
N319M 200 6.67
NU5219XPC3 170 5.48
NU3219X2M/C9YA6 170 5.48
NJ2219M 170 4.39
NU2219M 170 4.31
N2219M 170 4.27
NF219EM 170 3.23
N219EM 170 3.19
NJ219ETN1 170 2.86
NJ219EM 170 3.24
NJ219E 170 3.12
NU219ETN1/C9 170 2.8
NU219E 170 3.06
N219E 170 3.07
N219EJ 170 2.91
NJ219M 170 3.23
NU219M/W124 170 3.13
NU219M 170 3.13
N219M 170 3.07
NU1019MA/C3S1 145 1.5
NJ1019M 145 1.53
NJ2220X4M/P63 180 5.42
NJ420M 250 15.9
NU420M 250 15.5
N420M 250 15.4
NF3320Q1 215 15.6
NU2320EMA 215 13.4
NJ2320EQ1 215 12.9
NJ2320E 215 12.9
NU2320ETN1/C9 215 11.5
NU2320EM/C9 215 13.8
NU2320E 215 12.7
N2320E 215 12.9
NJ2320M/C4W124YA8 215 13.5
NJ2320M/YA8 215 13.5
NJ2320M 215 13.5
NU2320M 215 13.2
N2320M 215 13.1
NJ320E 215 8.5
NU320EQ1 215 9.59
NU320EM/C9 215 9.67
NU320EM/W124 215 9.67
NU320EM 215 9.67
NU320E 215 8.35
N320EM 215 9.67
N320E 215 8.24
NJ320EQ1/HA 215 9.59
NH320EQ1/HAYB2 215 9.69
A-0320-22 215 9.15
NU320M-DT 215 8.55
NUP320M 215 9.05
NH320M 215 9.64
NU320Q1 215 8.78
NJ320EM 215 9.82
NU3220X2M/C9YA6 180 7.69
NU5220XPC3 180 7.69
NU3220M/P59YAD 180 7.06
NU3220Q1/P691YAD-XD 180 7.17
NJP3220TN1/HG2P54 180 5.98
NU3220M/C3 180 6.81
NU2220ETN1 180 4.69
NU2220EM/YA8 180 5.28
NU2220EM 180 5.24
NU2220E 180 5.08
NU2220M 180 5.2
NJ2220M 180 5.86
NJP2220M/P63 180 5.38
NUP2220M 180 5.49
N2220M 180 5.25
NU220M-DT 180 3.52
NU220M/C9YA1 180 3.52
NU220M-DT 180 3.03
NUP220M 180 3.71
NUP220ETN1 180 3.54
NUP220E 180 3.9
NJ220ETN1 180 3.45
NJ220E 180 3.81
NU220ETN1/C9 180 3.39
NU220ETN1 180 3.39
NU220E 180 3.75
N220ETN1 180 3.75
N220E 180 3.77
NU220Q1 180 3.57
NU220M/W124 180 3.52
NU220M 180 3.52
NJ220EM 180 3.93
NJ220M 180 3.61
NF220M 180 3.55
N220M 180 3.45
NJ1020M 150 1.51
NU1920M 140 0.9
NJ421M/C5 260 17.6
NU421M 260 17.3
N421M 260 17.2
N3321 225 18.3
NU321EM/C9 225 10.6
NU321EM 225 10.6
NJ321EM 225 10.7
N321EM 225 10.5
NU3221M/C3 190 8.22
NU221EM 190 4.33
NU221EM/C9 190 4.42
NJ221EM 190 4.52
NU221M/W124 190 4.25
NJ221M 190 4.34
N221M 190 4.33
NJ1021M 160 1.95
N1021M 160 1.85
NF1021M 160 1.93
NA6/107X4/C9 165.1 5.11
NJ422Q1/P69S0 280 22.5
NJ422M 280 22.3
NU422M 280 22
N422M 280 21.8
FL-NU2322EM/P6 240 18.6
N2322E 240 17.5
NU2322E 240 17.6
NU2322M/C9 240 18.3
NU2322EM 240 18.3
NJ2322EM 240 18.7
NJ2322EM/YA8 240 18.8
NU2322EQ1 240 17.6
NU322EQ1/C9 240 11.8
NU322E 240 11.3
NJ322E 240 11.4
N322E 240 11.2
NU322EM/W124 240 11.5
NU322ETN1/C9 240 10.4
NU322EM 240 11.5
N322EM 240 11.4
NUP322M 240 10.3
NU322Q1 240 11.6
NU322M 240 11.6
NJ322M 240 11.8
N322M 240 11.4
NU322M-DT 240 11.6
N322 240 10.2
NU3222M/C3 200 9.92
NU2222ETN1/C9 200 6.57
NJ2222M 200 7.83
NU2222M 200 7.63
NUP2222M 200 7.95
NJ222E 200 5.02
NU222E 200 5.12
N222E 200 5.11
NJ222EM 200 5.38
N222EM 200 5.27
NU222EM/CNM-DT 200 5.32
NU222EM/C9 200 5.28
NU222M 200 5.05
NU222M/W124 200 5.05
NJ222M 200 5.1
N222M 200 5.02
NF222M 200 5.17
NU222Q1 200 5.36
NU222M/YA8 200 5.3
N222J 200 4.7
NUP1022TN1/C9YB2 170 2.17
NUP1022M 170 2.45
NJ1022M 170 2.39
NU1022M 170 2.32
N1022M 170 2.31
NJ424M 310 29.7
NU424Q1 310 28.8
NU424M 310 29.1
N424M 310 29
NF3324Q1 260 29.9
N3324X2M 260 28
FL-NJ2324EQ1A/C3 260 31
FL-NJ2324EQ1A 260 31
NJ2324M/C4W124YA8-1 260 23.7
NJ2324M/C4YA8 260 24.6
NJ2324M 260 23.6
NJ2324EM/YA8-2 260 23.5
NJ2324M/YA8-1 260 23.7
NU2324EM/YA1 260 23.1
NU2324EM 260 23.1
NU2324M 260 23.1
N2324M 260 22.9
NU324M-DT 260 15
NU324L3-DT 260 14.9
NU324L3-DT/YB2 260 14.3
NU324M-DT/YB2 260 15
NJ324E 260 16
NU324ETN1/C9 260 14.6
NU324E 260 15.8
N324E 260 14.3
NU324EM 260 16.3
NUP324M 260 16
NJ324EQ1A/C9YA8 260 15.4
NJ324M 260 15.7
NU324Q1 260 15.2
NU324M/W124 260 15.4
NU324M 260 15.4
N324J 260 13.9
N324M 260 15.1
NF324M/YA8 260 14.3
NF324M 260 14.3
NJ624M 240 17.7
NU5224XPC3 215 12.6
NU3224X2M/C9YA6 215 12.6
NU3224M/C4 215 12.4
NU3224M 215 12.4
NJ2224E 215 9.15
NU2224ETN1/C9 215 8.33
NU2224ETN1 215 8.33
NU2224E 215 9
N2224E 215 9.15
NF2224EM 215 9.72
NJ2224EM 215 9.8
NJ2224M 215 9.46
NU2224M 215 9.31
N2224M 215 8.92
NU224EM/C9 215 6.74
NU224EM/W124 215 6.78
NU224EM 215 6.74
NU224EQ1 215 6.88
NUP224E 215 6.8
NJ224EM 215 6.68
NJ224E 215 6.67
NU224E 215 6.73
N224E 215 6.32
NU224EMA 215 6.92
NU224EM/CNM-DT 215 6.78
NU224M-DT 215 6.19
NU224M 215 6.27
NJ224M 215 6.39
N224M 215 6.11
NU224M/P59 215 6.27
N2224NM/YB2 215 8.86
NJP2224M 215 9.44
NJ1024M 180 3.09
NU1024MA 180 2.96
NU1024M 180 2.96
NF2924X1M 164 1.74
N6/127M/YAB 228.6 5.6
NJ3226X1K2 250 18.4
NJP3226X1K2 250 18.6
NJ3226X1K1 250 18.4
NJP3226X1K1 250 18.5
NJ426M 340 40.4
NU426M 340 39.5
A-0326-WAB-30-1 280.01 18.7
32626QTY 280 29.3
NUP2326M 280 29.5
NJ2326J 280 30
NJ2326M/C4W124YA8-1 280 29.1
NU2326EM/C9 280 29.3
NJ2326M 280 29
N2326M 280 29
NJ2326M/YA8-2 280 29.4
NJ2326M/YA8 280 30
NU2326M 280 28.7
NJ326E 280 19
N326E 280 18.5
NU326E 280 18.7
NU326EM/W124 280 18.7
NJ326EM 280 19
N326EM 280 18.5
FL-NU326EMA 280 18.7
NJ326M 280 18.2
NU326Q1 280 17.9
NU326EM/W124 280 18.7
NU326M-DT 280 18
NU326M 280 17.9
N326M 280 17.8
NU326Q1/HAC9YA5 280 19
NJ3226X1K1 250 18.4
NJ3226X1TN1 250 16.8
NJP3226X1TN1 250 16.8
NJP3226X1SCTN 240 14.79
NJ3226X1SCTN 240 14.95
NJP3226X1WBM-1 240 17.3
NJ3226X1M-1 240 17
NU3226X2M/C9YA6 230 14.6
NJ2226EQ1 230 11.5
N2226M/YA1 230 11.6
NU2226EQ1 230 11.1
FL-NU2226EMA/C3 230 11.2
NU2226E 230 11.5
NUP2226M 230 12.2
NJ2226Q1 230 11.9
NJ2226M 230 11.9
NU2226M 230 11.8
N2226M 230 11.6
NF2226M 230 11.7
NU226EM/CNM-DT 230 7.25
NU226M-DT 230 7.12
NUP226E 230 7.49
NU226E 230 7.26
NJ226EM 230 7.66
NJ226E 230 7.38
NF226EM 230 7.57
N226E 230 7.09
NJ226EQ1 230 7.5
NU226EM/C9 230 7.54
NU226EQ1 230 7.38
NJ226M 230 7.32
NU226M/W124 230 7.54
NU226M 230 7.22
N226M 230 7.08
N226J 230 6.52
N2226NM/YB2 230 11.2
NJP2226Q1/C4S0 230 11.9
NJ2226X3TN1/HG2 220 8.69
NJP2226X3TN1/HG2 220 8.68
N2026X2EF6D-GX 200 5.31
NU2026EMA 200 4.95
NJ1026M 200 4.61
NU1026M 200 4.66
N1026M 200 4.57
NA4926/C9 180 4.36
NJ428MA/YAD 360 48.6
NJ428M 360 46.3
NJ2328M/W20 300 34.8
NJ2328M 300 34.8
NJ2328M/YA8 300 34.7
NU2328M 300 33.6
NF2328M 300 35
N2328M 300 34.6
NU328M-DT 300 21.9
NU328EM 300 21.8
NJ328Q1 300 22.1
NUP328M 300 22.3
NU328Q1/S0 300 21.7
NU328M 300 22.2
NJ328M 300 22.6
NF328M 300 21.8
N328M 300 21.9
NU2228MWB 250 16.2
NU3228X2M/C9YA6 250 18.3
NU5228XPC3 250 18.3
NJ3228X2M 250 17.8
N2228E 250 14.2
NU2228EM 250 14.3
NU2228E 250 14.2
NJ2228E 250 14.5
NJ2228M/C4YA8 250 15
NJ2228M 250 14.8
NU2228M 250 14.4
FL-NJ2228M/P6 250 14.8
FL-NU2228EMA/C3 250 14.2
NJ2228Q1/C4S0 250 15.1
NJP2228Q1/C4S0 250 15.1
NU2228EM 250 14.3
NJ228Q1 250 9.24
N228EM 250 9.19
NU228EM/CNM-DT 250 9.23
NU228M-DT 250 9.16
NU228EQ1 250 9.37
NU228EM/W124 250 9.23
NU228EM/C9 250 9.23
NU228EMA 250 9.11
NU228EM 250 9.23
NU228E 250 9.05
NJ228E 250 9.2
N228EM 250 9.19
N228E 250 9.01
NUP228M 250 9.51
NJ228M 250 9.38
NU228M 250 9.16
N228M 250 9.14
NCF228J 250 7.77
N228Q1 250 8.66
NU1128X3M 220 5.03
NU3028M 210 7.64
NJ1028M 210 4.01
FL-NU1028M 210 3.89
NJ1028EM 210 4.17
NU1028M 210 3.89
NJ2928M 190 2.6
NF2928M 190 2.59
NU3/149X4Q1/HAYB2 320 26.7
NU3/149X4EM 320 26.4
NJ330X2EM 320 49.9
NJ3330M 320 49.9
FL-NU2330EMA/C3 320 42.6
N2330M 320 42.8
NJ2330M/C4W124YA8 320 43.2
NJ2330M/YA8 320 42.7
NJ2330M/YA8-1 320 42.7
NJ2330M 320 42.4
NU2330EMA 320 44.9
NU2330MA 320 44.9
NU2330M 320 41.5
NF2330M 320 43.6
NUP2330M 320 43.1
NU330EWBM 320 29.5
NU330EQ1/YB2 320 26.7
NJ330EM 320 26.2
NU330EQ1/C9 320 26.2
NU330EQ1 320 26.2
NUP330M 320 27.4
NJ330M 320 26.9
NU330M-DT 320 26.6
NU330M 320 26.6
N330ENM 320 24.8
N330M 320 26.5
NU3230X2M/C9YA6 270 23.6
NU5230XPC3 270 23.6
NJ2230E 270 18.1
FL-NU2230EMA/C3 270 18.4
NU230EMA 270 11.6
NU230M-DT 270 11.7
NJ230E 270 11.6
NU230EQ1 270 11.8
NU230EM/CNM-DT 270 11.3
NU230EM/W124 270 11.3
NU230EM/C9 270 11.3
NU230E 270 11.2
N230E 270 11.5
NUP230M 270 12.3
NJ230M 270 12
NU230M 270 11.8
NF230M 270 12.1
N230M 270 11.6
NU3030M/P6 225 7.99
DDL-NU1030EM/C3 225 5
NU1030Q1/HAYA6 225 5.13
NJ1030EM 225 5.11
NU1030M 225 4.94
NJ1030M 225 5.05
NF1930X1WCM/YA6 215.88 4.18
NJ1930B1M/YA6-1 210 2.94
NJ1930B1M/YA6 210 2.94
NJ1930NB1M/YA16 210 2.86
NJ2232WBK3 290 26
NJ2232WBK2 290 26
N231.775Q4/W33 231.775 23.9
NJ2232WBK1 290 26
NJ2232WBYK1 290 24.4
NUP2332M 340 56.5
NJ2332M 340 54.3
NU2332M 340 54.4
NU2332E/YA5 340 50.7
NU2332EMA 340 53.9
NU2332EM/C9 340 52.4
N2332M 340 51.6
FL-NU332EMA/C3 340 31.4
NU332M-DT 340 30.6
NU332EQ1 340 27.8
NU332EQ1/HA 340 31.3
NJ332M 340 31.5
NU332M/YA8 340 30.9
NU332M 340 30.9
N332M 340 30.8
NU632M 320 40.9
NJ2232WB 290 26
NJ2232WBY 290 25.8
NU2232WBQ1/YB2 290 24.8
N2232ENM 290 23.5
NU2232EMA/YA8-1 290 23.1
NJ2232WB1Q1/YB2 290 26
NJ2232WB11Q1/YB2 290 24.2
NJ2232M 290 23.9
NJ2232E 290 24.7
NU2232EMA/YA8-1 290 23.1
NU2232EM/YA8 290 23.6
NU2232EM 290 24.2
NU2232 290 23.3
NU232EM/P4YA8 290 13.8
NU232EM/CNM-DT 290 14
NU232EM-DT 290 14
NUP232E 290 14.5
NJ232EM/YA8 290 14.5
NJ232E 290 14.3
NU232EQ1 290 14.3
NU232EMA 290 14.3
NU232EM/YA8 290 13.8
NU232EM/C91 290 14.3
NU232EM/P59V2 290 14.3
NU232EM/W124 290 14.3
NU232E 290 14
N232E 290 13.9
NUP232M 290 14.6
NJ232M 290 14.2
NU232M 290 14.4
N232M 290 14.3
NU1032Q1 240 5.86
NU1032M 240 5.96
NJ1032M 240 6.13
NJ1032EM 240 6.22
N1032M 240 5.96
N032M 240 4.47
N032X3M 230 3.37
NJ2932M 220 4.17
NU2334M/C9 360 61.3
NU2334MA 360 61.5
NU2334M/YA8 360 63.8
NU2334M 360 61.1
NJ2334M 360 62.5
NJ334M 360 38.4
NU334M 360 37.7
NJ2334M/YA8 360 64.7
N2334M/YA8 360 61.2
N334M 360 37.3
NJ2234EQ1/YA1 310 29.5
NJ2234EM 310 29.5
NJ2234EQ1 310 29.5
NU2234M 310 30.5
NU2234EM 310 29
FL-NU234EM 310 18.4
NU234EM/CNM-DT 310 18
NU234EM-DT 310 18
NU234EM/P59V2 310 18.4
NU234EM 310 18.4
NJ234M 310 19.2
NU234Q1 310 18.1
NU234M/YA8 310 17.4
NU234M 310 17.9
N234M 310 18.2
N1034X1M 265 7.97
NJ1034EM 260 -1600
NJ1034M 260 8.47
NU1034M 260 8.23
N1034M 260 8.02
N1934M 230 3.64
NU2336M 380 69.5
NJ2336M 380 72
N2336M/YA8 380 70.7
NU336EMA 380 43.3
NU336EM 380 42.1
NJ336EM 380 42.7
NJ336M 380 43.6
NU336M 380 42.8
N336M 380 39.6
NU3236M/HC 320 41.6
NU3236M/C3 320 41.6
NUP2236M 320 32.1
NJ2236EQ1 320 31.7
NJ2236EM 320 31
NJ2236M 320 31.9
NU2236EM 320 30.3
NU2236M 320 31.4
NU236L3-DT/YB2 320 18.6
NU236L3-DT 320 18.6
NU236M-DT/YB2 320 19.4
NUP236M 320 20.5
NJ236M 320 19.3
NU236M/CNM-DT 320 19.4
NU236M-DT 320 19.4
NU236EM/CNM-DT 320 18.7
NU236EM 320 18.7
NU236M/YA8 320 19.4
NU236M 320 19.2
N236M 320 19.7
NJ1036M 280 10.7
NU1036M 280 10.4
NF1036X2M 280 11.9
NF1036X2M 280 11.9
N1036M 280 10.3
N036X2 280 8.44
N036EM 280 7.15
N036L 280 7.08
N036M 280 8.59
NU2338M/YA8 400 82.6
NU2338M 400 82.9
NU2338EMA 400 82.8
N338M 400 50.2
NU338M 400 48.5
NJ338M 400 49.4
NU3238M/C3 340 51.2
NJ2238EM 340 39.6
NU2238EM/C9 340 38.6
NU2238M 340 38.6
NU238EM/CNM-DT 340 22.5
NU238EM-DT 340 22.5
N238EM 340 22.6
NUP238M 340 22.3
NJ238EM/W33YA8 340 23
NJ238EM 340 23.2
NJ238M 340 22
NU238M 340 21.6
NU238EM/C9 340 22.8
NJ1038Q1/HAP63 290 11.2
NU1038M 290 10.9
NU2938Q1 260 6.98
NU6/190.5/W33X 266.7 18
NU3340M/HCW20T 420 115
NUP3340 420 121
NU3340M 420 118
NJ2340M/YA4 420 98.4
NU2340EM 420 96.7
NU2340EM/P5YA4-FYT 420 96.7
NU2340MA 420 95.6
N2340M 420 94.5
NJ2340M 420 99
NU340F3 420 57.3
NU340M 420 56.7
NU5240XPC3 360 57.6
NU1240X2WBM/HG2 360 42.9
FL-NJ2240EMA/P6 360 46.7
N2240EM/YA1 360 44.9
NU2240EM/C9W33A 360 42
NU2240EM 360 42.2
N2240EM 360 44.9
NUP2240M 360 46.3
NJ2240M 360 45.5
NJ240EM/YA8 360 26.5
NJ240M 360 27.1
NU240EMA 360 27.5
NU240M 360 26.5
N240M 360 26.8
NU3040X3M/C4-NJB 320 28.7
NU3040X3M/C3 320 28.7
N640M 320 14.7
NAOL4040X2 310 30.2
NU1040M 310 14.3
NJ2940M 280 9.43
NU30/203X4Q1/HA 310 23.9
NU2344EMA 460 116
N2344EM 460 114
NU2344E/YA5 460 121
NU2344M/C9 460 114
NJ2344M 460 125
NU2344M 460 125
NU2344M/C3 460 125
NJ344EM 460 75.6
NU344M 460 73.4
N2244M 400 61.8
NU2244EMA 400 63.8
NU2244EM/HC 400 62.8
N2244M/YA1 400 61.8
NJ2244EM 400 62.4
NU2244EM 400 62.8
NJ2244M 400 63.3
NB3244F1 400 77.3
NU2244M/YA4 400 62.6
NU2244M 400 62.2
NUP244M 400 38.8
NU244M 400 35
NJ244M 400 35.4
N244M 400 36.7
NU3044X3M/C92YA6-LS 350 38
NU3044X3M/C91YA6 350 38
NU3044X3M/C9-NJB 350 38.1
NU3044M/HG2W33A 350 32.4
NU3044X3M/C9 350 38.1
NU3044Q1/HA 340 32
NFP1044M 340 20.2
NJ1044M 340 19.6
NU1044Q1 340 19.4
NJ2944M 300 10.8
NU2944Q1 300 10.5
NU2348E/YA5 500 154
NU2348M 500 154
NU2348MA 500 155
NU348EM 500 94.9
NU348M 500 96.3
N348M 500 96.3
NU5248/P5 440 104
NJ2248MA 440 86.4
NU2248MA 440 84.8
N248EM 440 50.5
N248M 440 49.1
NJ248M 440 49.6
NU248EMA 440 51.3
NUP248M 440 46.9
NU248M 440 46.9
N248EM 440 49.4
NUFP2148X3M/C9YA1 390 50.5
NU1048MA/P4 360 19.6
NU1048MA 360 19.6
NU1048Q1 360 21.2
NJ1048M 360 21.1
NU1048M 360 20.5
NJ1948M 320 8.74
NU1948M 320 8.5
N650EM/HAC9 308 21.4
NJD2352M/YA8 540 165
NU2352M 540 188
NU352M 540 120
NU2252X2M 480 128
NJ2252MA 480 110
NJ2252M 480 108
N2252M 480 105
NU2252MA 480 107
NU2252 480 106
NJ252EM/YA8 480 68.8
NUP252M 480 70
NJ252MA 480 68.3
NJ252M 480 68.5
NU252EMA 480 68.4
NU252M 480 67.1
NB3152M 440 86.4
NU3152M 440 98
NU2052ENM 400 40.1
NJ1052M 400 36.3
NUP1052M 400 37.2
NU1052M 400 30.2
NUP3952M/C9W33 360 24.9
NUP3952M/C9YA8 360 24.4
NUP3952M/C9W33YA8 360 24.5
NF1952M 360 14.9
NU2356M 580 237
NU356M 580 147
NU3256X2/C9YA1 500 142
NU2256EM-1 500 118
NU2256EM 500 118
NU2256EF3 500 116
NU2256E 500 116
N256M/SPC9W33 500 70.2
NU256M 500 70
NJ256M 500 71.5
NU2156X2M/YA4-1 460 85.8
NB4056X3M 440 75.4
NU2056EMA 420 42
NU2056M 420 39.5
NJ1056M 420 32.2
NU1056M 420 30.9
N1056M 420 31.5
N2956X2M/W33YA8 380 18.4
NJ1956M 380 15.9
NF1956M 380 16.9
NU1956M 380 15.5
N1856X3M/HG2P6-1 360 8
NJ1856X3M/HG2 360 8.11
NJ2856M 350 9.15
N1856X3M/HG2 340 5.76
NFP10/290K 420 33.2
NU360M 620 166
NU2260M 540 146
NJ260M 540 89.3
NU260M 540 86.9
NU3060M 460 72.5
NU2060MA 460 60
NU2060M 460 60
NU1060M/HA 460 44.1
NU1060M 460 44.1
NJ1060M 460 45.1
NJ1060X2M 460 36.5
NUP3960M/C9W33 420 40.7
NUP3960M/C9YA8 420 41.3
NUP3960M/C9W33YA8 420 41
N3860M/HG2 380 16.6
NU2860M 380 14.5
NJ2860M 380 15.5
NU2364F1/HC 670 349
NU2364/HCR 670 349
NUD2264M/YA8 580 151
NU2264X2M 580 232
NU2264X2M-1 580 212
NU2264EM 580 181
NU2264 580 181
NJ264M 580 114
NU264M 580 112
NU3164M 540 172
NJ3064X1EM 500 92.6
NU3064M 480 78.1
NJ2064EQ1A 480 65
NUP1064M 480 49.1
NU1064KM/C9 480 46.3
NU1064MA 480 48.2
NU1064M 480 48.2
NJ1064M 480 47.8
NUP3964M/C9 440 45.8
FL-NU1964EMA 440 24.7
NU1964M 440 24.7
NU2864M 400 15
NU1864M 400 11.3
NU666/HCYA8 580 177
NU3268 620 307
NU2268F3 620 229
NU2268MA/HC 620 230
NU2268MA 620 230
NU2268 620 229
NU2268X3/HC 600 205
NU3168EF3 580 211
NU3168WB 580 213
NU3168 580 211
NU3168EF3/YA3 580 211
NU3168E 580 211
NJ1068M 520 64.7
NU1068M 520 65
NU2968M 460 36.2
NU1968M 460 28.3
NJ1968X1M 440 22.7
NU1968X1M 440 22.3
NJ2868M 420 15.5
NU2372F3 750 480
NUP2372M 750 513
NU3172M 600 221
NU2372 750 480
NU3272M/HC 650 352
NU2272M 650 262
NU3172 600 219
NU3072M 540 112
NU2072M 540 89.5
NF1072M 540 67.7
NU1072M 540 65.9
NU1072MA 540 66.2
N1072M/C9W33A 540 65.2
NUP3972M/C9W33 480 51.3
NUP3972M/C9W33YA8 480 47.7
NUP3972M/C9YA8 480 47.7
NU2972E 480 37.4
NF2972EM 480 37.6
NJ2972E 480 38.1
NUP2876KY/P69 480 26.1
N2876KY/P69 480.5 26.1
NUP2876K/P69 480 27.1
N2876K/P69 480 26
NU3276/HC 680 383
NU2276MA/YA36 680 289
NU2276MA 680 289
NU2276EM 680 276
NU3076EM 560 116
NU2076EM 560 93
NJ1076M 560 72.8
NU1076M 560 71
N2976M 520 82.8
NUP1876M 480 24
NJ1876M 480 20.8
NU1876M 480 23.5
N2876/P69 480 25.9
NU3180M 650 274
NU2180M 650 197
NU3080M 600 153
NU2080EM 600 122
NJ1080 600 90.6
NU1080MA 600 93
NU1080M 600 92.5
NUP1080M 600 93.6
NF2980M 540 52.6
NU2980M 540 55.2
FL-NJ2980/HCEC9 540 56.2
NU2980EM 540 57.8
NJ1980M 540 42.7
NU1980 540 41.7
NU1980M 540 42
NU3880Q1 500 33.4
NU1880M 500 21.2
NF6/406/C9W33 502 31.2
N6/406X4M/C9W520 501.688 34.1
NU3284X2/HCYA3 760 577
NU3184EM 700 368
NJ3084X3/HCE+HJ3084X3 670 220
NJ3084X1/HCE+HJ3084 670 220
NU2084EM 620 127
NU1084M/C3 620 98
NU684ZWF1/C9YA3 580 110
NUP3984M/C9W33 560 78.7
NUP3984M/C9 560 77.9
NJ2984 560 59.5
NU2984M 560 58.1
NJ1984MA 560 46
NF1984F3 560 45.2
NU3884M/C9W33A 520 34.1
NJ3884M/C9W33A 520 35.1
NJ3884M 520 33.3
NF1884M 520 23
NU1884M 520 22.7
NUP1884 520 23.7
NU1884 520 20.7
NU3288X2/HC 790 583
NU3188 720 374
N1188 720 207
NU2088EM 650 146
NJ1088M 650 106
NU1088M 650 102
NUP3988EM 600 106
NJ2988EM 600 83.5
NJ1988M 600 61.4
NU1988M 600 65
NJ1888MA 540 23.6
NU689M/C9 815 501
NU10/452M/YB2 680 116
NU2292MA/HCC9 830 518
NU2292MA-1 830 518
NU2292MA/HC 830 518
NU2292MA 830 518
NU2292M 830 515
NU2292X3/HC 820 505
NU2292/HCYAD 830 505
NU1292 830 405
NU3192F3 760 467
NU3192MA 760 481
NU3192 760 467
NU3092M 680 211
NU2092MA 680 164
NU2092EMA 680 164
NU2092EM 680 166
NU1092M 680 111
NUP3992M/C9W33 620 107
NUP3992M/C9-1 620 107
NUP3992M/C9W33-1 620 107
NU2992 620 98.3
NUP2992 620 85
NJ2992 620 83.4
FL-NJ2892/HCEC9 580 46.1
NJ2892EM 580 48.7
NJ2892M 580 46.6
NF2892M 580 46.3
N1892Q1B/W33YAD 580 35.7
NJ1892M 580 36.3
NF1892M 580 36.5
N1892M 580 37.2
NU696/HCCNH 855 686
NU3196M 790 508
NU3196EM 790 495
NU2096MA 700 176
NU1096MA 700 129
NU1096M 700 128
NU1996/HCYA4 650 74.3
NJ2896EM 600 49
NJ2896EM 600 46.5
NF1896M 600 37
NJ1896M 600 37.4
NU1896 600 36.3
NU1896M 600 37.5
NU6/488X4/W33X 660.4 153
NU12/500/HCEC9 920 572
NU12/500M 920 585
NU12/500X3/HCYB2 900 606
NU12/500X3/HC 900 606
NU31/500/HCC9YA3 830 602
NU31/500 830 602
NU30/500 720 232
NU20/500EM 720 175
NJ10/500 720 136
N39/500EM 670 128
NUP39/500M/C9W33 670 137
NUP39/500M/C9W33-1 670 137
N29/500 670 103
NUP29/500F3 670 105
NU29/500F3 670 102
NJ29/500 670 105
NU29/500 670 101
N29/500 670 103
NU19/500EM 670 80
NU28/500EM 620 48.5
NF18/500EM 620 38.5
NUP6/508Q1/C9 622.3 65.6
NU6/530/HCCNH 905 744
NU31/530/HCYA6 870 670
NU31/530/HG2 870 670
NU31/530 870 670
NU31/530/HCE 870 670
NU31/530EM 870 663
NU20/530EM 780 252
NU10/530M 780 187
NU29/530F3 710 125
NU29/530/YA1 710 125
NUP29/530F3 710 125
NUP29/530 710 125
NJ19/530EM 710 94.5
NJ28/530 650 54.4
NUP28/530M-ZGBY 650 56.1
NF28/530 650 52.2
NUP6/558.8Q1/C9-NJB 685.8 82.9
NU12/560MA 1030 809
NU6/560/HC 960 846
N6/560M 850 360
NU10/560X1MA 820.28 210
NU20/560EM 820 289
NU10/560MA 820 209
NU10/560M 820 215
FL-NU29/560/C3 750 146
N29/560 750 138
NJ29/560F3 750 148
NJ29/560 750 148
NJ19/560MA 750 111
NJ19/560 750 111
NU19/560EM 750 108
NF28/560 680 53
NJ18/560MA 680 44.2
NJ18/560M 680 42.5
NU2/600M/YB2 1090 676
NU2/600MA/HC 1090 686
NU30/600F3/HCYA4 870 416
NU30/600E 870 412
NU20/600EM 870 320
NU10/600 870 234
NU6/600 830 237
NU29/600E 800 163
NU19/600Q1/YAD 800 125
NU19/600 800 128
NJ19/600M 800 130
NF19/600EM 800 130
NUP19/600EM 800 135
NU19/600 800 128
NU19/600EM 800 128
NU28/600EM 730 68.5
NJ28/600M 730 70.2
NU18/600EM 730 49.3
N620/780 780 124
NFP6/620Q1 780 124
NU30/630 920 485
NU20/630MA 920 399
NU20/630EM 920 399
NU20/630EM 920 395
NUP10/630EM 920 284
NU10/630EM 920 284
NJ29/630EM 850 222
NU29/630EM 850 214
NU29/630 850 210
NU19/630EM 850 160
NJ19/630 850 167
NU19/630M 850 158
NF38/630M 780 120
N38/630M 780 118
NU28/630M 780 96
N28/630M 780 95.6
NJFP6/640K/HCC3 960 345
NUP6/660.4Q1/C91-NJB 863.6 170
NUP6/660.4Q1/C9-LS 863.6 170
NUP6/660.4Q1/C9 863.6 179
NUP6/660.4Q1/C9-1 812.8 127
NFP6/666X4Q1/C9-LS 838.2 158
NFP6/666X4Q1/C91-LS 838.2 158
NFP6/666X4Q1/C9 838.2 160
NU30/670M 980 596
N30/670 980 594
NU20/670E 980 477
NU10/670 980 344
NU19/670 900 193
NUP19/670 900 193
NFP38/670Q1/C9YAD 820 133
NJ38/670Q1 820 133
NJ18/670M 820 84.8
NF18/670 820 85.8
NJ18/670 820 83.8
NUP6/700F3 930 316
NUP6/700 930 316
NU6/700F3 930 306
NU6/700M 930 309
NU6/700 930 306
NU11/710X2 1150 874
NU20/710EM 1030 535
NU10/710EM 1030 420
NU29/710M 950 291
NU29/710EM 950 294
NU19/710Q1/YAD 950 217
NU19/710/HCRYA3 950 208
NU19/710 950 210
NF19/710F3 950 229
N19/710F3/CNL 950 227
N28/710X3F3/W33 900 168
N28/710X3/W33 900 168
NJ28/710M 870 125
NF28/710 870 125
NU18/710M 870 102
N8/710/HC 870 102
NUP6/711.2M/C9 863.6 136
NFP6/723.8Q1/C9 908.05 197
NU2/750X3 1320 1105
NU20/750EM 1090 634
NU10/750EM 1090 492
NUP19/750 1000 252
NF19/750EM 1000 264
NU19/750X2/C9 1000 220
N38/750X2M 920 176
N28/750F3 920 145
N28/750 920 145
NF18/750F3 920 101
NF18/750M 920 102
NU18/750M 920 105
NU20/800MA/HC 1150 725
NU20/800EM 1150 710
NU10/800EM 1150 565
NU19/800 1060 279
NJ18/800EM 980 144
NJ18/800M 980 134
NF18/800 980 133
NUP6/810-ZGBY 1000 238
NUP6/812X4 1016 277
N6/820 990 128
NU20/850EM/HC 1220 835
NUP28/850MA/W33YA8 1030 197
NUP28/850MA 1030 197
NU28/850MA/W33YA8 1030 189
NU28/850MA 1030 190
NJ19/850 1120 326
NU19/850EM 1120 325
N28/850MB 1030 187
NJ28/850M 1030 191
NU28/850MB 1030 192
NU28/850M 1030 192
N6/900 1200 485
NU29/900EM 1180 565
NU19/900EM 1180 378
NU38/900 1090 268
NF28/900 1090 228
NU28/900M 1090 234
NU18/900M 1090 172
NU29/950F3 1250 596
NUP29/950 1250 616
NU29/950 1250 596
NU29/1000E 1320 705
NJ28/1000EM 1220 345
NJ18/1000M 1220 252
NU18/1000M 1220 264
NU6/1030M 1310 579
N30/1060 1500 1880
NU39/1060EM 1400 1060
NU29/1060EM 1400 875
NU19/1060M 1400 653
N28/1060M 1280 355
NJ18/1120M 1360 329
NJ18/1120M/W20YB2 1360 329
NJ18/1120F3/W20YB2 1360 329
NJ18/1120F3/W20 1360 327
NJ18/1120EM 1360 330
N39/1180M 1540 1350
NU29/1180EM 1540 1046
NJ18/1180M 1420 340
NJ18/1180EM 1420 354
FL-N6/1200/YAD 1520 838
NU6/1200F3/C91 1520 825
NU6/1200F3/C9 1520 825
NU6/1200F3 1520 825
NU6/1200 1520 825
NU6/1200/C9 1520 825
NU6/1200/C91 1520 825
N20/1250M 1750 2310
NU18/1250/HCE 1500 517
NU18/1250F3/C9 1500 386
NU18/1250C9 1500 386
N39/1320M 1720 1890
NU29/1320E 1720 1510
NU19/1320D/HCRYAD 1720 1080
NU19/1320 1720 1110
FL-NU6/1320 1640 893
NU18/1320M 1600 525
N28/1400EM 1700 858
NU18/1500/HCR 1820 773
NF18/1500/HC 1820 773
NU18/1500/HC 1820 773
NU6/1500/HCC9YA34 1770 730
NU28/1600F3 1950 1272
FL-N18/1600 1950 1030
NU18/1700EM 2060 1156
N18/1900 2300 1480

Cylindrical Roller Bearings

Single Row Full Complement Cylindrical Roller Bearings

Single Row full complement cylindrical Roller Bearings-a
Single Row full complement cylindrical Roller Bearings2-a
Bearing part number Basic dimensions
mm		 Basic load ratings
kN		 Limit Rotational Speed
rmin		 Other dimensions
mm		 Contact surface and chamfer dimensions
mm		 Weight
kg
d D B r1min rmin F、E Cr Cor Grease lubrication Oil lubrication d1 D1 s damin dbmax Damax Dbmax ramax rbmax
NUP2305V 25 62 24 1.1 1.1 34.35 69 66 9820 12100 39 47 34 56 1.1 1.1 0.401
NJ2305V/C3YA46 25 62 24 1.1 3 34 63 74.5 9820 12100 38 49.5 35 31 56 3 1.1 0.378
NJ305X2V/C3YA46 25 62 20 1.1 3 34 56 60.5 9820 12100 38 33 33 56 3 1.1 0.321
NUP2205NV/HAC9Y 25 52 18 1 0.5 30.998 35 35 11000 13600 34 42.8 31 47 0.5 1 0.173
NUP2205NV/HAC9YA 25 52 18 1 0.3 31 43.5 48 11000 13600 34 41 31 47 0.3 1 0.193
NU2205V/C9YA6 25 52 18 1 1.1 31 41.3 43.5 11000 13600 40 29 48 1.1 1 0.176
NUP2205NV/C91YAD 25 52 18 0.7 0.5 31 46.2 51 11000 13600 34 41 31 48 0.6 1 0.193
NU306X3V 30 80 21 1.1 2.5 43.8 85 86.5 1750 3700 63.5 39 74 2.5 1.1 0.565
NCL3306X2V 30 72 30.162 1 1.5 60.409 275 445 1800 3800 44.25 36 67 1.5 1 0.647
NU306X2V 30 72 21 1.1 1.1 38.5 80 68.5 1850 3900 55.5 35 66 1.1 1.1 0.431
NU306EV/C9YA6 30 72 19 2 2 40.4 80 60.5 1900 4000 56.5 37 65 2 2 0.399
NCF306V/YA6-DANA 30 72 19 1 2 60.5 59.5 58 1900 4000 42.9 55.5 1 37 67 67 2 1 0.395
NCL2206X2V/YA6 30 62 19 1 2 54.2 52 58.5 9310 11470 41.5 38 57 2 1 0.272
NJ607NV/YB2 35 90 29 1.5 1.5 48 124 131 7170 8840 56.5 70 48 43 82 0.5 1.5 0.998
NJ607NV 35 90 29 1.5 1.5 48 113 131 7170 8840 56.5 70 48 43 82 1.5 1.5 0.998
NUP307X3EV/C3YAB 35 90 23 1.5 2.1 47.88 99.5 98 7170 8840 54.6 71 39 82 2 1.5 0.79
NUP2207X1V/C9YB2-SG 35 90 23 2 5 49.7 96 102 7170 8840 55.5 69 49 82 1.5 2 0.795
NUP307X3EV/C3 35 90 23 1.5 1.5 47.88 99.5 98 7170 8840 54.6 71 42 82 1.5 1.5 0.79
NCF407X3V/C9YA6 35 90 23 1.5 5 48.5 112 83.5 7170 8840 53 71 1 49 82 82 1.5 5 0.763
NUP407X3V/C9YA6 35 90 23 2.5 5 49 112 95 7170 8840 55 71 51 80 1 2.5 0.75
NJ2207X1V/C9YB2 35 90 23 2 5 49.7 96 102 7170 8840 55.5 69 51 45 82 4 2 0.78
NUP2207X1V/C9YB2 35 90 23 2 5 49.7 96 102 7170 8840 55.5 69 51 82 4 2 0.795
NFP2207X1V 35 82 23 1.1 1.1 64.5 79 112 7500 9200 50 59 41 75 78 1.1 1.1 0.681
NJ607V 35 80 23 1.5 3.5 45.8 69 48 7500 9200 51 64 46 40 73 3.5 1.5 0.568
NCF307V/YA6-DANA 35 80 21 1.5 2 67.9 77 86.5 1600 3400 51 63.7 0.25 43 72 72 2 1.5 0.551
NJ307EV/C9YAD 35 80 21 1.1 1.5 45.806 103 106 1600 3400 50.8 64 46 40 73 1.5 1.1 0.537
NJ307EV/YA4 35 80 21 1.5 3 46.2 103 89 1600 3400 51 64.3 46 40 73 3 1.5 0.54
NJ307EV 35 80 21 1.5 1.5 46.2 103 89 1600 3400 51 64.3 46 40 73 1.5 1.5 0.54
NUP307NV/C9 35 80 21 1.5 0.5 46.2 103 89 1600 3400 52.2 64.3 47 73 0.5 1.5 0.546
NJ307NV/C9 35 80 21 1.5 1.5 46.2 103 89 1600 3400 52.2 64.3 48 42 73 1.5 1.5 0.548
NCF308X3V/YA6-DANA 40 100 25 1.5 2 86 115 129 1200 2700 63.6 80 48 92 92 2 1.5 1.05
NJ608V/YA13 40 94 30 1.5 5 51.1 127 131 1300 2800 58 75 45 45 86 1.5 5 1.02
NJ2308V/C9YA6 40 90 33 2 3.2 53.44 145 155 1400 3000 59.2 73 50 48 81 2 3 1.02
NCF308X2V 40 90 25 1.5 3.28 80 143 118 1400 3000 58 75 0.8 49 85 84 1.5 3 0.755
NJ308V/C3YA5 40 90 23 1.5 3.5 52 140 95.5 1400 3000 57.5 73.4 53 47 82 1.5 3.5 0.724
NJ308V/C9YA6 40 90 23 2 3.2 53.44 140 106 1400 3000 59.2 75 50 48 82 2 3 0.719
NJ308V 40 90 23 1.5 3.5 53.44 140 110 1400 3000 59.2 75 53 48 82 1.5 3.5 0.719
NUP308NV 40 90 23 1.1 0.3 53.44 140 110 1400 3000 59.2 75 44 83 1.1 1.1 0.499
NJ3208X2V/C9 40 80 31 1.5 3.5 49 114 140 2000 4200 54.5 65.5 51 72 3.5 1.5 0.724
NJ2309X2NRV/C3YA6 45 100 31 1.5 1.5 56 165 153 5940 7300 63 81 60 50 92 1.5 4.5 1.21
NJ2309X2NV/C9YA26 45 100 31 1.5 1.5 56 141 153 5940 7300 63 81 58 54 92 0.5 1.5 1.17
NUP309ENRV/C3YA6 45 100 25 1.5 0.3 57.3 118 126 5940 7300 64 80.5 48 92 2 1.5 1.02
NUP309EV/C3 45 100 25 1.5 1.5 57.3 118 126 5940 7300 61 80.5 52 92 1.5 1.5 0.996
NJ309V 45 100 25 1.5 1.5 57.85 136 127 5940 7300 64 79 52 52 92 1.5 1.5 0.904
NJ6/48V/C9YA6 48 120 35 2 3.5 71.3 167 215 5100 6300 77.8 92.8 60 64 111 3.5 2 2.18
NUP310NRV/HAC3YA6 50 110 27 2 2 66.72 160 156 5370 6620 73.2 89 59 101 2 2 1.32
NJ310V/HAC3YA6 50 110 27 2 2 66.72 160 156 5370 6620 73.2 89 59 62 101 2 2 1.25
NJ310V 50 110 27 2 2 66.72 160 156 5370 6620 73.2 89 59 62 101 2 2 1.25
NUP310NV 50 110 27 2 0.3 66.72 160 156 5370 6620 73.2 89 53 101 2 2 1.28
NU4010X2V/YAB 50 80 28 1.1 0.6 58.5 94.5 177 6680 8230 67 54 73 0.6 1.1 0.575
NUP311NRV 55 120 29 2 2 68.75 169 166 4900 6040 75.5 98 63 111 2 2 1.69
NUP311NV 55 120 29 2 2 68.75 169 166 4900 6040 75.5 98 63 111 2 2 1.63
NUP6/56V 56 160 63/60 2 2 77.15 300 360 3950 4870 88.2 108.2 65 151 2 2 7.29
NJ2212EV/YA6 60 110 28 1.5 2 71.1 155 196 5050 6230 77 93.5 69 66 102 2 1.5 1.17
NUP313NRV/C3 65 140 33 2.1 0.5 82.7 212 249 4170 5140 91.3 114 70 128 2 2 2.59
NUP313NRV/HAC3YA6 65 140 33 2.1 0.8 82.7 212 249 4170 5140 91.3 114 70 128 2 2 2.59
NUP313NV 65 140 33 2.1 2.1 82.7 212 249 4170 5140 91.3 114 76 129 2 2 2.15
NUP314NV/YA6 70 150 35 2.1 0.3 90.97 250 272 3870 4770 99.5 127 74 138 0.3 2 2.96
NUP314NV/HA 70 150 35 2.1 2.1 90.97 250 272 3870 4770 99.5 127 74 138 2 2 2.96
NJ2315V 75 160 55 2.1 2.1 91.24 350 410 3600 4450 102 131 86 83 150 2 2 5.16
NUP2215V-2ZL 75 130 31 1.5 1.5 89.2 170 230 4170 5140 108 110.5 82 122 1.5 1.5 1.91
NCF3015V 75 115 30 1.1 1.1 108 140 195 1200 2600 89.1 103 3 81 108 109 1.1 1.1 1.05
80 170 62/58 2.1 2.1 98 350 510 104.2 125.8 95 150 2 2 7.19
NUP2316WBV 80 170 60/58 2.1 2.1 100 430 545 3370 4160 112 140 90 152 2 2 6.51
NUP317EV-RSZ 85 180 41 3 3 108 320 380 3160 3900 117 152 98 167 3 3 5.06
NCF2917V 85 120 22 1 1.1 110.7 98 170 1100 2400 89.5 106.9 1 92 114 114 1.1 1 0.718
NCF2218V 90 160 40 2 2 142 283 410 800 1800 114.8 135.2 2.5 102 152 152 2 2 3.53
NCL6/114.3V/W33X 114.3 152.4 51.05 1.5 2.5 127.05 198 545 3140 3870 122 145 1.5 2.5 2.81
NCF2224V 120 215 58 2.1 2.1 192.8 515 730 700 1500 150 184 4 131 204 204 2 2 8.97
NJ2228EV/YA4 140 250 68 3 3 169 645 1020 680 1450 181.2 212.8 152 160 236 3 3 14.1
NCF2930V 150 210 36 2 2 163.5 275 540 670 1400 171 188 1 162 200 202 2 2 3.89
NCF2932V 160 220 36 2 2 205.4 280 480 630 1300 180 199 2.5 170 212 213 2 2 3.98
NCF3036V 180 280 74 2.1 2.1 259.2 790 1420 560 1100 218 248 5 190 270 270 2 2 16.9
NCF2936V 180 250 42 1.1 2 232 375 745 560 1100 203 223 1 190 241 241 2 1.1 4.35
NCF2238V 190 340 92 4 4 311.5 1210 1840 520 980 243 296 7 222 323 323 3 3 34.9
NCF3038V 190 290 75 2.1 2.1 269 770 1340 540 1000 226 258 9 200 280 280 2 2 17.3
NCF2938V 190 260 42 1.1 2 244 410 750 560 1100 251 235 1 200 252 252 2 1.1 4.52
NCF2940V 200 280 48 1.5 2.1 261.5 455 895 520 1000 227.1 253.1 3 212 270 270 2 1.5 8.91
NCF1840X1V 200 270 24 1.1 1.5 251 220 390 510 950 226 244.5 2 210 262 262 1.5 1.1 3.96
NCF2940V 200 280 48 1.5 2.1 261.5 480 850 1540 1900 227.1 253.1 212 268 270 1.5 2 8.91
NCF2944V 220 300 48 2.1 1.5 282.4 550 985 1400 1720 248 274 2.5 232 288 288 1.5 2 9.68
NCF3048V 240 360 92 3 3 335.6 1235 2160 430 800 278 322 7 255 348 348 3 3 32.7
NCF2948V 240 320 60 2.1 2.1 303.3 530 1010 1270 1560 269 293 3 248 308 309 2 2 10.2
NCF2948X2V 240 320 28 2.1 2.1 303.3 335 570 1270 1560 269 293 1.8 248 308 309 2 2 6.05
NCF3052V 260 400 104 4 4 376 1510 2475 380 700 304 358 11 280 385 385 430 4 44.1
NCF2952V 260 360 60 2.1 2.1 333.1 730 1410 1100 1360 294 324 3.5 272 340 340 2 2 17
NCF1852V 260 320 28 1.1 2 307.2 270 550 420 780 282 300 1.8 272 315 315 2 1.1 4.6
NCF2956V 280 380 60 2.1 2.1 358.3 775 1620 380 700 317 348 3.5 298 366 366 2 2 19.9
NCF3060V 300 460 118 4 4 421 1910 3700 320 620 355 405 10 316 443 445 3 3 71.1
NCF2960V/HC 300 420 72 3 3 390.5 1240 2160 340 630 342 375 5 314 406 406 3 3 31
NCF2960V 300 420 72 3 3 390.5 1090 2155 870 1070 342 375 5 314 406 406 3 3 31
NCF1860V/C9 300 380 38 2.1 2.1 359 450 880 320 600 327 351 3 314 372 372 2 2 9.95
NCF1064X1V 320 500 74 4 4 462 1420 2380 760 940 389 439 5.4 336 484 485 3 3 52.4
NCF3064V 320 480 121 4 4 442 2000 3910 300 560 374 424 12 336 464 464 3 3 75.9
NCF2964V 320 440 72 3 3 410 1095 2190 320 600 361 395 5 340 425 425 3 3 30
NCF1864V 320 400 38 2.1 1.5 383 440 900 320 600 351 373 3 342 392 394 1.5 2 10.7
NCF3068V/HC 340 520 133 5 5 482 2300 4300 280 540 402 462 12 360 500 500 4 4 98.6
NCF2968V 340 460 72 3 3 367 1170 2420 300 560 383 415 5 354 445 446 2.5 2.5 34.3
NCF1868V/C9 340 420 38 2.1 2.1 401 440 1000 320 600 371 393 3 362 410 410 2 2 11.3
NCF1072X1V 360 520 82 5 5 483 1430 2620 260 520 414 465 6 380 500 500 5 5 55.1
NCF2972V 360 480 72 3 3 451.5 1180 2700 280 530 404 438 5 372 468 468 2.5 2.5 36.6
NCF2976V 380 520 82 4 4 484.5 1480 3130 260 500 430.3 466.5 6 396 504 505 4 4 52.9
NCF1876VY 380 480 56 2.1 1.5 458 840 1890 280 530 416 448 3.5 392 472 472 1.5 2 21.7
NCF1876V 380 480 46 2.1 1.5 458 650 1370 280 530 416 448 3.5 392 472 472 1.5 2 17
NCF2980V 400 540 82 4 4 511 1600 3400 240 480 450 496 5 416 522 524 4 4 52.8
NCF1880X1V 400 530 460 2.1 1.5 496.6 800 1540 250 480 444 483 4 420 514 516 1.5 2 27.3
NCF1880V 400 500 46 2.1 2.1 476 610 1350 260 500 438 466 6 412 490 492 2 2 20.1
NCF2984V 420 560 82 4 4 526.5 1600 3650 230 460 472 511 5 436 544 544 4 4 57.2
NCF1884VY 420 520 56 2.1 1.5 499 925 2220 240 480 457 491 3.5 432 510 512 1.5 2 25.7
NCF1884V 420 520 46 2.1 1.5 499 685 1500 240 480 457 489 3.5 432 510 512 1.5 2 20.5
NCF2988V 440 600 95 4 4 563 1760 4350 210 430 502 545 6 455 588 588 3 3 79.6
NCF2988X2V 440 600 60 1.5 2.1 563 1240 2440 210 430 502 545 3 455 588 588 2 1.5 50.6
NCF1888X1V 440 570 46 2.1 2.1 538.5 820 1630 220 450 486 525 3.5 458 558 559 2 2 29.8
NCF2888V 440 540 60 2.1 2.1 516 1020 2550 220 450 476 504 3.5 456 528 530 2 2 28.9
NCF2992V 460 620 95 4 4 576 1870 4500 190 400 521 559 4 475 605 605 3.5 3.5 78.3
NCF2892V 460 580 72 3 3 553 1300 3050 200 430 502 540 5 474 566 566 2.5 2.5 44
NCF1892V/C9 460 580 56 3 3 553 1050 2100 200 430 502 540 5 474 566 566 2.5 2.5 34.4
NCF1892V 460 580 56 3 3 553 1050 2100 200 430 502 540 5 474 566 566 2.5 2.5 34.4
NCF2996V 480 650 100 5 5 607 2250 4900 190 380 537 589 7 500 630 630 4 4 89.1
NCF1896VY 480 600 76 3 3 573.5 1410 3430 200 400 522 561 5 494 586 586 2.5 2.5 45.2
NCF2896V 480 600 72 3 3 573.5 1340 3250 200 400 520 562 5 492 586 586 2.5 2.5 45.4
NCF1896V 480 600 56 3 3 573.5 1060 2380 200 400 522 561 5 494 586 586 2.5 2.5 32.8
NCF29/500V 500 670 100 5 5 630.9 2380 5300 170 360 559 613 7 522 650 650 4 4 97.8
NCF18/500V 500 620 56 3 3 593.5 1030 2330 180 360 541.5 581.5 5 514 605 605 2.5 2.5 35.5
NCF29/530V 530 710 106 5 5 679 2600 5600 160 340 598 648 7 550 690 690 4 4 112
NCF29/530X2V 530 710 72 5 5 672 1800 3550 160 340 592 652 4.5 550 690 690 4 4 78.2
NCF18/530V/C9YB1 530 650 56 3 3 624.5 990 2240 170 360 573 612 5 543 635 635 2.5 2.5 37.8
NCF18/530V 530 650 56 3 3 624.5 990 2240 170 360 573 612 5 543 635 636 2.5 2.5 34.4
NCF30/560V/HC 560 820 195 6 6 771 5500 11500 130 300 651 745 16 684 796 796 5 5 336
NCF29/560V 560 750 112 5 5 709 3030 6700 150 320 622 687 7 578 730 730 4 4 133
NCF19/560X2V 560 750 89 5 5 709 2200 4480 150 320 622 689 7 582 728 729 4 4 104
NCF29/560X2V 560 750 72 5 5 709 2020 3950 150 320 622 687 4.5 578 730 730 4 4 86.7
NCF29/600V 600 800 118 5 5 753 3100 7000 140 300 668 726 7 624 778 778 4 4 163
NCF19/600V 600 800 90 5 5 753 2310 4700 140 300 668 726 7 624 778 778 4 4 122
NCF28/600V 600 730 78 3 3 696 1570 4300 150 320 644 684 6 614 716 716 2.5 2.5 67
NCF18/600V/HCER 600 730 60 3 3 696 1080 2620 150 320 644 684 7 614 716 716 2.5 2.5 49.7
NCF18/600V 600 730 60 3 3 696 1050 2530 150 320 644 684 7 614 716 716 2.5 2.5
NCF29/630V 630 850 128 6 6 801 3500 7650 130 280 704 776 8 654 824 824 5 5 202
NCF28/630V 630 780 88 4 4 739 1900 5150 140 300 683 752 8 645 764 764 3 3 94.1
NCF18/630V/HCR 630 780 69 4 4 742 1460 3450 140 300 682 726 8 646 764 764 3 3 70.8
NCF29/670V 670 900 136 6 6 845.5 4000 9500 120 260 750 821 10 696 872 872 5 5 244
NCF28/670V/C9YB1 670 820 88 4 4 783 1890 5150 130 280 727 767 8 686 804 804 3 3 98.9
NCF18/670V/HCR 670 820 69 4 4 783 1320 3230 130 280 727 767 8 686 804 804 3 3 72.6
NCF18/670V/HC 670 820 69 4 4 783 1320 3230 130 280 727 767 8 686 804 804 3 3 72.6
NCF18/670V 670 820 69 4 4 783 1320 3230 130 280 727 767 8 686 804 804 3 3 72.6
NCF29/710V 710 950 140 6 6 895 4350 10100 110 240 791 869 10 736 924 924 5 5 274
NCF28/710N2V 710 870 95 4 4 831 2290 6200 120 260 767 738 8 726 854 854 3 3 119
NCF29/750V 750 1000 145 6 6 942 4400 10600 100 230 839.6 916 11 776 974 974 5 5 316
NCF28/750V 750 920 100 5 5 878 2720 6590 110 250 812 862 8 774 898 898 4 4 140
NCF29/800V 800 1060 150 6 6 1000.5 4700 11200 95 200 895.2 970 11 826 1034 1034 5 5 359
NCF29/800X2V 800 1060 106 6 6 1000.5 3450 7600 95 200 895.2 970 7 826 1034 1034 5 5 253
NCF28/800V 800 980 106 5 5 935.5 2860 7600 100 220 862 919 7 824 958 958 4 4 170
NCF18/800V 800 980 82 5 5 935.5 1970 4900 100 220 862 919 7 820 960 960 4 4 126
NCF28/850V 850 1030 106 5 5 985 2910 8100 100 210 910 968 10 874 1006 1008 5 5 175
NCF29/900V 900 1180 165 6 6 1120 5950 14500 90 190 996 1093 13 934 1146 1148 5 5 469
NCF28/900V 900 1090 112 5 5 1043 3150 8900 95 200 966 1024 10 938 1050 1060 5 5 210
NCF28/950V 950 1150 118 5 5 1101 3500 9600 85 185 1013 1083 12 974 1143 1144 5 5 238
NCF29/1000V 1000 1320 185 7.5 7.5 1251 7400 18500 80 180 1115 1217 14 1030 1232 1232 6 6 675
Bearing part number D Weight
mm kg
NUP2305V 62 0.401
NJ2305V/C3YA46 62 0.378
NJ305X2V/C3YA46 62 0.321
NUP2205NV/HAC9Y 52 0.173
NUP2205NV/HAC9YA 52 0.193
NU2205V/C9YA6 52 0.176
NUP2205NV/C91YAD 52 0.193
NU306X3V 80 0.565
NCL3306X2V 72 0.647
NU306X2V 72 0.431
NU306EV/C9YA6 72 0.399
NCF306V/YA6-DANA 72 0.395
NCL2206X2V/YA6 62 0.272
NJ607NV/YB2 90 0.998
NJ607NV 90 0.998
NUP307X3EV/C3YAB 90 0.79
NUP2207X1V/C9YB2-SG 90 0.795
NUP307X3EV/C3 90 0.79
NCF407X3V/C9YA6 90 0.763
NUP407X3V/C9YA6 90 0.75
NJ2207X1V/C9YB2 90 0.78
NUP2207X1V/C9YB2 90 0.795
NFP2207X1V 82 0.681
NJ607V 80 0.568
NCF307V/YA6-DANA 80 0.551
NJ307EV/C9YAD 80 0.537
NJ307EV/YA4 80 0.54
NJ307EV 80 0.54
NUP307NV/C9 80 0.546
NJ307NV/C9 80 0.548
NCF308X3V/YA6-DANA 100 1.05
NJ608V/YA13 94 1.02
NJ2308V/C9YA6 90 1.02
NCF308X2V 90 0.755
NJ308V/C3YA5 90 0.724
NJ308V/C9YA6 90 0.719
NJ308V 90 0.719
NUP308NV 90 0.499
NJ3208X2V/C9 80 0.724
NJ2309X2NRV/C3YA6 100 1.21
NJ2309X2NV/C9YA26 100 1.17
NUP309ENRV/C3YA6 100 1.02
NUP309EV/C3 100 0.996
NJ309V 100 0.904
NJ6/48V/C9YA6 120 2.18
NUP310NRV/HAC3YA6 110 1.32
NJ310V/HAC3YA6 110 1.25
NJ310V 110 1.25
NUP310NV 110 1.28
NU4010X2V/YAB 80 0.575
NUP311NRV 120 1.69
NUP311NV 120 1.63
NUP6/56V 160 7.29
NJ2212EV/YA6 110 1.17
NUP313NRV/C3 140 2.59
NUP313NRV/HAC3YA6 140 2.59
NUP313NV 140 2.15
NUP314NV/YA6 150 2.96
NUP314NV/HA 150 2.96
NJ2315V 160 5.16
NUP2215V-2ZL 130 1.91
NCF3015V 115 1.05
170 7.19
NUP2316WBV 170 6.51
NUP317EV-RSZ 180 5.06
NCF2917V 120 0.718
NCF2218V 160 3.53
NCL6/114.3V/W33X 152.4 2.81
NCF2224V 215 8.97
NJ2228EV/YA4 250 14.1
NCF2930V 210 3.89
NCF2932V 220 3.98
NCF3036V 280 16.9
NCF2936V 250 4.35
NCF2238V 340 34.9
NCF3038V 290 17.3
NCF2938V 260 4.52
NCF2940V 280 8.91
NCF1840X1V 270 3.96
NCF2940V 280 8.91
NCF2944V 300 9.68
NCF3048V 360 32.7
NCF2948V 320 10.2
NCF2948X2V 320 6.05
NCF3052V 400 44.1
NCF2952V 360 17
NCF1852V 320 4.6
NCF2956V 380 19.9
NCF3060V 460 71.1
NCF2960V/HC 420 31
NCF2960V 420 31
NCF1860V/C9 380 9.95
NCF1064X1V 500 52.4
NCF3064V 480 75.9
NCF2964V 440 30
NCF1864V 400 10.7
NCF3068V/HC 520 98.6
NCF2968V 460 34.3
NCF1868V/C9 420 11.3
NCF1072X1V 520 55.1
NCF2972V 480 36.6
NCF2976V 520 52.9
NCF1876VY 480 21.7
NCF1876V 480 17
NCF2980V 540 52.8
NCF1880X1V 530 27.3
NCF1880V 500 20.1
NCF2984V 560 57.2
NCF1884VY 520 25.7
NCF1884V 520 20.5
NCF2988V 600 79.6
NCF2988X2V 600 50.6
NCF1888X1V 570 29.8
NCF2888V 540 28.9
NCF2992V 620 78.3
NCF2892V 580 44
NCF1892V/C9 580 34.4
NCF1892V 580 34.4
NCF2996V 650 89.1
NCF1896VY 600 45.2
NCF2896V 600 45.4
NCF1896V 600 32.8
NCF29/500V 670 97.8
NCF18/500V 620 35.5
NCF29/530V 710 112
NCF29/530X2V 710 78.2
NCF18/530V/C9YB1 650 37.8
NCF18/530V 650 34.4
NCF30/560V/HC 820 336
NCF29/560V 750 133
NCF19/560X2V 750 104
NCF29/560X2V 750 86.7
NCF29/600V 800 163
NCF19/600V 800 122
NCF28/600V 730 67
NCF18/600V/HCER 730 49.7
NCF18/600V 730
NCF29/630V 850 202
NCF28/630V 780 94.1
NCF18/630V/HCR 780 70.8
NCF29/670V 900 244
NCF28/670V/C9YB1 820 98.9
NCF18/670V/HCR 820 72.6
NCF18/670V/HC 820 72.6
NCF18/670V 820 72.6
NCF29/710V 950 274
NCF28/710N2V 870 119
NCF29/750V 1000 316
NCF28/750V 920 140
NCF29/800V 1060 359
NCF29/800X2V 1060 253
NCF28/800V 980 170
NCF18/800V 980 126
NCF28/850V 1030 175
NCF29/900V 1180 469
NCF28/900V 1090 210
NCF28/950V 1150 238
NCF29/1000V 1320 675

Cylindrical Roller Bearings

Split Cylindrical Roller Bearings

split cylindrical roller bearings
Bearing part number Basic dimensions
mm		 Basic load ratings
kN		 Other dimensions
mm		 Weight
kg
d D B C r1min rmin Cr Cor D1 d1 G b δ
N640D-1 200 368.3 156.369 90.488 4 4 1060 1600 244 290 8.5 6º 61.4
N640D 200 368.3 156.369 90.488 4 4 1060 1600 312 244 290 8.5 6º 63
N680D 400 685.8 292 166.7 3 8 3340 6250 596 458 548 12 6º 378
ND69/500X2D/DR-SY 500 670 450 360 5 5 3300 8700 613 543 610 6º 402
ND6/620D/DR 620 820 380 290 5 12 3400 9100 752 671 740 6º 505
ND6/630D/DR 630 794 380 278 5 10 3500 9400 740 676 736 10 6º 407
ND6/650D-1/DR 650 840 390 300 6 6 4130 11200 794 706 772 6º 538
ND6/650D/DR 650 820 380 290 5 17 3250 9100 762 700 758 6º 455
ND6/700D/HCRYA8 700 870 380 290 12 12 3500 10200 749 811 821 10 6º 494
N6/711.2DF3 711.2 892.2 184.15 87.3 5 7.5 1790 5600 823 767.5 820 8 6º 225
N6/711.2D 711.2 892.2 184.15 87.3 5 7.5 1790 5600 823 767.5 820 8 6º 225
ND6/750DF3/HCR 750 960 380 290 5 15 3940 10800 887 806 870 6º 626
ND6/750D/HCR 750 960 380 290 5 15 3940 10800 887 806 870 6º 626
N6/750DF3 750 920 185 106 7.5 7.5 2400 6250 864 802 863 8 6º 241
N6/750D 750 920 185 106 7.5 7.5 2400 6250 864 802 863 8 6º 241
ND6/770D/HCR 770 950 380 290 6 6 3950 11700 890 820 882 6º 550
Bearing part number D Weight
mm  kg
N640D-1 368.3 61.4
N640D 368.3 63
N680D 685.8 378
ND69/500X2D/DR-SY 670 402
ND6/620D/DR 820 505
ND6/630D/DR 794 407
ND6/650D-1/DR 840 538
ND6/650D/DR 820 455
ND6/700D/HCRYA8 870 494
N6/711.2DF3 892.2 225
N6/711.2D 892.2 225
ND6/750DF3/HCR 960 626
ND6/750D/HCR 960 626
N6/750DF3 920 241
N6/750D 920 241
ND6/770D/HCR 950 550

RELATED PRODUCTS

spherical

Radial Roller Bearings

Spherical Roller Bearings

Tapered Roller Bearings

Radial Roller Bearings

Tapered Roller Bearings

double Direction Angular Contanct Ball Bearings

Radial Ball Bearings

Angular Contanct Ball Bearings

Thrust ball bearing with cover

Thrust Ball Bearings

Thrust Ball Bearing With Cover

Send us mail

6 + 1 = ?
