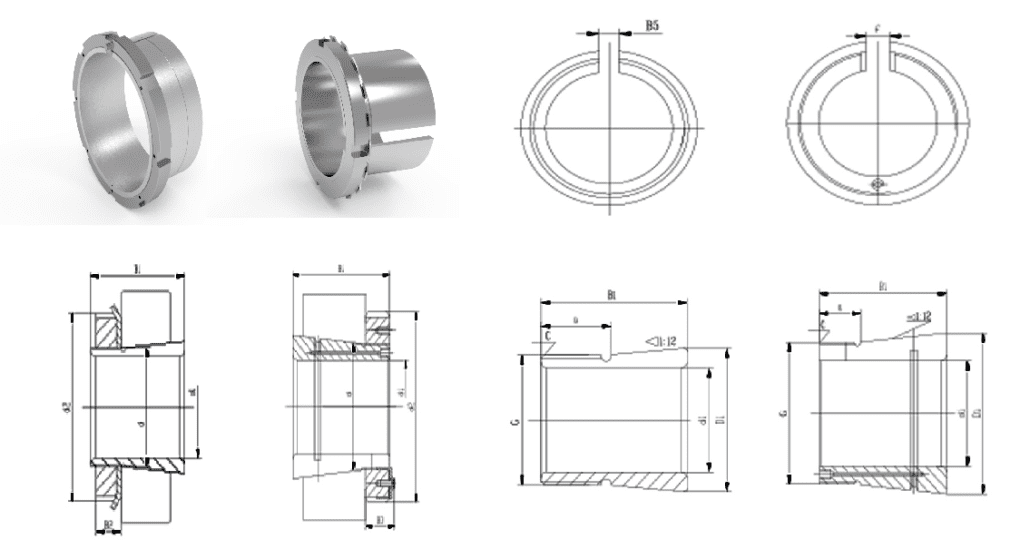

Adapter sleeve
Adapter sleeve code Boundary dimensions
mm		 Components of adapter sleeves Bearing ID code
d1 d2 B1 B2≈ B3max Adapter Sleeves Lock nut a Lock washer a Locking clip
H241/1060 1000 1300 775 154 A241/1060 HM/1060 MS/1000 /1060
H241/1000 950 1240 755 154 A241/1000 HM/1000 MS/1000 /1000
H241/950 900 1170 715 154 A241/950 HM/950 MS/950 /950
H241/900 850 1120 685 154 A241/900 HM/900 MS/900 /900
H241/850 800 1060 658 147 A241/850 HM/850 MS/850 /850
H241/800 750 1000 627 141 A241/800 HM/800 MS/800 /800
H241/750 710 950 622 141 A241/750 HM/750 MS/750 /750
H241/710 270 900 577 135 A241/710 HM/710 MS/710 /710
H241/670 630 850 548 131 A241/670 HM/670 MS/670 /670
H241/630 600 800 525 120 A241/630 HM/630 MS/630 /630
H241/600 560 750 490 110 A241/600 HM/600 MS/600 /600
H241/560 530 710 468 110 A241/560 HM/560 MS/560 /560
H241/530 500 670 440 105 A241/530 HM/530 MS/530 /530
H241/500 470 630 430 100 A241/500 HM/500 MS/500 /500
H24196 450 620 408 95 A24196 HM96 MS96 96
H24192 430 580 398 95 A24192 HM92 MS88 92
H24188 410 560 372 90 A24188 HM88 MS88 88
H24184 400 540 372 90 A24184 HM84 MS80 84
H24180 380 520 332 82 A24180 HM80 MS80 80
H24176 360 490 323 77 A24176 HM76 MS76 76
H24172 340 460 321 75 A24172 HM72 MS68 72
H24168 320 440 317 72 A24168 HM68 MS68 68
H24164 300 400 278 56 A24164 HM64 MS64 64
H24160 280 380 258 53 A24160 HM60 MS60 60
H24156 260 350 238 51 A24156 HM56 MS52 56
H24152 240 330 235 49 A24152 HM52 MS52 52
H24148 220 300 212 46 A24148 HM48 MS44 48
H24144 200 280 199 44 A24144 HM44 MS44 44
H24140 180 250 185 32 A24140 KM40 MB40 40
H24138 170 240 172 31 A24138 KM38 MB38 38
H24136 160 230 159 30 A24136 KM36 MB36 36
H24134 150 220 149 29 A24134 KM34 MB34 34
H24132 140 210 148 28 A24132 KM32 MB32 32
H24130 135 195 137 26 A24130 KM30 MB30 30
H24128 125 180 119 24 A24128 KM28 MB28 28
H24126 115 165 113 23 A24126 KM26 MB26 26
H24124 110 155 111 22 A24124 KM24 MB24 24
H24122 100 145 99 21 A24122 KM22 MB22 22
H24120 90 130 94 20 A24120 KM20 MB20 20
H39/1060 1000 1200 372 125 A39/1060 HML/1060 HML/1000 /1060
H39/1000 950 1140 358 125 A39/1000 HML/1000 HML/1000 /1000
H39/950 900 1080 344 125 A39/950 HML/950 HML/950 /950
H39/900 850 1030 326 125 A39/900 HML/900 HML/850 /900
H39/850 800 980 308 115 A39/850 HML/850 HML/850 /850
H39/800 750 920 303 112 A39/800 HML/800 HML/750 /800
H39/750 710 870 291 112 A39/750 HML/750 HML/750 /750
H39/710 670 830 286 112 A39/710 HML/710 HML/710 /710
H39/670 630 780 264 102 A39/670 HML/670 HML/670 /670
H39/630 600 730 254 97 A39/630 HML/630 HML/630 /630
H39/600 560 700 239 97 A39/600 HML/600 HML/560 /600
H39/560 530 650 227 97 A39/560 HML/560 HML/560 /560
H39/530 500 630 216 90 A39/530 HML/530 HML/530 /530
H39/500 470 580 208 85 A39/500 HML/500 MSL96 /500
H3996 450 560 200 77 A3996 HML96 MSL96 96
H3992 430 540 189 77 A3992 HML92 MSL88 92
H3988 410 520 189 77 A3988 HML88 MSL88 88
H3984 400 490 168 66 A3984 HML84 MSL84 84
H3980 380 470 168 66 A3980 HML80 MSL76 80
H3976 360 450 164 62 A3976 HML76 MSL76 76
H3972 340 420 144 58 A3972 HML72 MSL72 72
H3968 320 400 144 58 A3968 HML68 MSL64 68
H3964 300 380 140 55 A3964 HML64 MSL64 64
H3960 280 360 140 54 A3960 HML60 MSL60 60
H3956 260 330 121 50 A3956 HML56 MSL56 56
H3952 240 310 116 46 A3952 HML52 MSL48 52
H3948 220 290 101 46 A3948 HML48 MSL48 48
H3944 200 260 96 41 A3944 HML44 MSL44 44
H3940 180 240 98 32 A3940X KML40 MBL40 40
H3938 170 220 89 31 A3938X KML38 MBL38 38
H3936 160 210 87 30 A3936X KML36 MBL36 36
H3934 150 200 79 29 A3934X KML34 MBL34 34
H3932 140 190 78 28 A3932X KML32 MBL32 32
H3930 135 180 76 26 A3930X KML30 MBL30 30
H3928 125 165 66 24 A3928X KML28 MBL28 28
H3926 115 155 65 23 A3926X KML26 MBL26 26
H2356 260 350 224 51 A2356 KM56 MS52 56
H2352 240 330 211 49 A2352 KM52 MS52 52
H2348 220 300 199 46 A2348 KM48 MS44 48
H2344 200 280 186 44 A2344 KM44 MS44 44
H2340 180 250 176 32 A2340X KM40 MB40 40
H2338 170 240 169 31 A2338X KM38 MB38 38
H2336 160 230 161 30 A2336X KM36 MB36 36
H2334 150 220 154 29 A2334X KM34 MB34 34
H2332 140 210 147 28 A2332X KM32 MB32 32
H2330 135 195 139 26 A2330X KM30 MB30 30
H2328 125 180 131 24 A2328X KM28 MB28 28
H2326 115 165 121 23 A2326X KM26 MB26 26
H2324 110 155 112 22 A2324X KM24 MB24 24
H2322 100 140 105 21 A2322X KM22 MB22 22
H2321 95 140 101 20 A2321X KM21 MB21 21
H2320 90 130 97 20 A2320X KM20 MB20 20
H2319 85 125 90 19 A2319X KM19 MB19 19
H2318 80 120 86 18 A2318X KM18 MB18 18
H2317 75 110 82 18 A2317X KM17 MB17 17
H2316 70 105 78 17 A2316X KM16 MB16 16
H2315 65 98 73 15 A2315X KM15 MB15 15
H2314 60 92 68 14 A2314X KM14 MB14 14
H2313 60 85 65 14 A2313X KM13 MB13 13
H2312 55 80 62 13 A2312X KM12 MB12 12
H2311 50 75 59 12 A2311X KM11 MB11 11
H2310 45 70 55 12 A2310X KM10 MB10 10
H2309 40 65 50 11 A2309X KM09 MB09 9
H2308 35 58 46 10 A2308X KM08 MB08 8
H2307 30 52 43 9 A2307X KM07 MB07 7
H2306 25 45 38 8 A2306X KM06 MB06 6
H2305 20 38 35 8 A2305X KM05 MB05 5
H2304 17 32 31 7 A2304X KM04 MB04 4
H2303 14 28 27 6 A2303X KM03 MB03 3
H322 100 145 77 A322X KM22 MB22 22
H321 95 140 74 A321X KM21 MB21 21
H320 90 130 71 A320X KM20 MB20 20
H319 85 125 68 A319X KM19 MB19 19
H318 80 120 65 A318X KM18 MB18 18
H317 75 110 63 A317X KM17 MB17 17
H316 70 105 59 A316X KM16 MB16 16
H315 65 98 55 A315X KM15 MB15 15
H314 60 92 52 A314X KM14 MB14 14
H313 60 85 50 A313X KM13 MB13 13
H312 55 80 47 A312X KM12 MB12 12
H311 50 75 45 A311X KM11 MB11 11
H310 45 70 42 A310X KM10 MB10 10
H309 40 65 39 A309X KM09 MB09 9
H308 35 58 36 A308X KM08 MB08 8
H307 30 52 35 A307X KM07 MB07 7
H306 25 45 31 A306X KM06 MB06 6
H305 20 38 29 A305X KM05 MB05 5
H304 17 32 28 A304X KM04 MB04 4
H303 14 28 24 A303X KM03 MB03 3
H222 100 145 63 21 A222X KM22 MB22 22
H221 95 140 60 20 A221X KM21 MB21 21
H220 90 130 58 20 A220X KM20 MB20 20
H219 85 125 55 19 A219X KM19 MB19 19
H218 80 120 52 18 A218X KM18 MB18 18
H217 75 110 50 18 A217X KM17 MB17 17
H216 70 105 46 17 A216X KM16 MB16 16
H215 65 98 43 15 A215X KM15 MB15 15
H214 60 92 41 14 A214X KM14 MB14 14
H213 60 85 40 14 A213X KM13 MB13 13
H212 55 80 38 13 A212X KM12 MB12 12
H211 50 75 37 12 A211X KM11 MB11 11
H210 45 70 35 12 A210X KM10 MB10 10
H209 40 65 33 11 A209X KM09 MB09 9
H208 35 58 31 10 A208X KM08 MB08 8
H207 30 52 29 9 A207X KM07 MB07 7
H206 25 45 27 8 A206X KM06 MB06 6
H205 20 38 26 8 A205X KM05 MB05 5
H204 17 32 24 7 A204X KM04 MB04 4
H203 14 28 20 6 A203X KM03 MB03 3
H202 12 25 19 6 A202X KM02 MB02 2
H31/1060 1000 1300 622 154 A31/1060X HM/1060 MS/1000 /1060
H31/1000 950 1240 609 154 A31/1000X HM/1000 MS/1000 /1000
H31/950 900 1170 583 154 A31/950X HM/950 MS/950 /950
H31/900 850 1120 557 154 A31/900X HM/900 MS/900 /900
H31/850 800 1060 536 147 A31/850X HM/850 MS/850 /850
H31/800 750 1000 505 141 A31/800X HM/800 MS/750 /800
H31/750 710 950 493 141 A31/750X HM/750 MS/750 /750
H31/710 670 900 467 135 A31/710X HM/710 MS/710 /710
H31/670 630 850 456 131 A31/670X HM/670 MS/670 /670
H31/630 600 800 424 120 A31/630X HM/630 MS/630 /630
H31/600 560 750 399 110 A31/600X HM/600 MS/560 /600
H31/560 530 710 377 110 A31/560X HM/560 MS/560 /560
H31/530 500 670 364 105 A31/530X HM/530 MS/530 /530
H31/500 470 630 356 100 A31/500X HM/500 MS/500 /500
H3196 450 620 335 95 A3196X HM96 MS96 96
H3192 430 580 326 95 A3192X HM92 MS88 92
H3188 410 560 307 90 A3188X HM88 MS88 88
H3184 400 540 304 90 A3184X HM84 MS80 84
H3180 380 520 272 82 A3180X HM80 MS80 80
H3176 360 490 264 77 A3176X HM76 MS76 76
H3172 340 460 259 75 A3172X HM72 MS68 72
H3168 320 440 254 72 A3168X HM68 MS68 68
H3164 300 400 226 56 A3164X HM64 MS64 64
H3160 280 380 208 53 A3160X HM60 MS60 60
H3156 260 350 195 51 A3156X HM56 MS52 56
H3152 240 330 190 49 A3152X HM52 MS52 52
H3148 220 300 172 46 A3148X HM48 MS44 48
H3144 200 280 161 44 A3144X HM44 MS44 44
H3140 180 250 150 32 A3140X KM40 MB40 40
H3138 170 240 140 31 A3138X KM38 MB38 38
H3136 160 230 131 30 A3136X KM36 MB36 36
H3134 150 220 122 29 A3134X KM34 MB34 34
H3132 140 210 119 28 A3132X KM32 MB32 32
H3130 135 195 111 26 A3130X KM30 MB30 30
H3128 125 180 97 24 A3128X KM28 MB28 28
H3126 115 165 92 23 A3126X KM26 MB26 26
H3124 110 155 88 22 A3124X KM24 MB24 24
H3122 100 145 81 21 A3122X KM22 MB22 22
H3121 95 140 80 20 A3121X KM21 MB21 21
H3120 90 130 76 20 A3120X KM20 MB20 20
H30/1060 1000 1200 447 125 A30/1060 HML/1060 MSL/1060 /1060
H30/1000 950 1140 430 125 A30/1000 HML/1000 MSL/1000 /1000
H30/950 900 1080 420 125 A30/950 HML/950 MSL/950 /950
H30/900 850 1030 400 125 A30/900 HML/900 MSL/900 /900
H30/850 800 980 380 115 A30/850 HML/850 MSL/850 /850
H30/800 750 920 366 112 A30/800 HML/800 MSL/800 /800
H30/750 710 870 356 112 A30/750 HML/750 MSL/750 /750
H30/710 670 830 342 112 A30/700 HML/710 MSL/710 /710
H30/670 630 780 324 102 A30/670 HML/670 MSL/670 /670
H30/630 600 730 301 97 A30/630 HML/630 MSL/630 /630
H30/600 560 700 289 97 A30/600 HML/600 MSL/600 /600
H30/560 500 650 282 97 A30/560 HML/560 MSL/560 /560
H30/530 500 630 265 90 A30/530 HML/530 MSL/530 /530
H30/500 470 580 247 85 A30/500 HML/500 MSL/500 /500
H3096 450 560 237 77 A3096 HML96 MSL96 96
H3092 430 540 234 77 A3092 HML92 MSL88 92
H3088 410 520 228 77 A3088 HML88 MSL88 88
H3084 400 490 212 66 A3084 HML84 MSL84 84
H3080 380 470 210 66 A3080 HML80 MSL76 80
H3076 360 450 193 62 A3076 HML76 MSL76 76
H3072 340 420 188 58 A3072 HML72 MSL72 72
H3068 320 400 187 58 A3068 HML68 MSL64 68
H3064 300 380 171 55 A3064 HML64 MSL64 64
H3060 280 360 168 54 A3060 HML60 MSL60 60
H3056 260 330 152 50 A3056 HML56 MSL56 56
H3052 240 310 145 46 A3052 HML52 MSL48 52
H3048 220 290 133 46 A3048 HML48 MSL48 48
H3044 200 260 126 41 A3044 HML44 MSL44 44
H3040 180 240 120 32 A3040X KML40 MBL40 40
H3038 170 220 112 31 A3038X KML38 MBL38 38
H3036 160 210 109 30 A3036X KML36 MBL36 36
H3034 150 200 101 29 A3034X KML34 MBL34 34
H3032 140 190 93 28 A3032X KML32 MBL32 32
H3030 135 180 87 26 A3030X KML30 MBL30 30
H3028 125 165 82 24 A3028X KML28 MBL28 28
H3026 115 155 80 23 A3026X KML26 MBL26 26
H3024 110 145 72 22 A3024X KML24 MBL24 24
Adapter sleeve code Boundary dimensions
mm
d1 d2 B1
H241/1060 1000 1300 775
H241/1000 950 1240 755
H241/950 900 1170 715
H241/900 850 1120 685
H241/850 800 1060 658
H241/800 750 1000 627
H241/750 710 950 622
H241/710 270 900 577
H241/670 630 850 548
H241/630 600 800 525
H241/600 560 750 490
H241/560 530 710 468
H241/530 500 670 440
H241/500 470 630 430
H24196 450 620 408
H24192 430 580 398
H24188 410 560 372
H24184 400 540 372
H24180 380 520 332
H24176 360 490 323
H24172 340 460 321
H24168 320 440 317
H24164 300 400 278
H24160 280 380 258
H24156 260 350 238
H24152 240 330 235
H24148 220 300 212
H24144 200 280 199
H24140 180 250 185
H24138 170 240 172
H24136 160 230 159
H24134 150 220 149
H24132 140 210 148
H24130 135 195 137
H24128 125 180 119
H24126 115 165 113
H24124 110 155 111
H24122 100 145 99
H24120 90 130 94
H39/1060 1000 1200 372
H39/1000 950 1140 358
H39/950 900 1080 344
H39/900 850 1030 326
H39/850 800 980 308
H39/800 750 920 303
H39/750 710 870 291
H39/710 670 830 286
H39/670 630 780 264
H39/630 600 730 254
H39/600 560 700 239
H39/560 530 650 227
H39/530 500 630 216
H39/500 470 580 208
H3996 450 560 200
H3992 430 540 189
H3988 410 520 189
H3984 400 490 168
H3980 380 470 168
H3976 360 450 164
H3972 340 420 144
H3968 320 400 144
H3964 300 380 140
H3960 280 360 140
H3956 260 330 121
H3952 240 310 116
H3948 220 290 101
H3944 200 260 96
H3940 180 240 98
H3938 170 220 89
H3936 160 210 87
H3934 150 200 79
H3932 140 190 78
H3930 135 180 76
H3928 125 165 66
H3926 115 155 65
H2356 260 350 224
H2352 240 330 211
H2348 220 300 199
H2344 200 280 186
H2340 180 250 176
H2338 170 240 169
H2336 160 230 161
H2334 150 220 154
H2332 140 210 147
H2330 135 195 139
H2328 125 180 131
H2326 115 165 121
H2324 110 155 112
H2322 100 140 105
H2321 95 140 101
H2320 90 130 97
H2319 85 125 90
H2318 80 120 86
H2317 75 110 82
H2316 70 105 78
H2315 65 98 73
H2314 60 92 68
H2313 60 85 65
H2312 55 80 62
H2311 50 75 59
H2310 45 70 55
H2309 40 65 50
H2308 35 58 46
H2307 30 52 43
H2306 25 45 38
H2305 20 38 35
H2304 17 32 31
H2303 14 28 27
H322 100 145 77
H321 95 140 74
H320 90 130 71
H319 85 125 68
H318 80 120 65
H317 75 110 63
H316 70 105 59
H315 65 98 55
H314 60 92 52
H313 60 85 50
H312 55 80 47
H311 50 75 45
H310 45 70 42
H309 40 65 39
H308 35 58 36
H307 30 52 35
H306 25 45 31
H305 20 38 29
H304 17 32 28
H303 14 28 24
H222 100 145 63
H221 95 140 60
H220 90 130 58
H219 85 125 55
H218 80 120 52
H217 75 110 50
H216 70 105 46
H215 65 98 43
H214 60 92 41
H213 60 85 40
H212 55 80 38
H211 50 75 37
H210 45 70 35
H209 40 65 33
H208 35 58 31
H207 30 52 29
H206 25 45 27
H205 20 38 26
H204 17 32 24
H203 14 28 20
H202 12 25 19
H31/1060 1000 1300 622
H31/1000 950 1240 609
H31/950 900 1170 583
H31/900 850 1120 557
H31/850 800 1060 536
H31/800 750 1000 505
H31/750 710 950 493
H31/710 670 900 467
H31/670 630 850 456
H31/630 600 800 424
H31/600 560 750 399
H31/560 530 710 377
H31/530 500 670 364
H31/500 470 630 356
H3196 450 620 335
H3192 430 580 326
H3188 410 560 307
H3184 400 540 304
H3180 380 520 272
H3176 360 490 264
H3172 340 460 259
H3168 320 440 254
H3164 300 400 226
H3160 280 380 208
H3156 260 350 195
H3152 240 330 190
H3148 220 300 172
H3144 200 280 161
H3140 180 250 150
H3138 170 240 140
H3136 160 230 131
H3134 150 220 122
H3132 140 210 119
H3130 135 195 111
H3128 125 180 97
H3126 115 165 92
H3124 110 155 88
H3122 100 145 81
H3121 95 140 80
H3120 90 130 76
H30/1060 1000 1200 447
H30/1000 950 1140 430
H30/950 900 1080 420
H30/900 850 1030 400
H30/850 800 980 380
H30/800 750 920 366
H30/750 710 870 356
H30/710 670 830 342
H30/670 630 780 324
H30/630 600 730 301
H30/600 560 700 289
H30/560 500 650 282
H30/530 500 630 265
H30/500 470 580 247
H3096 450 560 237
H3092 430 540 234
H3088 410 520 228
H3084 400 490 212
H3080 380 470 210
H3076 360 450 193
H3072 340 420 188
H3068 320 400 187
H3064 300 380 171
H3060 280 360 168
H3056 260 330 152
H3052 240 310 145
H3048 220 290 133
H3044 200 260 126
H3040 180 240 120
H3038 170 220 112
H3036 160 210 109
H3034 150 200 101
H3032 140 190 93
H3030 135 180 87
H3028 125 165 82
H3026 115 155 80
H3024 110 145 72

RELATED PRODUCTS

Adapter Sleeves

Adapter Sleeve

Adapter Sleeves

Six Row Cylindrical Roller

Slewing Bearings

External-Toothed Six Row Cylindrical Roller Slewing Bearings

Withdrawal-Sleeves

Withdrawal Sleeves

Withdrawal Sleeves

joint-bearings

Joint Bearings

Joint Bearings

Send us mail

0 + 3 = ?
